2015 JEEP GRAND CHEROKEE mirror controls

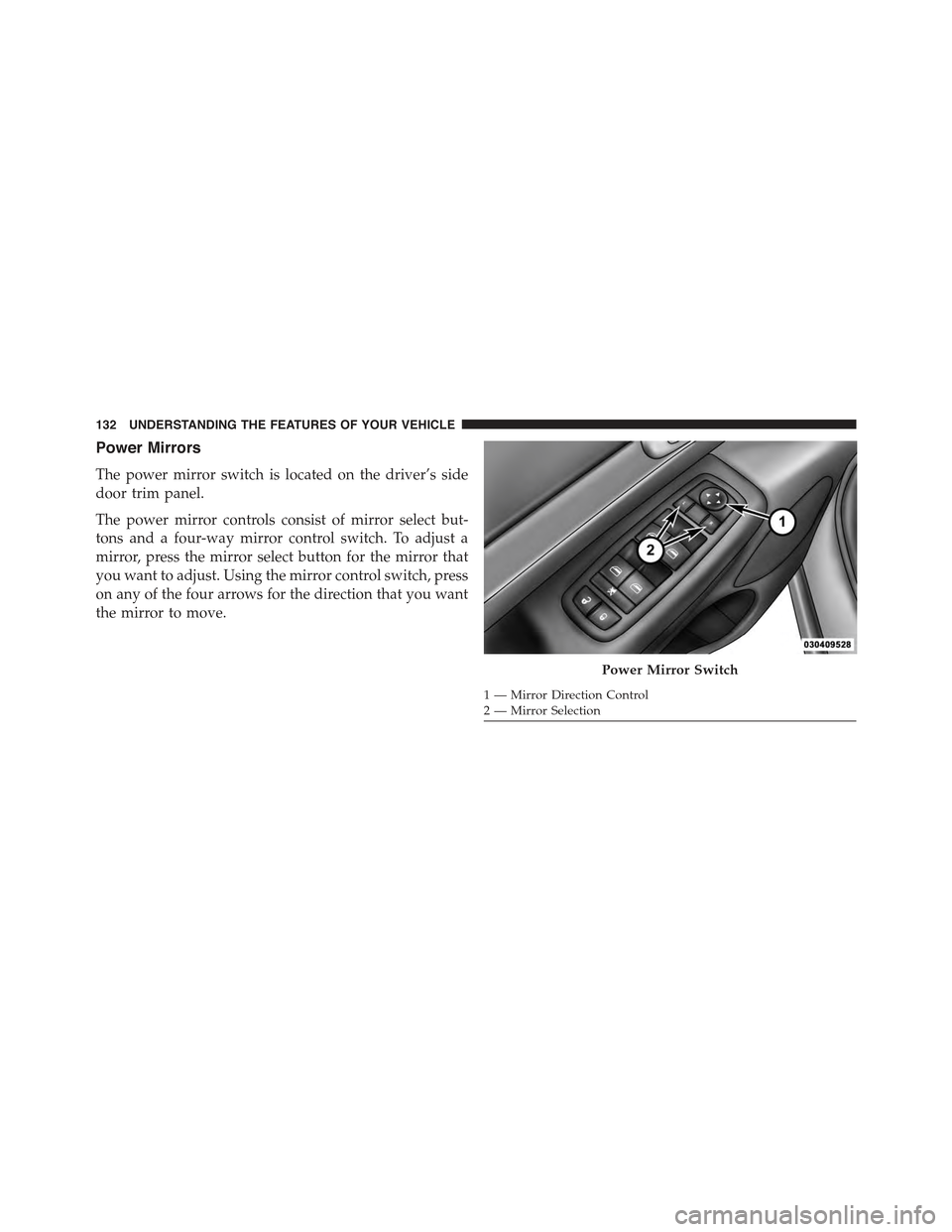

Power Mirrors
The power mirror switch is located on the driver’s side
door trim panel.
The power mirror controls consist of mirror select but-
tons and a four-way mirror control switch. To adjust a
mirror, press the mirror select button for the mirror that
you want to adjust. Using the mirror control switch, press
on any of the four arrows for the direction that you want
the mirror to move.
Power Mirror Switch
1 — Mirror Direction Control2 — Mirror Selection
132 UNDERSTANDING THE FEATURES OF YOUR VEHICLE

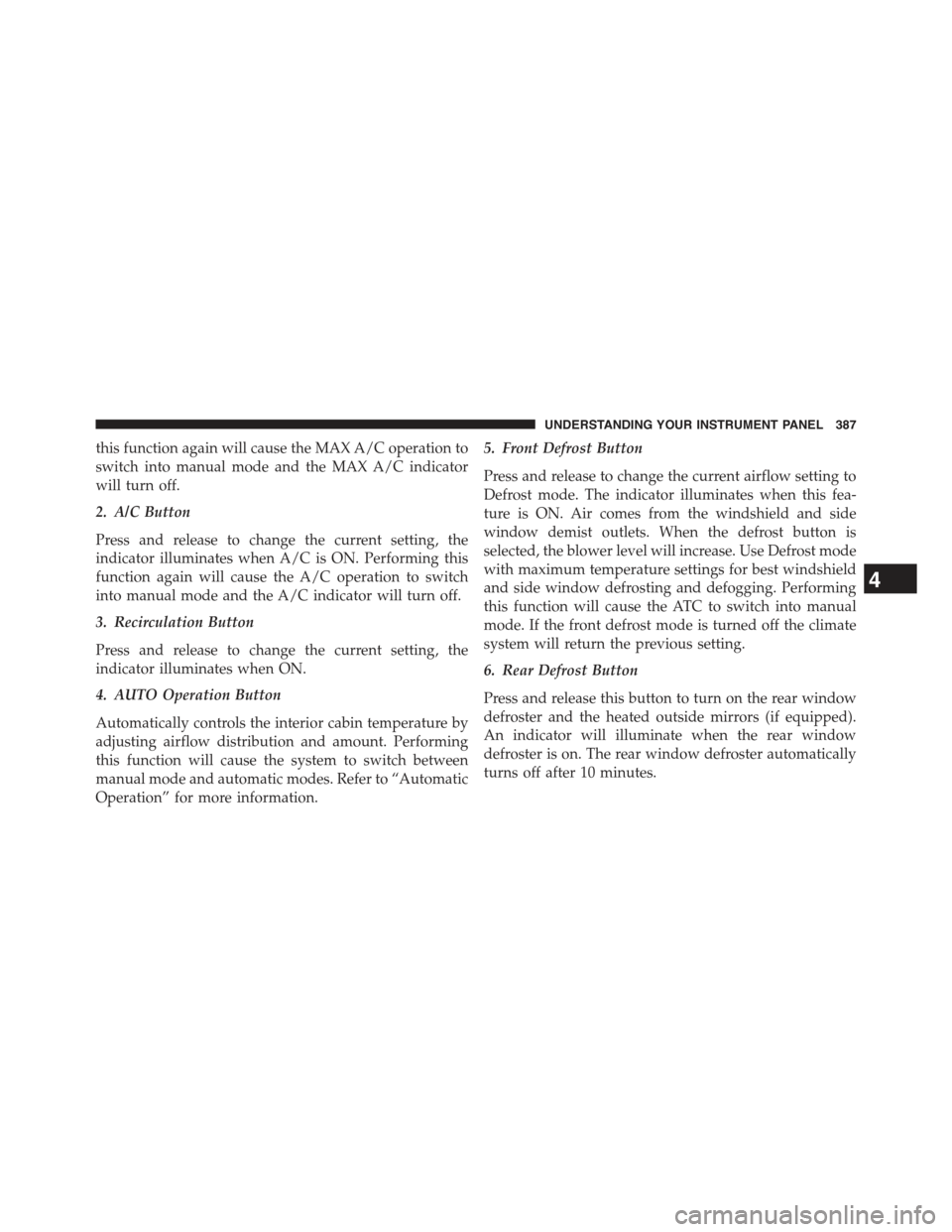

this function again will cause the MAX A/C operation to
switch into manual mode and the MAX A/C indicator
will turn off.
2. A/C Button
Press and release to change the current setting, the
indicator illuminates when A/C is ON. Performing this
function again will cause the A/C operation to switch
into manual mode and the A/C indicator will turn off.
3. Recirculation Button
Press and release to change the current setting, the
indicator illuminates when ON.
4. AUTO Operation Button
Automatically controls the interior cabin temperature by
adjusting airflow distribution and amount. Performing
this function will cause the system to switch between
manual mode and automatic modes. Refer to “Automatic
Operation” for more information.
5. Front Defrost Button
Press and release to change the current airflow setting to
Defrost mode. The indicator illuminates when this fea-
ture is ON. Air comes from the windshield and side
window demist outlets. When the defrost button is
selected, the blower level will increase. Use Defrost mode
with maximum temperature settings for best windshield
and side window defrosting and defogging. Performing
this function will cause the ATC to switch into manual
mode. If the front defrost mode is turned off the climate
system will return the previous setting.
6. Rear Defrost Button
Press and release this button to turn on the rear window
defroster and the heated outside mirrors (if equipped).
An indicator will illuminate when the rear window
defroster is on. The rear window defroster automatically
turns off after 10 minutes.
4
UNDERSTANDING YOUR INSTRUMENT PANEL 387

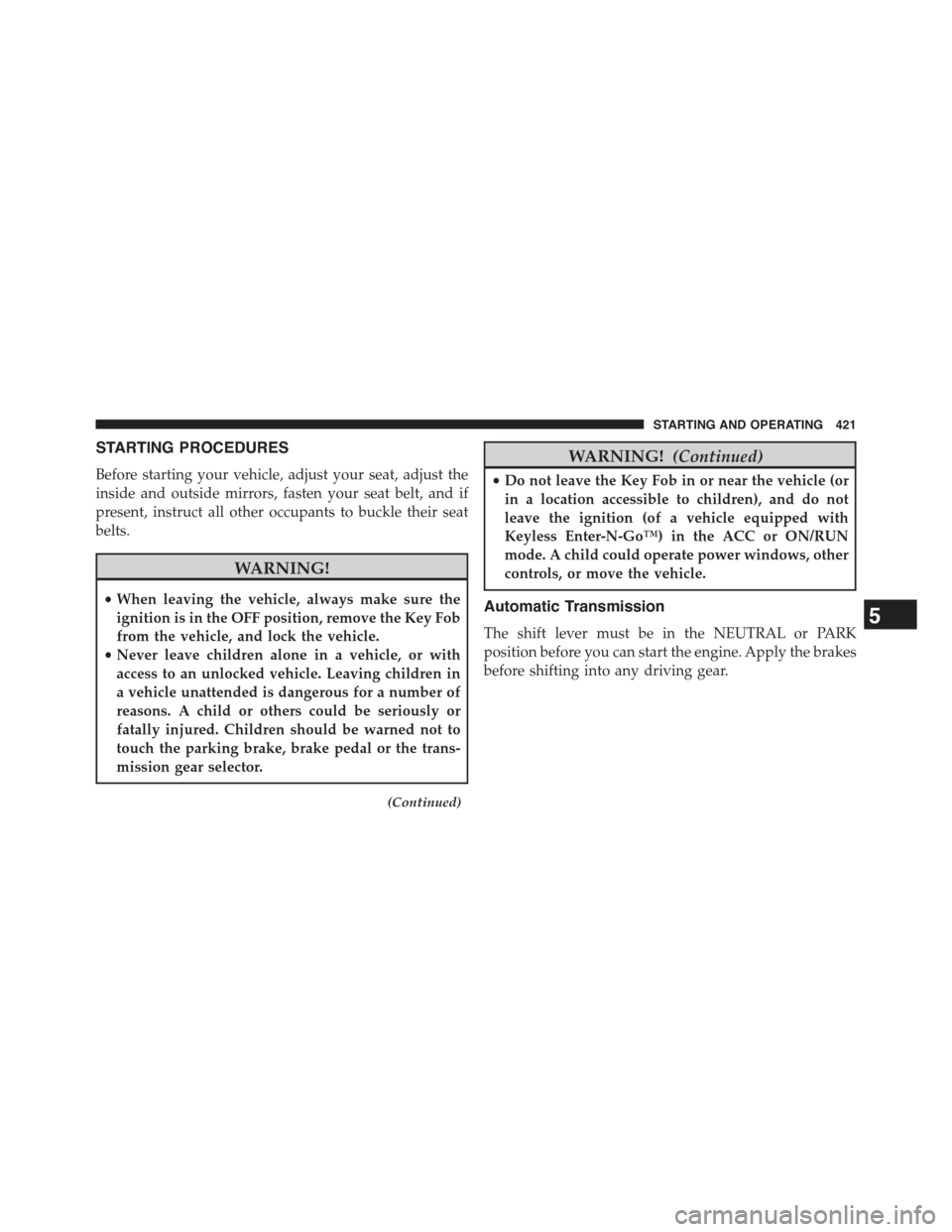

STARTING PROCEDURES
Before starting your vehicle, adjust your seat, adjust the
inside and outside mirrors, fasten your seat belt, and if
present, instruct all other occupants to buckle their seat
belts.
WARNING!
•When leaving the vehicle, always make sure the
ignition is in the OFF position, remove the Key Fob
from the vehicle, and lock the vehicle.
•Never leave children alone in a vehicle, or with
access to an unlocked vehicle. Leaving children in
a vehicle unattended is dangerous for a number of
reasons. A child or others could be seriously or
fatally injured. Children should be warned not to
touch the parking brake, brake pedal or the trans-
mission gear selector.
(Continued)
WARNING!(Continued)
•Do not leave the Key Fob in or near the vehicle (or
in a location accessible to children), and do not
leave the ignition (of a vehicle equipped with
Keyless Enter-N-Go™) in the ACC or ON/RUN
mode. A child could operate power windows, other
controls, or move the vehicle.
Automatic Transmission
The shift lever must be in the NEUTRAL or PARK
position before you can start the engine. Apply the brakes
before shifting into any driving gear.
5
STARTING AND OPERATING 421

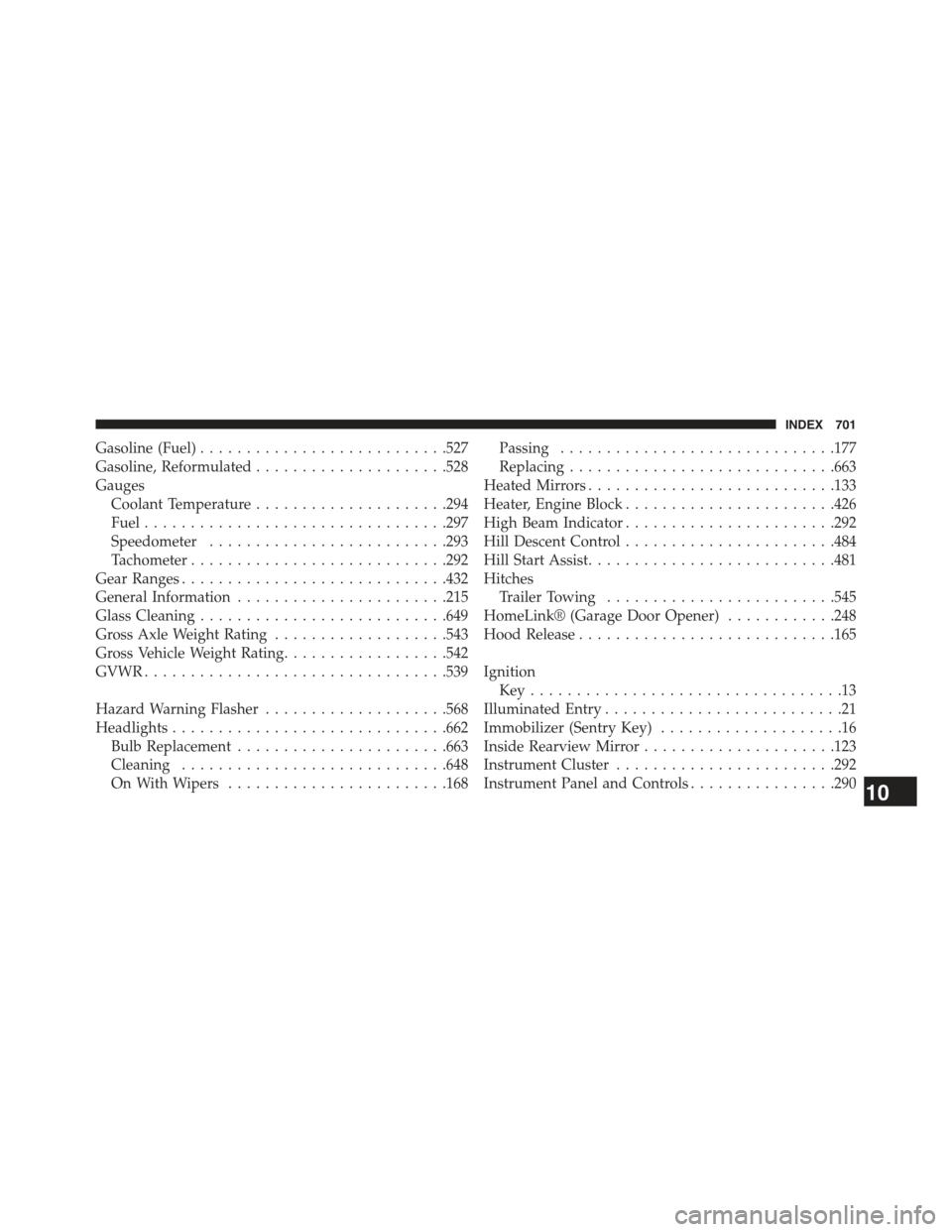

Gasoline (Fuel)...........................527
Gasoline, Reformulated.....................528
Gauges
Coolant Temperature.....................294
Fuel.................................297
Speedometer..........................293
Tachometer............................292
Gear Ranges.............................432
General Information.......................215
Glass Cleaning...........................649
Gross Axle Weight Rating...................543
Gross Vehicle Weight Rating..................542
GVWR.................................539
Hazard Warning Flasher....................568
Headlights..............................662
Bulb Replacement.......................663
Cleaning.............................648
On With Wipers........................168
Passing..............................177
Replacing.............................663
Heated Mirrors...........................133
Heater, Engine Block.......................426
High Beam Indicator.......................292
Hill Descent Control.......................484
Hill Start Assist...........................481
Hitches
Trailer Towing.........................545
HomeLink® (Garage Door Opener)............248
Hood Release............................165
Ignition
Key . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .13
Illuminated Entry..........................21
Immobilizer (Sentry Key)....................16
Inside Rearview Mirror.....................123
Instrument Cluster........................292
Instrument Panel and Controls................29010
INDEX 701

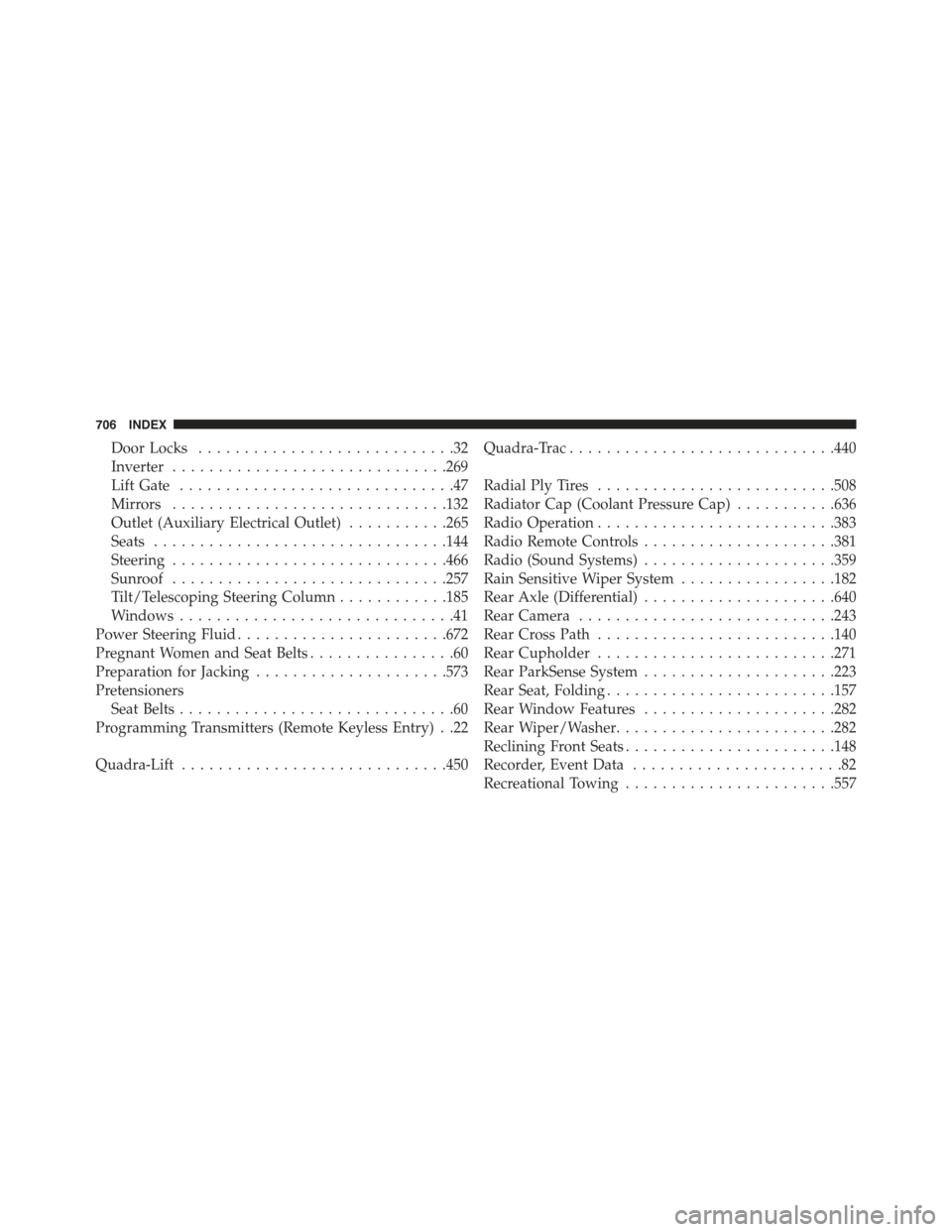

Door Locks............................32
Inverter..............................269
Lift Gate..............................47
Mirrors..............................132
Outlet (Auxiliary Electrical Outlet)...........265
Seats................................144
Steering..............................466
Sunroof..............................257
Tilt/Telescoping Steering Column............185
Windows..............................41
Power Steering Fluid.......................672
Pregnant Women and Seat Belts................60
Preparation for Jacking.....................573
Pretensioners
Seat Belts..............................60
Programming Transmitters (Remote Keyless Entry) . .22
Quadra-Lift.............................450
Quadra-Trac.............................440
Radial Ply Tires..........................508
Radiator Cap (Coolant Pressure Cap)...........636
Radio Operation..........................383
Radio Remote Controls.....................381
Radio (Sound Systems).....................359
Rain Sensitive Wiper System.................182
Rear Axle (Differential).....................640
Rear Camera............................243
Rear Cross Path..........................140
Rear Cupholder..........................271
Rear ParkSense System.....................223
Rear Seat, Folding.........................157
Rear Window Features.....................282
Rear Wiper/Washer........................282
Reclining Front Seats.......................148
Recorder, Event Data.......................82
Recreational Towing.......................557
706 INDEX
