Page 1 of 22
Looking For more detailed information? This Quick Reference Guide does not replace your vehicle’s
Owner’s Manual. If you require additional information or are unsure of a specific issue,We
recommend that you always refer to the vehicle’s Owner’s Manual or contact your authorized
Hyundai dealer. The information contained in this Quick Reference Guide is correct at the time of
printing; however, specifications and equipment can change without notice. No warranty or\
guarantee is being extended in this Quick Reference Guide, and Hyundai reserves the right to
change product specifications and equipment at any time without incurring obligat\
ions. Some
vehicles are shown with optional equipment.
MAINTENANCE
www.hyundai.com
Roadside Assistance: 1-800-243-7766
Consumer Affairs: 1-800-633-5151
XM®
Radio: 1-800-967-2346
Blue Link: 1-855-2BLUELINK
(1-855-225-8354)
Scheduled Maintenance Normal UsageSevere Usage*
Engine Oil And Filter Replace7,500 or 12 mos. Replace 3,750 or 6 mos.
Fuel Additives AddEvery 7,500 or 12 mos.
Tire Rotation Perform 7,500Perform 7,500
Air Cleaner Filter Inspect
Replace7,500
30,000 Inspect
ReplaceMore Frequently
Same As Normal
Fuel Tank Air Filter Inspect 30,000Inspect
ReplaceSame As Normal
More Frequently
Vacuum Hose Inspect 7,500Inspect Same As Normal
Fuel Lines, Fuel Hoses And Connections Inspect 30,000 Inspect Same As Normal
Vapor Hose & Fuel Filler Cap, Fuel tank Inspect 30,000 Inspect Same As Normal
Climate Control Air Filter
(For Evaporator And Blower Unit) Replace 15,000
Replace More Frequently
Air Conditioning Refrigerant Inspect 15,000Inspect Same As Normal
Brake Hoses & Lines Inspect 15,000Inspect Same As Normal
Drive Shafts & Boots Inspect 15,000Inspect 7,500 or 6 mos.
Exhaust Pipe & Muffer Inspect 15,000Inspect Same As Normal
Front Brake Disc/Pads, Calipers Inspect 15,000Inspect More Frequently
Rear Brake Disc/Pads Inspect 15,000Inspect More Frequently
Steering Gear Box, Linkage & Boots/
Lower Arm Ball Joint, Upper Arm Ball Joint Inspect 15,000
Inspect More Frequently
Suspension Mounting Bolts Inspect 15,000Inspect Same As Normal
Propeller Shaft Inspect 15,000Inspect 7,500 or 6 mos.
Brake Fluid Inspect 30,000Inspect Same As Normal
Parking Brake Inspect 30,000Inspect More Frequently
Front(AWD)/Rear Differential Oil Inspect 37,500Replace 75,000
Fuel Filter Inspect 30,000Inspect Same As Normal
Valve Clearance (3.8L) Inspect 60,000Inspect Same As Normal
Drive Belt 1st Inspect 60,000 or 72 mos.
Add. Inspect 15,000 or 24 mos.Inspect Same As Normal
Spark Plugs (Iridium Coated) Replace105,000 Replace More Frequently
Coolant 1st Replace 120,000 or 120 mos.
Add. Replace 30,000 or 24 mos.Replace Same As Normal
Automatic Transmission Fluid No, Check, No service required Replace 60,000
*See Owner’s Manual for details.
TIRE PRESSURE MONITORING SYSTEM (TPMS)- page 35
UNLOCKING VEHICLE - page 02
• To activate wipers move the switch down
to one of the three positions
(AUTO, LO, HI)
• To adjust "AUTO" speed move switch
• To spray washer fluid pull lever toward you
• Push lever up for a single wiper pass
WINDSHIELD WIPER / WASHER - page 09
AUTO
LO
HI
MIST
OFF
UNLOCK
TRUNK UNLOCK LOCK
PANIC
NOTE: Tire pressure may vary in colder temperatures causing the
low tire pressure indicator
to illuminate. Inflate tires according to
the Tire Pressure Label located on the driver’s side door pillar.
Low tire pressure indicator /
TPMS malfunction indicator
HYUNDAI GENESIS
Quick Reference Guide HOW TO DEFROST
1 Press the front defrost button.
2 Set to warmest temperature setting.
3 Set to highest fan speed.
WALK THE CUSTOMER THROUGH EACH OF
THE FOLLOWING KEY DELIVERY FEATURES
AUTOMATIC CLIMATE CONTROL - page 18 – 19
DEMONSTRATE HOW TO SET THE CLOCK - page 29
NP150-G2015-A
(Rev 03/25/14)
Printing 03/28/14
BLUE LINK – page 21-23 (if applicable)
- Assist with creating MyHyundai.com account
- Assist with Blue Link enrollment
Show Blue Link Users Manual
- Encourage customers to press the Blue link button
after enrollment to initiate Welcome Call
Page 2 of 22
Steering
wheel
adjustment
Page06
Instrument
cluster
Page14-15
Navigation
Page26
Head lights
and fog
lights
Page08
Climate
control
Page18-19
Drver's
main
controls
Page07
Wiper and
washer
Page09
TransmissionPage36

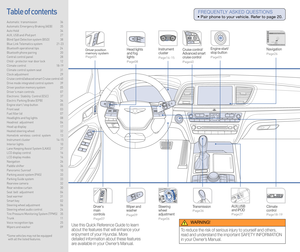

Table of contents
Automatic transmission 36
Automatic Emergency Braking (AEB) 35
Auto Hold 34
AUX, USB and iPod port 27
Blind Spot Detection system (BSD) 38
Blue Link Telematics system 21-23
Bluetooth operational tips 24
Bluetooth phone pairing 20
Central control panel 28
Child - protector rear door lock 12
Climate control 18-19\
Climate control system seat 31
Clock adjustment 29
Cruise control/advaced smart Cruise control 40
Drive mode integrated control system 39
Driver position memory system 05
Driver's main controls 07
Electronic Stability Control (ESC) 37
Electric Parking Brake (EPB) 34
Engine start / stop button 05
Front seat 03
Fuel filler lid 07
Headlights and fog lights 08
Headrest adjustment 04
Head up display 17
Heated steering wheel 32
Homelink wireless control system 13
Instrument cluster 14-15
Interior lights 10
Lane Keeping Assist System (LKAS) 37
LCD display control 16
LCD display modes 16
Navigation 26
Paddle shifter 36
Panoramic Sunroof 10
Parking assist system (PAS) 33
Parking Guide system 33
Rearview camera 32
Rear window curtain 30
Seat belt adjustment 04
Seat warmer 31
Smart key 02
Steering wheel adjustment 06
Steering wheel audio control 24
Tire Pressure Monitoring System (TPMS) 35
Trunk 11
Voice recognition tips 25
Wipers and washer 09
Engine start/
stop button
Page05
Cruise control/
Advanced smart
cruise control
Page40
AUX,USB
and iPOD
Page27
Driver position
memory system
Page05
* Some vehicles may not be equipped
with all the listed features.
Use this Quick Reference Guide to learn
about the features that will enhance your
enjoyment of your Hyundai. More
detailed information about these features
are available in your Owner’s Manual.
FREQUENTLY ASKED QUESTIONS
• Pair phone to your vehicle. Refer to page 20.
WARNING!
To reduce the risk of serious injury to yourself and others,
read and understand the important SAFETY INFORMATION
in your Owner’s Manual.
Page 3 of 22
GETTING STARTED
Quick Reference Guide I 0302 I Quick Reference Guide
Driver’s door Lock / Unlock
Smart key must be within 28~40 in.
from the outside door handle.
Press: Once – Unlock driver door
Twice – Unlock all doors
Third – Lock all doors
Lock
Unlock
Trunk unlock
Panic
NOTE:
User selectable option see Owner’s
Manual for more detail.
SMART KEY
A
Remove mechanical key.
Press and hold the release button A
to remove the mechanical key
GENESIS
HYUNDAI
FRONT SEAT
2
Forward and backward1
Seat cushion length (for driver’s seat)2
Seatback angle3
Seat cushion height1
Lumbar support4
Seat bolster adjustment (for driver’s seat)5
1
34
5
Page 4 of 22
GETTING STARTED
Quick Reference Guide I 0504 I Quick Reference Guide
HEADREST ADJUSTMENT
To Raise Headrest:
Pull headrest up.
To Lower Headrest:
Press lock button while pressing
down on headrest.
To Adjust Headrest Forward:
Pull forward to 1 of 3 positions
To Adjust Backward:
Pull it fully forward to the farthest
position and release it.
To Raise Center Headrest:
Rotate headrest forward.
Lift headrest up.
To Lower Center Headrest:
Press lock button while pressing
down on headrest.
Press button to rotate headrest
down.
GENESIS
HYUNDAI
With the ignition OFF and foot OFF of
brake pedal, press the engine start /
stop button.
• Once for ACC(Accessory) mode.
• Twice for ON mode.
• Three times for OFF.
ENGINE START/STOP BUTTON
To start the engine in any mode(including OFF), press
the engine start / stop button while pressing the brake pedal.
To shut the engine OFF, place shift lever in P(Park) and press
the engine start / stop button again.
Emergency situations
Shut off engine while drving
Press engine start/stop button for more than 2 seconds or 3 times
consecutively within 3 seconds.
Restart engine while driving
Press engine start/stop button with shift lever in N(Neutral).
Storing
1. Adjust the driver’s seat, outside
rearview mirrors, steering wheel,
instrument panel illumination and head
up display.
2. Press the SET button. The system
will beep once.
3. Press one of the memory buttons
(1 or 2) within 5 seconds.
The system will beep twice.
Recalling
Press the desired memory button
(1 or 2). The system will beep once.
DRIVER POSITION MEMORY SYSTEM
NOTE : Transmission must be in P(Park).
SEAT BELT ADJUSTMENT (Front seat)
Pull up to raise.
Press button and
push down to lower.
A
A
Rear center headrest
Page 5 of 22
FEATURES AND CONTROLS
Quick Reference Guide I 07
06 I Quick Reference Guide
Set the angle 2 and distance 3
with the switch 1.
STEERING WHEEL ADJUSTMENTS
NOTE: Do not adjust while driving.
1. Pull down the lever
1.
2. Set the angle
2 and distance 3.
3. Pull up the lever. NOTE: Do not adjust while driving.
Power tilt and telescopic
Manual tilt and telescopic
NOTE: Tighten fuel cap until one click
is heard.
FUEL FILLER LID
• Front doors power window switches.
•Press to fold/unfold mirrors.
• Rear doors power window switches.
• Press the L or R button. Adjust the
mirror by using the directional switch.
If L or R button is still selected, both
mirrors will tilt downward when
reversing.
Driver’s door
DRIVER'S MAIN CONTROLS
Outside Rearview Mirror
Press the lock or unlock button on the
smart key, and the mirrors will be
folded or unfolded when AUTO is set.
Power window lock button
Disables the power window switches
on the rear passenger doors.
Door Lock
Locks/unlocks all doors.
Window Switches
GENESIS
HYUNDAI
1
1
2
2
3
3
Page 6 of 22
Quick Reference Guide I 09
FEATURES AND CONTROLS
08 I Quick Reference Guide
WIPERS AND WASHER
Auto control wipe interval adjustment
Move the control switch.
Windshield washer
Pull the lever gently toward you to
spray washer fluid on the windshield
and to run the wipers1-3 cycles.
Headlamp washer
Fluid will spray on headlamp
assemblies when headlamps are
turned ON. Will activate only once for
every ignition key cycle or only once
every 15 minutes.
Fast wiper speed
Slow wiper speed
MIST - Single wipe
AUTO - Auto control wipe
LO - Low wiper speed
HI - High wiper speed
OFF
HEADLIGHTS AND FOG LIGHTS
Parking light position
DRL OFF position Auto light position
Headlight position
Headlight delay
Headlights may stay on for 15 seconds after exiting and locking vehicle.\
Press remote lock button twice to turn headlights off.
See Owner’s Manual for more detail.
Fog light
Turn signals and lane change
signals Flashing high beam
PULL
PULL
High beam
PUSH
GENESIS
HYUNDAI
Smart High Beam Function
1. Select auto position on stalk.
2. Push lever forward to engage Auto High beam.
3. Push lever forward again to disengage.
See Owner's Manual for more details.
Page 7 of 22
Quick Reference Guide I 11
FEATURES AND CONTROLS
10 I Quick Reference Guide
PANORAMIC SUNROOF
Sunshade
Sliding the sunroof
Tilting the sunroof
INTERIOR LIGHTS
Type A
Type B
1
1
1
1
2
2
3
3
Press the button
to open the trunk.
Power trunk:
To close, press and
hold until trunk is closed
securely.
TRUNK
Trunk main control button
Press to open.
Smart key needs to be
within range.
Use the mechanical key.
Trunk open button
Pressing the buttoncloses the power
trunk automatically.
Power trunk close button
Pressing the buttonwith the smart key
closes and locks all
doors and power trunk
automatically.
Power Trunk lock button
Pressing the buttonfor more than 1
second opens the
power trunk
automatically.
Trunk open button on
the smart key
GENESIS
HYUNDAI
Front Map Lamp ( )
Push the switch to turn the map
lamp on or off.
1
Front Door Lamp ( )
Lights will turn on when any door
is open.
2
Front Room Lamp ( )
Push the switch to turn the room
lamp on or off.
3

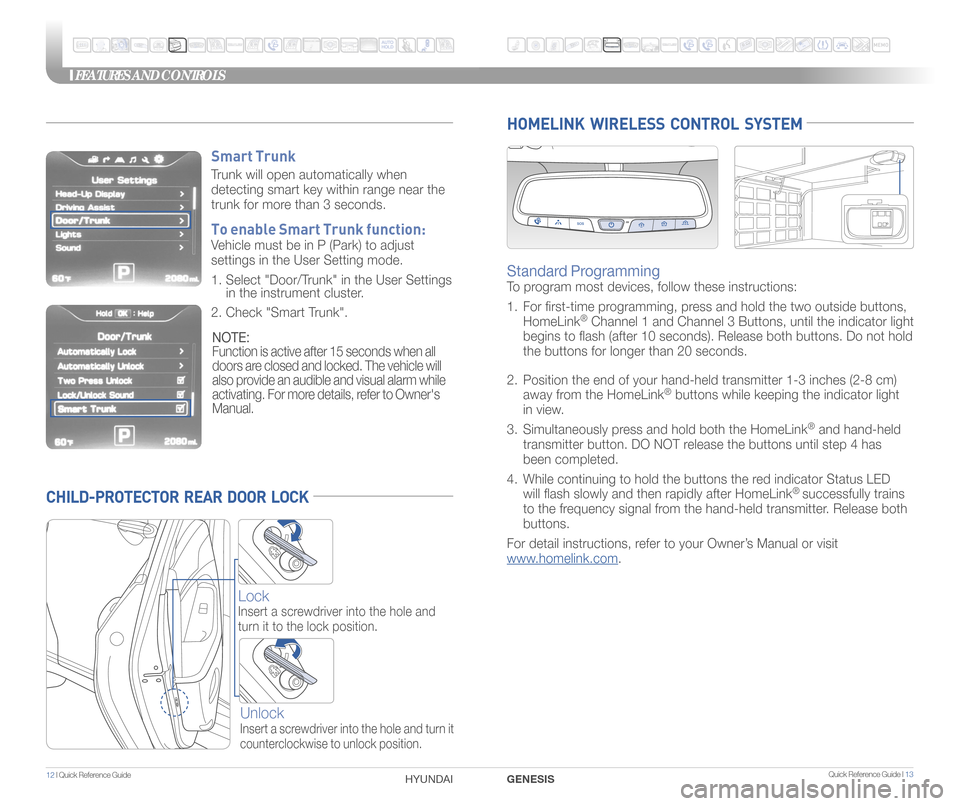

Page 8 of 22
Quick Reference Guide I 13
FEATURES AND CONTROLS
12 I Quick Reference Guide
CHILD-PROTECTOR REAR DOOR LOCK
Lock
Insert a screwdriver into the hole and
turn it to the lock position.
Unlock
Insert a screwdriver into the hole and turn it
counterclockwise to unlock position.
HOMELINK WIRELESS CONTROL SYSTEM
Standard Programming
To program most devices, follow these instructions:
1. For rst-time programming, press and hold the two outside buttons,
HomeLink
® Channel 1 and Channel 3 Buttons, until the indicator light
begins to ash (after 10 seconds). Release both buttons. Do not hol\
d
the buttons for longer than 20 seconds.
2. Position the end of your hand-held transmitter 1-3 inches (2-8 cm)
away from the HomeLink
® buttons while keeping the indicator light
in view.
3. Simultaneously press and hold both the HomeLink
® and hand-held
transmitter button. DO NOT release the buttons until step 4 has
been completed.
4. While continuing to hold the buttons the red indicator Status LED
will ash slowly and then rapidly after HomeLink
® successfully trains
to the frequency signal from the hand-held transmitter. Release both
buttons.
For detail instructions, refer to your Owner’s Manual or visit
www.homelink.com.
GENESIS
HYUNDAI
Smart Trunk
Trunk will open automatically when
detecting smart key within range near the
trunk for more than 3 seconds.
To enable Smart Trunk function:
Vehicle must be in P (Park) to adjust
settings in the User Setting mode.
1. Select "Door/Trunk" in the User Settings
in the instrument cluster.
2. Check "Smart Trunk".
NOTE:
Function is active after 15 seconds when all
doors are closed and locked. The vehicle will
also provide an audible and visual alarm while
activating. For more details, refer to Owner's
Manual.
