2015 Hyundai Genesis Owner's Manual

888
Specifications & Consumer information
8
Specifications, Consumer information and Reporting safety defects
8
Dimensions ..............................................................8-2
Engine ......................................................................8-2
Bulb wattage ...........................................................8-3
Tires and wheels ....................................................8-4
Luggage volume .....................................................8-5
Air conditioning system ........................................8-5
Gross vehicle weight .............................................8-5
Recommended lubricants and capacities ...........8-6
Recommended SAE viscosity number .........................8-7
Vehicle identification number (VIN) ....................8-8
Vehicle certification label .....................................8-8
Tire specification and pressure label .................8-9
Engine number .......................................................8-9
Refrigerant label ....................................................8-9
Consumer information .........................................8-10
Reporting safety defects ....................................8-11

D DI
IM
ME
EN
NS
SI
IO
ON
NS
S
8-2
Specifications, Consumer information and Reporting safety defects
Item in (mm)
Overall length 196.5 (4,990)
Overall width 74.4 (1,890)
Overall height 58.3 (1,480)
Front tread 64.09 (1,628)*
1/ 63.78 (1,620)*2
Rear tread 65.31 (1,659)*1/ 64.29 (1,633)*2
Wheelbase 118.5 (3,010)*1: with R18 tire
*2: with R19 tire
E EN
NG
GI
IN
NE
E
ItemLambda 3.8Tau 5.0
Displacement
cu. in (cc)
230.54 (3,778)307.3 (5,038)
Bore x Stroke
in. (mm)
3.78x3.42 (96x87)3.78x3.42 (96x87)
Firing order
1-2-3-4-5-61-2-7-8-4-5-6-3
No. of cylinders
6, V-type8, V-type

B BU
UL
LB
B
W
WA
AT
TT
TA
AG
GE
E
8-3
88
Specifications, Consumer information and Reporting safety defects
Light Bulb Wattage Bulb type (W)
FrontHeadlampLow H11 / D1S 55 / 35
High HB3 / BI-FCN 60 / -
Turn signal lamp LED / PY28W LED / 28
Position lamp LED LED
Daytime running lights HB3 / PY28W 60 / 28
Fog lamp LED LED
Side repeater lamps (Outside mirror) LED LED
RearHigh mounted stop light LED LED
Rear combination lampTurn signal light 28/8W NA / LED 28 / LED
Stop and tail lights (Outside) LED LED
Stop and tail lights (Inside) LED LED
Back up light W16W / LED 16 / LED
License plate lights LED LED
InteriorLuggage lamp LED LED
Map lamp LED LED
Room lamp LED LED
Vanity mirror lamp LED LED

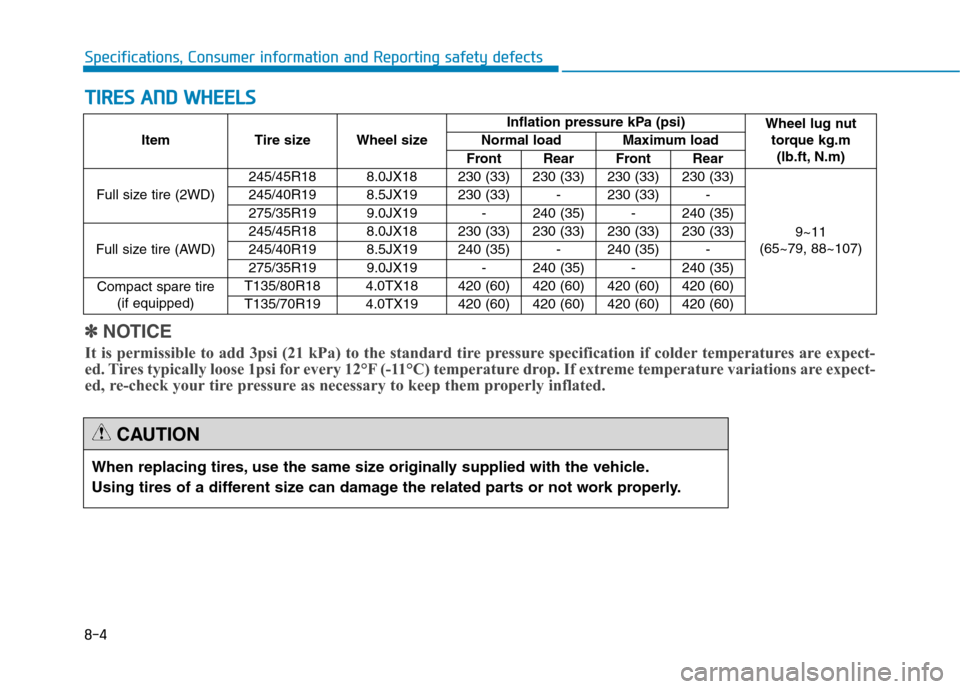

8-4
Specifications, Consumer information and Reporting safety defects
T TI
IR
RE
ES
S
A
AN
ND
D
W
WH
HE
EE
EL
LS
S
When replacing tires, use the same size originally supplied with the vehicle.
Using tires of a different size can damage the related parts or not work properly.
CAUTION
✽ ✽
NOTICE
It is permissible to add 3psi (21 kPa) to the standard tire pressure specification if colder temperatures are expect-
ed. Tires typically loose 1psi for every 12°F (-11°C) temperature drop. If extreme temperature variations are expect-
ed, re-check your tire pressure as necessary to keep them properly inflated.
Item Tire size Wheel sizeInflation pressure kPa (psi)
Wheel lug nut
torque kg.m
(lb.ft, N.m) Normal load Maximum load
Front Rear Front Rear
Full size tire (2WD)245/45R18 8.0JX18 230 (33) 230 (33) 230 (33) 230 (33)
9~11
(65~79, 88~107) 245/40R19 8.5JX19 230 (33) - 230 (33) -
275/35R19 9.0JX19 - 240 (35) - 240 (35)
Full size tire (AWD)245/45R18 8.0JX18 230 (33) 230 (33) 230 (33) 230 (33)
245/40R19 8.5JX19 240 (35) - 240 (35) -
275/35R19 9.0JX19 - 240 (35) - 240 (35)
Compact spare tire
(if equipped)T135/80R18 4.0TX18 420 (60) 420 (60) 420 (60) 420 (60)
T135/70R19 4.0TX19 420 (60) 420 (60) 420 (60) 420 (60)

L LU
UG
GG
GA
AG
GE
E
V
VO
OL
LU
UM
ME
E

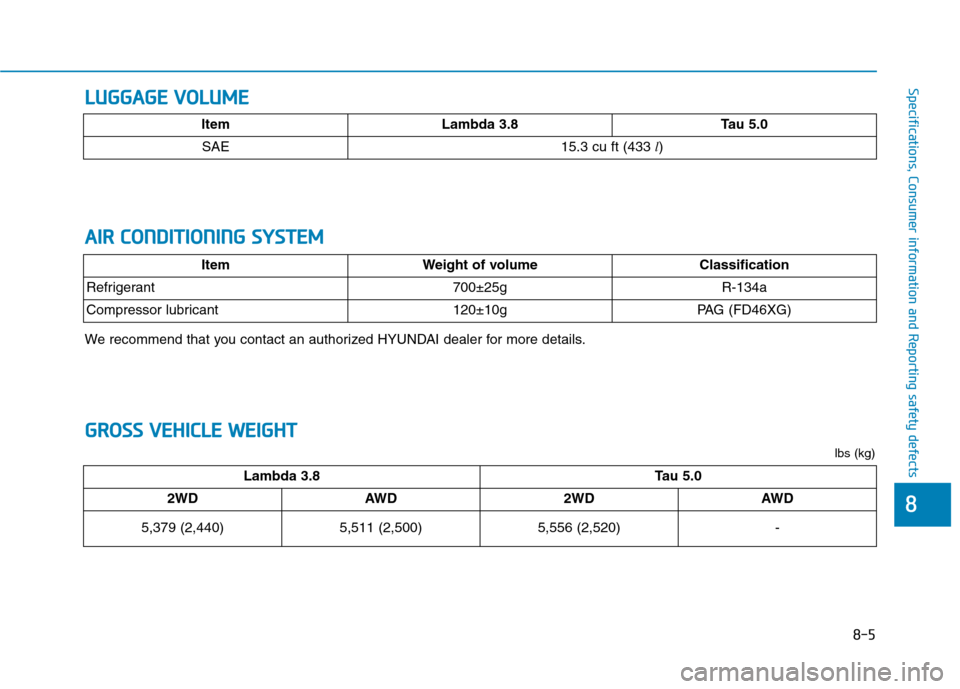

8-5
88
Specifications, Consumer information and Reporting safety defects
ltem Lambda 3.8 Tau 5.0
SAE15.3 cu ft (433 l)
A
AI
IR
R
C
CO
ON
ND
DI
IT
TI
IO
ON
NI
IN
NG
G
S
SY
YS
ST
TE
EM
M
ItemWeight of volume Classification
Refrigerant
700±25g R-134a
Compressor lubricant
120±10g PAG (FD46XG)
We recommend that you contact an authorized HYUNDAI dealer for more details.
G GR
RO
OS
SS
S
V
VE
EH
HI
IC
CL
LE
E
W
WE
EI
IG
GH
HT
T
Lambda 3.8 Tau 5.0
2WD AWD 2WD
AW D
5,379 (2,440) 5,511 (2,500) 5,556 (2,520)
-
lbs (kg)

8-6
Specifications, Consumer information and Reporting safety defects
To help achieve proper engine and powertrain performance and durability, use only lubricants of the proper quality.
The correct lubricants also help promote engine efficiency that results in improved fuel economy.
R RE
EC
CO
OM
MM
ME
EN
ND
DE
ED
D
L
LU
UB
BR
RI
IC
CA
AN
NT
TS
S
A
AN
ND
D
C
CA
AP
PA
AC
CI
IT
TI
IE
ES
S
*1Refer to the recommended SAE viscosity numbers on the next page.
*
2Engine oils labeled Energy Conserving Oil are now available. Along with other additional benefits, they contribute to fuel econ-
omy by reducing the amount of fuel necessary to overcome engine friction. Often, these improvements are difficult to measure
in everyday driving, but in a year’s time, they can offer significant cost and energy savings.
*
3If the API service SM engine oil is not available in your country, you are able to use API service SL.Lubricant
Volume Classification
Engine oil *
1*2(drain and refill)
RecommendsLambda 3.87.29 US qt. (6.9l)API Service SM*3& ILSAC GF-4 (or above),
ACEA A5 or above
Tau 5.08.45 US qt. (8.0l)API Service SM*3& ILSAC GF-4 (or above)
Automatic transmission fluidLambda 3.8
11.09 US qt. (10.5l)
GS ATF SP-IV-RR,
HYUNDAI genuine ATF SP-IV-RR
Tau 5.010.46 US qt. (9.9l)
CoolantLambda 3.8
8.88 US qt. (8.4l)
Mixture of antifreeze and water (Ethylene glycol
base coolant for aluminum radiator)
Tau 5.0
12.16 US qt. (11.5l)
Brake fluid
0.74~0.85 US qt. (0.7~0.8 l)
FMVSS116 DOT-3 or DOT-4
Front (AWD)/rear differential oilFront (AWD)0.74 US qt. (0.7l)Hypoid gear oil API GL-5, SAE 75W/90
(SHELL HD AXLE OIL 75W/90 or equivalent)
Rear1.48 US qt. (1.4l)
Transfer case oil (AWD)0.65 US qt. (0.62l)SHELL TF0870
Fuel20.34 US gal. (77l)Unleaded gasoline

8-7
88
Specifications, Consumer information and Reporting safety defects
Recommended SAE viscosity
number
Engine oil viscosity (thickness) has
an effect on fuel economy and cold
weather operating (engine start and
engine oil flowability). Lower viscosi-
ty engine oils can provide better fuel
economy and cold weather perform-
ance, however, higher viscosity
engine oils are required for satisfac-
tory lubrication in hot weather. Using
oils of any viscosity other than those
recommended could result in engine
damage.Always be sure to clean the area
around any filler plug, drain
plug, or dipstick before check-
ing or draining any lubricant.
This is especially important in
dusty or sandy areas and when
the vehicle is used on unpaved
roads. Cleaning the plug and
dipstick areas will prevent dirt
and grit from entering the
engine and other mechanisms
that could be damaged.
CAUTION
Temperature Range for SAE Viscosity Numbers
Temperature
Engine Oil *1
°C
°F
-30 -20 -10 0 10 20 30 40 50
-10 0 20 40 60 80 100 120
10W-30
5W-20, 5W-30
*1: For better fuel economy, it is recommended to use the engine oil of
a viscosity grade SAE 5W-20 (API Service SM / ILSAC GF-4).
However, if the engine oil is not available in your country, select the
proper engine oil using the engine oil viscosity chart.
When choosing an oil, consider the range of temperature your vehicle will be
operated in before the next oil change. Proceed to select the recommended
oil viscosity from the chart.
Temperature Range for SAE Viscosity Numbers
Temperature
Engine Oil *
1
°C
(°F)-30 -20 -10 0 10 20 30 40 50
-10 0 20 40 60 80 100 120
*1: For better fuel economy, it is recommended to use the engine oil of
a viscosity grade SAE 5W-30 (API Service SM / ILSAC GF-4).
However, if the engine oil is not available in your country, select the
proper engine oil using the engine oil viscosity chart.
10W-30
5W-30
■ ■
Lambda 3.8
■ ■
Tau 5.0

8-8
Specifications, Consumer information and Reporting safety defects
V VE
EH
HI
IC
CL
LE
E
C
CE
ER
RT
TI
IF
FI
IC
CA
AT
TI
IO
ON
N
L LA
AB
BE
EL
L
The vehicle identification number
(VIN) is the number used in register-
ing your car and in all legal matters
pertaining to its ownership, etc.
The number is punched on the floor
under the passenger seat. To check
the number, open the cover.The VIN is also on a plate attached
to the top of the dashboard. The
number on the plate can easily be
seen through the windshield from
outside.The vehicle certification label
attached on the driver’s side center
pillar gives the Vehicle Identification
Number (VIN).
V VE
EH
HI
IC
CL
LE
E
I
ID
DE
EN
NT
TI
IF
FI
IC
CA
AT
TI
IO
ON
N
N
NU
UM
MB
BE
ER
R
(
(V
VI
IN
N)
)
ODH083004L
■VIN label (if equipped)
ODH083001
■Frame number
ODH083002
