2015 HONDA FIT bluetooth

Contents
This owner’s manual should be considered a permanent part of the
vehicle and should remain with the vehicle when it is sold.
This owner’s manual covers all models of your vehicle. You may find
descriptions of equipment and features that are not on your
particular model.
Images throughout this owner’s manu al (including the front cover)
represent features and equipment that are available on some, but
not all, models. Your particular mo del may not have some of these
features.
This owner’s manual is for vehicles sold in the United States and
Canada.
The information and specifications in cluded in this publication were
in effect at the time of approval for printing. Honda Motor Co., Ltd.
reserves the right, however, to discontinue or change specifications
or design at any time without notice and without incurring any
obligation.2 Safe Driving P. 27
For Safe Driving P. 28 Seat Belts P. 32 Airbags P. 41
2Instrument Panel P. 69
Indicators P. 70 Gauges and Displays P. 82
2Controls P. 87
Clock P. 88 Locking and Unlocking the Doors P. 90
Opening and Closing the Windows P. 113
Operating the Switches Ar ound the Steering Wheel P. 116
Interior Lights/Interior Convenience Items P. 144
2 Features P. 161
Audio System P. 162 Audio System Basic Operation P. 170
Customized Features P. 226 Bluetooth® HandsFreeLink ® P. 248
2 Driving P. 301
Before Driving P. 302 Towing a Trailer P. 307
Multi-View Rear Camera P. 345
2Maintenance P. 353
Before Performing Maintenance P. 354 Maintenance MinderTM P. 357
Checking and Maintaining Wiper Blades P. 380
Heating and Cooling System
*/Climate Control System* Maintenance P. 397
2 Handling the Unexpected P. 403
Tools P. 404 If a Tire Goes Flat P. 405
Overheating P. 417 Indicator, Coming On/Blinking P. 419 Fuses P. 423
2 Information P. 431
Specifications P. 432 Identification Numbers P. 434
Emissions Testing P. 437 Warranty Coverages P. 439
15 US FIT-31T5A6000.book 2 ページ ２０１４年３月６日　木曜日　午後７時５分

5
Quick Reference Guide
❙Wipers/Washers (P126)
❙Paddle Shifter (Shift Up)* (P324)
❙ (Select/Reset) Knob (P83)
❙Brightness Control (P128)
❙ Display Button* (P192)
❙Paddle Shifter (Shift Down)* (P 324)
❙Headlights/Turn Signals (P121)
❙Fog Lights* (P124)
❙LaneWatchTM* (P334)
❙Audio Remote Control Buttons* (P168)
❙Horn (Press an area around .)
❙Cruise Control Buttons* (P329)
❙Bluetooth® HandsFreeLink ® System
(P248, 271)
❙Voice Control Buttons (P248, 271)
❙Navigation System Voice Control Buttons*
() See the Navigation System Manual
* Not available on all models
15 US FIT-31T5A6000.book 5 ページ ２０１４年３月６日　木曜日　午後７時５分

18
Quick Reference Guide
Features (P161)
Audio Remote Controls*
(P168)
● / Button
Press to adjust the volume up/down.
● SOURCE Button
Press to change the audio mode: FM/AM/
CD/USB/iPod/Bluetooth/Pandora®
*/AhaTM */
AUX.
● / Button
Radio: Press to change the preset station. Press and hold to select the next or
previous strong station.
CD/USB device: Press to skip to the beginning of
the next song or return to the
beginning of the current song.
Press and hold to change a folder.
Models without navigation system
/ / / Buttons
SOURCE Button
Audio System (P162)
For navigation system operation () See the Navigation System Manual
Models with color audio system
MENU/CLOCK Button
LIST/SELECT
Knob
Button
(Back) Button
(Sound) Button
VOL
/
(Volume/Power)
Knob
CD Slot
(CD Eject) Button
Preset Buttons (1-6) (Phone) Button
RADIO
Button
/
(Skip/Seek) Buttons
CD/AUX
Button Audio/Information Screen
15 US FIT-31T5A6000.book 18 ページ ２０１４年３月６日　木曜日　午後７時５分

161
Features
This chapter describes how to operate technology features.
Audio SystemAbout Your Audio System .................... 162
USB Port(s) ........................................... 163
HDMI ® Port
*........................................ 164
Auxiliary Input Jack*............................. 165
Audio Antenna .................................... 166
Audio System Theft Protection ............. 167
Audio Remote Controls
*...................... 168
Audio System Basic Operation ............. 170
Audio/Information Screen .................... 171
Adjusting the Sound ............................ 175
Display Setup ....................................... 176
Playing the AM/FM Radio ..................... 177
Playing a CD ........................................ 179
Models with color audio system
Playing an iPod .................................... 182
Playing a USB Flash Drive ..................... 185
Playing Bluetooth ® Audio..................... 188
Audio System Basic Operation ............ 191
Audio/Information Screen .................... 192
Adjusting the Sound ............................ 197
Display Setup ....................................... 198
Playing the AM/FM Radio..................... 199
Playing a CD ........................................ 202
Playing an iPod .................................... 205
Playing Internet Radio .......................... 208
Playing a USB Flash Drive ..................... 210
Playing Bluetooth ® Audio..................... 213
Playing a Video Using the HDMI ®......... 215
Models with display audio system
Smartphone Apps................................. 217
Siri Eyes Free......................................... 218
Audio Error Messages ........................... 219
General Information on the Audio
System ............................................. 223
Customized Features ............................. 226
Bluetooth ® HandsFreeLink ®
Using HFL ............................................. 248
Using HFL ............................................. 271
Models with color audio system
Models with display audio system
* Not available on all models
15 US FIT-31T5A6000.book 161 ページ ２０１４年３月６日　木曜日　午後７時５分

162
Features
Audio System
About Your Audio System
See the navigation system manual for operation of the audio system.
The audio system features AM/FM radio. It can also play audio CDs, WMA/MP3/AAC
files, USB flash drives, and iPod, iPhone and Bluetooth® devices.
You can operate the audio system from the buttons and switches on the panel, the
remote controls on the steering wheel, or the icons on the touchscreen interface
*.
1About Your Audio System
Video CDs, DVDs, and 3-inch (8-cm) mini CDs are not
supported.
iPod, iPhone and iTunes are trademarks of Apple Inc.
State or local laws may pr ohibit the operation of
handheld electronic devi ces while operating a
vehicle.
When the screen is vi ewed through polarized
sunglasses, a rainbow pa ttern may appear on the
screen due to optical characteristics of the screen. If
this is disturbing, please operate the screen without
polarized sunglasses.Models with navigation system
Models without navigation system
iPod
USB Flash
Drive
USB Port
Auxiliary Input Jack
*
Remote Controls*
HDMI ®*
* Not available on all models
15 US FIT-31T5A6000.book 162 ページ ２０１４年３月６日　木曜日　午後７時５分

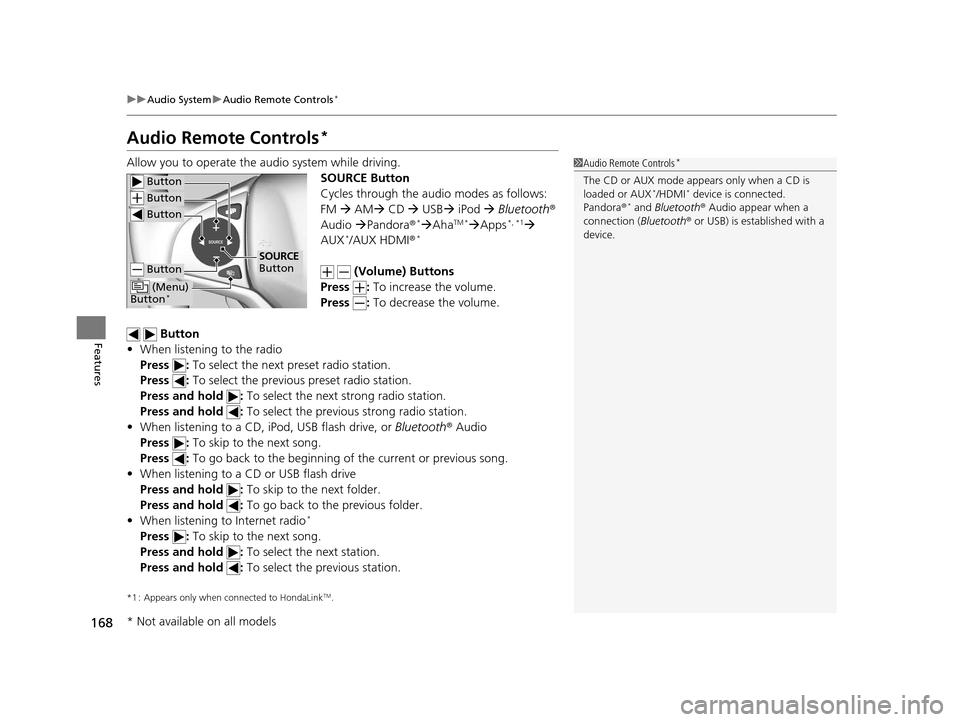

168
uuAudio System uAudio Remote Controls*
Features
Audio Remote Controls*
Allow you to operate the au dio system while driving.
SOURCE Button
Cycles through the audio modes as follows:
FM  AM  CD  USB iPod  Bluetooth ®
Audio Pandora®
*AhaTM *Apps*, *1
AUX*/AUX HDMI ®*
(Volume) Buttons
Press : To increase the volume.
Press : To decrease the volume.
Button
• When listening to the radio
Press : To select the next preset radio station.
Press : To select the previous preset radio station.
Press and hold : To select the next strong radio station.
Press and hold : To select the previous strong radio station.
• When listening to a CD, iPod, USB flash drive, or Bluetooth® Audio
Press : To skip to the next song.
Press : To go back to the beginning of the current or previous song.
• When listening to a CD or USB flash drive
Press and hold : To skip to the next folder.
Press and hold : To go back to the previous folder.
• When listening to Internet radio
*
Press : To skip to the next song.
Press and hold : To select the next station.
Press and hold : To select the previous station.
*1 : Appears only when co nnected to HondaLinkTM.
1Audio Remote Controls*
The CD or AUX mode appears only when a CD is
loaded or AUX*/HDMI* device is connected.
Pandora ®* and Bluetooth ® Audio appear when a
connection (Bluetooth ® or USB) is established with a
device.
Button
Button
Button
Button
(Menu)
Button*
SOURCE
Button
* Not available on all models
15 US FIT-31T5A6000.book 168 ページ ２０１４年３月６日　木曜日　午後７時５分

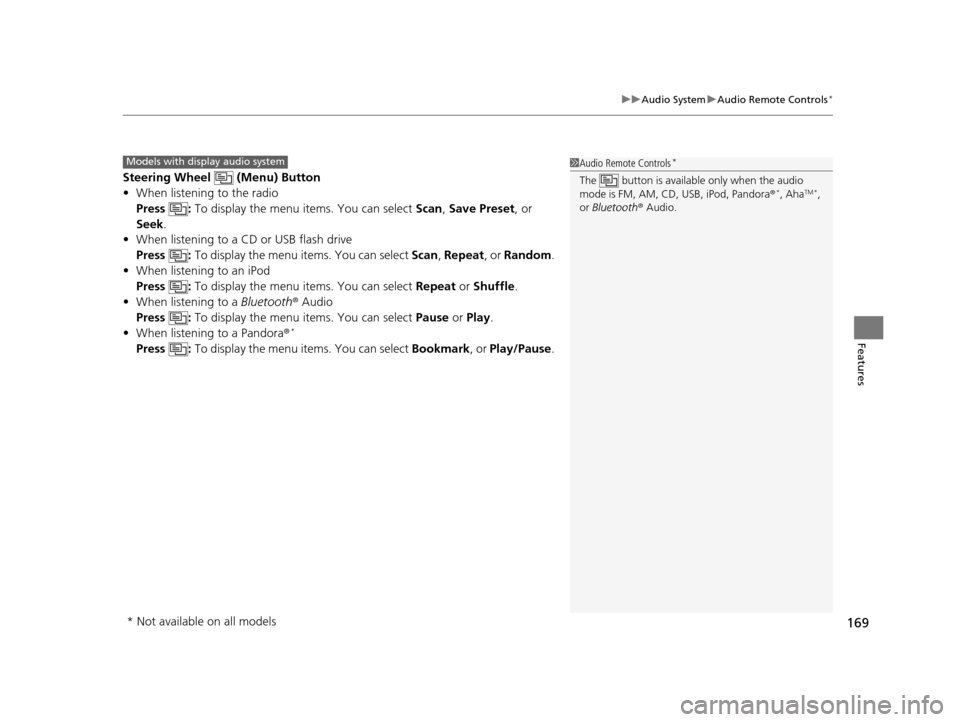

169
uuAudio System uAudio Remote Controls*
Features
Steering Wheel (Menu) Button
• When listening to the radio
Press : To display the menu items. You can select Scan, Save Preset , or
Seek.
• When listening to a CD or USB flash drive
Press : To display the menu items. You can select Scan, Repeat , or Random .
• When listening to an iPod
Press : To display the menu items. You can select Repeat or Shuffle .
• When listening to a Bluetooth® Audio
Press : To display the menu items. You can select Pause or Play .
• When listening to a Pandora ®
*
Press : To display the menu items. You can select Bookmark, or Play/Pause.
1Audio Remote Controls*
The button is available only when the audio
mode is FM, AM, CD, USB, iPod, Pandora ®*, AhaTM *,
or Bluetooth ® Audio.
Models with display audio system
* Not available on all models
15 US FIT-31T5A6000.book 169 ページ ２０１４年３月６日　木曜日　午後７時５分

170
Features
Audio System Basic Operation
To use the audio system, the ignition switch must be in ACCESSORY (q or ON (w.
Use the selector knob or MENU/CLOCK
button to access some audio functions.
Press to switch between the normal and
extended display fo r some functions.
Selector knob: Rotate left or right to scroll
through the available choices. Press to set
your selection.
MENU/CLOCK button: Press to select any
mode.
The available mode includes the wallpaper,
display, clock, langu age setup, and play
modes. Play modes can be also selected from
scan, random, rep eat, and so on.
(Back) button: Press to go back to the previous display.
button: Press to select the sound setting mode.
button: Press to change the audio/information screen brightness.
Press , then adjust th e brightness using .
u Each time you press , the mode switches between the daytime mode,
nighttime mode and OFF mode.
Models with color audio system1Audio System Basic Operation
These indications are used to show how to operate
the selector knob.
Rotate to select.
Press to enter.
Menu Items 2 Adjust Clock P. 89
2 Wallpaper Setup P. 173
2 Display Setup P. 176
2 Scan P. 178, 181, 187
2 Play Mode P. 181, 184, 187
2 RDS Settings P. 178
2 Bluetooth P. 230, 254
One of the operating system s used in this unit is
eCos.
For software license terms and condition, visit their
website (eCos license URL:
http://ecos.sourceware.org/license-overview.html )
For source code disclo sure and other details
regarding eCos, visit:
http://www.hondaopensource2.com
Press the SOURCE, , , or button on the
steering wheel to cha nge any audio setting.
2 Audio Remote Controls
* P. 168
Models with audio remote controls
(Back)
Button
Selector Knob MENU/
CLOCK

Button
Button
(Sound)
Button
Menu Display
* Not available on all models
15 US FIT-31T5A6000.book 170 ページ ２０１４年３月６日　木曜日　午後７時５分
