223

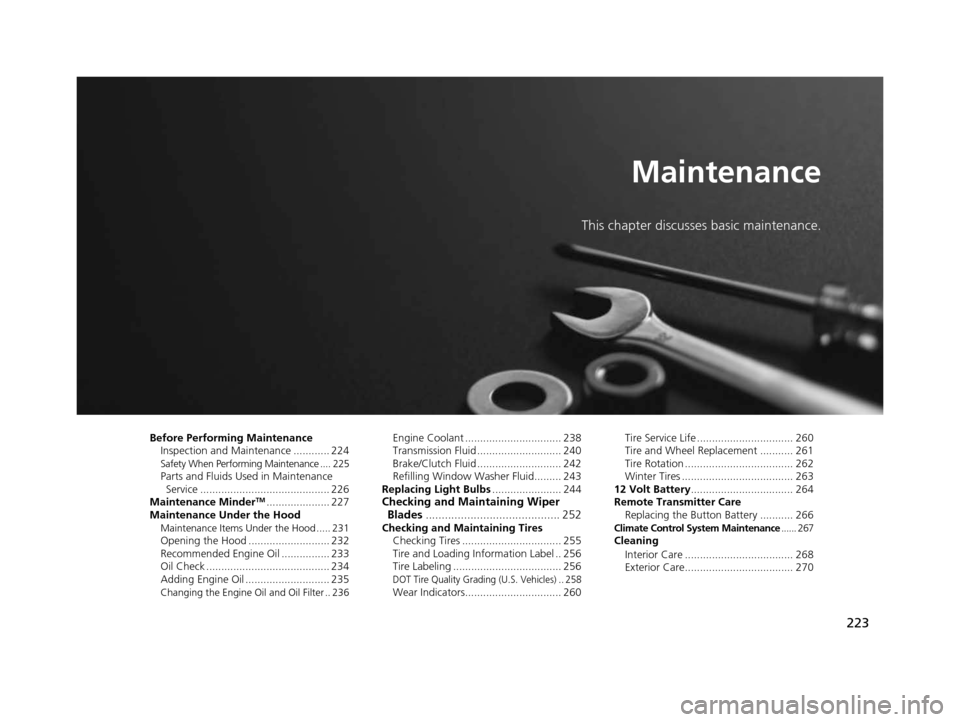

Maintenance
This chapter discusses basic maintenance.
Before Performing MaintenanceInspection and Maintenance ............ 224
Safety When Performing Maintenance .... 225Parts and Fluids Used in Maintenance Service ........................................... 226
Maintenance Minder
TM..................... 227
Maintenance Under the Hood
Maintenance Items Under the Hood ..... 231Opening the Hood ........................... 232
Recommended Engine Oil ................ 233
Oil Check ......................................... 234
Adding Engine Oil ............................ 235
Changing the Engine Oil and Oil Filter .. 236
Engine Coolant ................................ 238
Transmission Fluid ............................ 240
Brake/Clutch Fluid ............................ 242
Refilling Window Washer Fluid......... 243
Replacing Light Bulbs ....................... 244
Checking and Maintaining Wiper
Blades .......................................... 252
Checking and Maintaining Tires
Checking Tires ................................. 255
Tire and Loading Information Label .. 256
Tire Labeling .................................... 256
DOT Tire Quality Grading (U.S. Vehicles) .. 258Wear Indicators................................ 260 Tire Service Life ................................ 260
Tire and Wheel Replacement ........... 261
Tire Rotation .................................... 262
Winter Tires ..................................... 263
12 Volt Battery .................................. 264
Remote Transmitter Care
Replacing the Button Battery ........... 266
Climate Control System Maintenance ...... 267Cleaning
Interior Care .................................... 268
Exterior Care.................................... 270
15 CR-Z-31SZT6400.book 223 ページ ２０１４年８月１日　金曜日　午後１時５９分

237
uuMaintenance Under the Hood uChanging the Engine Oil and Oil Filter
Maintenance
5. Remove the oil filter and dispose of the
remaining oil.
6. Check that the filter gasket is not stuck to
the engine contact surface.
u If it is stuck, you must detach it.
7. Wipe away dirt and dust adhering to the
contact surface of the engine block, and
install a new oil filter.
u Apply a light coat of new engine oil to
the oil filter gasket.
8. Put a new washer on the drain bolt, then
reinstall the drain bolt.
u Tightening torque:
29 lbf∙ft (39 N∙m, 4.0 kgf∙m)
9. Pour the recommended engine oil into the
engine.
u Engine oil change capacity (including
filter):
3.8 US qt (3.6 L)
10. Reinstall the engine oil fill cap securely and
start the engine.
11. Run the engine for a few minutes, and
then check that there is no leak from the
drain bolt or oil filter.
12. Stop the engine, wait for three minutes,
and then check the oil level on the
dipstick.
u If necessary, add more engine oil.1Changing the Engine Oil and Oil Filter
You will need a special wrench to replace the oil
filter. You can buy this wrench from a dealer.
When installing the new oil filter, follow the
instructions supplied with the oil filter.
Reinstall the engine oil fill cap. Start the engine. The
low oil pressure indicator should go off within five
seconds. If it does not, turn off the engine, and check
your work.
Oil Filter
15 CR-Z-31SZT6400.book 237 ページ ２０１４年８月１日　金曜日　午後１時５９分

290
Handling the Unexpected
Engine Does Not Start
Checking the Engine
If the engine does not start, check the starter.
Starter conditionChecklist
Starter doesn’t turn or turns
over slowly.
The 12 volt battery may be dead.
Check each of the items on the
right and respond accordingly.Check the brightness of the interior lights.
Turn on the interior ligh ts and check the brightness.
●If the interior lights are dim or do not come on at all
2Checking the 12 Volt Battery P. 264●If the interior lights come on normally

2Inspecting and Changing Fuses P. 304
The starter turns over normally
but the engine doesn’t start.
There may be a problem with the
fuse. Check each of the items on
the right and respond accordingly.Review the engine start procedure.
Follow its instructions, and try to start the engine again.

2Starting the Engine P. 180
Check the immobilizer system indicator.
When the immobilizer system indicator is blinking, the engine cannot be started.
2Immobilizer System P. 107
Check the fuel level.
There should be enough fuel in the tank.

2Fuel Gauge P. 81
Check the fuse.
Check all fuses, or have your vehicle checked by a dealer.
2Inspecting and Changing Fuses P. 304
If the problem continues:
2Emergency Towing P. 305
1Checking the Engine
If you must start the vehi cle immediately, use an
assisting vehicle to jump start it.
2 Jump Starting P. 291
15 CR-Z-31SZT6400.book 290 ページ ２０１４年８月１日　金曜日　午後１時５９分

291Continued
Handling the Unexpected
Jump Starting
Turn off the power to electric devices, such as audio and lights. Turn off the engine,
then open the hood. 1.Connect the first jumper cable to your
vehicle's + terminal.
2. Connect the other end of the first jumper
cable to the booster battery + terminal.
u Use a 12 volt booster battery only.
u When using an automotive battery
charger to boost your 12-volt battery,
select a lower charging voltage than 15-
volt. Check the charger manual for the
proper setting.
3. Connect the second jumper cable to the
booster battery - terminal.
4. Connect the other end of the second
jumper cable to the grounding strap as
shown. Do not connect this jumper cable to
any other part.
5. If your vehicle is connected to another
vehicle, start the assisting vehicle's engine
and increase its rpm slightly.
6. Attempt to start your ve hicle's engine. If it
turns over slowly, check that the jumper
cables have good metal-to-metal contact.
■Jump Starting Procedure1 Jump Starting
Securely attach the jumper cables clips so that they
do not come off when the e ngine vibrates. Also be
careful not to tangle the ju mper cables or allow the
cable ends to touch each other while attaching or
detaching the jumper cables.
Battery performance degrades in cold conditions and
may prevent the engi ne from starting.
3WARNING
A battery can explode if you do not follow
the correct procedure, seriously injuring
anyone nearby.
Keep all sparks, open flames, and smoking
materials away from the battery.
Booster
Battery
15 CR-Z-31SZT6400.book 291 ページ ２０１４年８月１日　金曜日　午後１時５９分

296
Handling the Unexpected

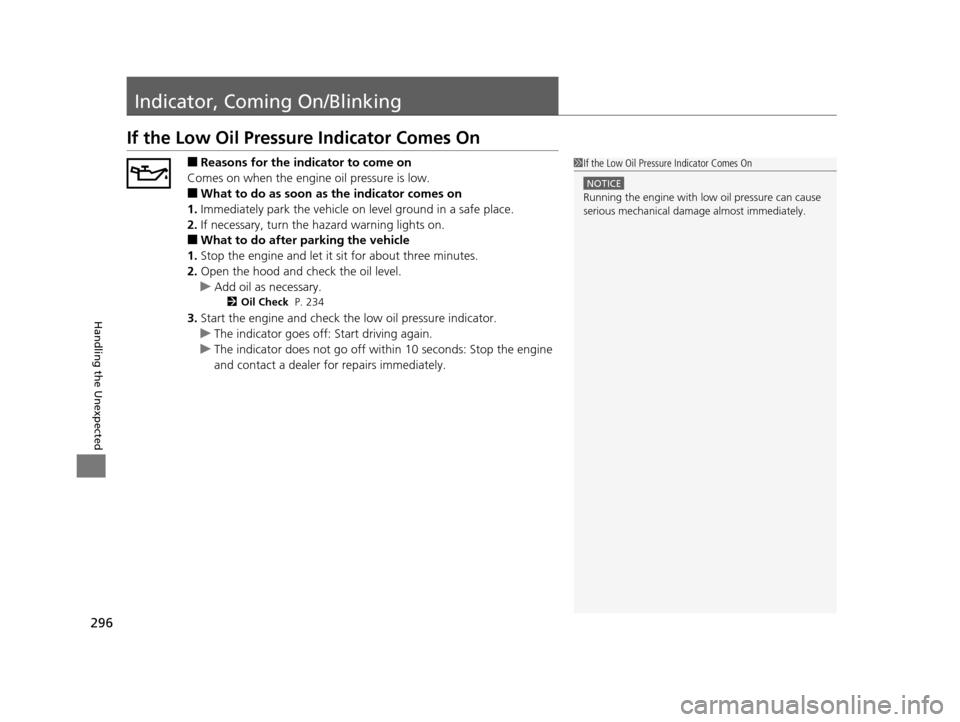

Indicator, Coming On/Blinking
If the Low Oil Pressure Indicator Comes On
■Reasons for the indicator to come on
Comes on when the engine oil pressure is low.
■What to do as soon as the indicator comes on
1. Immediately park the vehicle on level ground in a safe place.
2. If necessary, turn the ha zard warning lights on.
■What to do after parking the vehicle
1. Stop the engine and let it sit for about three minutes.
2. Open the hood and check the oil level.
u Add oil as necessary.
2 Oil Check P. 234
3.Start the engine and check th e low oil pressure indicator.
u The indicator goes off: Start driving again.
u The indicator does not go off within 10 seconds: Stop the engine
and contact a dealer for repairs immediately.
1If the Low Oil Pressure Indicator Comes On
NOTICE
Running the engine with low oil pressure can cause
serious mechanical damage almost immediately.
15 CR-Z-31SZT6400.book 296 ページ ２０１４年８月１日　金曜日　午後１時５９分

299
uuIndicator, Comin g On/BlinkinguIf the Brake System Indicator (Red) Comes On
Handling the Unexpected
If the Brake System Indicator (Red) Comes On
■Reasons for the indicator to come on
• The brake fluid is low.
• There is a malfunction in the brake system.
■What to do when the indica tor comes on while driving
Press the brake pedal lightly to check pedal pressure.
• If normal, check the brake fluid level the next time you stop.
• If abnormal, take immediate acti on. If necessary, downshift the
transmission to slow the vehicle using engine braking.
If the Electric Power Steeri ng (EPS) System Indicator
Comes On
■Reasons for the indicator to come on
• Comes on when there is a problem with EPS system.
• If you depress the accelerator pedal repeatedly to increase the engine
speed while the engine is idling, the indicator comes on, and
sometimes the steering wheel becomes harder to operate.
■What to do when th e indicator comes on
Stop the vehicle in a safe place and restart the engine.
If the indicator comes on and stays on, immediately have your vehicle
inspected by a dealer.
1 If the Brake System Indicator (Red) Comes On
Have your vehicle re paired immediately.
It is dangerous to drive with low brake fluid. If there
is no resistance from the brake pedal, stop
immediately in a safe plac e. If necessary downshift
the gears.
If the brake system indicator and ABS indicator come
on simultaneously, the elec tronic brake distribution
system is not working. Th is can result in vehicle
instability under sudden braking.
Have your vehicle inspecte d by a dealer immediately.U.S.
Canada (Red)
15 CR-Z-31SZT6400.book 299 ページ ２０１４年８月１日　金曜日　午後１時５９分

304
uuFuses uInspecting and Changing Fuses
Handling the Unexpected

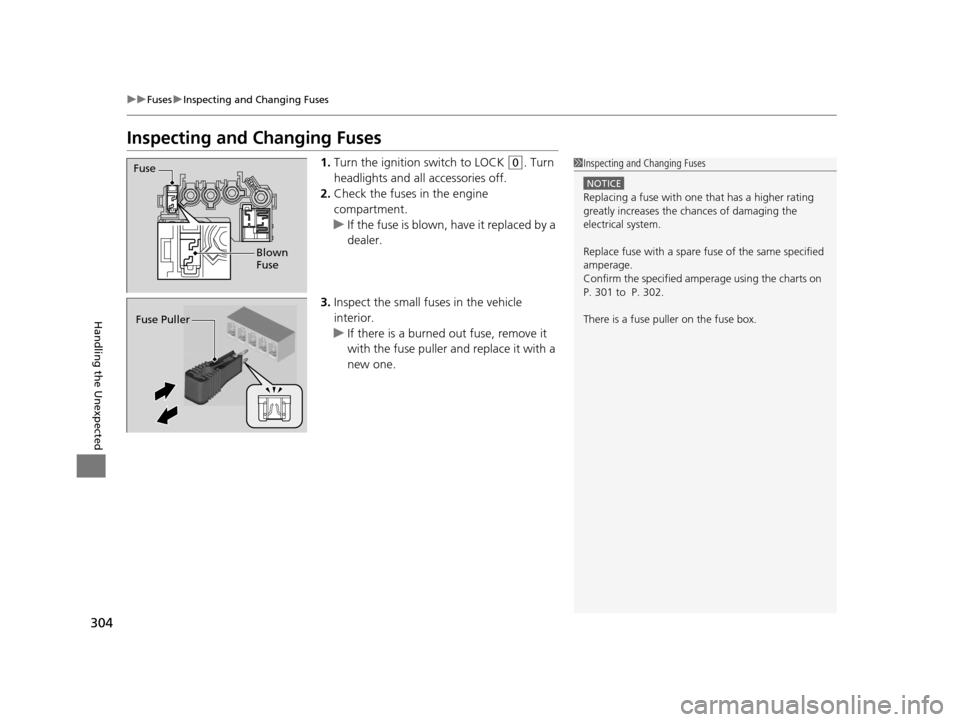

Inspecting and Changing Fuses
1. Turn the ignition switch to LOCK (0. Turn
headlights and all accessories off.
2. Check the fuses in the engine
compartment.
u If the fuse is blown, have it replaced by a
dealer.
3. Inspect the small fuses in the vehicle
interior.
u If there is a burned out fuse, remove it
with the fuse puller and replace it with a
new one.1Inspecting and Changing Fuses
NOTICE
Replacing a fuse with on e that has a higher rating
greatly increases the chances of damaging the
electrical system.
Replace fuse with a spare fuse of the same specified
amperage.
Confirm the specified amperage using the charts on
P. 301 to P. 302.
There is a fuse puller on the fuse box.
Fuse
Blown
Fuse
Fuse Puller
15 CR-Z-31SZT6400.book 304 ページ ２０１４年８月１日　金曜日　午後１時５９分

Index
321
Index
Index
Numbers
12 Volt Battery Charging System Indicator ................................................... 67
3-Mode Drive System ............................... 199
ECON Mode Indicator ............................... 76
NORMAL Mode Indicator .......................... 76
SPORT Mode Indicator .............................. 76
7-Speed Manual Shift Mode ................... 187
A
ABS (Anti-lock Brake System) .................. 212
Accessories and Modifications ................ 222
Accessory Power Socket ........................... 130
Active Head Restraints ............................. 126
Additives
Coolant .................................................. 238
Engine Oil ............................................... 233
Washer ................................................... 243
Additives, Engine Oil ............................... 233
Adjusting
Clock ........................................................ 98
Headlights .............................................. 244
Mirrors.................................................... 120
Seats....................................................... 122
Steering Wheel ....................................... 119
Air Conditioning System (Climate Control
System) .................................................... 136
Changing the Mode................................ 136
Defrosting the Windshield and
Windows .............................................. 137 Dust and Pollen Filter ............................... 267
Recirculation/Fresh Air Mode ................... 136
Sensors .................................................... 138
Using Automatic Climate Control ............ 136
Air Pressure ....................................... 255, 311
Airbags ........................................................ 39
Advanced Airbags ..................................... 45
After a Collision ......................................... 53
Airbag Care ............................................... 53
Event Data Recorders ................................... 0
Front Airbags (SRS) .................................... 42
Indicator ........................................ 50, 69, 73
Passenger Airbag Off Indicator .................. 51
Sensors ...................................................... 45
Side Airbag Cutoff System ......................... 48
Side Airbag Off Indicator ........................... 48
Side Airbags .............................................. 46
Side Curtain Airbags .................................. 49
AM/FM Audio ........................................... 147
Anti-lock Brake System (ABS) .................. 212
Indicator .................................................... 69
ASST Indicator ............................................. 82
Audio Remote Controls ............................ 144
Audio System ............................................ 140
Adjusting the Sound ................................ 146
Auxiliary Input Jack .................................. 142
Error Messages ........................................ 155
General Information ................................ 157
MP3/WMA/AAC ...................................... 153
Radio Data System (RDS) ......................... 148
Reactivating ............................................. 143 Recommended CDs ................................. 157
Recommended Drives .............................. 159
Security Code .......................................... 143
Theft Protection ...................................... 143
USB Adapter Cable.................................. 141
USB Flash Drives ...................................... 159
Authorized Manuals ................................ 319
Auto Door Locking/Unlocking ................. 104
Customize ................................................. 90
Auto Idle Stop Continuously Variable Transmission ......... 193
Manual Transmission ............................... 196
Auto Idle Stop Indicator ............................ 75
Automatic Lighting .................................. 113
Auxiliary Input Jack .................................. 142
Average Fuel Economy .............................. 88
Average Fuel Economy Records ................ 88
Average Speed ........................................... 85
B
Back-Up Light........................................... 249
Battery ...................................................... 264
Charging System Indicator................. 67, 297
Jump Starting .......................................... 291
Maintenance (Checking the 12 Volt Battery) ................................................. 264
Maintenance (Replacing the Button Battery) ................................................. 266
Battery Charge in Progress (CHRG) ........... 82
Belts (Seat) .................................................. 32
15 CR-Z-31SZT6400.book 321 ページ ２０１４年８月１日　金曜日　午後１時５９分
