2015 FORD TRANSIT fuses

Circuits protected
Fuse rating
Fuse
Not used.
-
F8
Right-hand high beam.
10A
F9
Left-hand high beam.
10A
F10
Right-hand exterior lamps.
25A
F11
Left-hand position lamps.
Not used.
-
F12
On-board diagnostic.
15A
F13
Battery saver.
Turn signal indicator.
25A
F14 Power windows delayed accessory.
Lane departure sensor heated windshield pad.
Left-hand exterior lamps.
25A
F15 Right-hand position lamps.
High mounted stoplamp.
Audio unit.
20A
F16
Navigation unit.
Instrument panel cluster.
7.5A
F17
Heater control.
Headlamp switch module.
10A
F18 Steering wheel module.
Stoplamp switch supply.
Front control/display interface module.
5A
F19
Ignition passive anti-theft system.
5A
F20
Accessory relay, customer access feed.
3A
F21
CHANGING A FUSE WARNINGS
Do not modify the electrical system
of your vehicle in any way. Have
repairs to the electrical system and
the replacement of relays and high current
fuses carried out by an authorized dealer. WARNINGS
Switch the ignition and all electrical
equipment off before attempting to
change a fuse.
Always replace a fuse with one that
has the specified amperage rating.
Using a fuse with a higher amperage
rating can cause severe wire damage and
could start a fire. 198
Transit (TTH) Canada/United States of America, enUSA, Edition date: 03/2014 Fuses

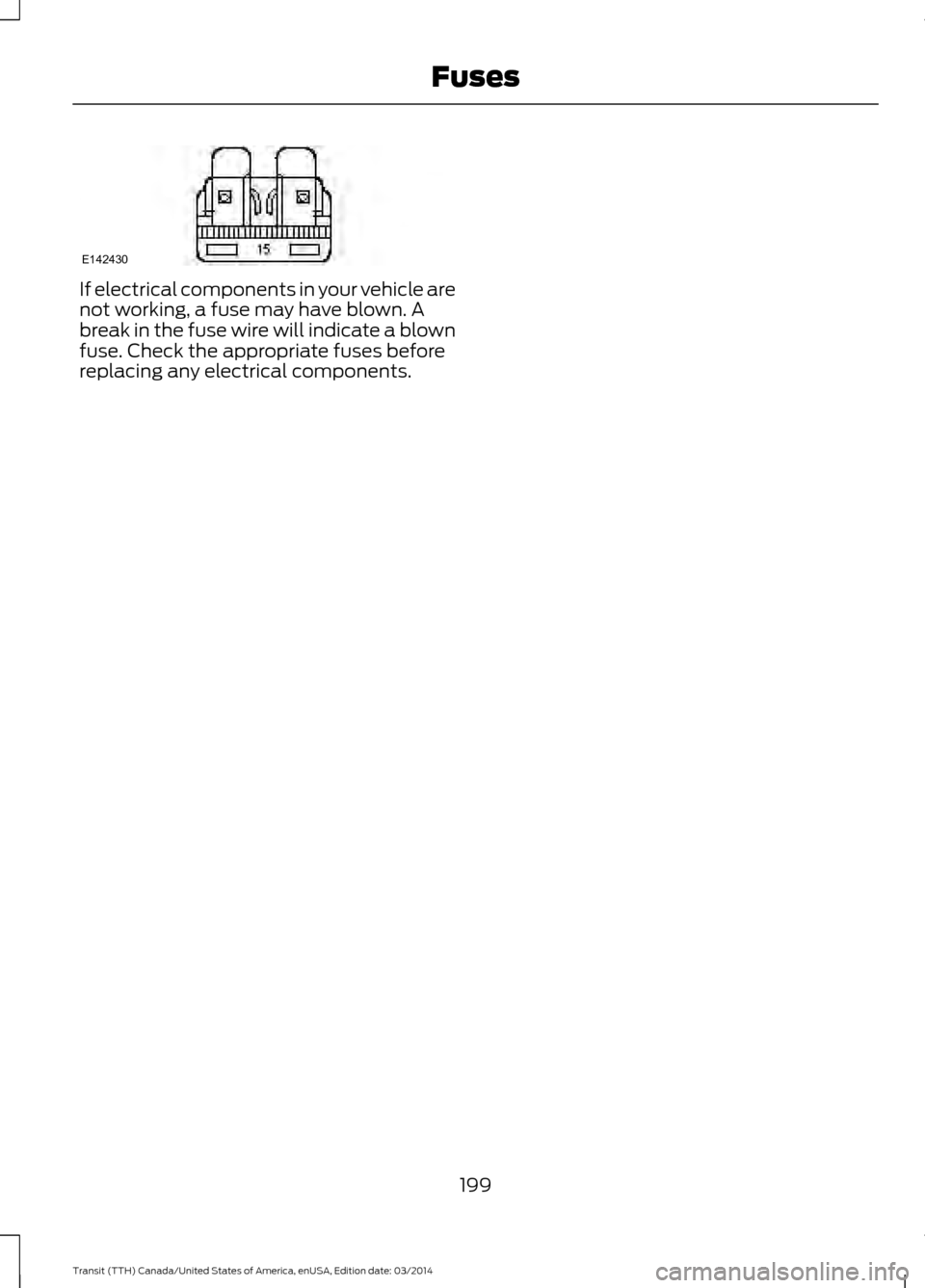

If electrical components in your vehicle are
not working, a fuse may have blown. A
break in the fuse wire will indicate a blown
fuse. Check the appropriate fuses before
replacing any electrical components.
199Transit (TTH) Canada/United States of America, enUSA, Edition date: 03/2014 FusesE142430

Air cleaner. See Changing the Engine Air Filter (page 223).
A
Engine oil dipstick *
. See
Engine Oil Dipstick (page 204).
B
Brake fluid reservoir *
. See
Brake Fluid Check (page 210).
C
Engine coolant reservoir *
. See
Engine Coolant Check (page 206).
D
Engine compartment fuse box. See
Fuses (page 187).
E
Engine oil filler cap *
. See
Engine Oil Check (page 204).
F
Power steering fluid reservoir *
. See
Power Steering Fluid Check (page 210).
G
Washer fluid reservoir *
. See
Washer Fluid Check (page 210).
H
* The filler caps and the engine oil dipstick are colored for easy identification.
UNDER HOOD OVERVIEW - 3.7L Air cleaner. See Changing the Engine Air Filter (page 224
).
A
Engine oil dipstick *
. See
Engine Oil Dipstick (page 204).
B
Brake fluid reservoir *
. See Brake Fluid Check
(page 210).
C
Engine coolant reservoir *
. See
Engine Oil Check (page 204).
D
Engine compartment fuse box. See Fuses
(page 187).
E
Engine oil filler cap *
. See
Engine Oil Check (page 204).
F
202Transit (TTH) Canada/United States of America, enUSA, Edition date: 03/2014 MaintenanceE174602
ACD
EGH
B
F

Power steering fluid reservoir
*
. See Power Steering Fluid Check (page 210).
G
Washer fluid reservoir *
. See
Washer Fluid Check (page 210).
H
* The filler caps and the engine oil dipstick are colored for easy identification.
UNDER HOOD OVERVIEW - 3.2L POWER STROKE DIESEL Air cleaner. See Changing the Engine Air Filter (page 225
).
A
Engine oil dipstick *
. See Engine Oil Dipstick (page 204).
B
Engine oil filler cap *
. See
Engine Oil Check (page 204).
C
Brake and clutch fluid reservoir *
. See
Brake Fluid Check (page 210).
D
Engine coolant reservoir *
. See Engine Coolant Check (page 206).
E
Engine compartment fuse box. See Fuses
(page 187).
F
Power steering fluid reservoir *
. See
Power Steering Fluid Check (page 210).
G
Washer fluid reservoir *
. See Washer Fluid Check
(page 210).
H
* The filler caps and the engine oil dipstick are colored for easy identification.
203Transit (TTH) Canada/United States of America, enUSA, Edition date: 03/2014 MaintenanceE174603
ABCDE
FGH

•
Mobile communications systems may
harm the operation of your vehicle,
particularly if they are not properly
designed for automotive use.
• If you or an authorized Ford dealer add
any non-Ford electrical or electronic
accessories or components to your
vehicle, you may adversely affect
battery performance and durability,
and may adversely affect the
performance of other electrical
systems in the vehicle.
AUXILIARY SWITCHES
The auxiliary switchboard on the center
console makes aftermarket customization
easier, with four prewired switches
attached to the power distribution box for
electrical accessories. The switches only operate while the
ignition is in the on position, whether the
engine is running or not. It is, however,
recommended that the engine remain
running to maintain a battery charge when
using the switches for an extended
duration or higher current draws. When you
switch them on they provide 20 amps of
electrical battery power for a variety of
uses.
A fuse and relay kit is included with this
option. The kit contains the required fuses
and relays that are included under the
driver seat in the pre-fusebox. Refer to the
instructions included with the kit. See an
authorized dealer for service.
There will also be one power lead for each
switch found in a four way connector
located under the driver seat.
The relays are coded as follows: Fuse
Wire color
Circuit number
Switch
20A
Yellow
CAC05
AUX 1
20A
Green with brown
trace
CAC06
AUX 2
20A
Violet with green
trace
CAC07
AUX 3
20A
Brown
CAC08
AUX 4
415Transit (TTH) Canada/United States of America, enUSA, Edition date: 03/2014 AccessoriesE163431

Entire Agreement:
These terms and conditions constitute the
entire agreement between HERE (and its
licensors, including their licensors and
suppliers) and you pertaining to the subject
matter hereof, and supersedes in their
entirety any and all written or oral
agreements previously existing between
us with respect to such subject matter.
Severability:
You and HERE agree that if any portion of
this agreement is found illegal or
unenforceable, that portion shall be
severed and the remainder of the
Agreement shall be given full force and
effect.
Severability:
You and HERE agree that if any portion of
this agreement is found illegal or
unenforceable, that portion shall be
severed and the remainder of the
Agreement shall be given full force and
effect.
Governing Law:
The above terms and conditions shall be
governed by the laws of the State of Illinois
(for Data for the Americas and/or the Asia
Pacific region) or The Netherlands (for
Data for Europe, the Middle East and
Africa), without giving effect to (i) its
conflict of laws provisions, or (ii) the United
Nations Convention for Contracts for the
International Sale of Goods, which is
explicitly excluded. For any and all
disputes, claims and actions arising from
or in connection with the Data (“Claims”),
you agree to submit to the personal
jurisdiction of (a) the State of Illinois for
Claims related to Data for the Americas
and/or the Asia Pacific region provided to
you hereunder, and (b) The Netherlands
for Data for Europe, the Middle East and/or
Africa provided to you hereunder.
Government End Users:
If the Data is being acquired by or on behalf
of the United States government or any
other entity seeking or applying rights
similar to those customarily claimed by the
United States government, this Data is a
“
commercial item ” as that term is defined
at 48 C.F.R. (“FAR”) 2.101, is licensed in
accordance with this End¬ User License
Agreement, and each copy of Data
delivered or otherwise furnished shall be
marked and embedded as appropriate
with the following “Notice of Use”, and be
treated in accordance with such Notice:
NOTICE OF USE
CONTRACTOR
(MANUFACTURER/SUPPLIER)
NAME:
HERE
CONTRACTOR
(MANUFACTURER/SUPPLIER)
ADDRESS:
425 West Randolph Street, Chicago, IL
60606.
This Data is a commercial item as defined
in FAR 2.101
and is subject to the End User License
Agreement under
which this Data was provided.
© 1987-2013 HERE. All rights reserved.
If the Contracting Officer, federal
government agency, or any federal official
refuses to use the legend provided herein,
the Contracting Officer, federal
government agency, or any federal official
must notify HERE prior to seeking
additional or alternative rights in the Data.
428 Transit (TTH) Canada/United States of America, enUSA, Edition date: 03/2014 Appendices

Essential Towing Checks...........................164
Before Towing a Trailer..................................... 169
Launching or Retrieving a Boat or Personal Water Craft (PWC)........................................ 170
Safety Chains....................................................... 165
Tow Hitch............................................................... 165
Trailer Brakes........................................................ 165
Trailer Lamps....................................................... 169
Trailer Towing Connector................................ 164
When Towing a Trailer...................................... 169
Event Data Recording See: Data Recording.............................................. 9
Export Unique Options...................................11
Extended Service Plan (ESP)
..................431
SERVICE PLANS (CANADA ONLY)............432
SERVICE PLANS (U.S. Only).......................... 431
Exterior Mirrors..................................................71 Fold-Away Exterior Mirrors................................. 71
Power Exterior Mirrors.......................................... 71
F
Fastening the Safety Belts.........................28 Safety Belt Extension Assembly....................30
Safety Belt Locking Modes............................... 29
Using Safety Belts During Pregnancy...........28
Floor Mats
........................................................174
Ford Credit.........................................................10
(U.S. Only)............................................................... 10
Fuel and Refueling.........................................111
Fuel C

onsumption........................................122
Calculating Fuel Economy............................... 122
Filling the Fuel Tank........................................... 122
Fuel Filter - Gasoline....................................212
Fuel Qu

ality - Diesel......................................113
Biodiesel.................................................................. 114
Diesel Fuel Additives ......................................... 115
Fuel Requirements - Choosing The Right Fuel: Vehicles Operated Where
Ultra-Low Sulfur Diesel Fuel Is Not
Required ............................................................ 113
Fuel Requirements - Choosing the Right Fuel: Vehicles Operated Where
Ultra-Low Sulfur Diesel Fuel is Required
(United States/Canada/Puerto Rico/U.S.
Virgin Islands and Other Locales)............113 Fuel Quality - Gasoline................................112
Choosing the Right Fuel With a Flex Fuel
Vehicle (If Equipped)..................................... 112
Choosing the Right Fuel Without a Flex Fuel Vehicle (If Equipped)..................................... 112
Octane Recommendations............................. 112
Fuel Shutoff.....................................................177
Fuse Box Locations......................................187 Body Control Module Fuse Box..................... 187
Engine Compartment Fuse Box.................... 187
Passenger Compartment Fuse Box.............187
Pre-fuse Box......................................................... 187
Fuses.................................................................187
Fuse Specification Chart...........................188 Body Control Module......................................... 197
Engine Compartment Fuse Box................... 188
Passenger Compartment Fuse Panel.........192
Pre-fuse Box......................................................... 195
G
Gauges................................................................73 Engine Coolant Temperature Gauge.............73
Fuel Gauge.............................................................. 74
Information Display............................................. 73
Tripmeter Reset and Distance to Empty................................................................... 74
General Information on Radio Frequencies...................................................44
General Maintenance Information........433 Multi-point Inspection..................................... 435
Owner Checks and Services.......................... 434
Protecting Your Investment........................... 433
Why Maintain Your Vehicle?.......................... 433
Why Maintain Your Vehicle at Your Dealership?..................................................... 433
Getting Assistance Outside the U.S. and Canada..........................................................184
G

etting the Services You Need.................181
Away From Home................................................ 181
H
Handbrake See: Parking Brake............................................. 138
Hazard Warning Flashers...........................177
452 Transit (TTH) Canada/United States of America, enUSA, Edition date: 03/2014 Index
