2015 FORD MUSTANG climate control

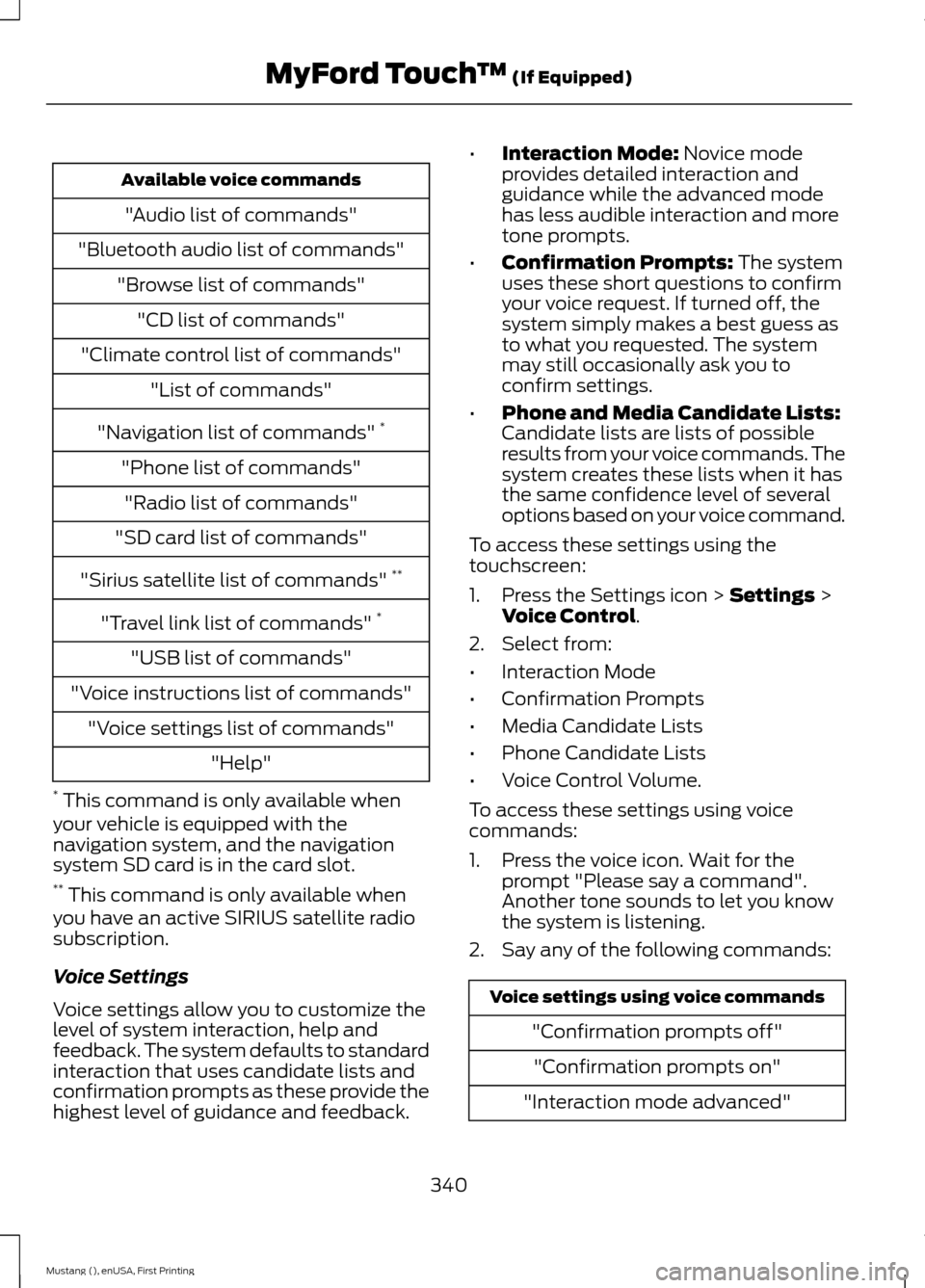

Available voice commands
"Audio list of commands"
"Bluetooth audio list of commands" "Browse list of commands""CD list of commands"
"Climate control list of commands" "List of commands"
"Navigation list of commands" *
"Phone list of commands" "Radio list of commands"
"SD card list of commands"
"Sirius satellite list of commands" **
"Travel link list of commands" *
"USB list of commands"
"Voice instructions list of commands" "Voice settings list of commands" "Help"
* This command is only available when
your vehicle is equipped with the
navigation system, and the navigation
system SD card is in the card slot.
** This command is only available when
you have an active SIRIUS satellite radio
subscription.
Voice Settings
Voice settings allow you to customize the
level of system interaction, help and
feedback. The system defaults to standard
interaction that uses candidate lists and
confirmation prompts as these provide the
highest level of guidance and feedback. •
Interaction Mode: Novice mode
provides detailed interaction and
guidance while the advanced mode
has less audible interaction and more
tone prompts.
• Confirmation Prompts:
The system
uses these short questions to confirm
your voice request. If turned off, the
system simply makes a best guess as
to what you requested. The system
may still occasionally ask you to
confirm settings.
• Phone and Media Candidate Lists:
Candidate lists are lists of possible
results from your voice commands. The
system creates these lists when it has
the same confidence level of several
options based on your voice command.
To access these settings using the
touchscreen:
1. Press the Settings icon >
Settings >
Voice Control.
2. Select from:
• Interaction Mode
• Confirmation Prompts
• Media Candidate Lists
• Phone Candidate Lists
• Voice Control Volume.
To access these settings using voice
commands:
1. Press the voice icon. Wait for the prompt "Please say a command".
Another tone sounds to let you know
the system is listening.
2. Say any of the following commands: Voice settings using voice commands
"Confirmation prompts off""Confirmation prompts on"
"Interaction mode advanced"
340
Mustang (), enUSA, First Printing MyFord Touch
™
(If Equipped)

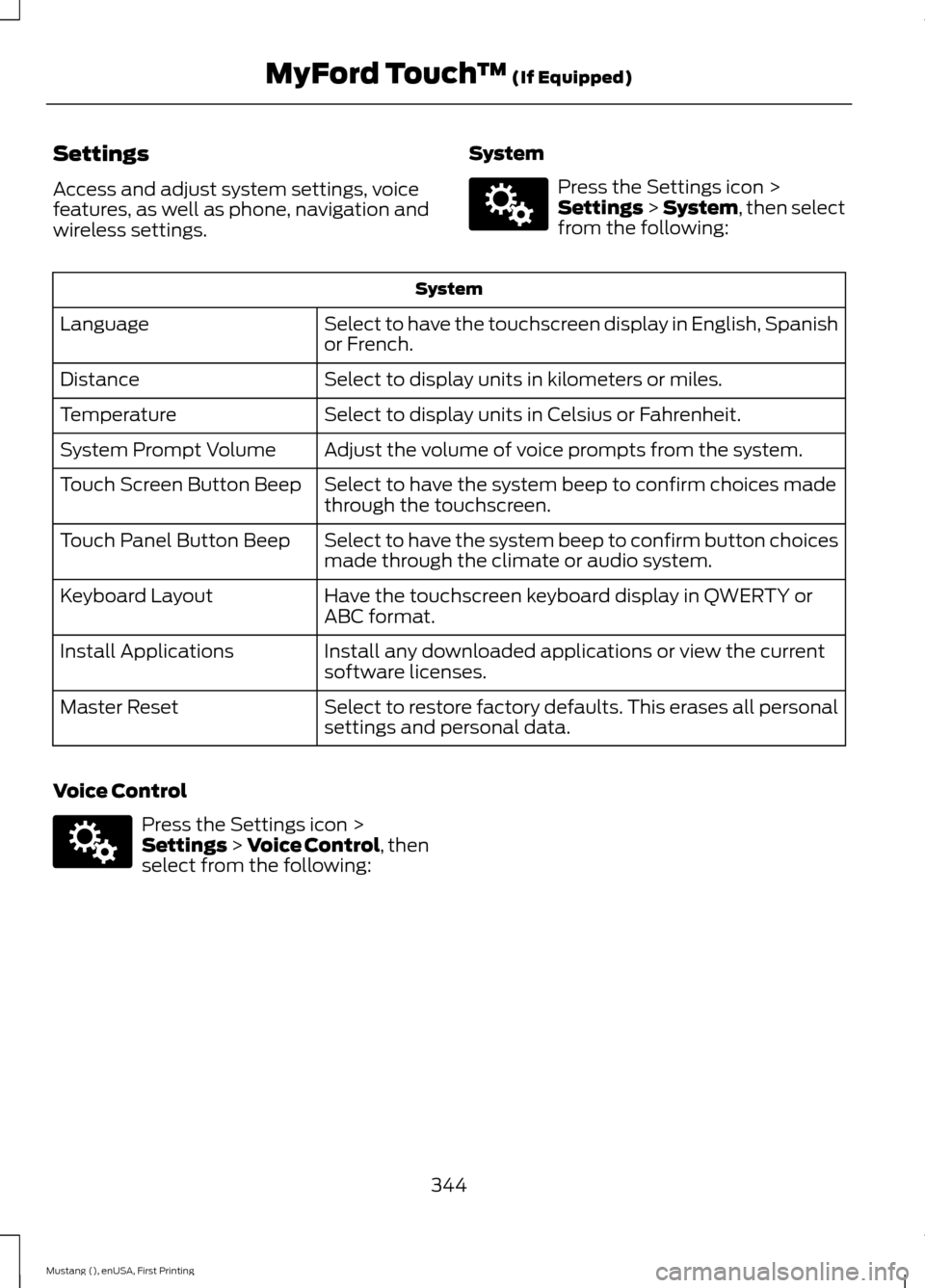

Settings
Access and adjust system settings, voice
features, as well as phone, navigation and
wireless settings.
System Press the Settings icon >
Settings > System, then select
from the following: System
Select to have the touchscreen display in English, Spanish
or French.
Language
Select to display units in kilometers or miles.
Distance
Select to display units in Celsius or Fahrenheit.
Temperature
Adjust the volume of voice prompts from the system.
System Prompt Volume
Select to have the system beep to confirm choices made
through the touchscreen.
Touch Screen Button Beep
Select to have the system beep to confirm button choices
made through the climate or audio system.
Touch Panel Button Beep
Have the touchscreen keyboard display in QWERTY or
ABC format.
Keyboard Layout
Install any downloaded applications or view the current
software licenses.
Install Applications
Select to restore factory defaults. This erases all personal
settings and personal data.
Master Reset
Voice Control Press the Settings icon >
Settings
> Voice Control, then
select from the following:
344
Mustang (), enUSA, First Printing MyFord Touch
™
(If Equipped)E142607 E142607

To run a report by voice
command, press the voice
button on the steering wheel
and, when prompted, say "Vehicle health
report".
Vehicle Health Report Privacy Notice
When you create a Vehicle Health Report,
Ford Motor Company may collect your
cellular phone number (to process your
report request) and diagnostic information
about your vehicle. Certain versions or
updates to Vehicle Health Report may also
collect more vehicle information. Ford may
use your vehicle information it collects for
any purpose. If you do not want to disclose
your cellular phone number or vehicle information, do not run the feature or set
up your Vehicle Health Report profile at
www.SYNCMyRide.com. See
www.SYNCMyRide.com (Vehicle Health
Report Terms and Conditions, and Privacy
Statement) for more information.

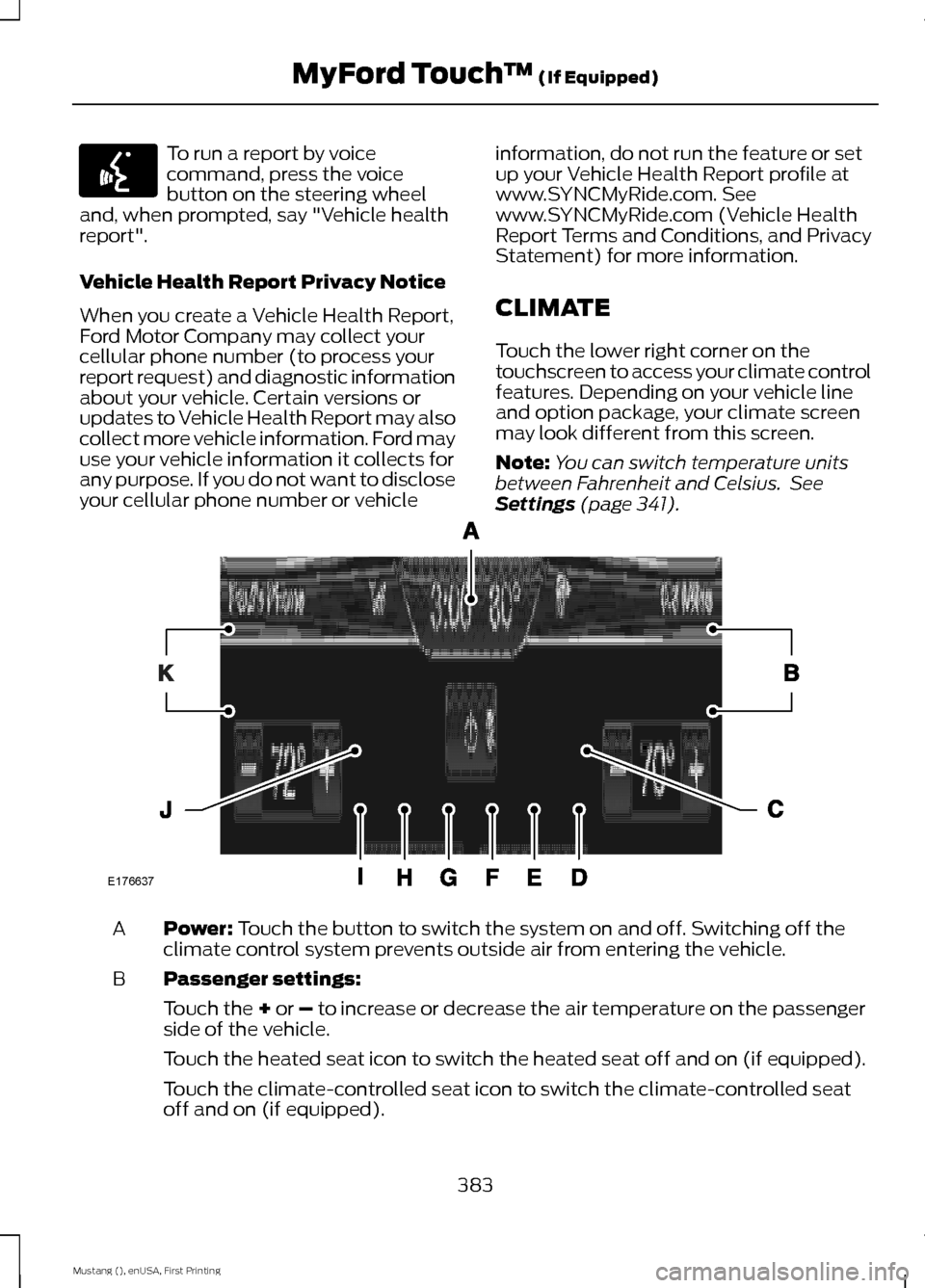

CLIMATE
Touch the lower right corner on the
touchscreen to access your climate control
features. Depending on your vehicle line
and option package, your climate screen
may look different from this screen.
Note:
You can switch temperature units
between Fahrenheit and Celsius. See
Settings (page 341). Power:
Touch the button to switch the system on and off. Switching off the
climate control system prevents outside air from entering the vehicle.
A
Passenger settings:
B
Touch the
+ or – to increase or decrease the air temperature on the passenger
side of the vehicle.
Touch the heated seat icon to switch the heated seat off and on (if equipped).
Touch the climate-controlled seat icon to switch the climate-controlled seat
off and on (if equipped).
383
Mustang (), enUSA, First Printing MyFord Touch
™
(If Equipped)E142599 E176637

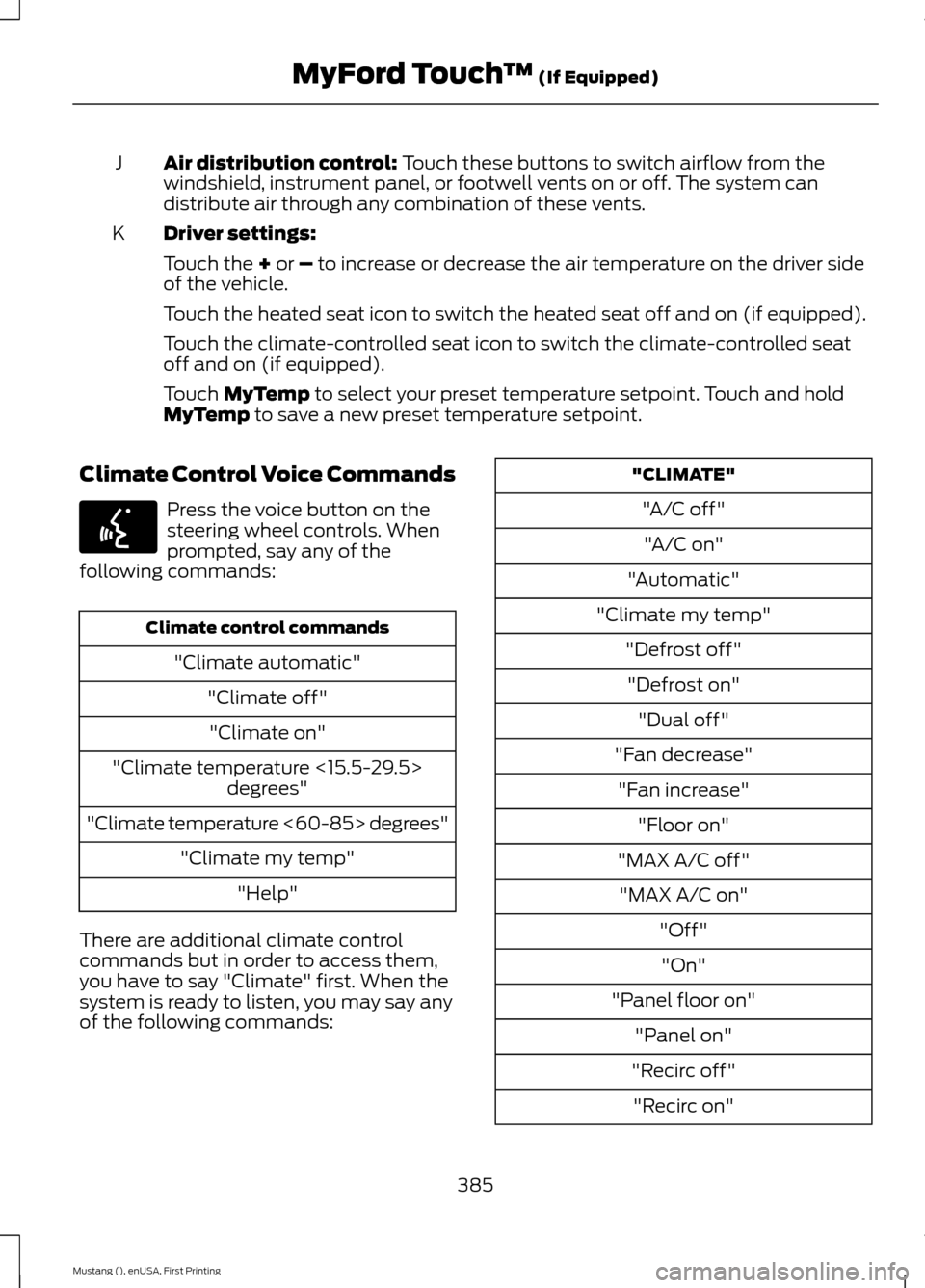

Air distribution control: Touch these buttons to switch airflow from the
windshield, instrument panel, or footwell vents on or off. The system can
distribute air through any combination of these vents.
J
Driver settings:
K
Touch the
+ or – to increase or decrease the air temperature on the driver side
of the vehicle.
Touch the heated seat icon to switch the heated seat off and on (if equipped).
Touch the climate-controlled seat icon to switch the climate-controlled seat
off and on (if equipped).
Touch
MyTemp to select your preset temperature setpoint. Touch and hold
MyTemp to save a new preset temperature setpoint.
Climate Control Voice Commands Press the voice button on the
steering wheel controls. When
prompted, say any of the
following commands: Climate control commands
"Climate automatic" "Climate off""Climate on"
"Climate temperature <15.5-29.5> degrees"
"Climate temperature <60-85> degrees" "Climate my temp""Help"
There are additional climate control
commands but in order to access them,
you have to say "Climate" first. When the
system is ready to listen, you may say any
of the following commands: "CLIMATE"
"A/C off""A/C on"
"Automatic"
"Climate my temp" "Defrost off""Defrost on" "Dual off"
"Fan decrease" "Fan increase" "Floor on"
"MAX A/C off" "MAX A/C on" "Off""On"
"Panel floor on" "Panel on"
"Recirc off" "Recirc on"
385
Mustang (), enUSA, First Printing MyFord Touch
™
(If Equipped)E142599

A
A/C
See: Climate Control.......................................... 101
About This Manual...........................................7
ABS See: Brakes........................................................... 140
ABS driving hints See: Hints on Driving With Anti-Lock
Brakes................................................................ 140
Accessories....................................................395 Exterior style........................................................ 395
Interior style......................................................... 395
Lifestyle................................................................. 395
Peace of mind..................................................... 395
Accessories See: Replacement Parts
Recommendation............................................. 11
ACC See: Using Adaptive Cruise Control.............153
Adjusting the Headlamps
.........................223
Horizontal Aim Adjustment........................... 224
Vertical Aim Adjustment................................. 223
Adjusting the Steering Wheel...................64
Airbag Disposal...............................................44
Air Conditioning See: Climate Control.......................................... 101
Alarm See: Anti-Theft Alarm........................................ 63
Ambient Lighting............................................72
Anti-Theft Alarm
............................................63
Arming the Alarm................................................. 63
Disarming the Alarm........................................... 63
Appendices....................................................397
At a Glance........................................................14 Front Exterior Overview...................................... 14
Instrument Panel Overview.............................. 16
Rear Exterior Overview........................................ 17
Vehicle Interior Overview.................................... 15
Audible Warnings and Indicators
..............81
Headlamps On Warning Chime....................... 81
Keyless Warning Alert.......................................... 81
Parking Brake On Warning Chime.................. 82
Audio Control..................................................64 MEDIA....................................................................... 64
Seek, Next or Previous....................................... 64
Audio Input Jack...........................................293 Audio System
................................................283
General Information......................................... 283
Audio Unit - Vehicles With: AM/FM/CD/ SYNC/Satellite Radio
.............................284
Audio Unit - Vehicles With: Premium AM/FM/CD..................................................287
Autolamps
........................................................68
Windshield Wiper Activated
Headlamps........................................................ 69
Automatic Climate Control......................102
Automatic Transmission............................136 Automatic Transmission Adaptive
Learning............................................................. 138
Brake-Shift Interlock.......................................... 137
If Your Vehicle Gets Stuck In Mud or Snow.................................................................. 138
SelectShift Automatic ™
Transmission................................................... 136
Understanding the Positions of Your Automatic Transmission............................. 136
Automatic Transmission Fluid Check.............................................................219
Autowipers.......................................................66
Auxiliary Power Points.................................119 12 Volt DC Power Point...................................... 119
Locations................................................................ 119
B
Blind Spot Information System..............159 Blind Spot Information System (BLIS ™)
with Cross Traffic Alert................................ 159
Bonnet Lock See: Opening and Closing the Hood...........210
Booster Seats..................................................25 Types of Booster Seats...................................... 25
Brake and Clutch Fluid Check..................219
Brakes...............................................................140 General Information.......................................... 140
Breaking-In.....................................................188
Bulb Specification Chart...........................226
C
Cabin Air Filter................................................107
California Proposition 65..............................11
429
Mustang (), enUSA, First Printing Index

Capacities and Specifications - 2.3L
EcoBoost™ ...................................................271
Specifications...................................................... 272
Capacities and Specifications - 3.7L..................................................................275
Specifications...................................................... 276
Capacities and Specifications - 5.0L 32V Ti-VCT...........................................................279
Specifications..................................................... 280
Capacities and Specifications
................267
Car Wash See: Cleaning the Exterior.............................. 228
Center Console..............................................120
Changing a Bulb...........................................224 Accessing the Direction Indicator and Fog
Lamp Bulbs..................................................... 224
Lamp Assembly Condensation.................... 224
Replacing Fog Lamp Bulbs (If Equipped)........................................................ 225
Replacing HID Headlamp Bulbs................... 224
Replacing LED Fog Lamp Bulbs (If Equipped)........................................................ 225
Replacing rear, Brake, High-Mount Brake, Rear Direction Indicator and License
Plate Lamp Bulbs......................................... 225
Replacing Reverse Lamp Bulbs.................... 225
Replacing the Direction Indicator Bulbs.................................................................. 225
Changing a Fuse..........................................209 Fuses...................................................................... 209
Changing a Road Wheel
...........................260
Dissimilar Spare Wheel and Tire Assembly
Information..................................................... 260
Tire Change Procedure..................................... 261
Changing the 12V Battery.........................220 Battery Management System (If
Equipped)......................................................... 221
Changing the Engine Air Filter.................227
Changing the Wiper Blades.....................222
Checking MyKey System Status...............53
Checking the Wiper Blades......................222
Child Restraint and Safety Belt Maintenance.................................................34
Child Safety
.......................................................18
General Information............................................. 18
Child Seat Positioning...................................27
Cleaning Leather Seats..............................231
Cleaning Products.......................................228 Cleaning the Alloy Wheels.......................232
Cleaning the Engine....................................229
Cleaning the Exterior..................................228
Cleaning Plastic Exterior Parts..................... 229
Exterior Chrome................................................. 228
Stripes or Graphics (if equipped)................228
Underbody........................................................... 229
Cleaning the Instrument Panel and Instrument Cluster Lens........................230
Cleaning the Interior...................................230
Cleaning the Windows and Wiper Blades...........................................................230
Clearing All MyKeys
........................................51
Climate............................................................383 Climate Control Voice Commands.............385
Climate Control..............................................101
Climate Controlled Seats...........................113 Cooled Seats......................................................... 113
Closing the Convertible Top.....................186
Collision Warning System
.........................164
PRINCIPLE OF OPERATION........................... 164
Convertible Top.............................................185
Coolant Check See: Engine Coolant Check............................. 215
Crash Sensors and Airbag Indicator........43
Creating a MyKey.............................................51 Programming/Changing Configurable
Settings................................................................ 51
Cruise Control..................................................65 Principle of Operation....................................... 152
Cruise control See: Using Cruise Control................................ 152
Customer Assistance.................................196
D
Data Recording
..................................................9
Event Data Recording........................................... 9
Service Data Recording........................................ 9
Daytime Running Lamps.............................70 Type 1 - Conventional
(Non-Configurable)....................................... 70
Type 2 - Configurable..........................................70
Digital Radio
..................................................288
HD Radio Reception and Station
Troubleshooting............................................ 289
Direction Indicators
.........................................71
430
Mustang (), enUSA, First Printing Index

Drive Control..................................................166
Selectable Drive Modes................................... 166
Selectable Steering............................................ 167
Driver and Passenger Airbags....................37 Children and Airbags........................................... 37
Proper Driver and Front Passenger Seating Adjustment........................................................ 37
Driver and Passenger Knee Airbags........42
Driving Aids
.....................................................159
Driving at High Speed................................265
Driving Hints
...................................................188
Driving Through Water...............................188
DRL See: Daytime Running Lamps......................... 70
E
Economical Driving......................................188
Emission Control System...........................131 On-Board Diagnostics (OBD-II).................... 132
Readiness for Inspection/Maintenance (I/M) Testing.................................................... 132
End User License Agreement..................397 SYNC End User License Agreement
(EULA).............................................................. 397
Engine Block Heater....................................124 Using the Engine Block Heater...................... 125
Engine Coolant Check
.................................215
Adding Engine Coolant..................................... 216
Checking the Engine Coolant......................... 215
Recycled Engine Coolant................................. 216
Severe Climates................................................... 217
What You Should Know About Fail-Safe Cooling............................................................... 217
Engine Immobilizer See: Passive Anti-Theft System..................... 62
Engine Oil Check
...........................................214
Adding Engine Oil............................................... 214
Engine Oil Dipstick.......................................214
Engine Specifications
.................................267
Drivebelt Routing................................................ 267Entertainment................................................351
AM/FM Radio...................................................... 353
Bluetooth Audio................................................. 366
Browsing Device Content................................ 351
CD........................................................................\
.... 362
Line In..................................................................... 367
SD Card Slot and USB Port........................... 363
Sirius® Satellite Radio (If Activated)........358
Supported Media Players, Formats and Metadata Information................................ 366
Essential Towing Checks
............................181
Before Towing a Trailer...................................... 181
Hitches..................................................................... 181
Launching or Retrieving a Boat or Personal Watercraft (PWC)......................................... 182
Safety Chains........................................................ 181
Trailer Brakes......................................................... 181
Trailer Lamps........................................................ 181
When Towing a Trailer...................................... 182
Event Data Recording See: Data Recording.............................................. 9
Export Unique Options..................................13
Extended Service Plan (ESP)..................412 SERVICE PLANS (CANADA ONLY).............413
SERVICE PLANS (U.S. Only).......................... 412
Exterior Mirrors
.................................................74
Auto-Dimming Feature...................................... 74
Blind Spot Monitor............................................... 75
Fold-Away Exterior Mirrors................................ 74
Heated Exterior Mirrors....................................... 74
Integrated Blind Spot Mirrors........................... 75
Memory Mirrors..................................................... 74
Pony Projection Lights........................................ 74
Power Exterior Mirrors......................................... 74
Signal Indicator Mirrors...................................... 74
F
Fastening the Safety Belts
.........................30
Safety Belt Extension Assembly..................... 32
Safety Belt Locking Modes................................ 31
Using Safety Belts During Pregnancy............31
Flat Tire Inflation See: Temporary Mobility Kit........................... 235
Floor Mats
.......................................................189
Fog Lamps - Front See: Front Fog Lamps.......................................... 71
431
Mustang (), enUSA, First Printing Index

Ford Credit..........................................................11
(U.S. Only)................................................................. 11
Front Fog Lamps
..............................................71
Front Passenger Sensing System............38
Fuel and Refueling.......................................126
Fuel Consumption.......................................130
Calculating Fuel Economy.............................. 130
Filling the Tank.................................................... 130
Fuel Filter
........................................................220
Fuel Quality.....................................................127 Choosing the Right Fuel................................... 127
Octane Recommendations............................. 127
Fuel Shutoff
....................................................192
Fuses................................................................202
Fuse Specification Chart
..........................202
Passenger Compartment Fuse
Panel................................................................. 206
Power Distribution Box.................................... 202
G
Garage Door Opener See: Universal Garage Door Opener.............114
Gauges................................................................77 Engine Coolant Temperature Gauge............78
Fuel Gauge............................................................... 77
Information Display.............................................. 77
General Information on Radio Frequencies...................................................45
Intelligent Access................................................. 45
General Maintenance Information........414 Multi-Point Inspection...................................... 416
Owner Checks and Services........................... 415
Protecting Your Investment............................ 414
Why Maintain Your Vehicle?.......................... 414
Why Maintain Your Vehicle at Your Dealership?...................................................... 414
Getting Assistance Outside the U.S. and Canada..........................................................199
Getting the Services You Need...............196 Away From Home.............................................. 196
Glasses Holder
..............................................120
Global Opening...............................................73
Opening the Windows........................................ 74H
Handbrake
See: Parking Brake............................................. 140
Hazard Warning Flashers...........................192
Headlamp Exit Delay....................................70
Head Restraints............................................108 Adjusting the Head Restraint........................ 109
Front Seat Non-Adjustable Head Restraints ........................................................................\
...... 109
Tilting Head Restraints ................................... 109
Heated Windows and Mirrors
..................106
Heated Exterior Mirror...................................... 106
Heated Rear Window....................................... 106
Heating See: Climate Control.......................................... 101
Hill Start Assist...............................................141 Using Hill Start Assist......................................... 141
Hints on Controlling the Interior Climate..........................................................104
Cooling the Interior Quickly............................ 105
General Hints....................................................... 104
Heating the Interior Quickly............................ 105
Recommended Settings for Cooling .........106
Recommended Settings for Heating..........105
Side Window Defogging in Cold Weather............................................................ 106
Hints on Driving With Anti-Lock Brakes............................................................140
Hood Lock See: Opening and Closing the Hood...........210
I
In California (U.S. Only)
..............................197
Information Display Control.......................65
Information Displays.....................................83 General Information............................................ 83
Information.....................................................374 911 Assist.............................................................. 380
Alerts...................................................................... 380
Calendar............................................................... 380
Sirius Travel Link................................................. 377
SYNC Services (If Equipped, United States Only).................................................................. 375
Vehicle Health Report (If Equipped, United States Only).................................................... 382
432
Mustang (), enUSA, First Printing Index
