2015 FORD FIESTA Owners Manual

Circuits protected
Fuse rating
Fuse
On-board diagnostics connector.
15 A
5
Reversing lamps.
10 A
6
Instrument panel.
7.5 A
7
Information and entertainment display.
Moonroof.
7.5 A
8
Remote keyless entry.
20 A
9
Remote keyless starting.
Audio unit.
15 A
10
SYNC module.
Windshield wipers.
20 A
11
Climate control.
7.5 A
12
Rear window wiper.
15 A
13
Remote keyless entry.
20 A
14
Remote keyless starting.
Windshield wipers.
15 A
15
Exterior mirrors.
5 A
16
Power windows.
Heated seats.
15 A
17
Brake lamp.
10 A
18
Instrument cluster.
7.5 A
19
Airbags
10 A
20
Electronic power assist steering.
7.5 A
21 Instrument cluster.
Ignition.
Windshield wipers.
Passive anti-theft system.
Transmission control unit.
7.5 A
22 Powertrain control module.
Anti-lock brake system.
Stability assist.
Transmission control unit.
7.5 A
23
Audio unit.
7.5 A
24
174
Fiesta (CCT), enUSA, Second Printing Fuses

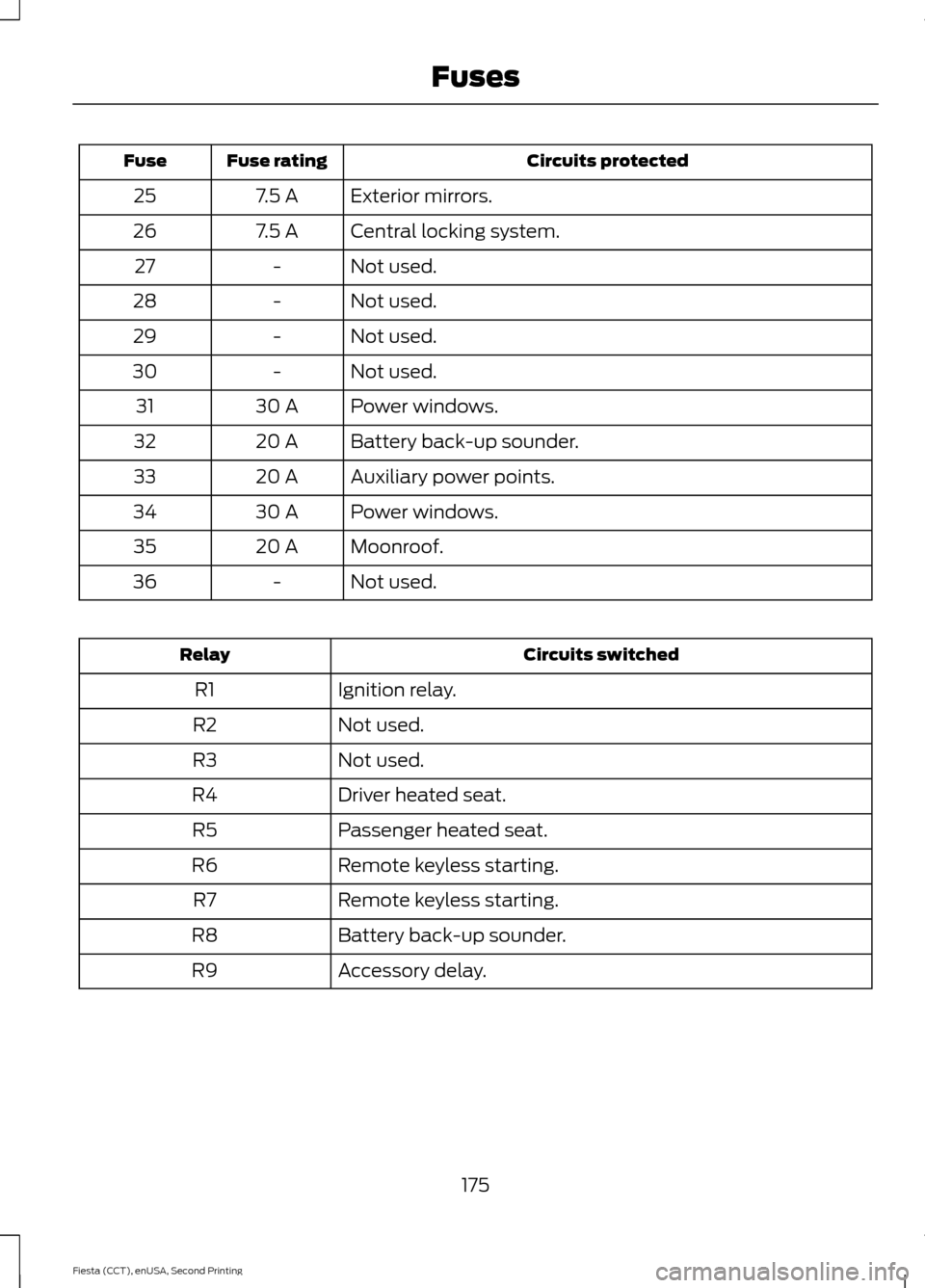

Circuits protected
Fuse rating
Fuse
Exterior mirrors.
7.5 A
25
Central locking system.
7.5 A
26
Not used.
-
27
Not used.
-
28
Not used.
-
29
Not used.
-
30
Power windows.
30 A
31
Battery back-up sounder.
20 A
32
Auxiliary power points.
20 A
33
Power windows.
30 A
34
Moonroof.
20 A
35
Not used.
-
36 Circuits switched
Relay
Ignition relay.
R1
Not used.
R2
Not used.
R3
Driver heated seat.
R4
Passenger heated seat.
R5
Remote keyless starting.
R6
Remote keyless starting.
R7
Battery back-up sounder.
R8
Accessory delay.
R9
175
Fiesta (CCT), enUSA, Second Printing Fuses

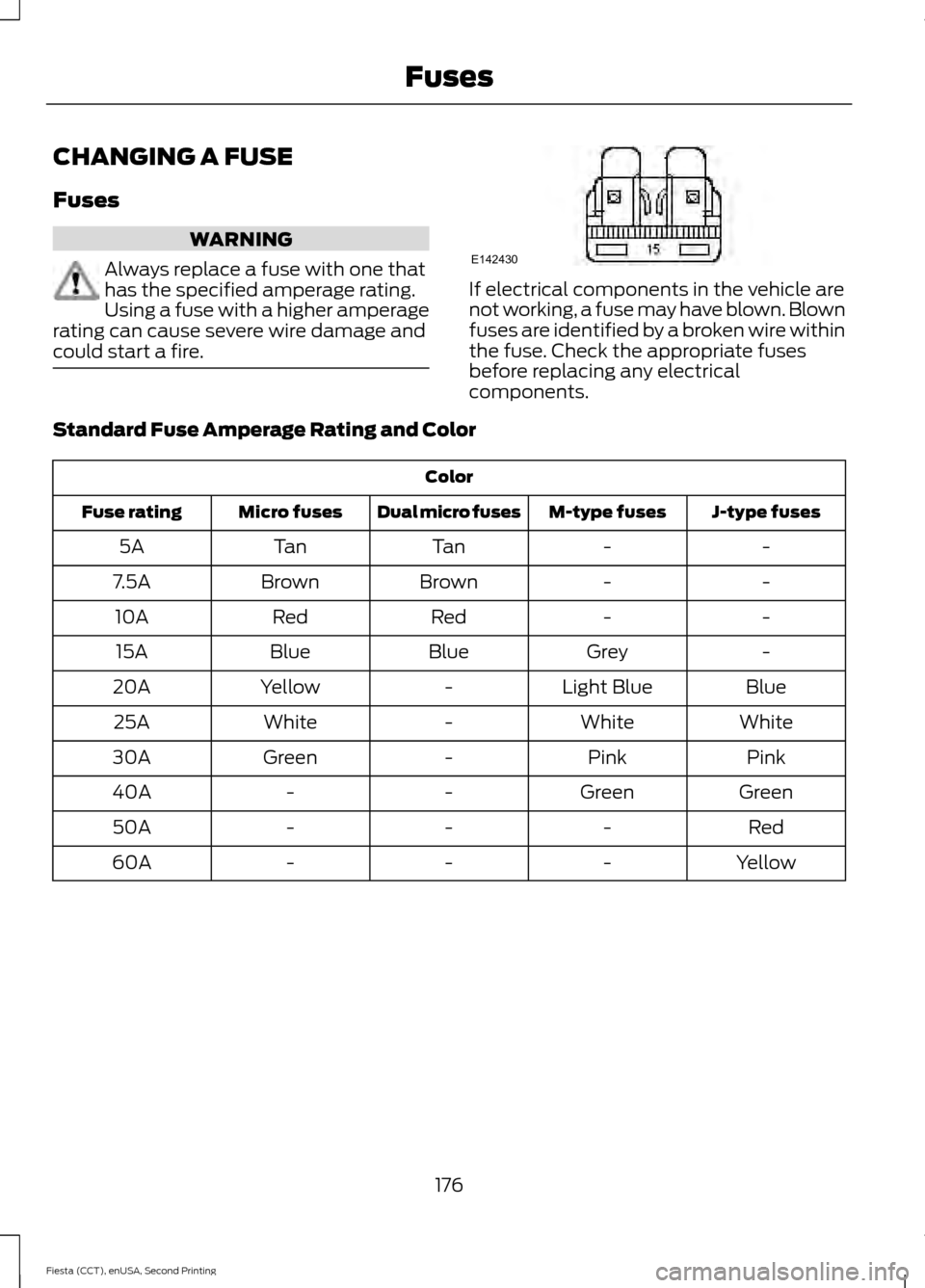

CHANGING A FUSE
Fuses
WARNING
Always replace a fuse with one that
has the specified amperage rating.
Using a fuse with a higher amperage
rating can cause severe wire damage and
could start a fire. If electrical components in the vehicle are
not working, a fuse may have blown. Blown
fuses are identified by a broken wire within
the fuse. Check the appropriate fuses
before replacing any electrical
components.
Standard Fuse Amperage Rating and Color Color
J-type fuses
M-type fuses
Dual micro fuses
Micro fuses
Fuse rating
-
-
Tan
Tan
5A
-
-
Brown
Brown
7.5A
-
-
Red
Red
10A
-
Grey
Blue
Blue
15A
Blue
Light Blue
-
Yellow
20A
White
White
-
White
25A
Pink
Pink
-
Green
30A
Green
Green
-
-
40A
Red
-
-
-
50A
Yellow
-
-
-
60A
176
Fiesta (CCT), enUSA, Second Printing FusesE142430

GENERAL INFORMATION
Have your vehicle serviced regularly to help
maintain its roadworthiness and resale
value. There is a large network of
authorized dealers that are there to help
you with their professional servicing
expertise. We believe that their specially
trained technicians are best qualified to
service your vehicle properly and expertly.
They are supported by a wide range of
highly specialized tools developed
specifically for servicing your vehicle.
To help you service your vehicle, we
provide scheduled maintenance
information which makes tracking routine
service easy. See Scheduled
Maintenance (page 396).
If your vehicle requires professional service,
an authorized dealer can provide the
necessary parts and service. Check your
warranty information to find out which
parts and services are covered.
Use only recommended fuels, lubricants,
fluids and service parts conforming to
specifications. Motorcraft® parts are
designed and built to provide the best
performance in your vehicle.
Precautions
• Do not work on a hot engine.
• Make sure that nothing gets caught in
moving parts.
• Do not work on a vehicle with the
engine running in an enclosed space,
unless you are sure you have enough
ventilation.
• Keep all open flames and other burning
material (such as cigarettes) away
from the battery and all fuel related
parts. Working with the Engine Off
1.
Set the parking brake and shift to park
(P).
2. Switch off the engine.
3. Block the wheels.
Working with the Engine On WARNING
To reduce the risk of vehicle damage
and/or personal burn injuries, do not
start your engine with the air cleaner
removed and do not remove it while the
engine is running. 1.
Set the parking brake and shift to park
(P).
2. Block the wheels
OPENING AND CLOSING THE
HOOD
Opening the Hood 1. Pull the hood release lever.
2. Slightly lift the hood.
177
Fiesta (CCT), enUSA, Second Printing MaintenanceE102165

3. Move the catch to the left to release
the hood. 4.
Open the hood and support it with the
hood strut.
Closing the Hood
1. Remove the hood strut from the catch
and secure it correctly in the clip.
2. Lower the hood and allow it to drop under its own weight for the last 8-12
in (20-30 cm).
Note: Make sure that the hood is correctly
closed.
178
Fiesta (CCT), enUSA, Second Printing MaintenanceE163236 E87786

UNDER HOOD OVERVIEW - 1.0L ECOBOOST™
Engine coolant reservoir
*
: See Engine Coolant Check (page 183).
A
Engine oil filler cap *
:
See Engine Oil Check (page 182).
B
Battery:
See Changing the 12V Battery (page 186).
C
Brake and clutch fluid reservoir *
:
See Brake Fluid Check (page 186).
D
Engine compartment fuse box:
E
Windshield and rear window washer fluid reservoir:
See Washer Fluid Check
(page 186).
F
Air cleaner:
See Changing the Engine Air Filter (page 199).
G
Engine oil dipstick *
:
See Engine Oil Check (page 182).
H
* The filler caps and the engine oil dipstick are colored for easy identification.
179
Fiesta (CCT), enUSA, Second Printing MaintenanceE163005
ABCD
EGHF

UNDER HOOD OVERVIEW - 1.6L DURATEC-16V TI-VCT (SIGMA)
Engine coolant reservoir
*
: See Engine Coolant Check (page 183).
A
Engine oil filler cap *
:
See Engine Oil Check (page 182).
B
Battery:
See Changing the 12V Battery (page 186).
C
Brake and clutch fluid reservoir :
See Brake Fluid Check (page 186).
D
Engine compartment fuse box:
E
Windshield and rear window washer fluid reservoir:
See Washer Fluid Check
(page 186).
F
Air cleaner:
See Changing the Engine Air Filter (page 199).
G
Engine oil dipstick *
:
See Engine Oil Check (page 182).
H
* The filler caps and the engine oil dipstick are colored for easy identification.
180
Fiesta (CCT), enUSA, Second Printing MaintenanceE163006
ABCD
HGFE

UNDER HOOD OVERVIEW - 1.6L ECOBOOST™
Engine coolant reservoir
*
: See Engine Coolant Check (page 183).
A
Engine oil filler cap *
:
See Engine Oil Check (page 182).
B
Engine oil dipstick *
:
See Engine Oil Check (page 182).
C
Battery:
See Changing the 12V Battery (page 186).
D
Brake and clutch fluid reservoir *
:
See Brake Fluid Check (page 186).
E
Engine compartment fuse box:
F
Windshield and rear window washer fluid reservoir:
See Washer Fluid Check
(page 186).
G
Air cleaner:
See Changing the Engine Air Filter (page 199).
H
* The filler caps and the engine oil dipstick are colored for easy identification.
181
Fiesta (CCT), enUSA, Second Printing MaintenanceABCD
FGH
E
E163007
