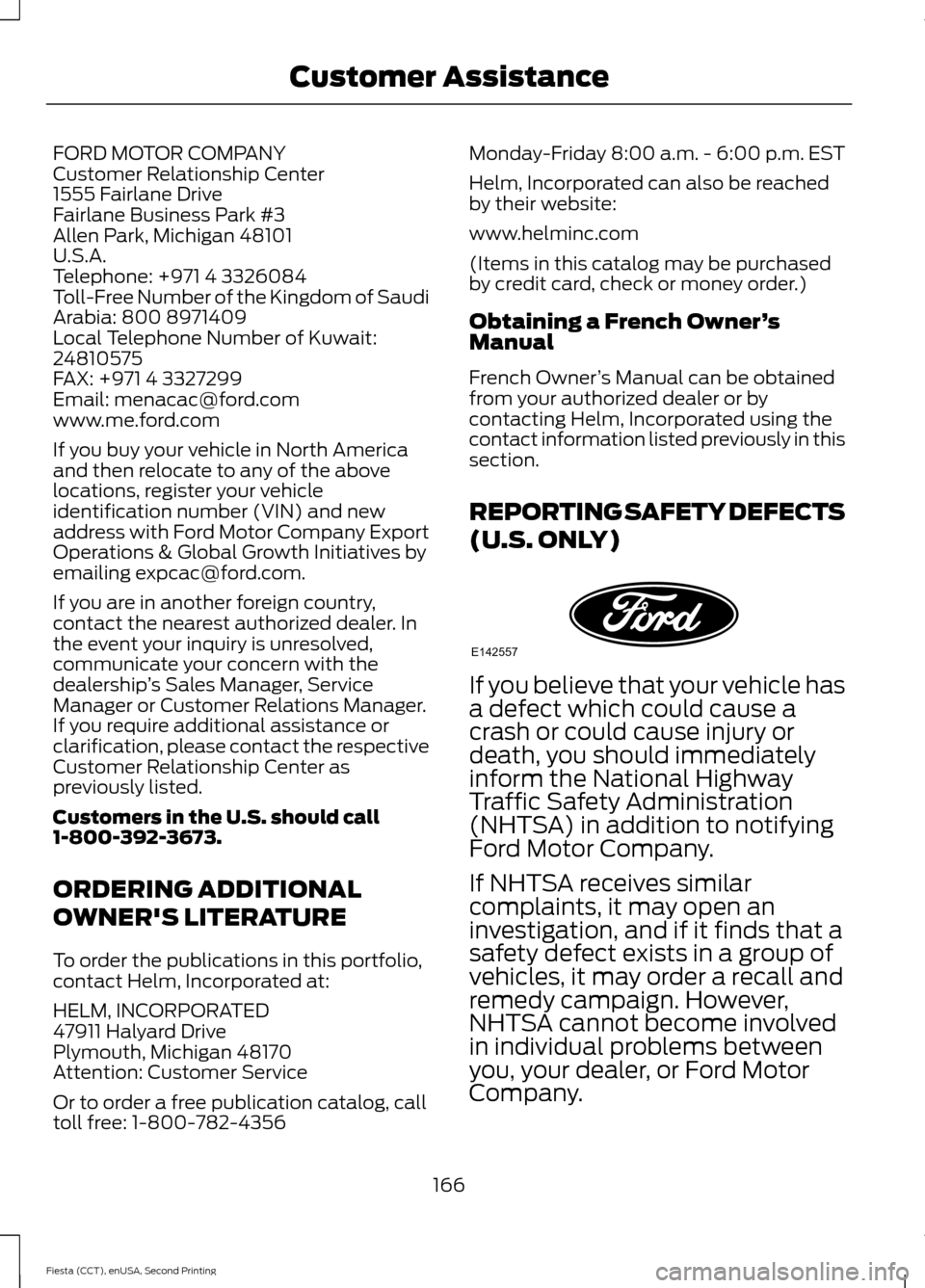

2015 FORD FIESTA Owners Manual

FORD MOTOR COMPANY
Customer Relationship Center
1555 Fairlane Drive
Fairlane Business Park #3
Allen Park, Michigan 48101
U.S.A.
Telephone: +971 4 3326084
Toll-Free Number of the Kingdom of Saudi
Arabia: 800 8971409
Local Telephone Number of Kuwait:
24810575
FAX: +971 4 3327299
Email: [email protected]
www.me.ford.com
If you buy your vehicle in North America
and then relocate to any of the above
locations, register your vehicle
identification number (VIN) and new
address with Ford Motor Company Export
Operations & Global Growth Initiatives by
emailing [email protected].
If you are in another foreign country,
contact the nearest authorized dealer. In
the event your inquiry is unresolved,
communicate your concern with the
dealership
’s Sales Manager, Service
Manager or Customer Relations Manager.
If you require additional assistance or
clarification, please contact the respective
Customer Relationship Center as
previously listed.
Customers in the U.S. should call
1-800-392-3673.
ORDERING ADDITIONAL
OWNER'S LITERATURE
To order the publications in this portfolio,
contact Helm, Incorporated at:
HELM, INCORPORATED
47911 Halyard Drive
Plymouth, Michigan 48170
Attention: Customer Service
Or to order a free publication catalog, call
toll free: 1-800-782-4356 Monday-Friday 8:00 a.m. - 6:00 p.m. EST
Helm, Incorporated can also be reached
by their website:
www.helminc.com
(Items in this catalog may be purchased
by credit card, check or money order.)
Obtaining a French Owner
’s
Manual
French Owner ’s Manual can be obtained
from your authorized dealer or by
contacting Helm, Incorporated using the
contact information listed previously in this
section.
REPORTING SAFETY DEFECTS
(U.S. ONLY) If you believe that your vehicle has
a defect which could cause a
crash or could cause injury or
death, you should immediately
inform the National Highway
Traffic Safety Administration
(NHTSA) in addition to notifying
Ford Motor Company.
If NHTSA receives similar
complaints, it may open an
investigation, and if it finds that a
safety defect exists in a group of
vehicles, it may order a recall and
remedy campaign. However,
NHTSA cannot become involved
in individual problems between
you, your dealer, or Ford Motor
Company.
166
Fiesta (CCT), enUSA, Second Printing Customer AssistanceE142557

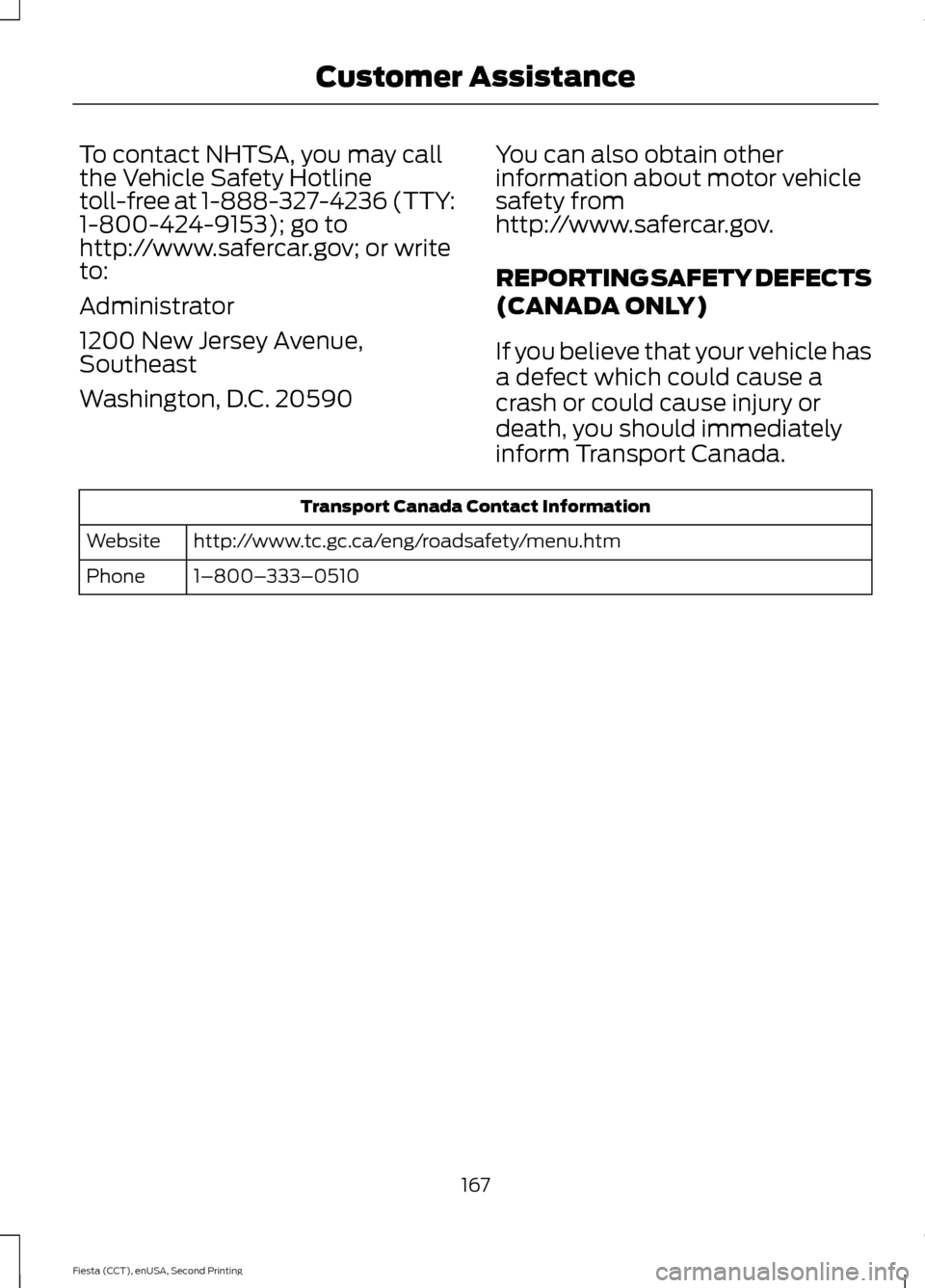

To contact NHTSA, you may call
the Vehicle Safety Hotline
toll-free at 1-888-327-4236 (TTY:
1-800-424-9153); go to
http://www.safercar.gov; or write
to:
Administrator
1200 New Jersey Avenue,
Southeast
Washington, D.C. 20590
You can also obtain other
information about motor vehicle
safety from
http://www.safercar.gov.
REPORTING SAFETY DEFECTS
(CANADA ONLY)
If you believe that your vehicle has
a defect which could cause a
crash or could cause injury or
death, you should immediately
inform Transport Canada.Transport Canada Contact Information
http://www.tc.gc.ca/eng/roadsafety/menu.htm
Website
1–800–333–0510
Phone
167
Fiesta (CCT), enUSA, Second Printing Customer Assistance

FUSE SPECIFICATION CHART
Engine Compartment Fuse Box
4-door and 5-door
168
Fiesta (CCT), enUSA, Second Printing FusesE78332 E156752

Circuits protected
Fuse rating
Fuse
Stability assist.
60 A
1 Anti-lock brake system. 1
40 A
Transmission control module.
40 A
2
Cooling fan.
40 A
3 Cooling fan module.3
60 A
Blower motor.
40 A
4
Passenger compartment fuse box supply.
60 A
5
Central locking system.
30 A
6
Ignition switch.
60 A
7
Powertrain control module.
60 A
8
Stability assist module.
40 A
9
Engine start inhibitor.
30 A
10
Fuel system.
30 A
11
Power windows.
60 A
12
High-speed cooling fan. 2
60 A
13
Not used.
-
14
Not used.
-
15
Not used.
-
16
High beam.
20 A
17
Powertrain control module.
15 A
18
Front fog lamps.
20 A
19
Emissions system.
15 A
20
High beam.
7.5 A
21
Ignition coil.
15 A
22 Ignition coil.3
20 A
169
Fiesta (CCT), enUSA, Second Printing Fuses

Circuits protected
Fuse rating
Fuse
Right-hand exterior lamps.
15 A
23
Emissions system.
10 A
24
Left-hand exterior lamps.
15 A
25
Horn.
20 A
26 Battery back-up sounder.
Interior lamps.
Engine cold start system module. 4
7.5 A
27 Water pump.2
15 A Active grill shutter. 2
Direction indicators.
15 A
28
Compressed natural gas, fuel control module. 1
20 A
29
Air conditioning clutch.
10 A
30
Not used.
-
31
Powertrain control module.
7.5 A
32
Transmission control unit.
Fuel injectors.
10 A
33 Mass air flow sensor.3
7.5 A
Heated exterior mirrors.
30 A
34
Left-hand fog lamp.
10 A
35
Right-hand fog lamp.
10 A
36
Left-hand high beam.
10 A
37
Right-hand high beam.
10 A
38
Not used.
-
39
Not used.
-
40
Not used.
-
41
Not used.
-
42
Not used.
-
43
170
Fiesta (CCT), enUSA, Second Printing Fuses

Circuits protected
Fuse rating
Fuse
Not used.
-
44
Not used.
-
45
Not used.
-
46
1 If equipped.
2 1.0L EcoBoost.
3 1.0L and 1.6L EcoBoost.
4 1.6L Flex-fuel Circuits switched
Relay
Compressed natural gas fuel system. 1
R1
Not used.
R2
Powertrain control module.
R3
Blower motor.
R4
Cooling fan.1
R5
Air conditioning clutch.
R6
High-speed cooling fan. 2
R7
Not used.
R8
Engine start inhibitor.
R9
High beam.
R10
Front fog lamps.
R11
Reversing lamp.3
R12
Fuel pump.
R13
171
Fiesta (CCT), enUSA, Second Printing Fuses

Circuits switched
Relay
Not used.
R14
Not used.
R15
1 If equipped.
2 1.0L and 1.6L EcoBoost.
3 6-Speed PowerShift Transmission.

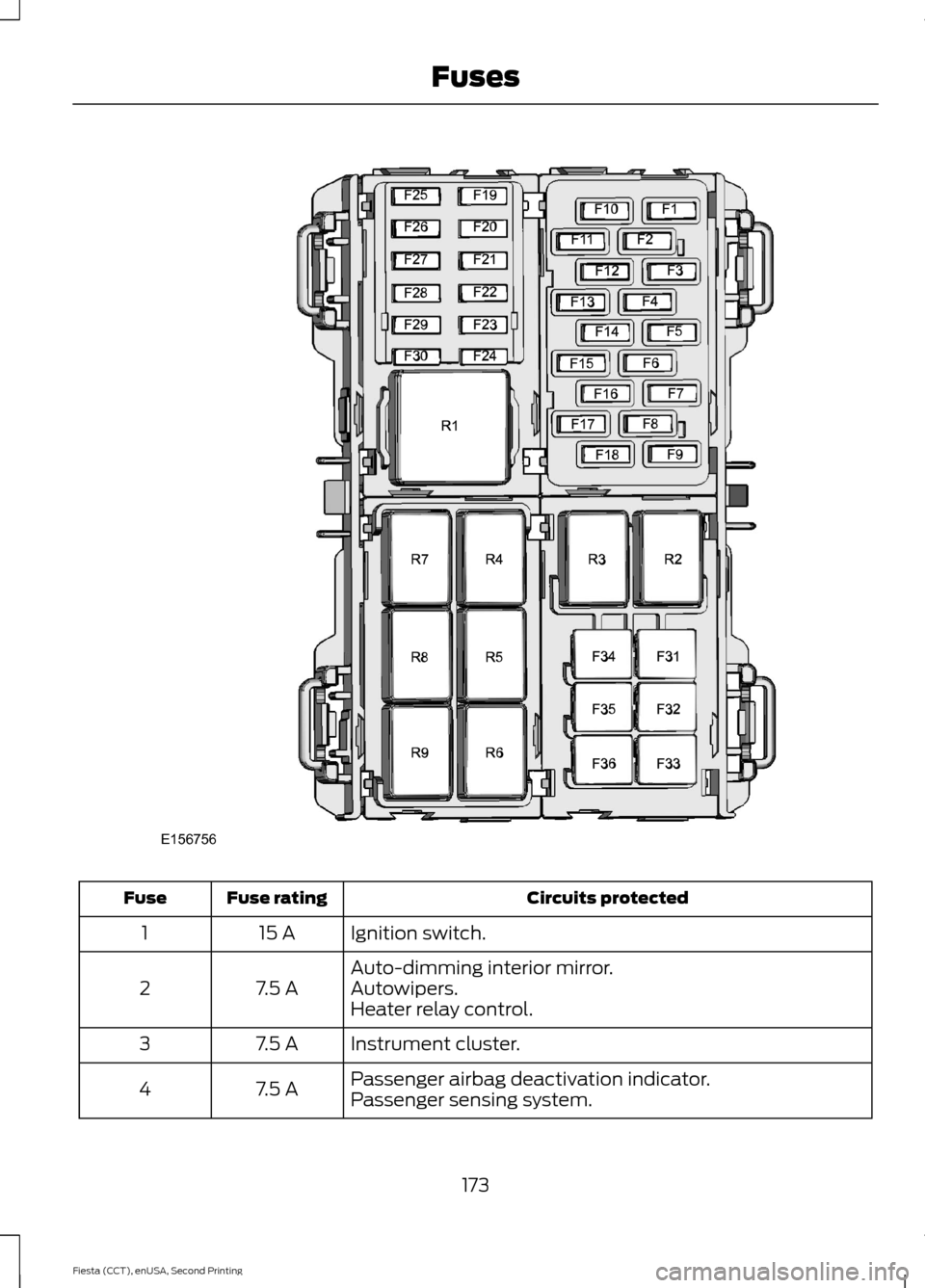

Passenger Compartment Fuse Box
This fuse box is located behind the glove
box. Open the glove box and empty the
contents. Press the sides inwards and
swivel the glove box downward.
172
Fiesta (CCT), enUSA, Second Printing Fuses

Circuits protected
Fuse rating
Fuse
Ignition switch.
15 A
1
Auto-dimming interior mirror.
7.5 A
2 Autowipers.
Heater relay control.
Instrument cluster.
7.5 A
3
Passenger airbag deactivation indicator.
7.5 A
4
Passenger sensing system.
173
Fiesta (CCT), enUSA, Second Printing FusesE156756
