MOTORCRAFT PARTS
6.8L V10 engine
6.2L V8 engine
Component
FA-1883
FA-1883
Air filter element
FL-820-S
FL-820-S
Oil filter
BXT-65-650
BXT-65-650
Battery (standard)
BXT-65-750
BXT-65-750
Battery (optional)
HJFS-24FP/SP-509
CYFS12FP/SP-526
Spark plugs-platinum
FS-104
FS-104
Seat filter
WW-2201-P
WW-2201-P
Windshield wiper blade
For scheduled maintenance, we recommend Motorcraft replacement parts available at
your Ford dealer or at fordparts.com. These parts meet or exceed Ford Motor Company ’s
specifications and are engineered for your vehicle. Use of other parts may impact vehicle
performance, emissions and durability. Your warranty may be void for any damage related
to use of other parts.
If a Motorcraft oil filter is not available, use an oil filter that meets industry performance
specification SAE/USCAR-36.
For spark plug replacement, contact an authorized dealer. Replace the spark plugs at the
appropriate intervals. See Scheduled Maintenance (page 457).
302
Super Duty (), enUSA Capacities and Specifications

VEHICLE IDENTIFICATION
NUMBER
The vehicle identification number is
located on the left-hand side of the
instrument panel.
Please note that in the graphic, XXXX is
representative of your vehicle identification
number.
The Vehicle Identification Number contains
the following information:
World manufacturer identifier
A
Brake system, Gross Vehicle
Weight Rating, Restraint Devices
and their locations
B Make, vehicle line, series, body
type
C
Engine type
D
Check digit
E
Model year
F
Assembly plant
G
Production sequence number
H
VEHICLE CERTIFICATION
LABEL The National Highway Traffic Safety
Administration Regulations require that a
Safety Compliance Certification Label be
affixed to a vehicle and prescribe where
the Safety Compliance Certification Label
may be located. The Safety Compliance
Certification Label shall be affixed to either
the door hinge pillar, the door latch post,
or the edge of the door near the door latch,
next to the driver's seating position.
303
Super Duty (), enUSA Capacities and SpecificationsE142476 E142477 E167469

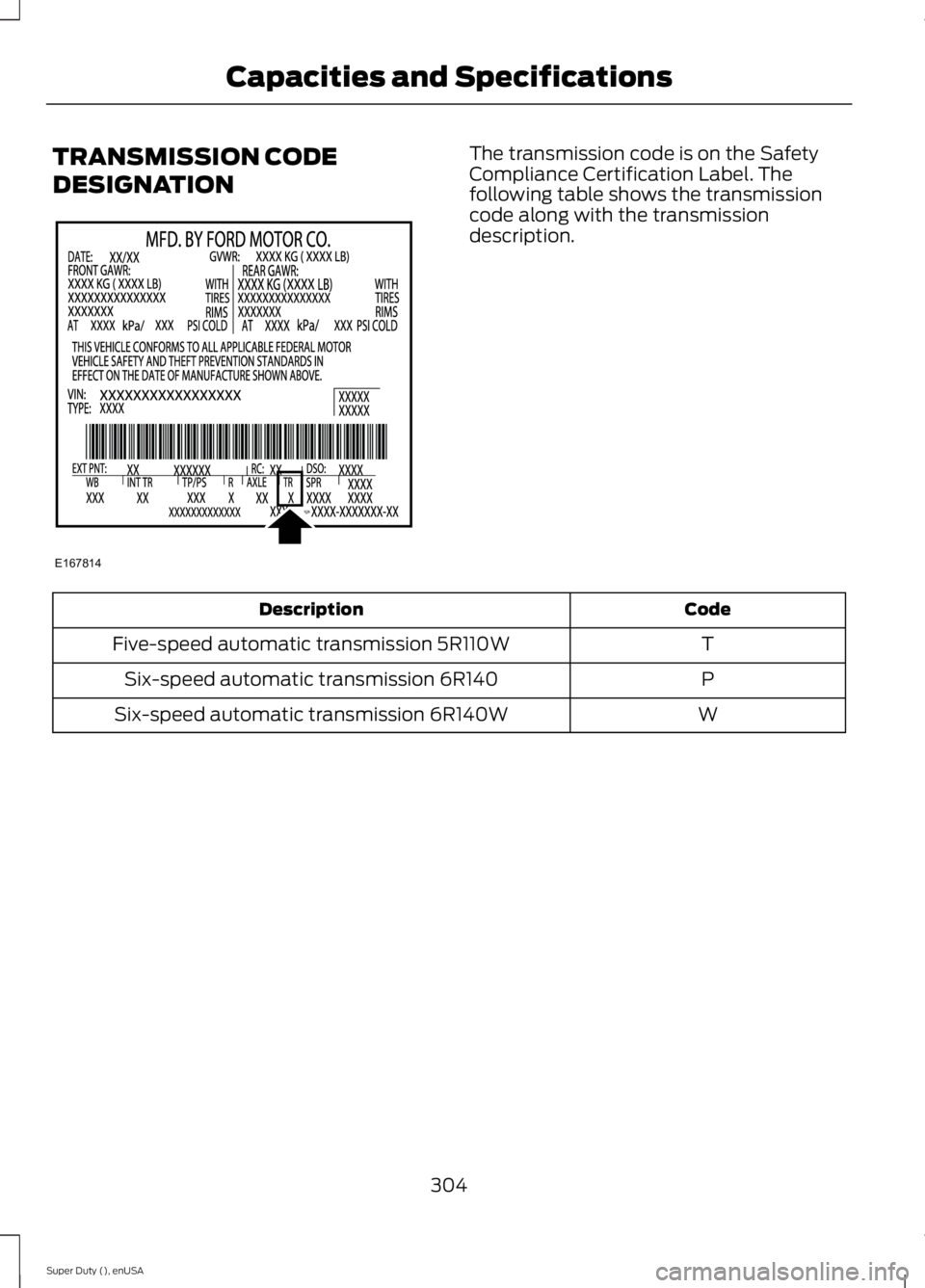

TRANSMISSION CODE
DESIGNATION The transmission code is on the Safety
Compliance Certification Label. The
following table shows the transmission
code along with the transmission
description.
Code
Description
T
Five-speed automatic transmission 5R110W
P
Six-speed automatic transmission 6R140
W
Six-speed automatic transmission 6R140W
304
Super Duty (), enUSA Capacities and SpecificationsE167814

TECHNICAL SPECIFICATIONS
Ford part number /
Ford specification
Ford part name or
equivalent
Capacity
Item
XY-80W90–QL /
Motorcraft SAE
80W-90 Premium
Rear Axle Lubricant
5.8 pints (2.8L)
Front axle
WSP-M2C197–A
XG-11 /
High Temperature
4X4 Front Axle and Wheel Bearing Grease
—
Spindle bearing
WSS-M1C267-A1
XY-75W140–QL (U.S.) /
Motorcraft SAE
75W-140 Synthetic
Rear Axle Lubricant
6.9 pints (3.3L)
Rear axle - F-250/350
(10.50 inch axle) 1 WSL-M2C192-A
CXY-75W140-1L (Canada) /
WSL-M2C192-A
XY-75W90–QLS /
Motorcraft SAE
75W-90 Synthetic
Rear Axle Lubricant
8.5 pints (4.0L)
Rear axle - F-350 (Dana
M80) WSS–M2C918–A
XY-75W140–QL (U.S.) /
Motorcraft SAE
75W-140 Synthetic
Rear Axle Lubricant
14.0 pints (6.6L)
Rear axle - F-450/550
(Dana S110/S130) WSL-M2C192-A
CXY-75W140-1L (Canada) /
WSL-M2C192-A
PM-1-C (U.S.) /
WSS-M6C65-A1
Motorcraft High
Performance DOT 3 LV Motor Vehicle Brake Fluid
Between MIN/
MAX on brakefluid reservoir
Brake fluid
2 CPM-1-C (Canada) /
WSS-M6C65-A1
PM-20 / WSS- M6C65-A2
Motorcraft High
Performance DOT 4 LV Motor Vehicle Brake Fluid
VC-3DIL-B (U.S.) /
Motorcraft Orange
Antifreeze/Coolant Prediluted
21.3 qt (20.2 L)
Engine coolant (6.2L
V8)3 WSS-M97B44-D2
CVC-3DIL-B(Canada) /
305
Super Duty (), enUSA Capacities and Specifications

Ford part number /
Ford specification
Ford part name or
equivalent
Capacity
Item
WSS-M97B44-D2
VC-3DIL-B (U.S.) /
Motorcraft Orange
Antifreeze/Coolant Prediluted
26.7 qt (25.3 L)
Engine coolant (6.8L
V10)3 WSS-M97B44-D2
CVC-3DIL-B(Canada) /
WSS-M97B44-D2
Refer to the diesel supplement.
Engine and fuel coolant
(diesel engine)
XO-5W20-QSP orXO-5W20-QFS (U.S.) /
Motorcraft SAE 5W-
20 Premium
Synthetic Blend
Motor Oil or Motor- craft SAE 5W-20
Full Synthetic Motor Oil (U.S.)
7.0 qt (6.6 L)
Engine oil (6.2L V8 and
6.8L V10 gasoline
engines) 4,5,6 WSS-M2C945-A
CXO-5W20-LSP12 or CXO-5W20-LFS12 (Canada) /
Motorcraft SAE 5W-
20 Super Premium
Motor Oil or Motor- craft SAE 5W-20
Synthetic Motor Oil (Canada) WSS-M2C945-A
Refer to the diesel supplement.
Engine oil (Diesel
engines)
—
—
28 gal (106 L)
Fuel tank (incomplete
vehicle, steel tank,middle location)
—
—
35 gal (132 L)
Fuel tank (pickup with
gasoline engine)
—
—
40 gal (151 L)
Fuel tank (incomplete
vehicle, steel tank, aft axle location)
Refer to the diesel supplement.
Fuel tank (Diesel
engines)
Motorcraft XL-5(aerosol) or
CRCSL3151ESB /
Multi-Purpose
Grease
(Lithium grease)
—
Hinges, latches, striker
plates and rotors, seat
tracks, fuel filler door hinge and spring ESB-M1C93–B
306
Super Duty (), enUSA Capacities and Specifications

Ford part number /
Ford specification
Ford part name or
equivalent
Capacity
Item
XL-1 /
Motorcraft Penet-
rating and Lock Lubricant
—
Lock cylinders
—
XG-1-E /
Motorcraft Premium
Long-Life Grease
—
Transmission, parking
brake linkages and
pivots, brake pedal shift WSD-M1C227-A
XT-10–QLV /
Motorcraft MERCON
LV
—
Power steering fluid Automatic transmis-
sion MERCON LV
XL-12 /
Motorcraft Transfer
Case Fluid
2.0 qt (1.9 L)
Transfer case fluid
ESP-M2C166-H
XT-10–QLV /
Motorcraft MERCON
LV
17.5 qt (16.6 L)
Automatic transmission
fluid (5–speed) 7,8,9
Automatic transmis-sion MERCON LV
16.7 qt (15.8 L)
Automatic transmission
fluid (6–speed) 7,8,9
ZC-32–B2 (U.S.) /
Motorcraft Premium
Windshield Washer Concentrate With Bitterant (U.S.)
Fill as required
Windshield washer fluid WSB-M8B16–
A2
CXC-37-(A, B, D, and F) (Canada) /
Premium Quality
Windshield Wash (Canada) WSB-M8B16– A2
YN-19 (U.S.) /
Motorcraft R-134a Refrigerant
1.81 lb (0.82 kg)
Air conditioning refri-
gerant10 WSH-M17B19-A
(Gasoline engines) CYN-16-R (Canada)
/
WSH-M17B19-A
YN-19 (U.S.) /
Motorcraft R-134a Refrigerant
1.63 lb (0.74 kg)
Air conditioning refri-
gerant10 WSH-M17B19-A
(Diesel engines) CYN-16-R (Canada)
/
WSH-M17B19-A
YN-12-D /
Motorcraft PAG
Refrigerant
Compressor Oil
4.23 fl oz
(125.09 ml)
Air conditioning refri-
gerant compressor oil 10
(Gasoline engines)
307
Super Duty (), enUSA Capacities and Specifications

Ford part number /
Ford specification
Ford part name or
equivalent
Capacity
Item

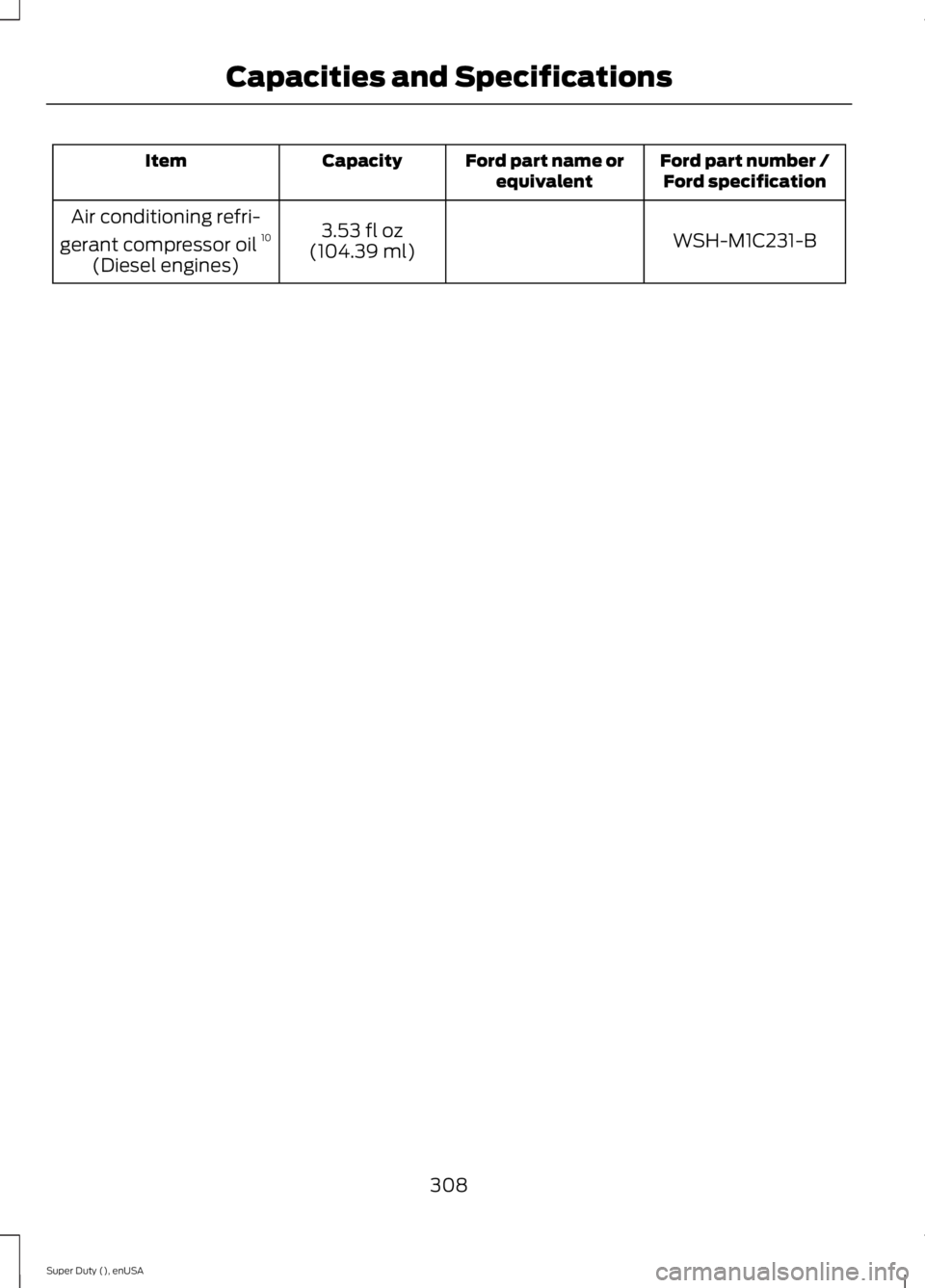

WSH-M1C231-B
3.53 fl oz
(104.39 ml)
Air conditioning refri-
gerant compressor oil 10
(Diesel engines)
308
Super Duty (), enUSA Capacities and Specifications

1
Add 8 oz. (236 ml) of Additive Friction Modifier XL-3 or equivalent meeting Ford
Specification EST-M2C118– A for complete refill of limited slip Ford axles. Ford design
rear axles contain a synthetic lubricant that does not require changing unless you submerge
the axle in water.
2 Ford recommends using Motorcraft (Ford) DOT 3 LV High Performance Motor Vehicle
Brake Fluid, Motorcraft (Ford) DOT 4 LV High Performance Motor Vehicle Brake Fluid or
equivalent meeting WSS-M6C65-A1 or WSS-M6C65-A2. Use of any fluid other than the
recommended fluid may cause degraded brake performance and not meet the Ford
performance standards. Keep brake fluid clean and dry. Contamination with dirt, water,
petroleum products or other materials may result in brake system damage and possible
failure.
3 Add the coolant type originally equipped in your vehicle.
4 Ford has designed your engine to use Motorcraft engine oils or equivalent oils that meet
Ford ’s specification. It is also acceptable to use an engine oil of recommended viscosity
grade that meets API SN requirements and displays the API Certification Mark for gasoline
engines.
5 Do not use oils labeled as API SN unless the label also display the API certification mark.
These oils do not meet the requirements of your vehicles engine and emissions system.
6 Do not use supplemental engine oil additives. They are unnecessary and could lead to
engine damage not covered by your Ford warranty.
7 Use the correct automatic transmission fluid. Transmission fluid requirements are
indicated on the dipstick blade or the dipstick handle. Check the container to verify the
fluid you are adding is of the correct type. Refer to your scheduled maintenance information
to determine the correct service interval.
Note: Automatic transmissions that require MERCON LV should only use MERCON LV fluid.
Use of any fluid other than the recommended fluid may cause transmission damage.
8 Indicates only approximate dry-fill capacity. Some applications may vary based on cooler
size and if equipped with an in-tank cooler. You should set the amount of transmission
fluid and fluid level by the indication on the dipstick’ s normal operating range.
9 Fill to the proper capacity according to dipstick Type A. For correct dipstick type, See
Automatic Transmission Fluid Check (page 240).
9 Fill to the proper capacity according to dipstick Type B. For correct dipstick type, See
Automatic Transmission Fluid Check
(page 240).
10 See the Warning below: WARNING
The air conditioning refrigerant system contains refrigerant R-134a under high
pressure. Opening the air conditioning refrigerant system can cause personal injury.
Have the air conditioning refrigerant system serviced only by qualified personnel.
309
