2015 FORD EXPEDITION fuse box

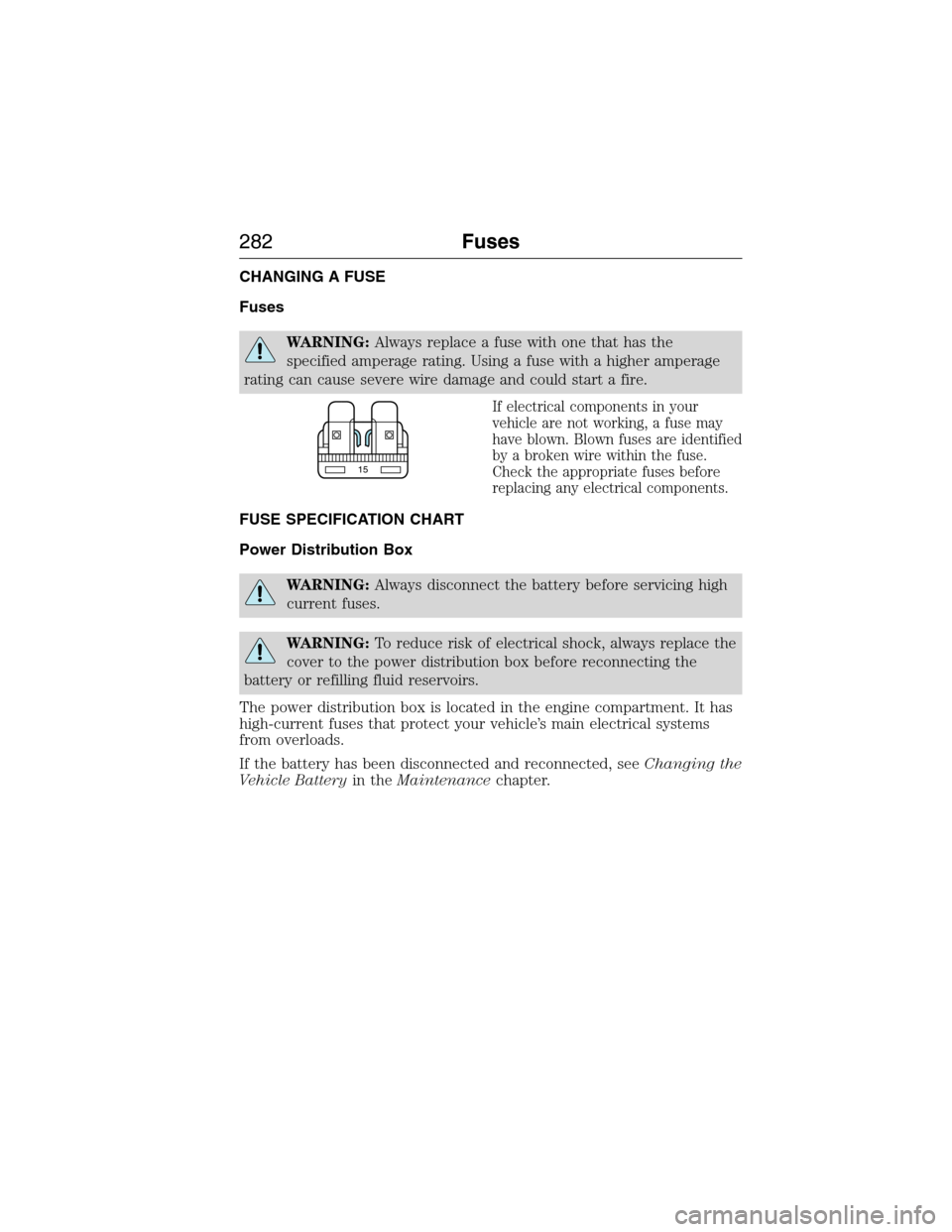

CHANGING A FUSE
Fuses
WARNING:Always replace a fuse with one that has the
specified amperage rating. Using a fuse with a higher amperage
rating can cause severe wire damage and could start a fire.
If electrical components in your
vehicle are not working, a fuse may
have blown. Blown fuses are identified
by a broken wire within the fuse.
Check the appropriate fuses before
replacing any electrical components.
FUSE SPECIFICATION CHART
Power Distribution Box
WARNING:Always disconnect the battery before servicing high
current fuses.
WARNING:To reduce risk of electrical shock, always replace the
cover to the power distribution box before reconnecting the
battery or refilling fluid reservoirs.
The power distribution box is located in the engine compartment. It has
high-current fuses that protect your vehicle’s main electrical systems
from overloads.
If the battery has been disconnected and reconnected, seeChanging the
Vehicle Batteryin theMaintenancechapter.
15
282Fuses
2015 Expedition(exd)
Owners Guide gf, 1st Printing, July 2014
USA(fus)

The high-current fuses are coded as follows:
Fuse or relay
locationFuse amp rating Protected circuits
1 — Rear washer relay
2 — Starter relay
3 — Blower motor relay
4 — Rear wiper relay
5 — Fuel pump relay
6 — Electronic cooling fan
7 — Rear window defroster, heated
mirror relay
8 — Electronic cooling fan
9 — Run/start relay
10 — Power distribution box relay
11 40A** Power running boards, heated
seats
12 40A** Run/start relay
13 30A ** Starter relay
14 50A** Electronic cooling fan
15 — Not used
16 50A** Electronic fan
17 — Not used
Fuses283
2015 Expedition(exd)
Owners Guide gf, 1st Printing, July 2014
USA(fus)

Fuse or relay
locationFuse amp rating Protected circuits
75 25A* Vehicle power 1 – powertrain
control module
76 20A* Vehicle power 2 – powertrain
control module
77 20A* Vehicle power4–ignitioncoils
78 — Not used
79 15A* Vehicle power 3 – powertrain
control module
80 5A* Rain sensor
81 — Not used
82 — Not used
83 — Not used
84 — Not used
85 — Not used
* Mini Fuses ** Cartridge Fuses
Passenger Compartment Fuse Panel
The fuse panel is located under the right-hand side of the instrument
panel.
To remove the trim panel for access
to the fuse box, pull the panel
toward you and swing it out away
from the side and remove it. To
reinstall it, line up the tabs with the
grooves on the panel, then push it
shut.
To remove the fuse box cover, press in the tabs on both sides of the
cover, then pull the cover off.
286Fuses
2015 Expedition(exd)
Owners Guide gf, 1st Printing, July 2014
USA(fus)

To reinstall the fuse box cover, place the top part of the cover on the
fuse panel, then push the bottom part of the cover until you hear it click
shut. Gently pull on the cover to make sure it is seated properly.
The fuses are coded as follows:
Fuse or relay
locationFuse amp rating Protected circuits
1 30A Driver window
2 15A Rear seat control, multimedia
gateway module
3 30A Passenger window
4 10A Demand lamps
5 20A Amplifier
6 5A Rear electronic automatic
temperature control
7 7.5A Power mirror, driver seat memory
switch
8 — Not used
Fuses287
2015 Expedition(exd)
Owners Guide gf, 1st Printing, July 2014
USA(fus)

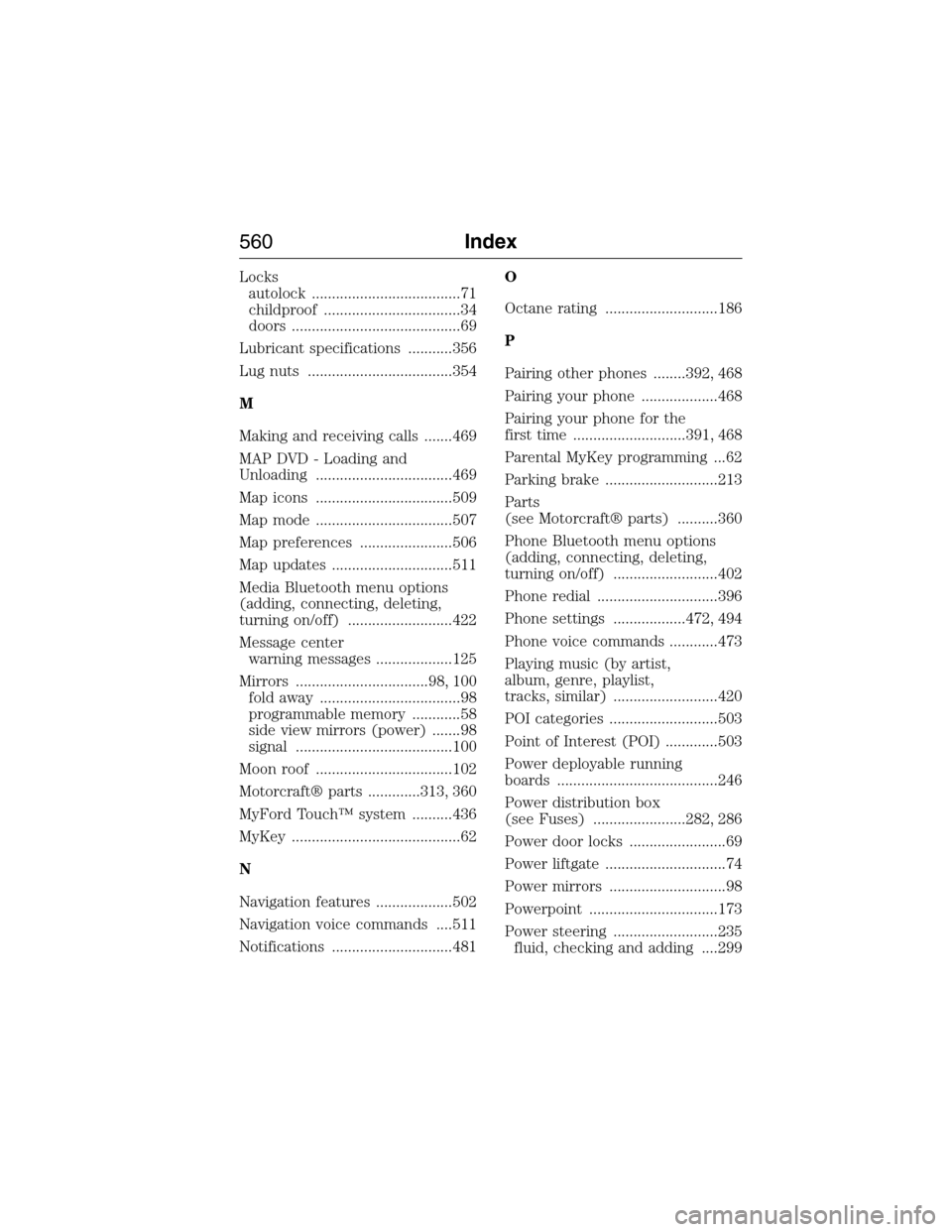

Locks
autolock .....................................71
childproof ..................................34
doors ..........................................69
Lubricant specifications ...........356
Lug nuts ....................................354
M
Making and receiving calls .......469
MAP DVD - Loading and
Unloading ..................................469
Map icons ..................................509
Map mode ..................................507
Map preferences .......................506
Map updates ..............................511
Media Bluetooth menu options
(adding, connecting, deleting,
turning on/off) ..........................422
Message center
warning messages ...................125
Mirrors .................................98, 100
fold away ...................................98
programmable memory ............58
side view mirrors (power) .......98
signal .......................................100
Moon roof ..................................102
Motorcraft® parts .............313, 360
MyFord Touch™ system ..........436
MyKey ..........................................62
N
Navigation features ...................502
Navigation voice commands ....511
Notifications ..............................481O
Octane rating ............................186
P
Pairing other phones ........392, 468
Pairing your phone ...................468
Pairing your phone for the
first time ............................391, 468
Parental MyKey programming ...62
Parking brake ............................213
Parts
(see Motorcraft® parts) ..........360
Phone Bluetooth menu options
(adding, connecting, deleting,
turning on/off) ..........................402
Phone redial ..............................396
Phone settings ..................472, 494
Phone voice commands ............473
Playing music (by artist,
album, genre, playlist,
tracks, similar) ..........................420
POI categories ...........................503
Point of Interest (POI) .............503
Power deployable running
boards ........................................246
Power distribution box
(see Fuses) .......................282, 286
Power door locks ........................69
Power liftgate ..............................74
Power mirrors .............................98
Powerpoint ................................173
Power steering ..........................235
fluid, checking and adding ....299
