2015 DODGE GRAND CARAVAN Owners Manual

Cavity Cartridge Fuse Mini-FuseDescription
M15–20 Amp Yellow Rear View Mirror, Instrument Cluster, Multi-
Function Control Switch, Tire Pressure Monitor,
Glow Plug Module – If Equipped
M16–10 Amp Red Airbag Module/Occupant Classification Module
M17–15 Amp Blue Left Tail/License/Park Lamp, Running Lamps
M18–15 Amp BlueRight Tail/Park/Run Lamp
M19–25 Amp ClearPowertrain
M20–15 Amp Blue Instrument Cluster Interior Light, Switch Bank,
Steering Column Module, Switch Steering Wheel
M21–20 Amp YellowPowertrain
M22–10 Amp RedHorn
M23–10 Amp RedHorn
M24–25 Amp ClearRear Wiper
M25–20 Amp Yellow Fuel Pump, Diesel Lift Pump – If Equipped
M26–10 Amp Red Power Mirror Switch, Driver Window Switch
7
MAINTAINING YOUR VEHICLE 647

Cavity Cartridge Fuse Mini-FuseDescription
M27–10 Amp Red Wireless Control Module, Keyless Entry Module
M28–10 Amp Red Powertrain, Transmission Control Module
M29–10 Amp RedOccupant Classification Module
M30–15 Amp Blue Rear Wiper Module, Power Folding Mirror
M31–20 Amp YellowBack-Up Lamps
M32–10 Amp Red Airbag Module, THATCHUM – If Equipped
M33–10 Amp RedPowertrain
M34–10 Amp Red Park Assist, Heater Climate Control Module,
Headlamp Wash, Compass, Rear Camera, Door
Lamps, Flashlight, Relay Diesel Cabin Heater,
Rad Fan Diesel – If Equipped
M35–10 Amp RedHeated Mirrors
M36–20 Amp Yellow Power Outlet #3 (Instrument Panel or with Con-
sole Center)
648 MAINTAINING YOUR VEHICLE

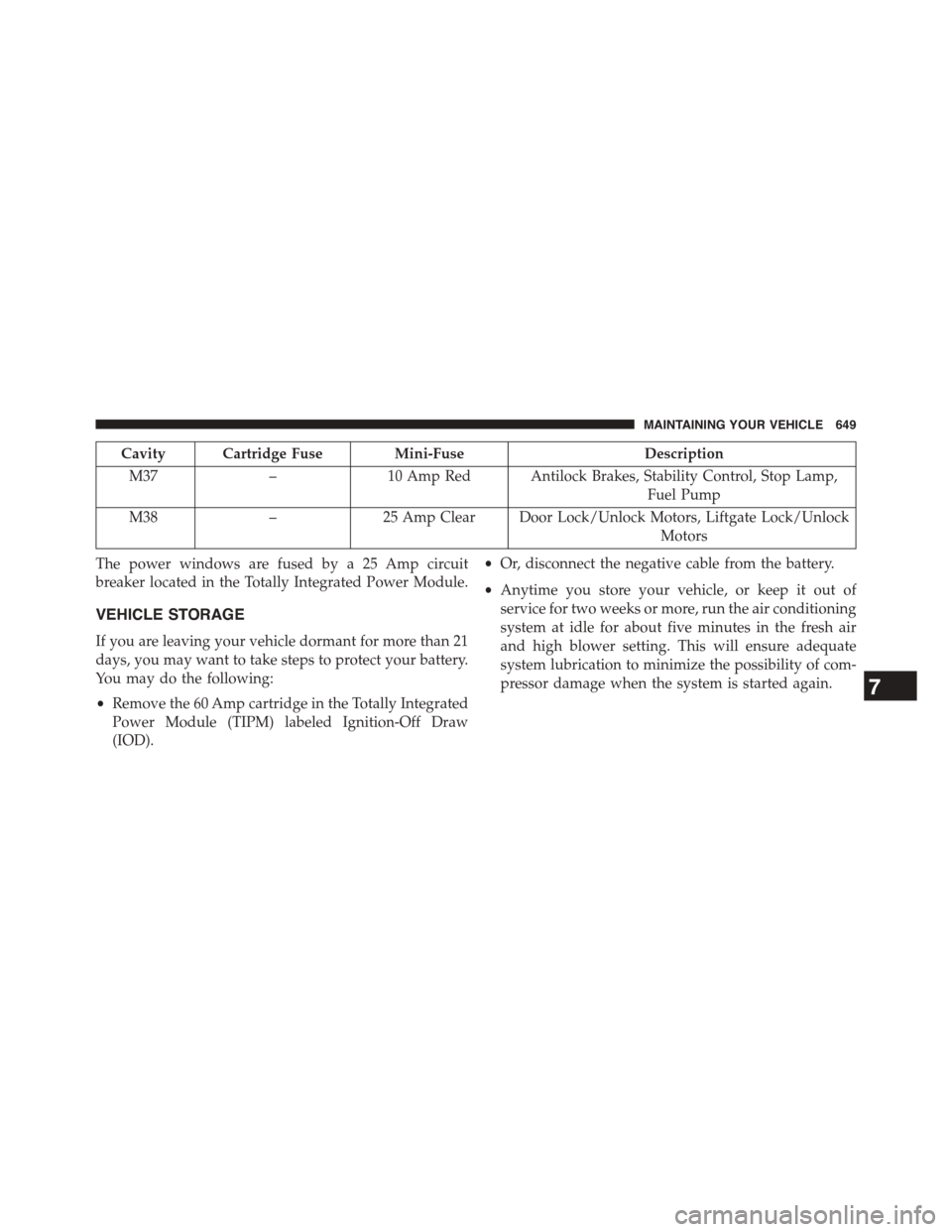

Cavity Cartridge Fuse Mini-FuseDescription
M37–10 Amp Red Antilock Brakes, Stability Control, Stop Lamp,
Fuel Pump
M38–25 Amp Clear Door Lock/Unlock Motors, Liftgate Lock/Unlock
Motors
The power windows are fused by a 25 Amp circuit
breaker located in the Totally Integrated Power Module.
VEHICLE STORAGE
If you are leaving your vehicle dormant for more than 21
days, you may want to take steps to protect your battery.
You may do the following:
•Remove the 60 Amp cartridge in the Totally Integrated
Power Module (TIPM) labeled Ignition-Off Draw
(IOD).
•Or, disconnect the negative cable from the battery.
•Anytime you store your vehicle, or keep it out of
service for two weeks or more, run the air conditioning
system at idle for about five minutes in the fresh air
and high blower setting. This will ensure adequate
system lubrication to minimize the possibility of com-
pressor damage when the system is started again.7
MAINTAINING YOUR VEHICLE 649

REPLACEMENT BULBS
Interior Bulbs
Bulb Number
Center & Rear Dome Lamp578
Center & Rear Reading Lamps578
Front Door Courtesy Lamp578
Front Header Reading Lamps – If Equipped578
Instrument Cluster LampsPC74
Liftgate Lamp(s)578
Overhead Console Reading LampsPC579
Removable Console Lamp – If Equipped194
Visor Vanity Lamps6501966
NOTE:For lighted switches, see your authorized dealer
for replacement instructions.
650 MAINTAINING YOUR VEHICLE

Exterior Bulbs
Bulb Number
HeadlampH11LL
Fog Lamp – If EquippedPSX24W
Front Side Marker, Park/Turn Signal3757A or PY27/7W
Rear Tail, Stop, Turn Signal LampLED (Serviced at Authorized Dealer)
Center High-Mounted Stop LampLED (Serviced at Authorized Dealer)
Backup Lamp3157
License168
NOTE:All of the interior bulbs are glass wedge base or
glass cartridge types. Aluminum base bulbs are not
approved and should not be used for replacement.7
MAINTAINING YOUR VEHICLE 651

BULB REPLACEMENT
NOTE:Lens fogging can occur under certain atmo-
spheric conditions. This will usually clear as atmospheric
conditions change to allow the condensation to change
back into a vapor. Turning the lamps on will usually
accelerate the clearing process.
Headlamps
1. Raise the hood to access the rear of the headlamp
housing.
2. Slide the red lock tab rearward on the connector, then
depress the tab and remove the connector from the
bulb.
3. Twist the headlamp bulb and pull the bulb from the
headlamp housing.
4. Install the new headlamp bulb and twist until locked
into the headlamp housing.
CAUTION!
Do not touch the new bulb with your fingers. Oil
contamination will severely shorten bulb life. If the
bulb comes in contact with an oily surface, clean the
bulb with rubbing alcohol.
5. Connect the wiring connector to bulb and slide red
lock tab forward.
Front Park/Turn Signal Lamps
1. Raise the hood to access the rear of the headlamp
housing.
2. Twist the turn signal socket and remove from the
headlamp housing, then pull the bulb out.
3. Push the new bulb into the socket and reinstall the
socket by twisting until locked into the headlamp
housing.
652 MAINTAINING YOUR VEHICLE

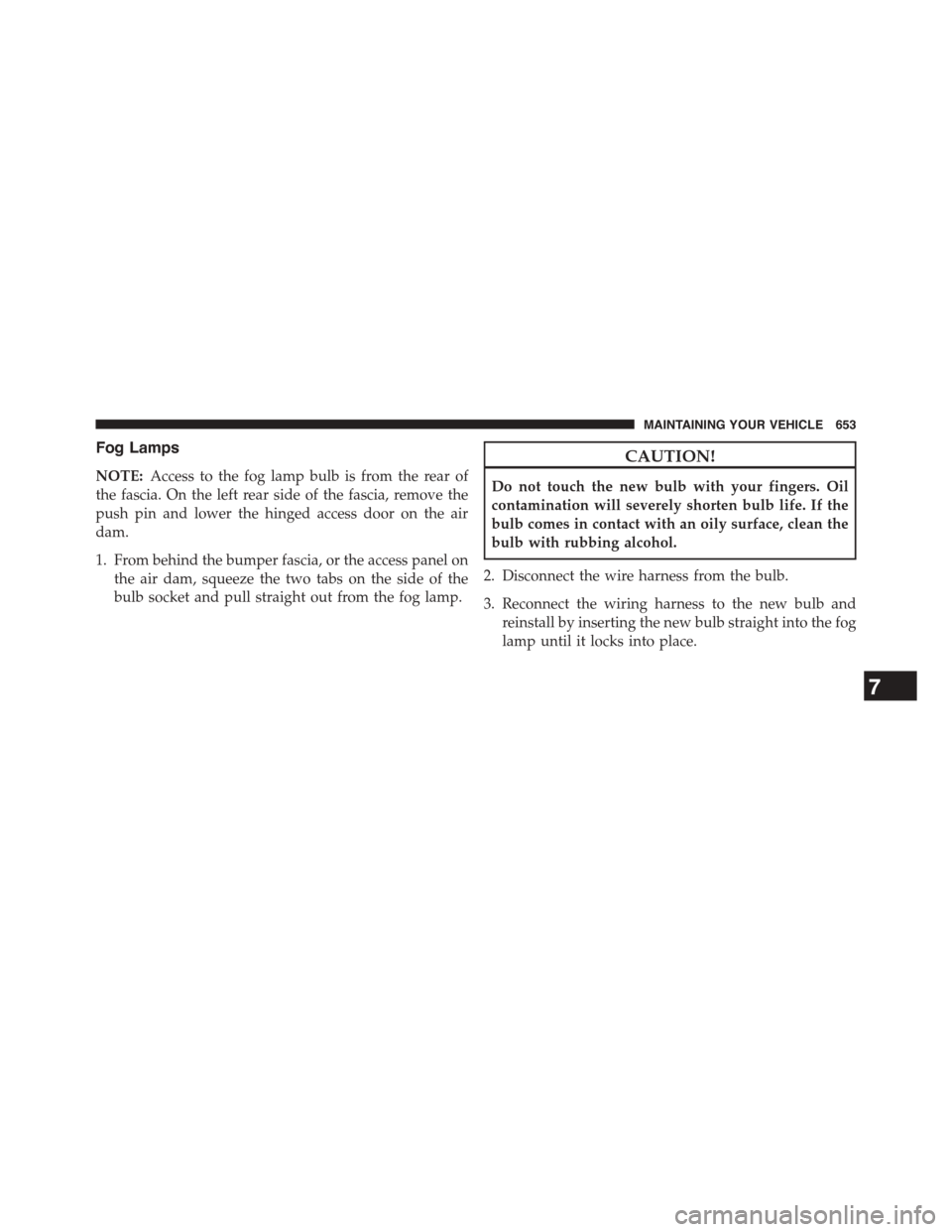

Fog Lamps
NOTE:Access to the fog lamp bulb is from the rear of
the fascia. On the left rear side of the fascia, remove the
push pin and lower the hinged access door on the air
dam.
1. From behind the bumper fascia, or the access panel on
the air dam, squeeze the two tabs on the side of the
bulb socket and pull straight out from the fog lamp.
CAUTION!
Do not touch the new bulb with your fingers. Oil
contamination will severely shorten bulb life. If the
bulb comes in contact with an oily surface, clean the
bulb with rubbing alcohol.
2. Disconnect the wire harness from the bulb.
3. Reconnect the wiring harness to the new bulb and
reinstall by inserting the new bulb straight into the fog
lamp until it locks into place.
7
MAINTAINING YOUR VEHICLE 653

Rear Tail, Stop, Turn Signal, Side Marker And
Backup Lamps
1. Raise the liftgate.
2. Remove the tail lamp assembly by removing the two
screws from the inboard side. Use a fiber stick or
similar tool to gently pry the light on the outboard side
to disengage the two ball studs.
NOTE:
•If a screwdriver is used, make sure a soft material is
placed between the vehicle body and tool so not to
scratch the paint.
•The PRY location is best closest to the studs while
dislodging them separately.
Tail Lamp Assembly Screws
654 MAINTAINING YOUR VEHICLE
