2015 DODGE GRAND CARAVAN Owners Manual

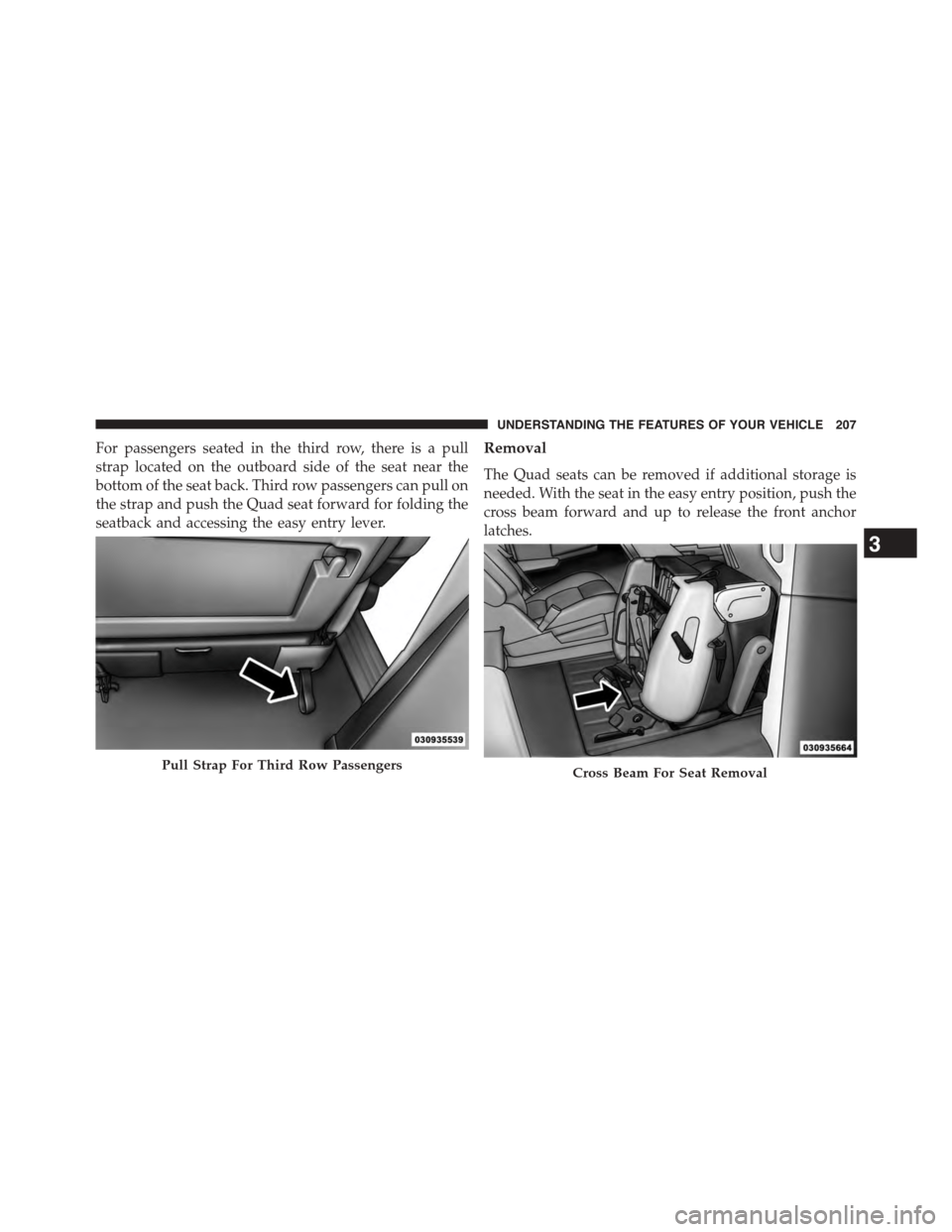

For passengers seated in the third row, there is a pull
strap located on the outboard side of the seat near the
bottom of the seat back. Third row passengers can pull on
the strap and push the Quad seat forward for folding the
seatback and accessing the easy entry lever.
Removal
The Quad seats can be removed if additional storage is
needed. With the seat in the easy entry position, push the
cross beam forward and up to release the front anchor
latches.
Pull Strap For Third Row PassengersCross Beam For Seat Removal
3
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 207

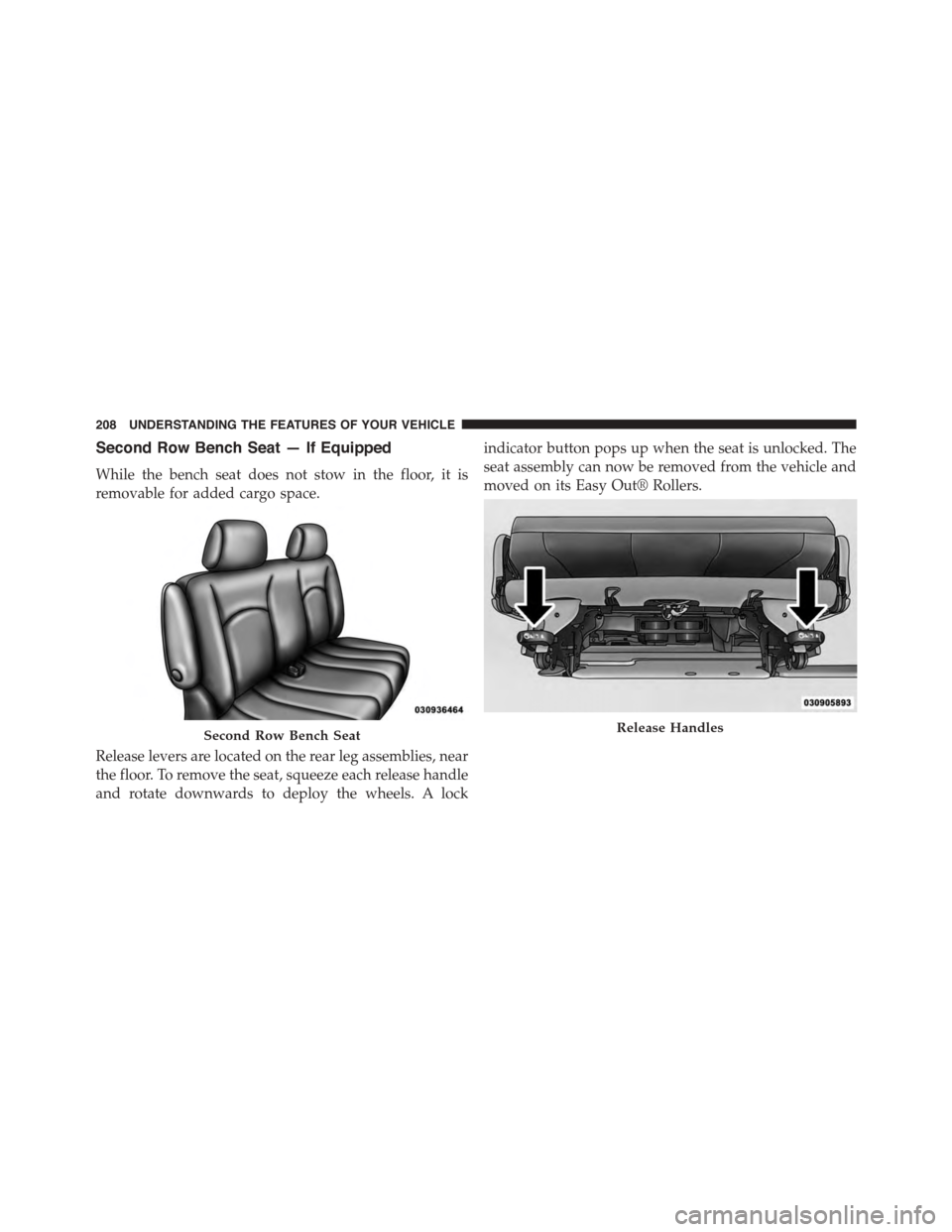

Second Row Bench Seat — If Equipped
While the bench seat does not stow in the floor, it is
removable for added cargo space.
Release levers are located on the rear leg assemblies, near
the floor. To remove the seat, squeeze each release handle
and rotate downwards to deploy the wheels. A lock
indicator button pops up when the seat is unlocked. The
seat assembly can now be removed from the vehicle and
moved on its Easy Out® Rollers.
Second Row Bench SeatRelease Handles
208 UNDERSTANDING THE FEATURES OF YOUR VEHICLE

To reinstall the seat, align the seat into the detent posi-
tions on the floor. Squeeze the release handle and rotate
upward until the lock indicator button returns into the
handle.
WARNING!
If not properly latched, the bench seats could become
loose. Personal injuries could result. After reinstall-
ing these seats, be sure the red indicator button on
the release handles return into the handles.
Third Row Power Recline — If Equipped
The power recline feature, located on the side of the seat
cushion, adjusts the seatback angle forward/rearward
for occupant comfort.
Third Row Power Folding Seat — If Equipped
A one-touch power folding seat switch is located in the
left rear trim panel as part of a switch bank.
Third Row Power Seat Switch
3
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 209

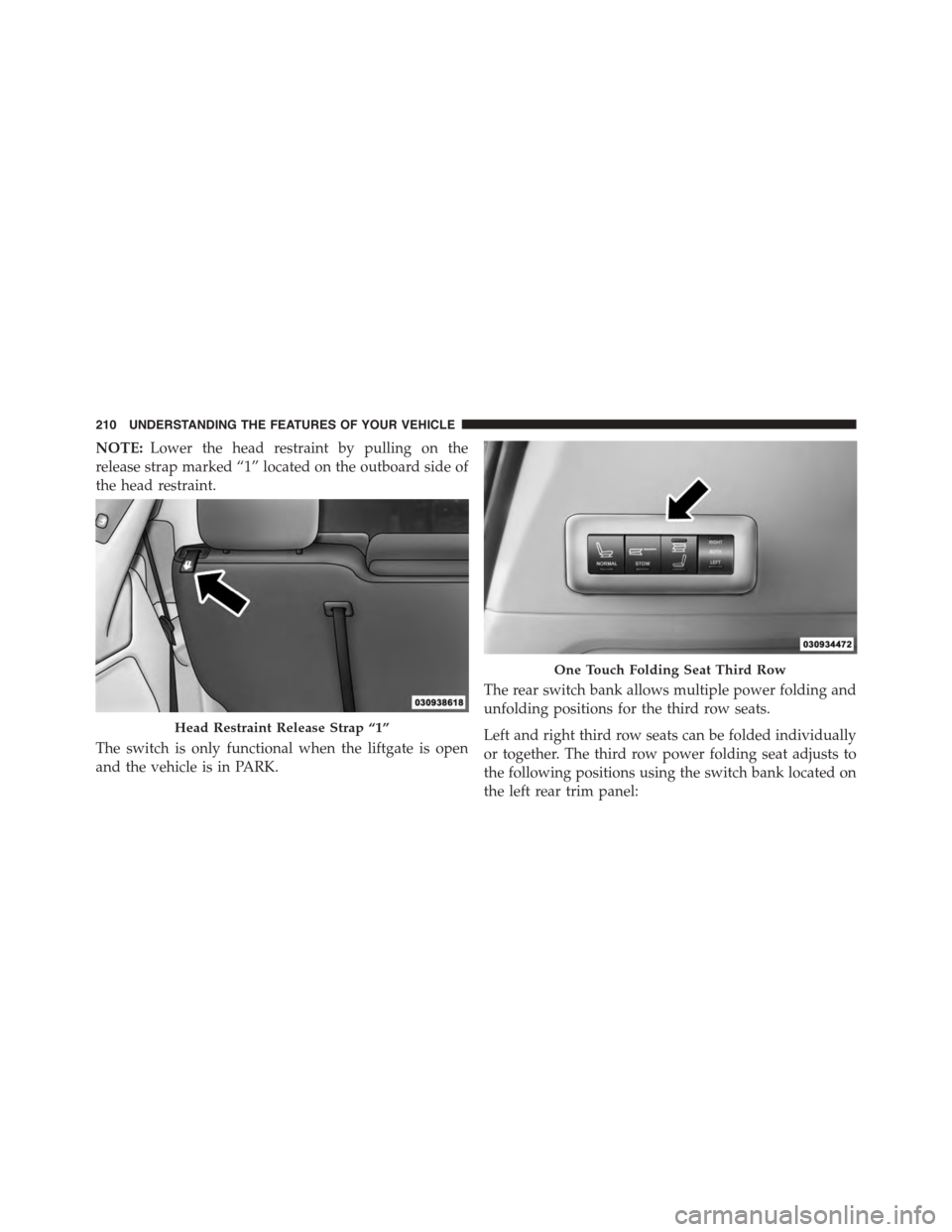

NOTE:Lower the head restraint by pulling on the
release strap marked “1” located on the outboard side of
the head restraint.
The switch is only functional when the liftgate is open
and the vehicle is in PARK.
The rear switch bank allows multiple power folding and
unfolding positions for the third row seats.
Left and right third row seats can be folded individually
or together. The third row power folding seat adjusts to
the following positions using the switch bank located on
the left rear trim panel:
Head Restraint Release Strap “1”
One Touch Folding Seat Third Row
210 UNDERSTANDING THE FEATURES OF YOUR VEHICLE

NOTE:
•Disconnect the center shoulder belt from the small
buckle and lower the head restraints before attempting
to fold/stow the power third row seats.
•To abort seat operation while seat is in motion, press a
different seat position selector switch to stop the seat.
Once the seat stops moving, then the desired position
can be selected.
•The third row power seat system includes obstacle
detection for safe operation. When the system detects
an obstacle, the motors will stop and reverse the
motion a short distance to move the seat away from
the obstacle. Should this occur, remove the obstacle
and press the button again, for the desired position.
Rear Panel Power Switch Bank
1 — Open To Normal3 — Tailgate/Fold Flat2—Stow4—Right/LeftSeats/BothSeats
3
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 211

Manually Folding Third Row Seats — If Equipped
1. Lower the center head restraint down to the seatback
by pushing the button on the guide and pushing the
head restraint down.
2. Lower the outboard head restraints by pulling on the
release strap marked “1” located on the outboard side
of the head restraint.
Head Restraint Release Strap “1”
212 UNDERSTANDING THE FEATURES OF YOUR VEHICLE

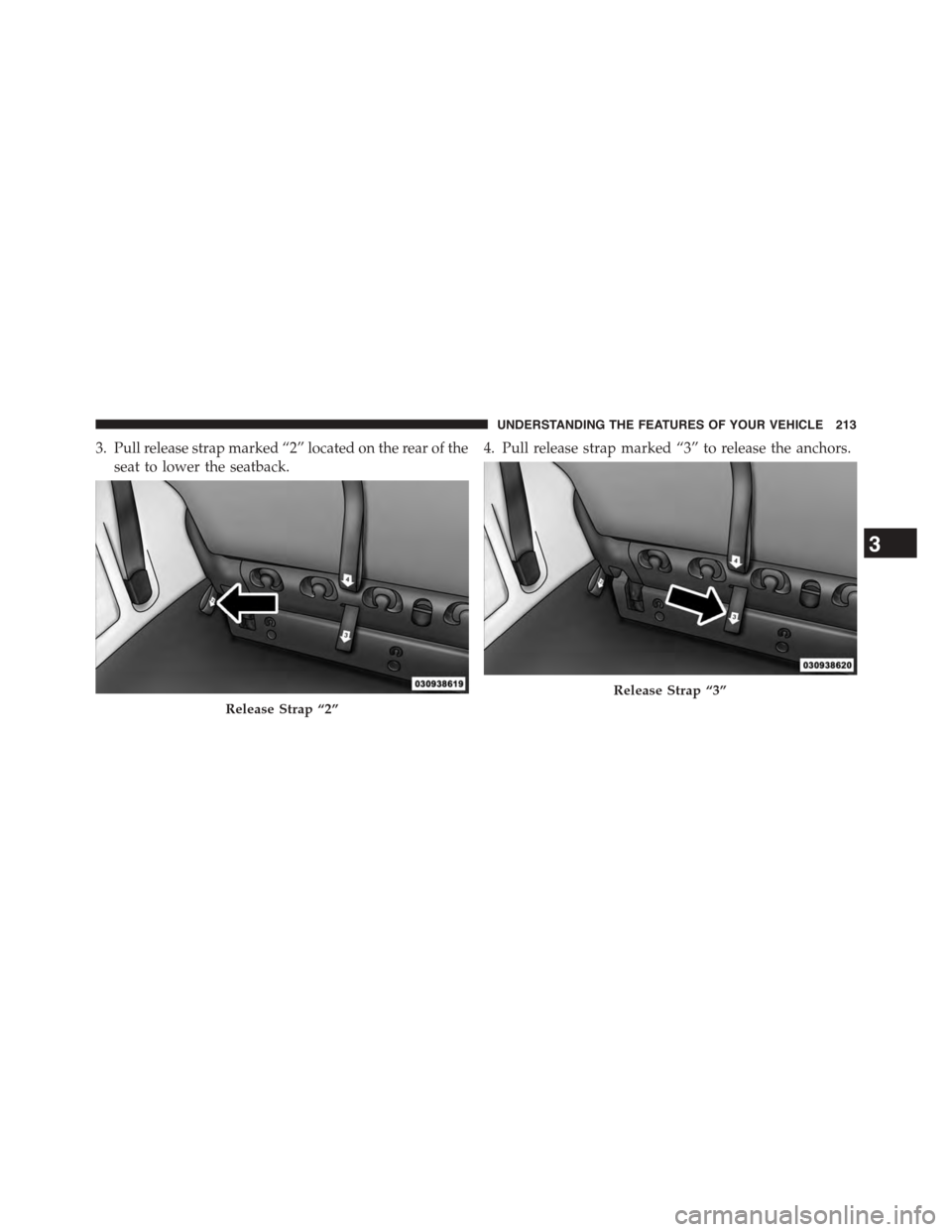

3. Pull release strap marked “2” located on the rear of the
seat to lower the seatback.
4. Pull release strap marked “3” to release the anchors.
Release Strap “2”
Release Strap “3”
3
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 213

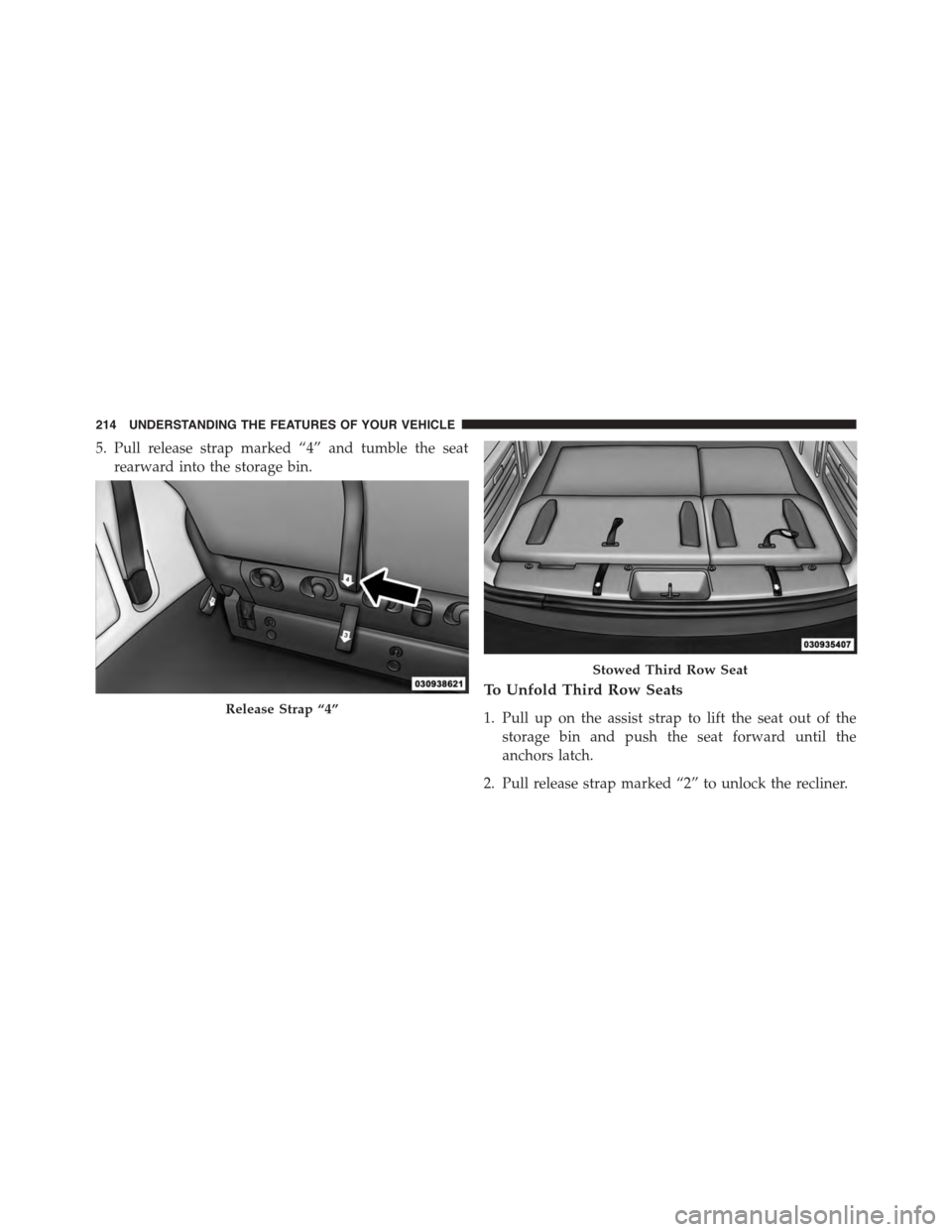

5. Pull release strap marked “4” and tumble the seat
rearward into the storage bin.
To Unfold Third Row Seats
1. Pull up on the assist strap to lift the seat out of the
storage bin and push the seat forward until the
anchors latch.
2. Pull release strap marked “2” to unlock the recliner.
Release Strap “4”
Stowed Third Row Seat
214 UNDERSTANDING THE FEATURES OF YOUR VEHICLE
