2015 DODGE CHARGER Owners Manual

CavityCartridge Fuse Mini-FuseDescription
33––Fuse – Spare
34–25 Amp ClearPowertrain #1
35–20 Amp YellowPowertrain #2
36–10 Amp RedAnti-Lock Brake Module
37–10 Amp Red Engine Controller/Rad Fan Relays – If
Equipped
38–10 Amp RedAirbag Module
39–10 Amp Red Power Steering Module/AC Clutch Relay
48–10 Amp Red AWD Module/Front Axle Disconnect (LX)
/ Adaptive Cruise (LA) – If Equipped
49––Fuse – Spare
50––Fuse – Spare
51–20 Amp YellowVacuum Pump
52–10 Amp Red Adaptive Cruise (LD/LX) – If Equipped
53––Fuse – Spare
7
MAINTAINING YOUR VEHICLE 575

Rear Power Distribution Center (Fuses)
There is also a power distribution center located in the
trunk under the spare tire access panel. This center
contains fuses and relays.
Opening The Access Cover
Rear Power Distribution Center
576 MAINTAINING YOUR VEHICLE

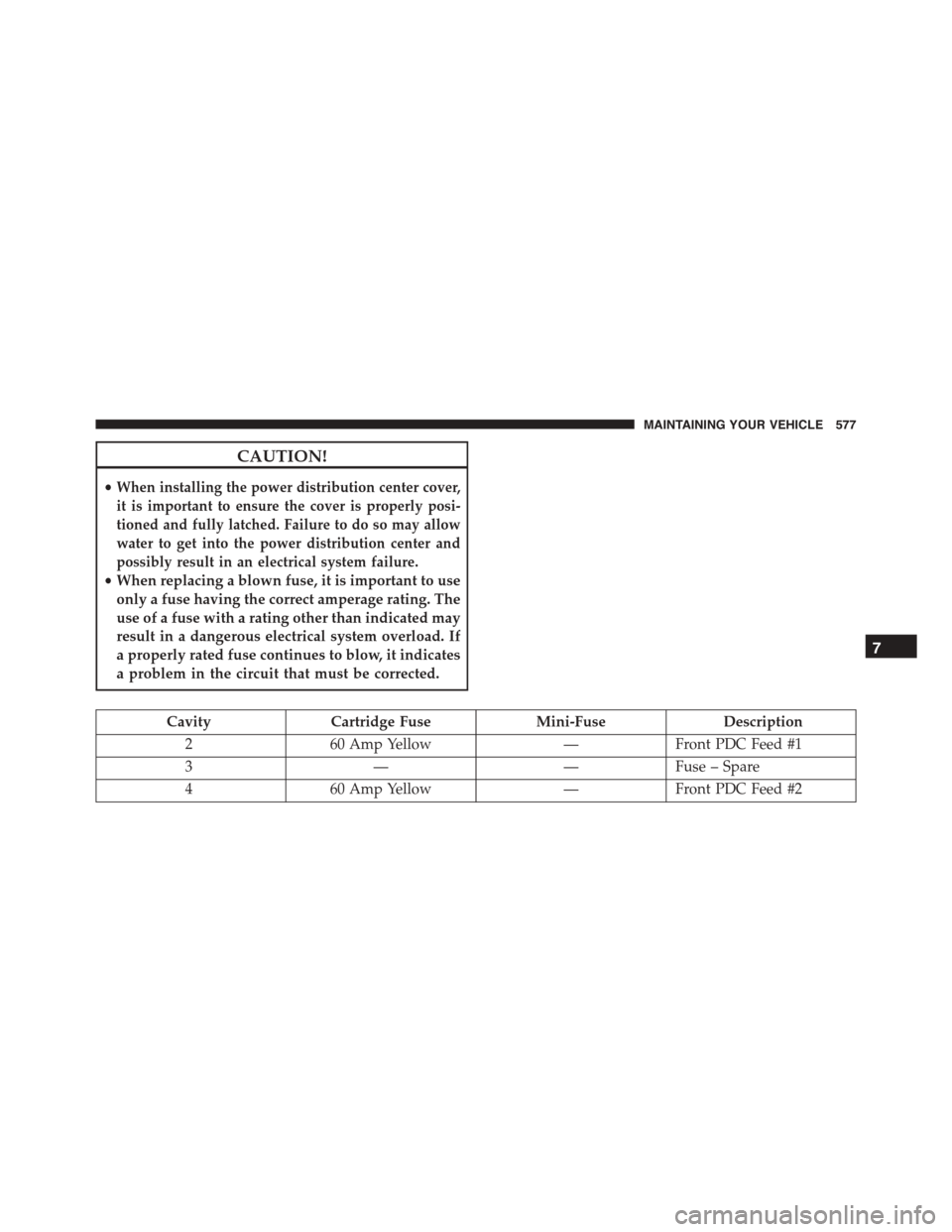

CAUTION!
•When installing the power distribution center cover,
it is important to ensure the cover is properly posi-
tioned and fully latched. Failure to do so may allow
water to get into the power distribution center and
possibly result in an electrical system failure.
•When replacing a blown fuse, it is important to use
only a fuse having the correct amperage rating. The
use of a fuse with a rating other than indicated may
result in a dangerous electrical system overload. If
a properly rated fuse continues to blow, it indicates
a problem in the circuit that must be corrected.
CavityCartridge FuseMini-FuseDescription
260 Amp Yellow—Front PDC Feed #1
3——Fuse – Spare
460 Amp Yellow—Front PDC Feed #2
7
MAINTAINING YOUR VEHICLE 577

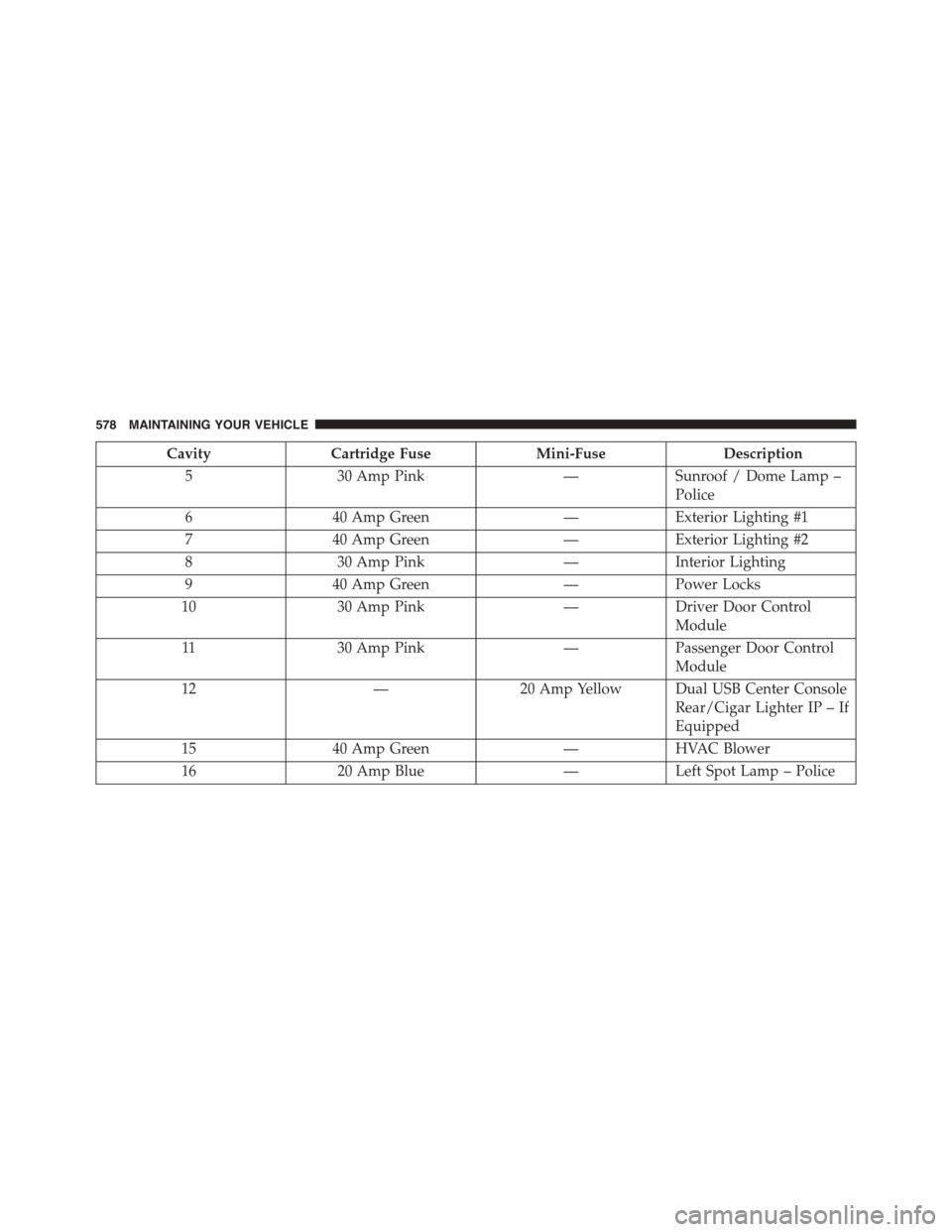

CavityCartridge FuseMini-FuseDescription
530 Amp Pink—Sunroof / Dome Lamp –
Police
640 Amp Green—Exterior Lighting #1
740 Amp Green—Exterior Lighting #2
830 Amp Pink—Interior Lighting
940 Amp Green—Power Locks
1030 Amp Pink—Driver Door Control
Module
1130 Amp Pink—Passenger Door Control
Module
12—20 Amp Yellow Dual USB Center Console
Rear/Cigar Lighter IP – If
Equipped
1540 Amp Green—HVAC Blower
1620 Amp Blue—Left Spot Lamp – Police
578 MAINTAINING YOUR VEHICLE

CavityCartridge FuseMini-FuseDescription
17——Fuse – Spare
1830 Amp Pink—Mod Network Interface –
Police
19——Fuse — Spare
20——Fuse — Spare
2130 Amp Pink (6.2L Super-
charged)
25 Amp Clear (LD STD)
—Fuel Pump (6.2L Super-
charged)
Fuel Pump (LD STD)
22—20 Amp Yellow – Police
10 Amp Red – LA
Right Spot Lamp – Police
Integrated Center Stack –
LA
23—10 Amp Red Fuel Door/Diagnostic
Port
24—15 Amp Blue Integrated Center Stack –
LD/LX
25—10 Amp Red Tire Pressure Monitor
7
MAINTAINING YOUR VEHICLE 579

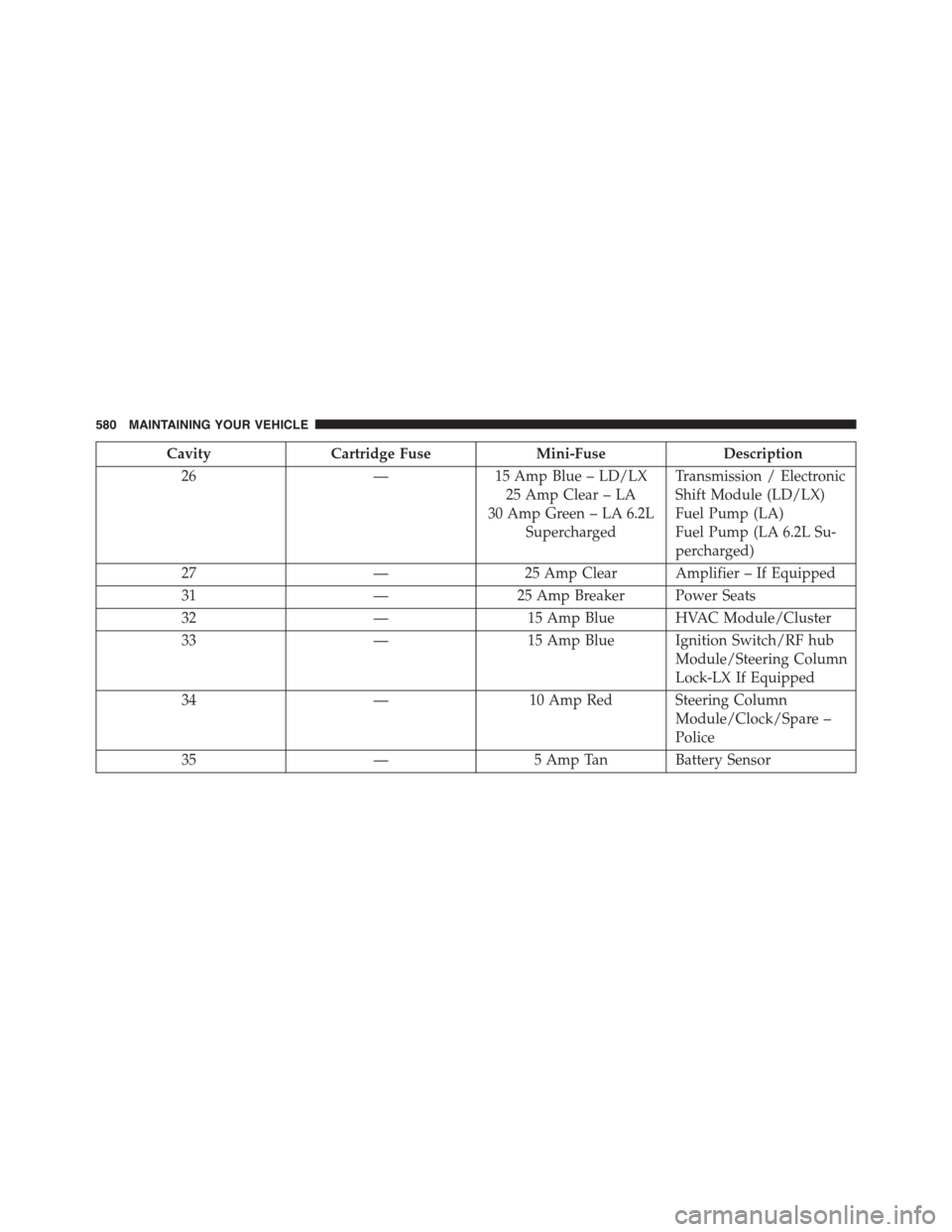

CavityCartridge FuseMini-FuseDescription
26—15 Amp Blue – LD/LX
25 Amp Clear – LA
30 Amp Green – LA 6.2L
Supercharged
Transmission / Electronic
Shift Module (LD/LX)
Fuel Pump (LA)
Fuel Pump (LA 6.2L Su-
percharged)
27—25 Amp Clear Amplifier – If Equipped
31—25 Amp Breaker Power Seats
32—15 Amp Blue HVAC Module/Cluster
33—15 Amp Blue Ignition Switch/RF hub
Module/Steering Column
Lock-LX If Equipped
34—10 Amp Red Steering Column
Module/Clock/Spare –
Police
35—5 Amp Tan Battery Sensor
580 MAINTAINING YOUR VEHICLE

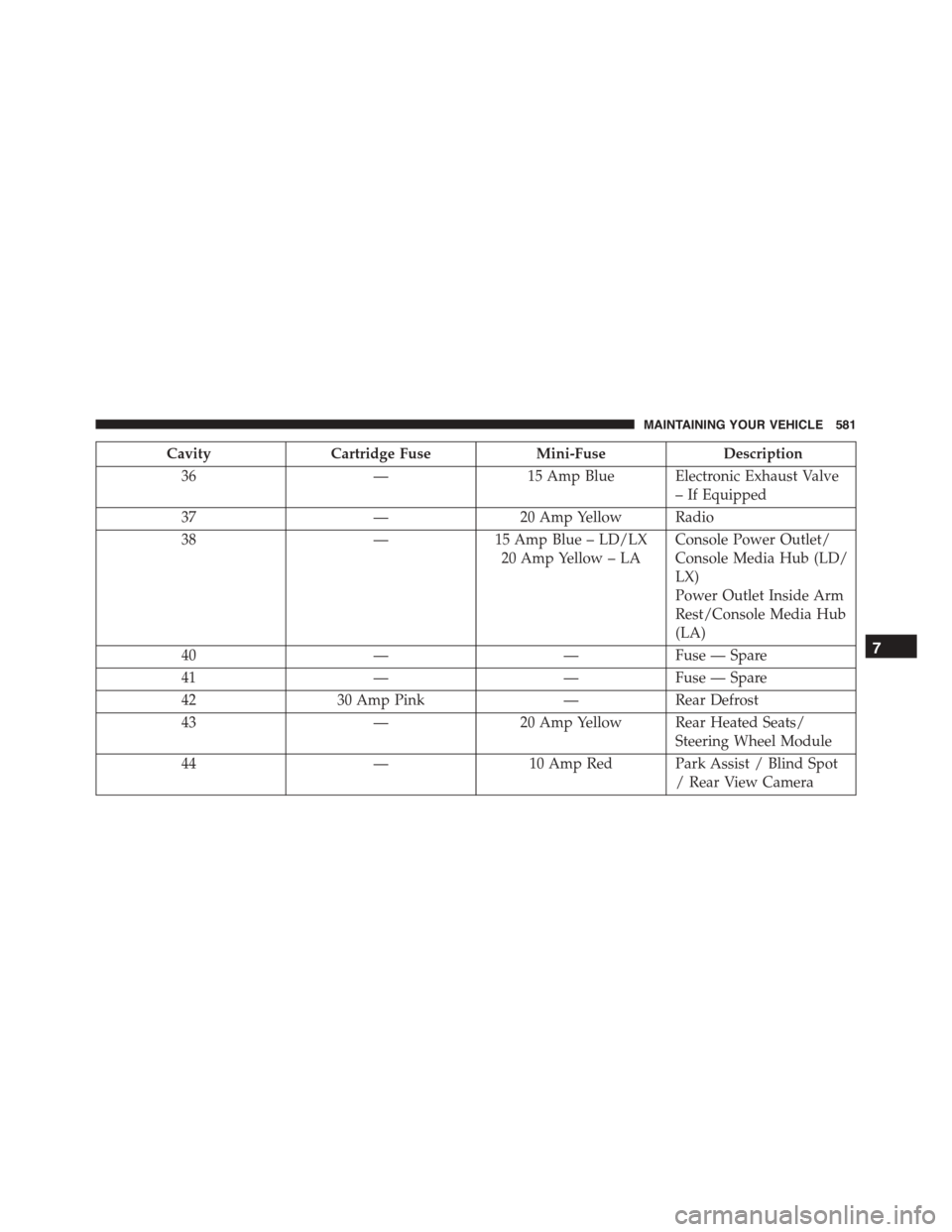

CavityCartridge FuseMini-FuseDescription
36—15 Amp Blue Electronic Exhaust Valve
– If Equipped
37—20 Amp Yellow Radio
38—15 Amp Blue – LD/LX
20 Amp Yellow – LA
Console Power Outlet/
Console Media Hub (LD/
LX)
Power Outlet Inside Arm
Rest/Console Media Hub
(LA)
40——Fuse — Spare
41——Fuse — Spare
4230 Amp Pink—Rear Defrost
43—20 Amp Yellow Rear Heated Seats/
Steering Wheel Module
44—10 Amp Red Park Assist / Blind Spot
/ Rear View Camera
7
MAINTAINING YOUR VEHICLE 581

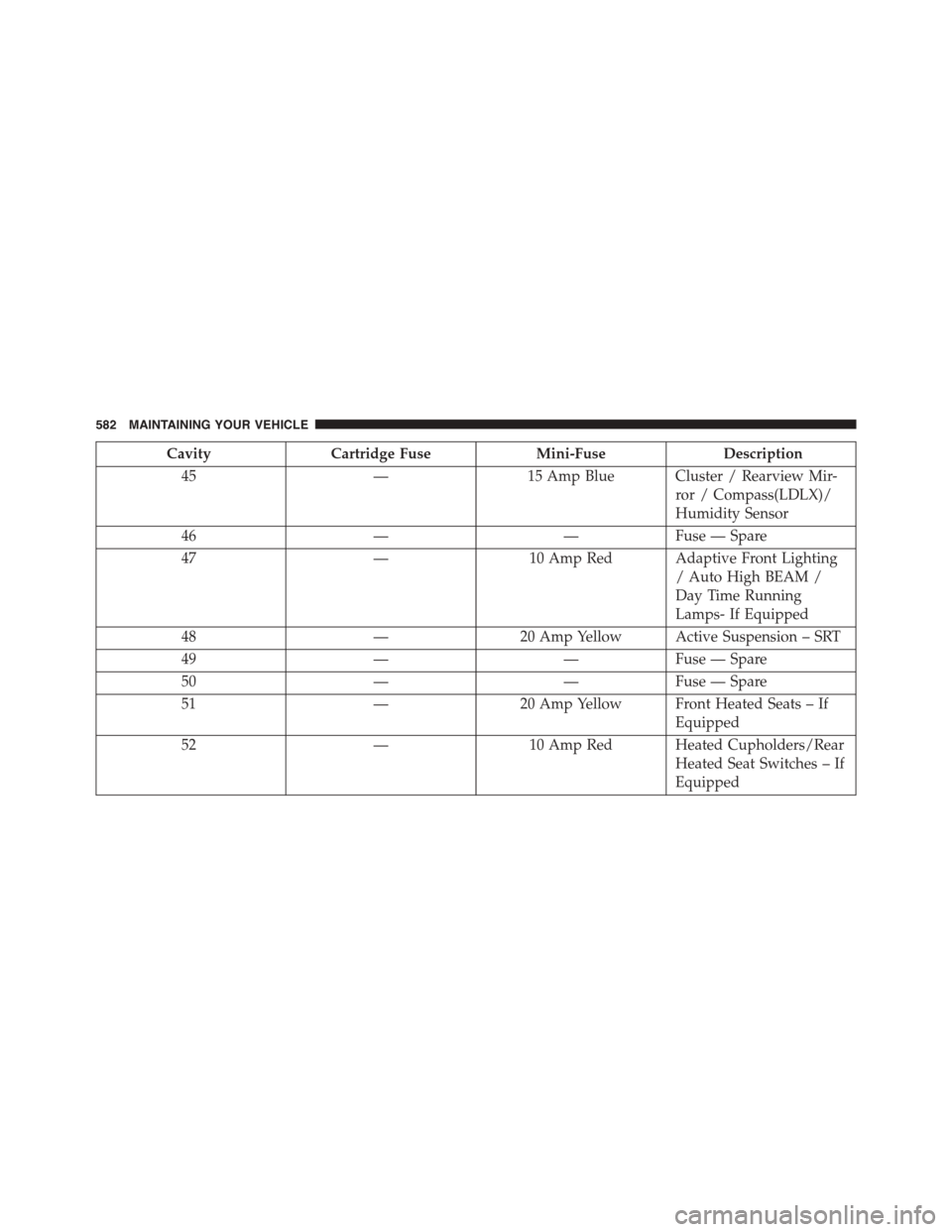

CavityCartridge FuseMini-FuseDescription
45—15 Amp Blue Cluster / Rearview Mir-
ror / Compass(LDLX)/
Humidity Sensor
46——Fuse — Spare
47—10 Amp Red Adaptive Front Lighting
/ Auto High BEAM /
Day Time Running
Lamps- If Equipped
48—20 Amp Yellow Active Suspension – SRT
49——Fuse — Spare
50——Fuse — Spare
51—20 Amp Yellow Front Heated Seats – If
Equipped
52—10 Amp Red Heated Cupholders/Rear
Heated Seat Switches – If
Equipped
582 MAINTAINING YOUR VEHICLE
