2015 Citroen C4 CACTUS Owner's Manual

207
C4-cactus_en_Chap09_info-pratiques_ed02-2014
Driving advice
Distribution of loads
F distribute the load in the trailer so that the heaviest   items   are   as   close   as
p

ossible   to   the   axle   and   the   nose   weight
a

pproaches   the   maximum   permitted
w

ithout   exceeding   it.
ai

r density decreases with altitude, thus
reducing
  engine   per formance.   Above
1 0

00 metres,   the   maximum   towed   load   must
b

e   reduced   by   10 %   for   every   1 000   metres   of
al

titude.
Side wind
F Take   into   account   the   increased   sensitivity  t
o   side   wind.
Cooling
Towing a trailer on a slope increases the temperature   of   the   coolant.
As
  the   fan   is   electrically   controlled,   its   cooling
c

apacity   is   not   dependent   on   the   engine   speed.
F

T
o   lower   the   engine   speed,   reduce   your
s

peed.
The
  maximum   towed   load   on   a   long   incline
d

epends   on   the   gradient   and   the   ambient
t

emperature.
In
  all   cases,   keep   a   check   on   the   coolant
t

emperature. F

I
f   the   warning   lamp   and   the
S

TOP

warning   lamp   come   on,
s

top the vehicle and switch off
the
  engine   as   soon   as   possible.
Braking
Towing a trailer increases the braking distance.
T o   avoid   overheating   of   the   brakes   on   a   long
m

ountain   type   of   descent,   the   use   of   engine
b

raking   is   recommended.
Ty r e s
F Check   the   tyre   pressures   of   the   towing  v
ehicle   and   of   the   trailer,   observing   the
re

commended
 p
ressures.
Lighting
F Check  the   electrical   lighting   and   signalling  o
n   the   trailer.
Refer to the "Technical data" section for details
of

the

weights

and

towed

loads

which

apply

to

y

our

vehicle.
When

not

towing

a

trailer,

remove

the

q

uickly-detachable

tow

ball

before

d

riving. The
  rear   parking   sensors   will   be
d

eactivated   automatically   if   a   genuine
C

ITROËN   towbar   is   used.
9
Practical information

208
C4-cactus_en_Chap09_info-pratiques_ed02-2014
Roof bars
For safety reasons and to avoid
damaging  the   roof,   it   is   essential   to   use
t

ransverse roof bars that are approved
for
  your   vehicle.
Observe
  the   fitting   instructions   and
t

he   conditions   of   use   given   in   the
i

nformation   provided   with   the   roof   bars.Version without longitudinal
bars
To install the roof bars, you must secure them   only   to   the   four   anchorage   points   in   the
r

oof   frame.   These   points   are   masked   by   the
v

ehicle's   doors   when   closed.
The
  roof   bar   fixings   include   a   stud   that   should
b

e introduced into the aperture at each
anchorage
 p

oint.
Version with longitudinal
bars
You must fit the transverse bars to the longitudinal   bars   at   the   fixing   points   indicated
b

y   engraved   markings   on   the   longitudinal   bars.
Practical information

209
C4-cactus_en_Chap09_info-pratiques_ed02-2014
Maximum load, distributed over the roof bars,   for   a   loading   height   not   exceeding
4

0   cm:   80 kg.
This
  value   is   subject   to   change,   please
c

heck   the   maximum   load   stated   in   the
i

nstructions   provided   with   he   roof   bars.
If
  the   height   exceeds   40   cm,   adapt   the
s

peed of the vehicle to the profile of the
road
  to   avoid   damaging   the   roof   bars
a

nd   the   fixings   on   the   vehicle.
Please
  refer   to   national   legislation   so   as
t

o   meet   the   requirements   on   carrying
o

bjects   that   are   longer   than   the   vehicle.
Recommendations
F Distribute  the   load   evenly,   avoiding  ov
erloading   on   one   side.
F

A
rrange   the   heaviest   part   of   the   load   as
c

lose   as   possible   to   the   roof.
F

A
nchor   the   load   securely   and   fit   a   warning
f

lag   if   part   of   it   overhangs   the   vehicle.
F

D
rive   gently,   as   the   vehicle   will   be   more
l

iable   to   the   effects   of   side   winds   (vehicle
s

tability   may   be   affected).
F

R
emove   the   roof   bars   as   soon   as   they   are
n

o
 lon
ger
 n
eeded.
9
Practical information

210
C4-cactus_en_Chap09_info-pratiques_ed02-2014
Very cold climate screens
Removable protective screens which prevents the accumulation of snow at the radiator cooling fan.
F
O
ffer   up   the   corresponding   screen   to   the
f

ront   bumper   upper   grille.
F

P
ress   on   the   edge   to   engage   its   fixing   clips
i

n   turn.
Proceed
  in   the   same   way   for   the   screen   on   the
l

ower   grille.F

U
sing   a   screwdriver,   lever   in   turn   on   the
f

ixings   of   each   screen   to   unclip   them.
Do
  not   forget   to   remove   the   very   cold
c

limate   screens   when:
-

t
he   ambient   temperature   exceeds
1

0°   C,
-
 tow

ing,
-
 a

t   speeds   above   75   mph   (120   km/h).
Removal
Fitting
Before fitting or removing a screen, e
nsure   that   the   engine   is   off   and   the
c

ooling   fan   has   stopped.
It
  is   recommended   that   the   screens
b

e   fitted   and   removed   by   a   CITROËN
d

ealer   or   a   qualified   workshop.
Practical information

211
C4-cactus_en_Chap09_info-pratiques_ed02-2014
Made of TPU (Thermo Plastic Urethane) and enclosing   bubbles   of   air   on   the   side   protectors
o

nly,   they   act   as   an   impact   absorber.
Located on the sides, front and rear of your
vehicle,
  they   protect   the   bodywork   by   reducing
t

he   effect   of   minor   everyday   knocks:   parking
d

ings,   opening   doors,   scrapes,   ...
In body colour, these protectors also enhance
the
  appearance   of   your   vehicle.

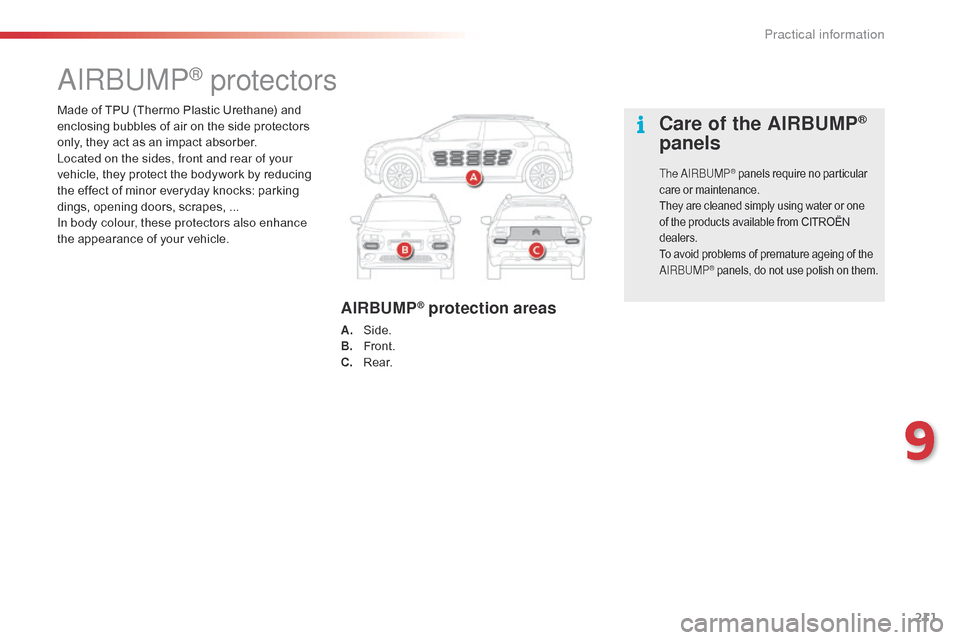

aIRbUMP® protectors
AIRBUMP® protection areas
A. Side.
B. Fr
ont.
C.
 R

e a r.
Care of the AIRBUMP®
panels
The aIRb UMP® panels require no particular c
are o
r m
aintenance.
They

are

cleaned   simply   using   water   or   one
 o

f

the

products

available   from   CITROËN
 d

ealers.
To

avoid

problems   of   premature   ageing   of   the

aI

R
b
UM

P
® panels, do not use polish on them.
9
Practical information

212
C4-cactus_en_Chap09_info-pratiques_ed02-2014
accessories
A wide range of accessories and genuine parts is available from the CITROËN dealer network.
T hese   accessories   and   parts   are   all   suitable   for   your   vehicle   and   benefit   from   CITROËN's   recommendation   and   warranty.
"Comfort"
door deflectors, side sun blinds, insulated
module,  coat   hanger   fixed   to   head   restraint,
m

obile   reading   lamp,   front   and   rear   parking
s

ensors, portable ashtray, scented air
freshener,
  blind   for   sunroof...
"Transport systems"
boot carpet, boot liner, boot net, boot spacers,
transverse  roof   bars,   ski   carrier,   roof   box,
t

owbar,   towbar   wiring   harness,   bicycle   carrier...
"Styling"
Leather gear lever knob, aluminium foot rest, alloy   wheels,   front   spoiler,   rear   diffuser,   exterior
e

xpressive
 s
tickers...
"Security and safety":
Anti-intrusion alarm, vehicle tracking system, first   aid   kit,   fire   extinguisher,   warning   triangle,
h

igh   visibility   vest,   wheel   security   bolts,   snow
c

hains,   non-slip   covers,   front   foglamp   kit,   dog
g

uard,   pet   seat   belt,   seat   belt   cutter/glass
h

ammer...
"Protection"
Mats*, seat covers, mud flaps, vehicle cover, b oot...
If

a

towbar

and

wiring

harness

are

f

itted outside the CITR
oËn

dealer
network,

the

installation

must

be

done

s

trictly

in

line

with

the

manufacturer's

r

ecommendations. *

T
o   avoid   any   risk   of   jamming   the   pedals:
-

e
nsure   that   mats   are   correctly   positioned
a

nd secured,
-

n
ever   fit   one   mat   on   top   of   another.
Practical information

213
C4-cactus_en_Chap09_info-pratiques_ed02-2014
The fitting of electrical equipment or accessories which are not
recommended
  by   CITROËN   may   result
i

n   a   failure   of   your   vehicle's   electronic
s

ystem   and   excessive   electrical
c

onsumption.
Contact a CITR
oËn

dealer
for
  information   on   the   range   of
r

ecommended   equipment   and
a

ccessories.
Installation of radio
communication
transmitters
Before installing any after-market radio communication   transmitter,   you   can
c

ontact a CITR
oËn
dealer for the
specification
  of   transmitters   which   can
b

e   fitted   (frequency,   maximum   power,
a

erial position, specific installation
requirements),
  in   line   with   the   Vehicle
E

lectromagnetic
 C
ompatibility
 D

irective (2004/104/EC). Depending
  on   the   legislation   in   force   in
t

he   country,   certain   safety   equipment
m

ay   be   compulsory:   high   visibility  s
afety   vests,   warning   triangles,  b
reathalyzers, spare bulbs, spare fuses,
fire
  extinguisher,   first   aid   kit,   mud   flaps
a

t   the   rear   of   the   vehicle.
"Multimedia"
Bluetooth hands-free system, portable satellite navigation   system,   driving   assistance   systems,
s

martphone   carrier,   DVD   player,   CD   player,
2

30   V   socket,   semi-integral   satellite   navigation
s

ystem,   rear   multimedia   carrier,   navigation
m

apping   updates,   aftermarket   digital   radio...
By
  visiting   a   CITROËN dealer   you   can   also
o

btain cleaning   and   maintenance   products
(

interior   and   exterior)   -   including   ecological
p

roducts   in   the   "TECHNATURE"   range,
p

roducts   for   topping   up   (screenwash...),   paint
t

ouch-up   pens   and   aerosols   for   the   exact
c

olour   of   your   vehicle,   refills   (sealant   cartridge
f

or   the   temporary   puncture   repair   kit...),   ...
9
Practical information

214
C4-cactus_en_Chap09_info-pratiques_ed02-2014

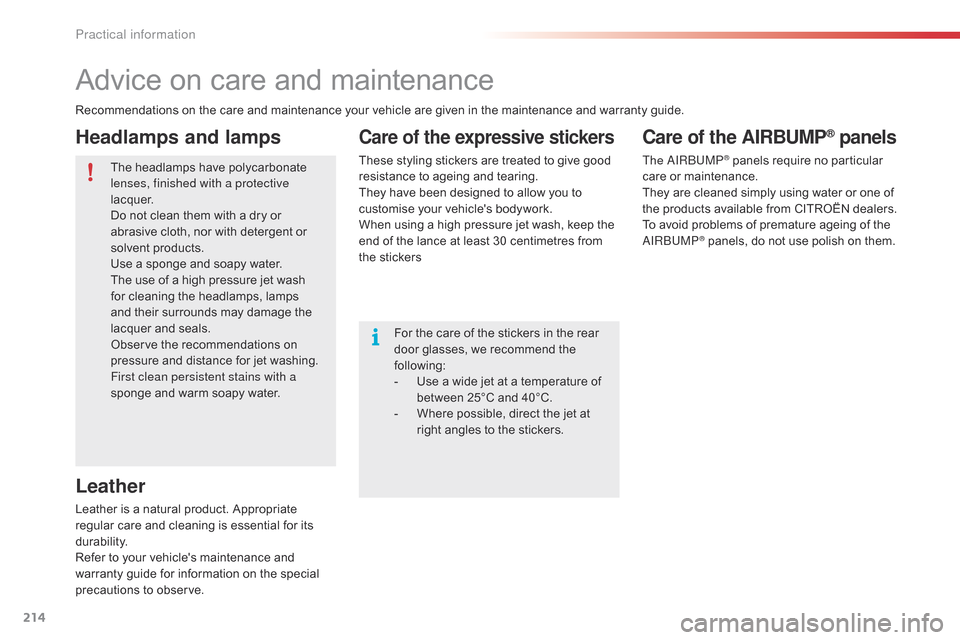

Advice on care and maintenance
Recommendations on the care and maintenance your vehicle are given in the maintenance and warranty guide.
T he   headlamps   have   polycarbonate
l

enses, finished with a protective
l a c q u e r.
Do
  not   clean   them   with   a   dry   or
a

brasive   cloth,   nor   with   detergent   or
so

lvent
 pro
ducts.
Use
  a   sponge   and   soapy   water.
The
  use   of   a   high   pressure   jet   wash
f

or   cleaning   the   headlamps,   lamps
a

nd   their   surrounds   may   damage   the
l

acquer   and   seals.
Observe
  the   recommendations   on
p

ressure   and   distance   for   jet   washing.
First clean persistent stains with a
sponge
  and   warm   soapy   water.For
  the   care   of   the   stickers   in   the   rear
d

oor   glasses,   we   recommend   the
fo

llowing:
-

U
se   a   wide   jet   at   a   temperature   of
b

etween   25°C   and   40°C.
-

W
here   possible,   direct   the   jet   at
r

ight   angles   to   the   stickers.
Leather
Care of the expressive stickers
These styling stickers are treated to give good resistance   to   ageing   and   tearing.
They
  have   been   designed   to   allow   you   to
c

ustomise   your   vehicle's   bodywork.
When
  using   a   high   pressure   jet   wash,   keep   the
e

nd   of   the   lance   at   least   30   centimetres   from
t

he   stickers
Leather

is

a

natural

product.

Appropriate

r

egular

care

and

cleaning

is

essential

for

its

du

rability.
Refer

to

your

vehicle's

maintenance

and

w

arranty

guide

for

information

on

the

special

p

recautions

to

observe.
Headlamps and lampsCare of the AIRBUMP® panels
The aIRb UMP® panels require no particular c
are o
r m
aintenance.
They

are

cleaned   simply   using   water   or   one   of
t

he

products

available   from   CITROËN   dealers.
To

avoid

problems   of   premature   ageing   of   the
a
I

R
b
UM

P
® panels, do not use polish on them.
Practical information
