2015 CHRYSLER 300 Owners Manual

▫Changing FCW And Active Braking Status. . . .202
▫FCW Limited Warning..................203
▫Service FCW Warning..................203
!LANESENSE — IF EQUIPPED.............203
▫LaneSense Operation...................203
▫Turning LaneSense ON Or OFF............204
▫LaneSense Warning Message..............205
▫Changing LaneSense Status..............209
!PARKSENSE® FRONT AND REAR PARK ASSIST
— IF EQUIPPED.......................209
▫ParkSense® Sensors....................210
▫ParkSense® Warning Display.............210
▫ParkSense® Display....................211
▫Enabling And Disabling ParkSense®........219
▫Service The ParkSense® Park Assist System . . .220
▫Cleaning The ParkSense® System..........221
▫ParkSense® System Usage Precautions.......221
!PARKVIEW® REAR BACK UP CAMERA — IF
EQUIPPED...........................223
!OVERHEAD CONSOLE..................226
▫Front Map/Reading Lights — If Equipped . . .226
▫Courtesy Lights.......................227
▫Sunglasses Bin Door...................228
!GARAGE DOOR OPENER — IF EQUIPPED . . .228
▫Before You Begin Programming HomeLink® . .229
▫Programming A Rolling Code.............230
3
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 103

▫Programming A Non-Rolling Code.........232
▫Canadian/Gate Operator Programming......233
▫Using HomeLink®....................235
▫Security............................235
▫Troubleshooting Tips...................235
▫General Information....................236
!COMMANDVIEW® SUNROOF WITH POWER
SHADE — IF EQUIPPED.................237
▫Opening Sunroof — Express..............238
▫Opening Sunroof — Manual Mode.........238
▫Closing Sunroof — Express...............239
▫Closing Sunroof — Manual Mode..........239
▫Opening Power Shade — Express..........239
▫Opening Power Shade — Manual Mode.....239
▫Closing Power Shade — Express...........240
▫Closing Power Shade — Manual Mode......240
▫Venting Sunroof — Express..............240
▫Pinch Protect Feature...................240
▫Wind Buffeting.......................241
▫Sunroof Maintenance...................241
▫Ignition OFF Operation.................241
!ELECTRICAL POWER OUTLETS...........241
!CUPHOLDERS........................246
▫Front Seat Cupholders..................246
▫Rear Seat Cupholders..................247
!STORAGE............................249
104 UNDERSTANDING THE FEATURES OF YOUR VEHICLE

▫Glove Compartment...................249
▫Console Features.....................249
▫Door Storage.........................251
▫Rear Seat Armrest Storage — If Equipped . . . .252
▫Cargo Area — Vehicles Equipped With 60/40
Split-Folding Rear Seat..................252
!CARGO AREA FEATURES................254
▫Trunk Mat — If Equipped...............254
▫Grocery Bag Hooks....................254
▫Cargo Net . . . . . . . . . . . . . . . . . . . . . . . . . ..255
!REAR WINDOW FEATURES..............255
▫Rear Window Defroster.................255
▫Power Sunshade — If Equipped...........256
!LOAD LEVELING SYSTEM — IF EQUIPPED . .257
3
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 105

MIRRORS
Automatic Dimming Mirror — If Equipped
A single ball joint mirror is provided in the vehicle. It is
a twist on mirror that has a fixed position at the wind-
shield. The mirror installs on the windshield button with
a counterclockwise rotation and requires no tools for
mounting. The mirror head can be adjusted up, down,
left, and right for various drivers. The mirror should be
adjusted to center on the view through the rear window.
This mirror automatically adjusts for headlight glare
from vehicles behind you.
NOTE:
•The Automatic Dimming Mirror feature is disabled
when the vehicle is in reverse gear to improve rear
view viewing.
•The Automatic Dimming Mirror feature can be turned
on or off using the Uconnect® System. Refer to
“Uconnect® Settings” in “Understanding Your Instru-
ment Panel” for further information.
If equipped, the rearview mirror contains an ASSIST and
a 9-1-1 button.
Automatic Dimming Mirror
106 UNDERSTANDING THE FEATURES OF YOUR VEHICLE

NOTE:The ASSIST and 9–1–1 features operate through
the Uconnect® Access service. These buttons will only
operate as long as your Uconnect® Access service is
active. Refer to your “Uconnect® System supplement
manual” for further information.
ASSIST Call
The ASSIST Button is used to automatically connect you
to any one of the following support centers:
•Roadside Assistance – If you get a flat tire, or need a
tow, just push the Assist button and you’ll be con-
nected to someone who can help. Roadside Assistance
will know what vehicle you’re driving and its location.
Additional fees may apply for roadside Assistance.
•Uconnect® Access Customer Care – In-vehicle support
for Uconnect® Access and Uconnect® Access Via
Mobile features.
•Vehicle Customer Care – Total support for all other
vehicle issues.
9-1-1 Call
1. Push the 9-1-1 Call button on the Rearview Mirror.
NOTE:In case the 9-1-1 Call button is pushed in error,
there will be a 10 second delay before the 9-1-1 Call
system initiates a call to a 9-1-1 operator. To cancel the
9-1-1 Call connection, push the 9-1-1 Call button on the
Rearview Mirror or push the cancellation button on the
Phone Screen. Termination of the 9-1-1 Call will turn the
green LED light on the Rearview Mirror off.
2. The LED light located between the Assist and 9-1-1
buttons on the Rearview Mirror will turn green once a
connection to a 9-1-1 operator has been made.
3
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 107

3. Once a connection between the vehicle and a 9-1-1
operator is made, the 9-1-1 Call system may transmit
the following important vehicle information to a 9-1-1
operator:
•Indication that the occupant placed a 9-1-1 Call.
•The vehicle brand.
•The last known GPS coordinates of the vehicle.
4. You should be able to speak with the 9-1-1 operator
through the vehicle audio system to determine if
additional help is needed.
NOTE:Once a connection is made between the vehicle’s
9-1-1 Call system and the 9-1-1 operator, the 9-1-1 opera-
tor may be able to open a voice connection with the
vehicle to determine if additional help is needed. Once
the 9-1-1 operator opens a voice connection with the
vehicle’s 9-1-1 Call system, the operator should be able to
speak with you or other vehicle occupants and hear
sounds occurring in the vehicle. The vehicle’s 9-1-1 Call
system will attempt to remain connected with the 9-1-1
operator until the 9-1-1 operator terminates the connec-
tion.
5. The 9-1-1 operator may attempt to contact appropriate
emergency responders and provide them with impor-
tant vehicle information and GPS coordinates.
108 UNDERSTANDING THE FEATURES OF YOUR VEHICLE

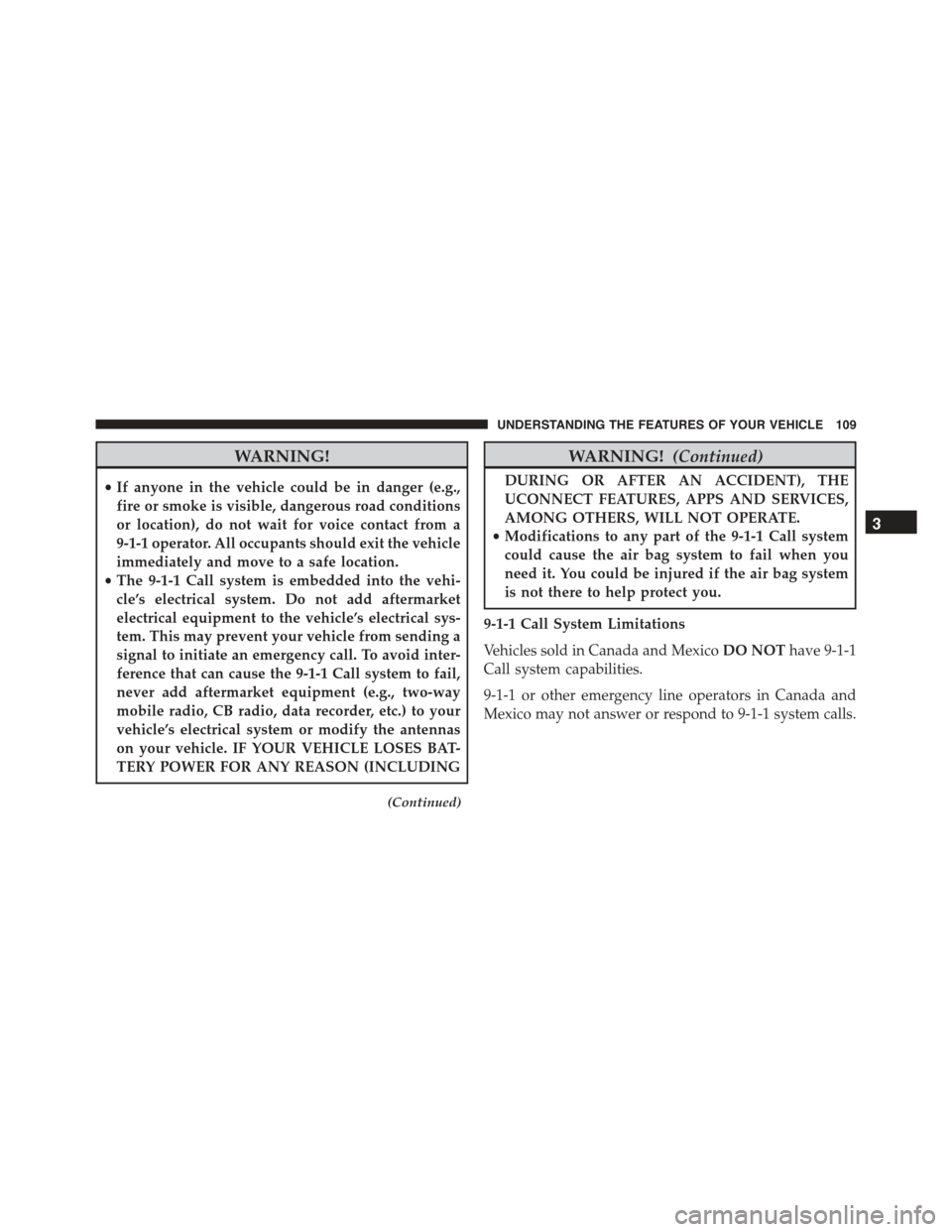

WARNING!
•If anyone in the vehicle could be in danger (e.g.,
fire or smoke is visible, dangerous road conditions
or location), do not wait for voice contact from a
9-1-1 operator. All occupants should exit the vehicle
immediately and move to a safe location.
•The 9-1-1 Call system is embedded into the vehi-
cle’s electrical system. Do not add aftermarket
electrical equipment to the vehicle’s electrical sys-
tem. This may prevent your vehicle from sending a
signal to initiate an emergency call. To avoid inter-
ference that can cause the 9-1-1 Call system to fail,
never add aftermarket equipment (e.g., two-way
mobile radio, CB radio, data recorder, etc.) to your
vehicle’s electrical system or modify the antennas
on your vehicle. IF YOUR VEHICLE LOSES BAT-
TERY POWER FOR ANY REASON (INCLUDING
(Continued)
WARNING!(Continued)
DURING OR AFTER AN ACCIDENT), THE
UCONNECT FEATURES, APPS AND SERVICES,
AMONG OTHERS, WILL NOT OPERATE.
•Modifications to any part of the 9-1-1 Call system
could cause the air bag system to fail when you
need it. You could be injured if the air bag system
is not there to help protect you.
9-1-1 Call System Limitations
Vehicles sold in Canada and MexicoDO NOThave 9-1-1
Call system capabilities.
9-1-1 or other emergency line operators in Canada and
Mexico may not answer or respond to 9-1-1 system calls.
3
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 109

If the 9-1-1 Call system detects a malfunction, any of the
following may occur at the time the malfunction is
detected, and at the beginning of each ignition cycle:
•The Rearview Mirror light located between the Assist
and 9-1-1 buttons will continuously be illuminated
red.
•The Phone Screen will display the following message
“Vehicle phone requires service. Please contact your
dealer.”
•An In-Vehicle Audio message will state “Vehicle phone
requires service. Please contact your dealer.”
WARNING!
•Ignoring the Rearview Mirror light could mean you
will not have 9-1-1 Call services. If the Rearview
Mirror light is illuminated, have an authorized
dealer service the 9-1-1 Call system immediately.
•The Occupant Restraint Control module turns on
the Air Bag Warning Light on the instrument panel
if a malfunction in any part of the system is
detected. If the Air Bag Warning Light is illumi-
nated, the air bag system may not be working
properly and the 9-1-1 system may not be able to
send a signal to a 9-1-1 operator. If the Air Bag
Warning Light is illuminated, have an authorized
dealer service the ORC system immediately.
11 0 U N D E R S TA N D I N G T H E F E AT U R E S O F Y O U R V E H I C L E
