2015 CHEVROLET CAMARO Owners Manual

Black plate (2,1)Chevrolet Camaro Owner Manual (GMNA-Localizing-U.S./Canada/Mexico-
7695163) - 2015 - crc - 9/4/14
1-2 In Brief
Instrument Panel

Black plate (3,1)Chevrolet Camaro Owner Manual (GMNA-Localizing-U.S./Canada/Mexico-
7695163) - 2015 - crc - 9/4/14
In Brief 1-3
1.Air Vents on page 8-3.
2. Turn Signal Lever. See Turn and
Lane-Change Signals on
page 6-4.
Headlamp High/Low-Beam
Changer on page 6-2.
Flash-to-Pass on page 6-2.
Driver Information Center (DIC)
Buttons. See Driver Information
Center (DIC) on page 5-24.
3. Tap Shift (If Equipped). See Manual Mode on page 9-31.

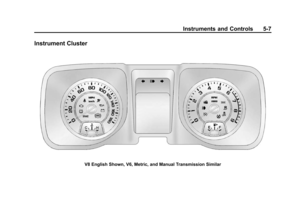

4. Instrument Cluster on page 5-7.
5. Windshield Wiper/Washer on
page 5-3.
6. Light Sensor. See Automatic
Headlamp System on page 6-3.
7. Infotainment on page 7-1.

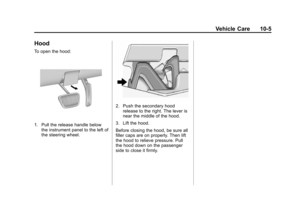

8. Hood Release (Out of View). See Hood on page 10-5.
9. Data Link Connector (DLC) (Out of View). See Malfunction
Indicator Lamp on page 5-16. 10.
Exterior Lamp Controls on
page 6-1.
Front Fog Lamps on page 6-5
(If Equipped).
Instrument Panel Illumination
Control on page 6-5.
11. Cruise Control on page 9-45.
12. Steering Wheel Adjustment on
page 5-2.
13. Horn on page 5-3.
14. Steering Wheel Controls on
page 5-2.
15. Head-Up Display (HUD) on
page 5-28 (If Equipped).
16. Climate Control Systems on
page 8-1. 17.

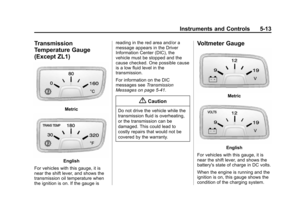

Transmission Temperature
Gauge (Except ZL1) on
page 5-13 (If Equipped).
Voltmeter Gauge on page 5-13
(If Equipped).
Engine Oil Temperature Gauge
on page 5-11 (If Equipped).
Engine Oil Pressure Gauge on
page 5-10 (If Equipped).
18. Traction Control/Electronic
Stability Control on page 9-38.
Performance Traction
Management (PTM). See
Competitive Driving Mode on
page 9-40 (ZL1 or Z/28
Models Only).
19. Shift Lever. See Automatic
Transmission on page 9-28 or
Manual Transmission on
page 9-34.
20. Power Outlets on page 5-5.
21. Hazard Warning Flashers on
page 6-4.

Black plate (4,1)Chevrolet Camaro Owner Manual (GMNA-Localizing-U.S./Canada/Mexico-
7695163) - 2015 - crc - 9/4/14
1-4 In Brief
Initial Drive
Information
This section provides a brief
overview about some of the
important features that may or may
not be on your specific vehicle.
For more detailed information, refer
to each of the features which can be
found later in this owner manual.

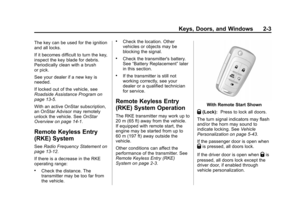

Remote Keyless Entry
(RKE) System
The RKE transmitter may work up to
20 m (65 ft) away from the vehicle.
If equipped with remote start, the
engine may be started from up to
60 m (197 ft) away outside the
vehicle.
With Remote Start Shown
The key can be used for the ignition
and all locks.
Press
Kto unlock the driver door or
all doors.
Press
Qto lock all doors.
Lock and unlock feedback can be
personalized. See Vehicle
Personalization on page 5-43.
Press and hold
Yto open the
trunk. Press and release
7to initiate
vehicle locator.
Press and hold
7for at least
three seconds to sound the panic
alarm.
Press
7again to cancel the panic
alarm.
See Keys on page 2-1 andRemote
Keyless Entry (RKE) System
Operation on page 2-3.
Remote Vehicle Start
If equipped, this feature allows the
engine to be started from outside
the vehicle.
Starting the Vehicle
1. Aim the RKE transmitter at the vehicle.
2. Press and release
Q.
3. Immediately after completing Step 2, press and hold
/for at
least four seconds or until the
turn signal lamps flash.

Black plate (5,1)Chevrolet Camaro Owner Manual (GMNA-Localizing-U.S./Canada/Mexico-
7695163) - 2015 - crc - 9/4/14
In Brief 1-5
When the engine starts, the parking
lamps will turn on and remain on as
long as the engine is running. The
doors will be locked and the climate
control system may come on.
The engine will continue to run for
10 minutes. After 30 seconds,
repeat the steps if a 10-minute time
extension is desired. Remote start
can be extended only once.
Canceling a Remote Start
To cancel a remote start, do one of
the following:
.Aim the RKE transmitter at the
vehicle and press and hold
/
until the parking lamps turn off.
.Turn on the hazard warning
flashers.
.Turn the vehicle on and then off.
See Remote Vehicle Start on
page 2-5.
Door Locks
To lock or unlock a door:
.To lock the door from the inside,
use the door lock knob on the
top of the door.
.To unlock the door from inside,
pull the handle once. Pulling the
handle again unlatches the door.
.From the outside turn the key
clockwise or counterclockwise,
or press
QorKon the Remote
Keyless Entry (RKE) transmitter.
See Door Locks on page 2-7 or
Remote Keyless Entry (RKE)
System Operation on page 2-3.
Power Door Locks
If equipped, there is a power door
lock switch on the instrument panel
and on the front door panels.
Q: Press to lock the doors.
K: Press to unlock the doors.
See Power Door Locks on page 2-8.
Trunk Release
To open the trunk, press the trunk
release button on the lower portion
of the driver door, or press and
hold
Yon the Remote Keyless
Entry (RKE) transmitter. See Trunk
on page 2-10.

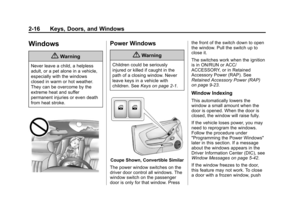

Windows
Coupe Shown, Convertible Similar
The power window switches on the
driver door control all windows. The
window switch on the passenger
door is only for that window. Press

Black plate (6,1)Chevrolet Camaro Owner Manual (GMNA-Localizing-U.S./Canada/Mexico-
7695163) - 2015 - crc - 9/4/14

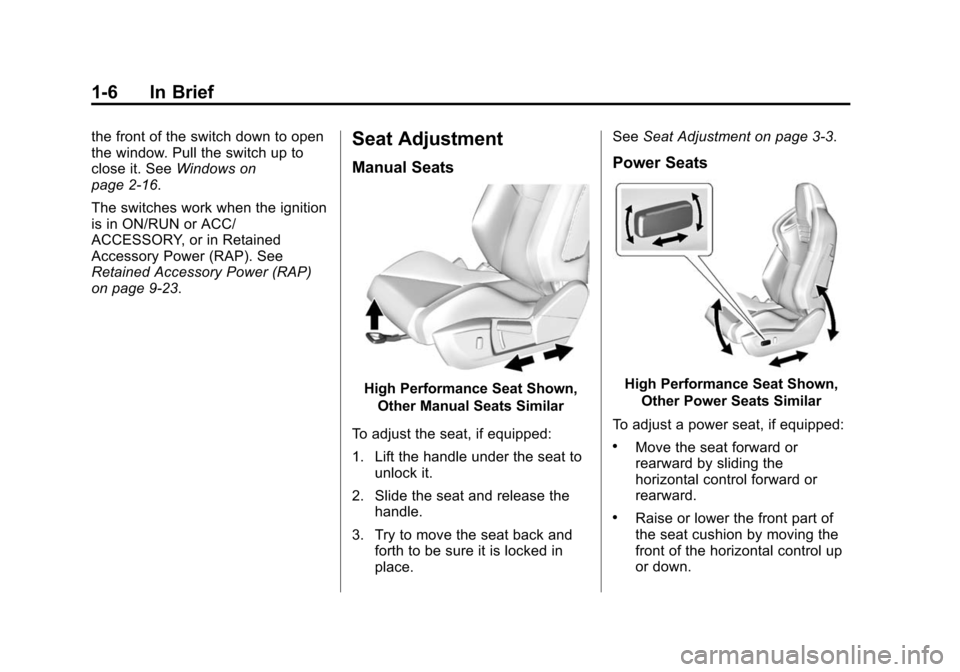

1-6 In Brief
the front of the switch down to open
the window. Pull the switch up to
close it. SeeWindows on
page 2-16.
The switches work when the ignition
is in ON/RUN or ACC/
ACCESSORY, or in Retained
Accessory Power (RAP). See
Retained Accessory Power (RAP)
on page 9-23.Seat Adjustment
Manual Seats
High Performance Seat Shown,
Other Manual Seats Similar
To adjust the seat, if equipped:
1. Lift the handle under the seat to unlock it.
2. Slide the seat and release the handle.
3. Try to move the seat back and forth to be sure it is locked in
place. See
Seat Adjustment on page 3-3.

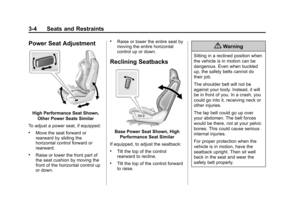

Power Seats
High Performance Seat Shown,
Other Power Seats Similar
To adjust a power seat, if equipped:
.Move the seat forward or
rearward by sliding the
horizontal control forward or
rearward.
.Raise or lower the front part of
the seat cushion by moving the
front of the horizontal control up
or down.

Black plate (7,1)Chevrolet Camaro Owner Manual (GMNA-Localizing-U.S./Canada/Mexico-
7695163) - 2015 - crc - 9/4/14
In Brief 1-7
.Raise or lower the entire seat by
moving the entire horizontal
control up or down.
See Power Seat Adjustment on
page 3-4.

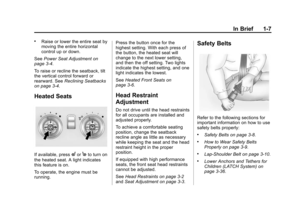

To raise or recline the seatback, tilt
the vertical control forward or
rearward. See Reclining Seatbacks
on page 3-4.
Heated Seats
If available, pressLorMto turn on
the heated seat. A light indicates
this feature is on.
To operate, the engine must be
running. Press the button once for the
highest setting. With each press of
the button, the heated seat will
change to the next lower setting,
and then the off setting. Two lights
indicate the highest setting, and one
light indicates the lowest.
See
Heated Front Seats on
page 3-6.
Head Restraint
Adjustment
Do not drive until the head restraints
for all occupants are installed and
adjusted properly.
To achieve a comfortable seating
position, change the seatback
recline angle as little as necessary
while keeping the seat and the head
restraint height in the proper
position.
If equipped with high performance
seats, the front seat head restraints
cannot be adjusted.
See Head Restraints on page 3-2
and Seat Adjustment on page 3-3.
Safety Belts
Refer to the following sections for
important information on how to use
safety belts properly:
.Safety Belts on page 3-8.

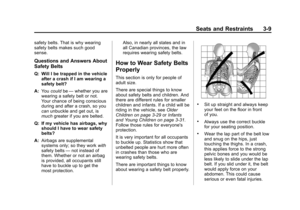

.How to Wear Safety Belts
Properly on page 3-9.
.Lap-Shoulder Belt on page 3-10.

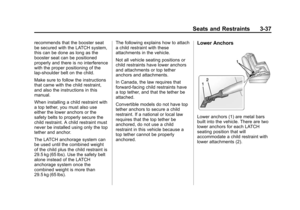

.Lower Anchors and Tethers for
Children (LATCH System) on
page 3-36.

Black plate (8,1)Chevrolet Camaro Owner Manual (GMNA-Localizing-U.S./Canada/Mexico-
7695163) - 2015 - crc - 9/4/14
1-8 In Brief
Passenger Sensing
System
United States
Canada and Mexico
The passenger sensing system will
turn off the front outboard
passenger frontal airbag under
certain conditions. No other airbag
is affected by the passenger
sensing system. See Passenger

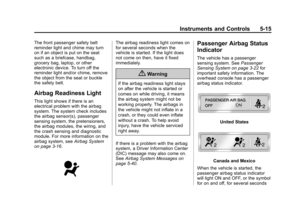

Sensing System on page 3-22. The passenger airbag status
indicator lights are visible on the
overhead console when the vehicle
is started. See
Passenger Airbag
Status Indicator on page 5-15.
Mirror Adjustment
Exterior
Coupe Shown, Convertible Similar
Outside power mirrors have controls
on the driver door armrest.
To adjust each mirror:
1. Press the switch to select the driver or passenger side mirror. 2. Press one of the four sides on
the
h(control pad) to adjust the
mirror.
3. Adjust each outside mirror so that a little of the vehicle and the
area behind it can be seen.
See Power Mirrors on page 2-14.
Interior
Adjust the inside rearview mirror for
a clear view of the area behind your
vehicle.
If equipped, push the tab forward for
daytime use and pull it for nighttime
use to avoid glare from the
headlamps from behind.
If equipped, automatic dimming
reduces the glare of the headlamps
from behind. The dimming feature
comes on when the vehicle is
started.
Cleaning the Mirror
Do not spray glass cleaner directly
on the mirror. Use a soft towel
dampened with water.

Black plate (9,1)Chevrolet Camaro Owner Manual (GMNA-Localizing-U.S./Canada/Mexico-
7695163) - 2015 - crc - 9/4/14
In Brief 1-9
Steering Wheel
Adjustment
To adjust the steering wheel:
1. Pull the lever down.
2. Move the steering wheel upor down.
3. Pull or push the steering wheel closer or away from you.
4. Pull the lever up to lock the steering wheel in place.
Do not adjust the steering wheel
while driving.
Interior Lighting
Dome Lamps
To change the settings, press the
following:
(: Turns the lamp off, even when
a door is open.
H: Turns the lamp on
automatically when a door is
opened.
': Turns the lamp on.
For more information on interior
lighting, see Instrument Panel
Illumination Control on page 6-5.
Exterior Lighting
The exterior lamp control is on the
instrument panel, on the outboard
side of the steering wheel.
There are four positions:
P: Briefly turn to this position to
turn the automatic light control off or
on again. When released, the
control returns to the AUTO
position.
AUTO: Automatically turns the
exterior lamps on and off,
depending on outside lighting.
;: Turns on the parking lamps
including all lamps, except the
headlamps.
