2015 BMW 5 SERIES GRAN TURISMO Owner's Manual

Page 233 of 263

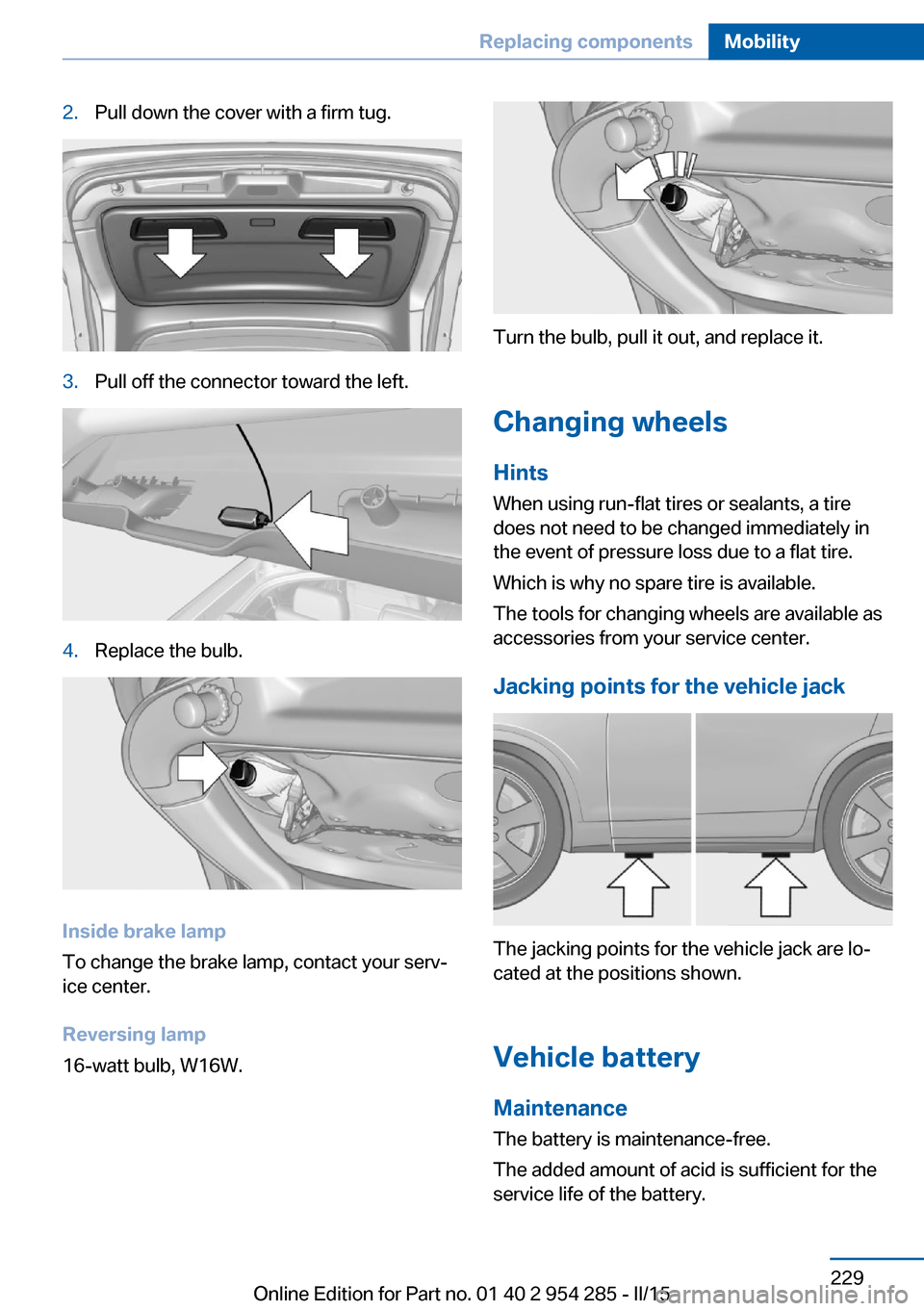

BMW 5 SERIES GRAN TURISMO 2015 F07 Owners Manual 2.Pull down the cover with a firm tug.3.Pull off the connector toward the left.4.Replace the bulb.
Inside brake lamp
To change the brake lamp, contact your serv‐
ice center.
Reversing lamp
16-watt b

Page 234 of 263

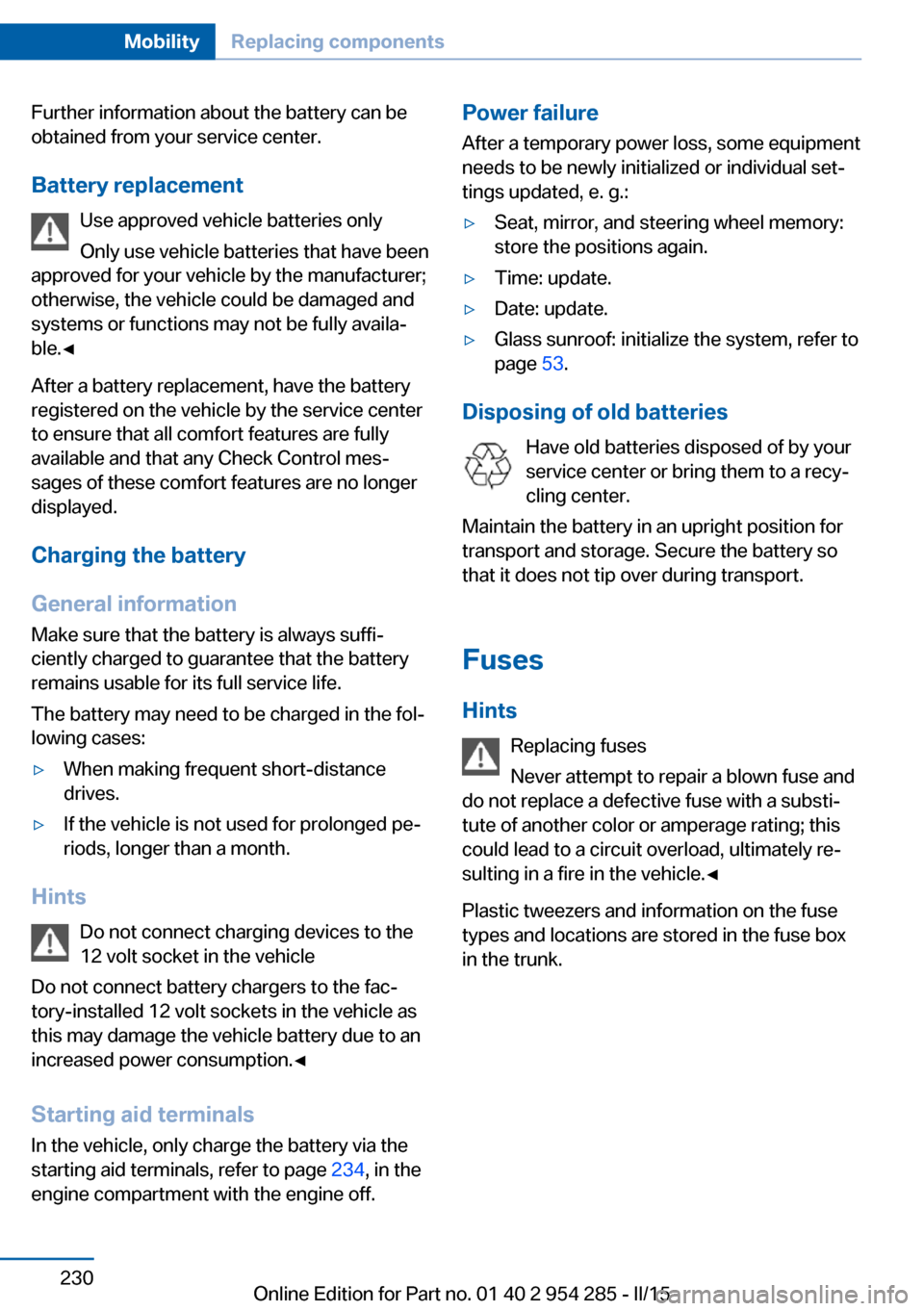

BMW 5 SERIES GRAN TURISMO 2015 F07 Owners Manual Further information about the battery can be
obtained from your service center.
Battery replacement Use approved vehicle batteries only
Only use vehicle batteries that have been
approved for your vehi

Page 235 of 263

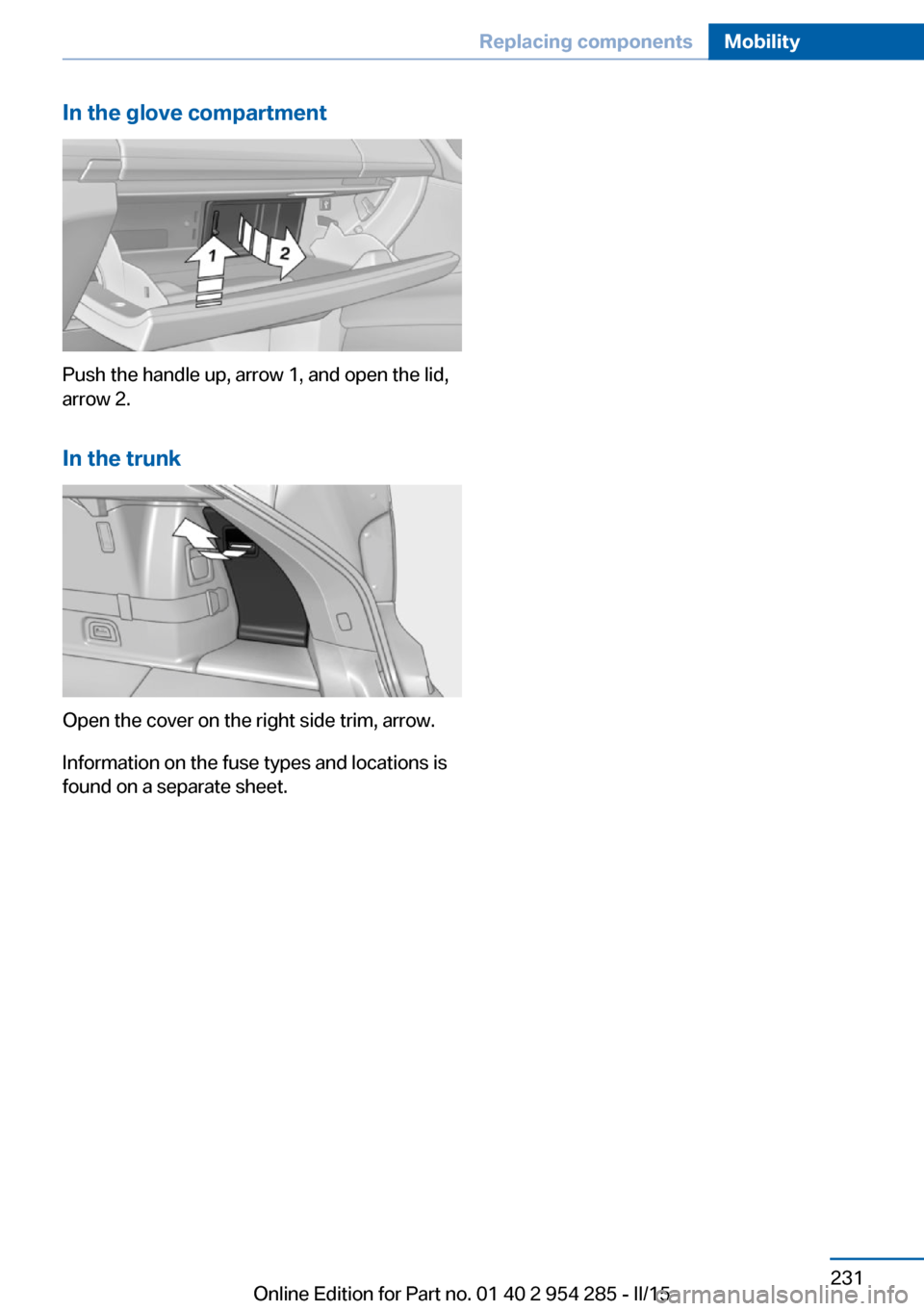

BMW 5 SERIES GRAN TURISMO 2015 F07 Owners Manual In the glove compartment
Push the handle up, arrow 1, and open the lid,
arrow 2.
In the trunk
Open the cover on the right side trim, arrow.
Information on the fuse types and locations is
found on a se

Page 236 of 263

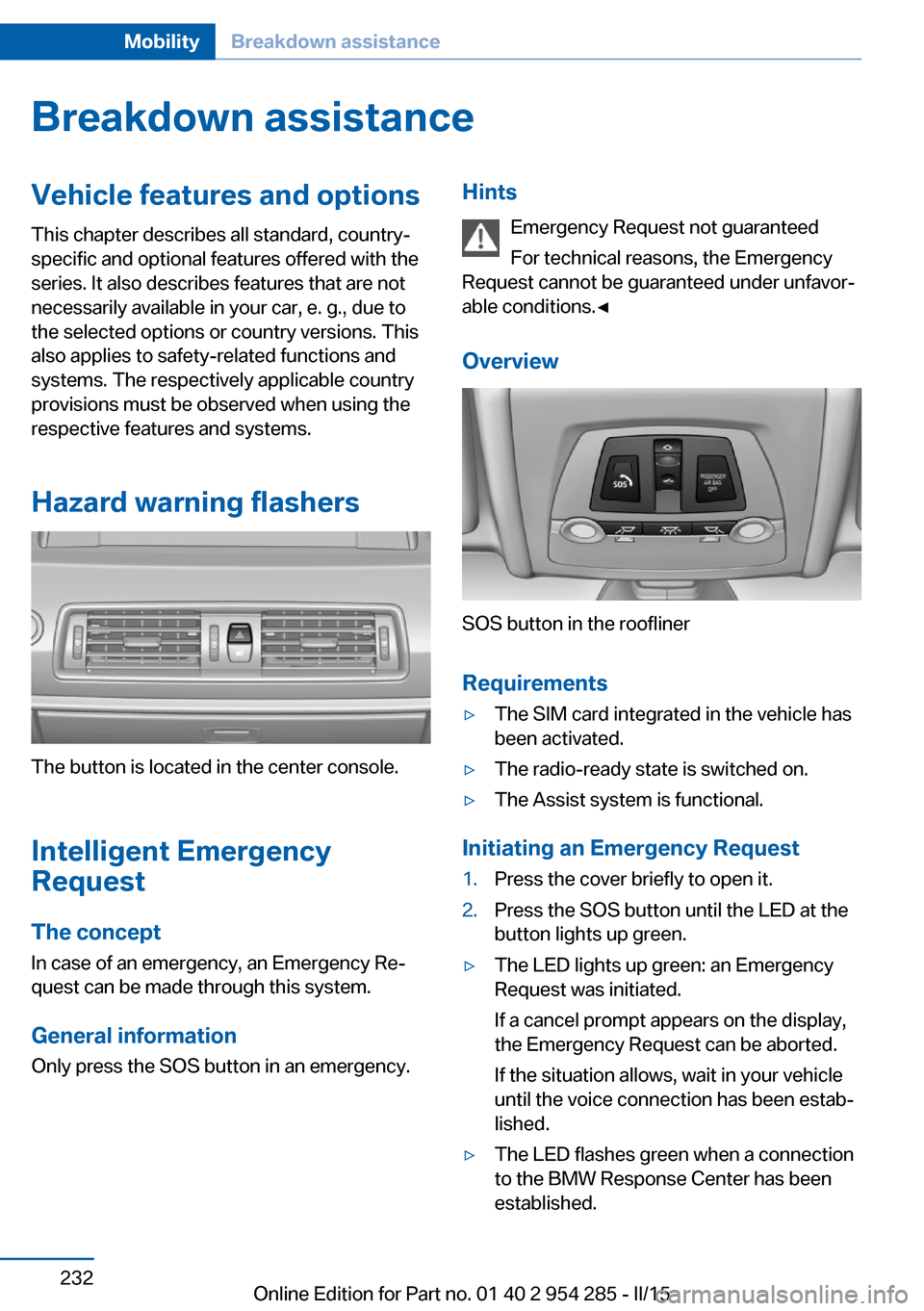

BMW 5 SERIES GRAN TURISMO 2015 F07 Owners Manual Breakdown assistanceVehicle features and options
This chapter describes all standard, country-
specific and optional features offered with the
series. It also describes features that are not
necessari

Page 237 of 263

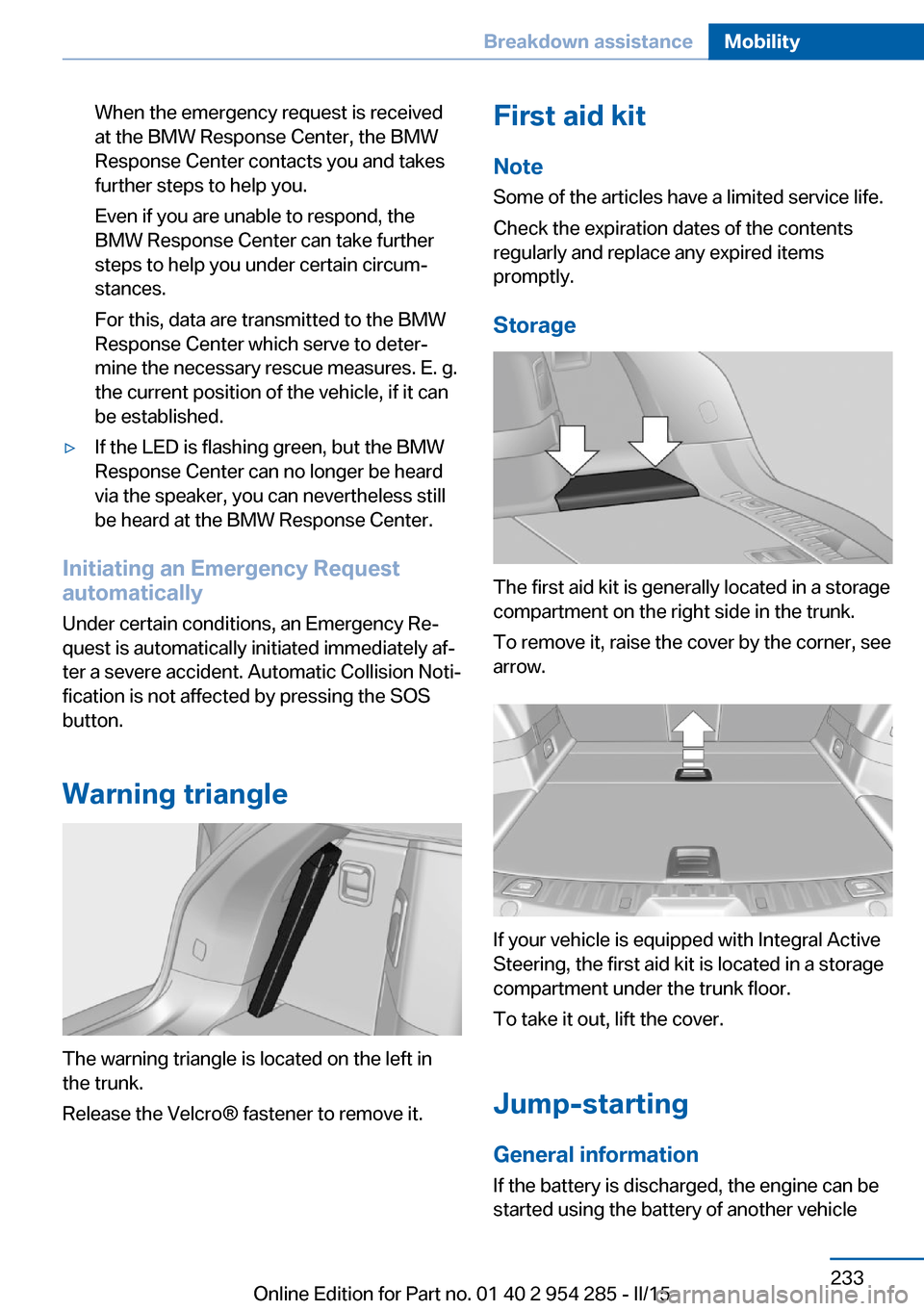

BMW 5 SERIES GRAN TURISMO 2015 F07 Owners Manual When the emergency request is received
at the BMW Response Center, the BMW
Response Center contacts you and takes
further steps to help you.
Even if you are unable to respond, the
BMW Response Center

Page 238 of 263

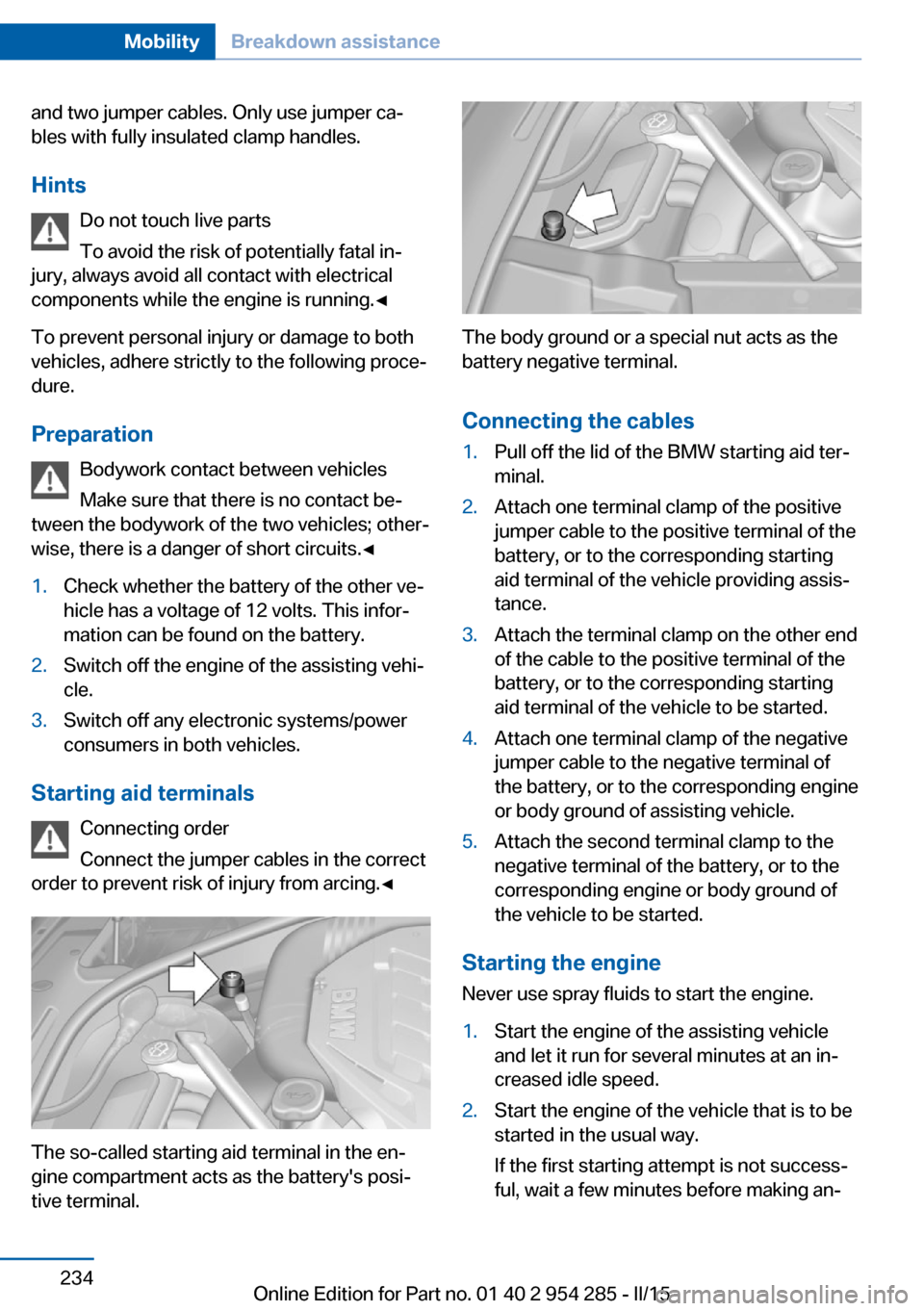

BMW 5 SERIES GRAN TURISMO 2015 F07 Owners Manual and two jumper cables. Only use jumper ca‐
bles with fully insulated clamp handles.
Hints Do not touch live parts
To avoid the risk of potentially fatal in‐
jury, always avoid all contact with ele

Page 239 of 263

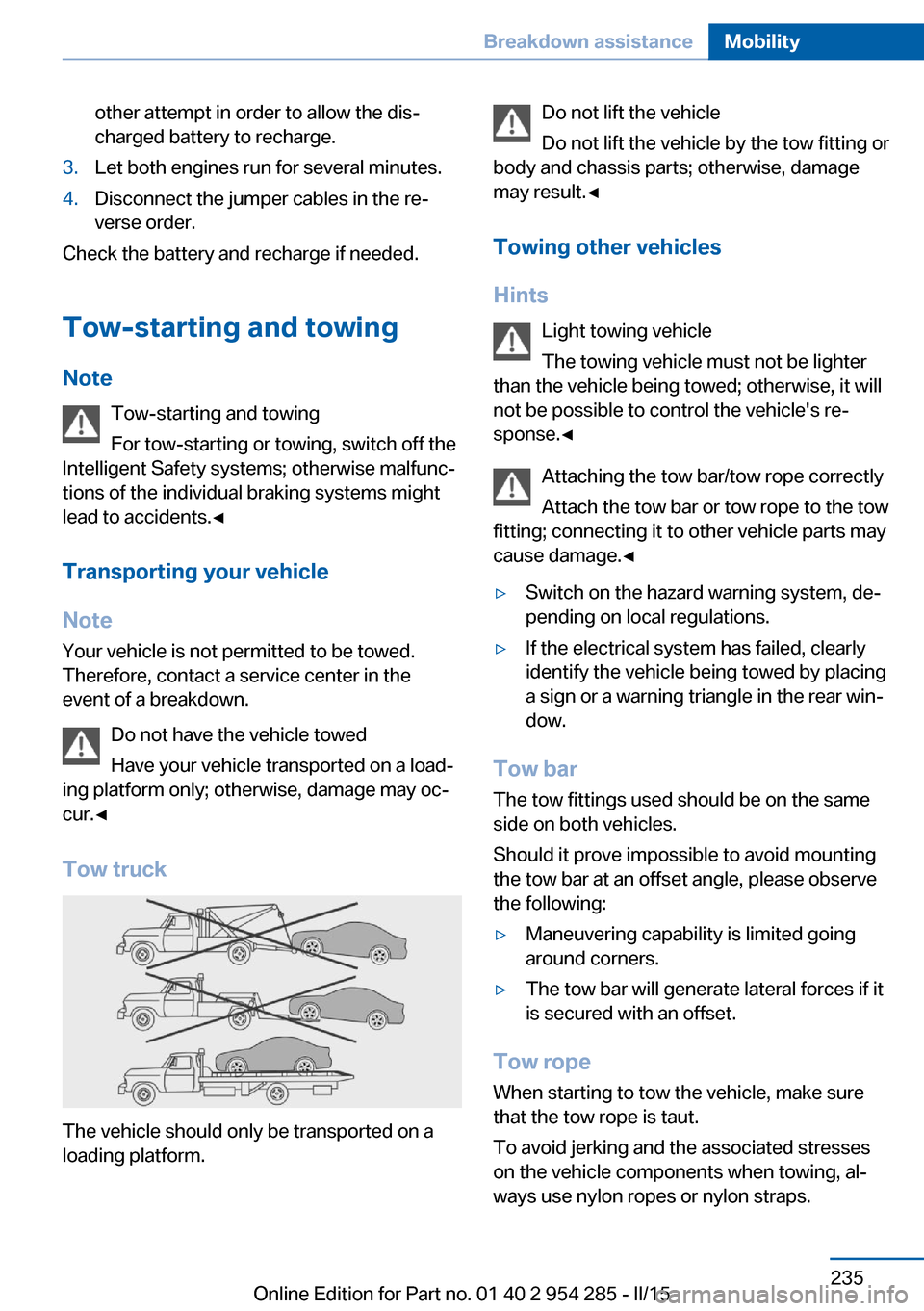

BMW 5 SERIES GRAN TURISMO 2015 F07 Owners Manual other attempt in order to allow the dis‐
charged battery to recharge.3.Let both engines run for several minutes.4.Disconnect the jumper cables in the re‐
verse order.
Check the battery and recharg

Page 240 of 263

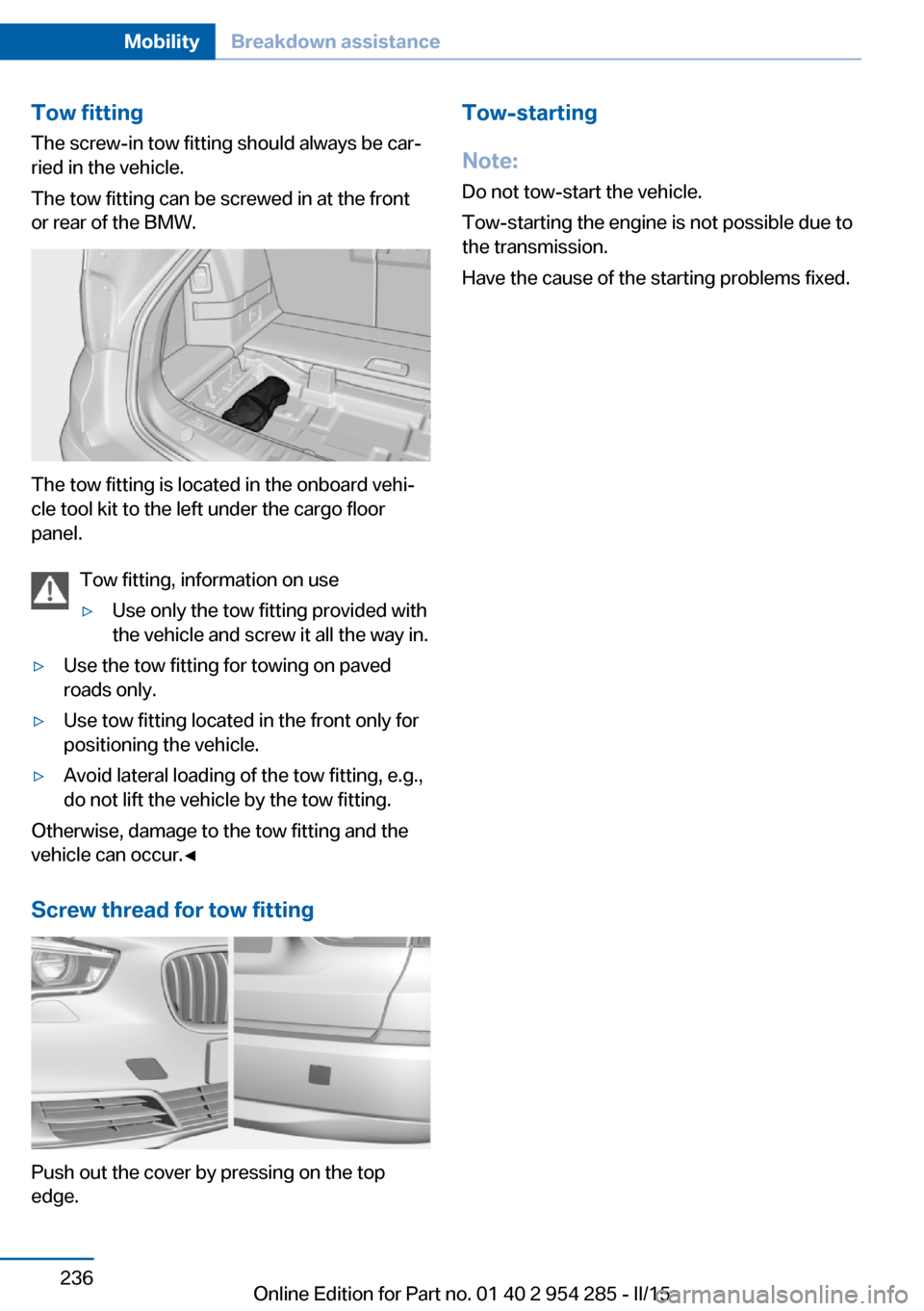

BMW 5 SERIES GRAN TURISMO 2015 F07 Owners Manual Tow fitting
The screw-in tow fitting should always be car‐
ried in the vehicle.
The tow fitting can be screwed in at the front
or rear of the BMW.
The tow fitting is located in the onboard vehi‐
c
