2015 BMW 5 SERIES GRAN TURISMO Owner's Manual

Page 129 of 263

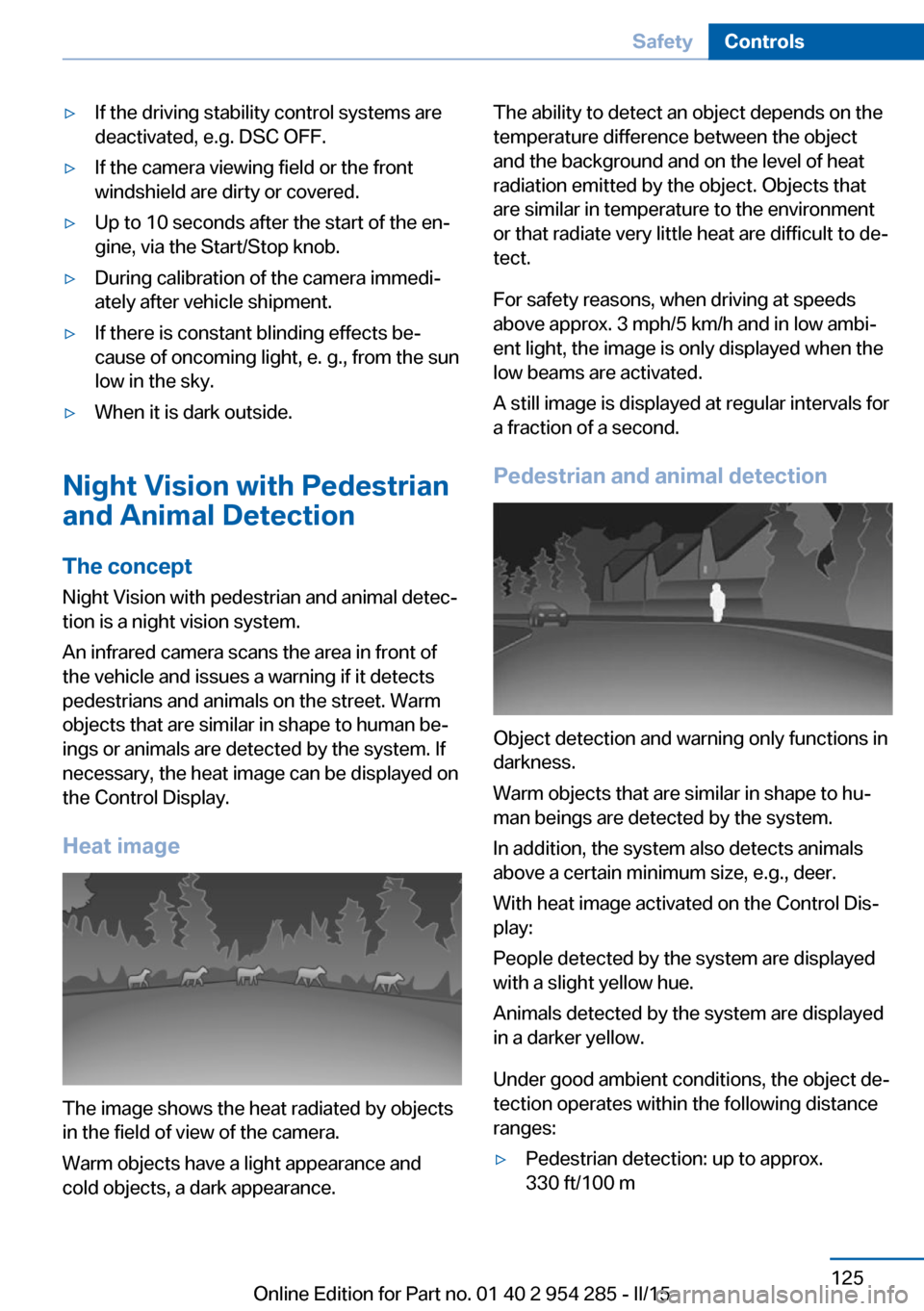

BMW 5 SERIES GRAN TURISMO 2015 F07 Owners Manual ▷If the driving stability control systems are
deactivated, e.g. DSC OFF.▷If the camera viewing field or the front
windshield are dirty or covered.▷Up to 10 seconds after the start of the en‐
g

Page 130 of 263

BMW 5 SERIES GRAN TURISMO 2015 F07 Owners Manual ▷Detection of large animals: up to approx.
490 ft/150 m▷Detection of medium animals: up to ap‐
prox. 230 ft/70 m
Environmental influences can limit the availa‐
bility of object detection.
If t

Page 131 of 263

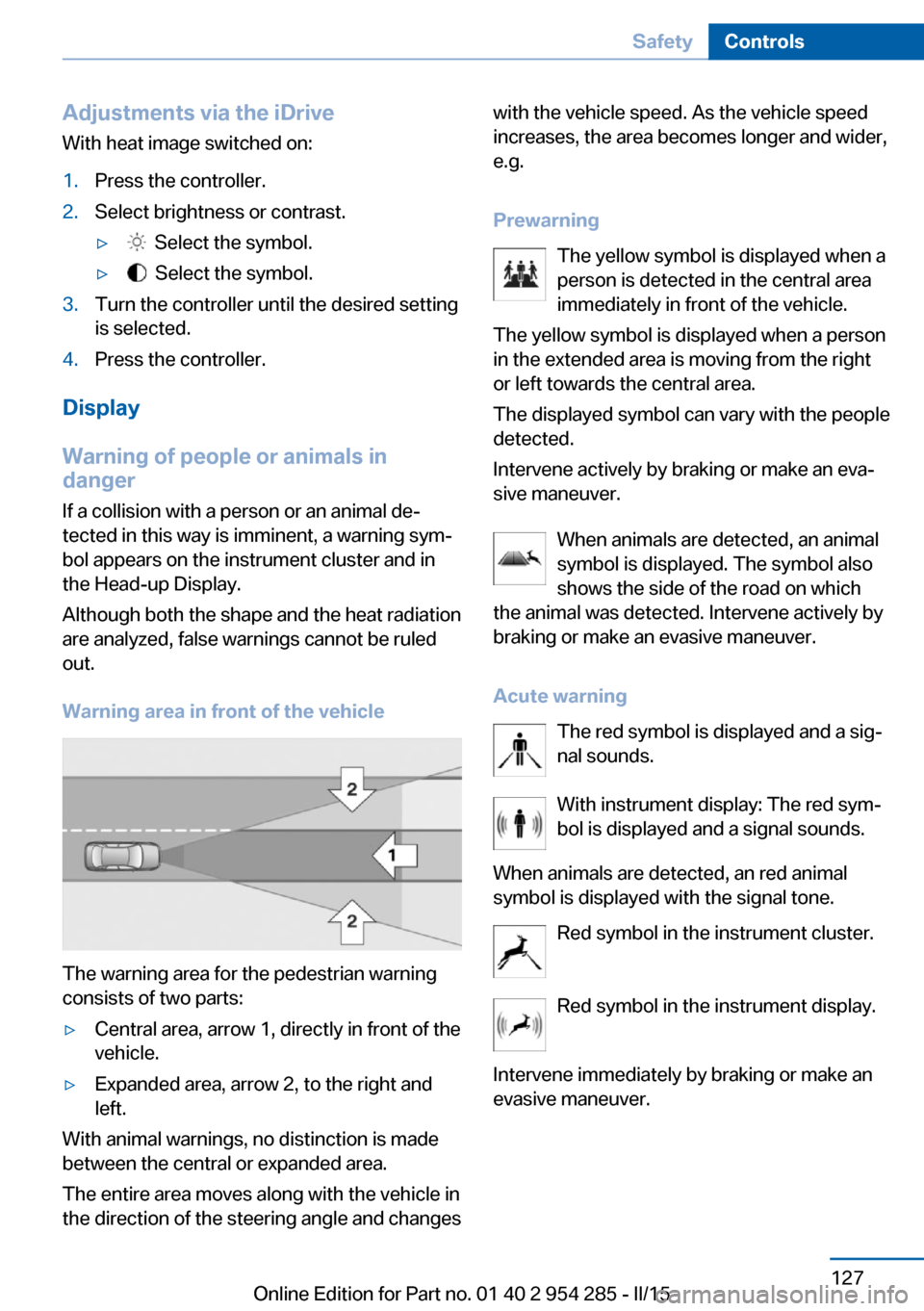

BMW 5 SERIES GRAN TURISMO 2015 F07 Owners Manual Adjustments via the iDrive
With heat image switched on:1.Press the controller.2.Select brightness or contrast.▷  Select the symbol.▷  Select the symbol.3.Turn the controller until the desired sett

Page 132 of 263

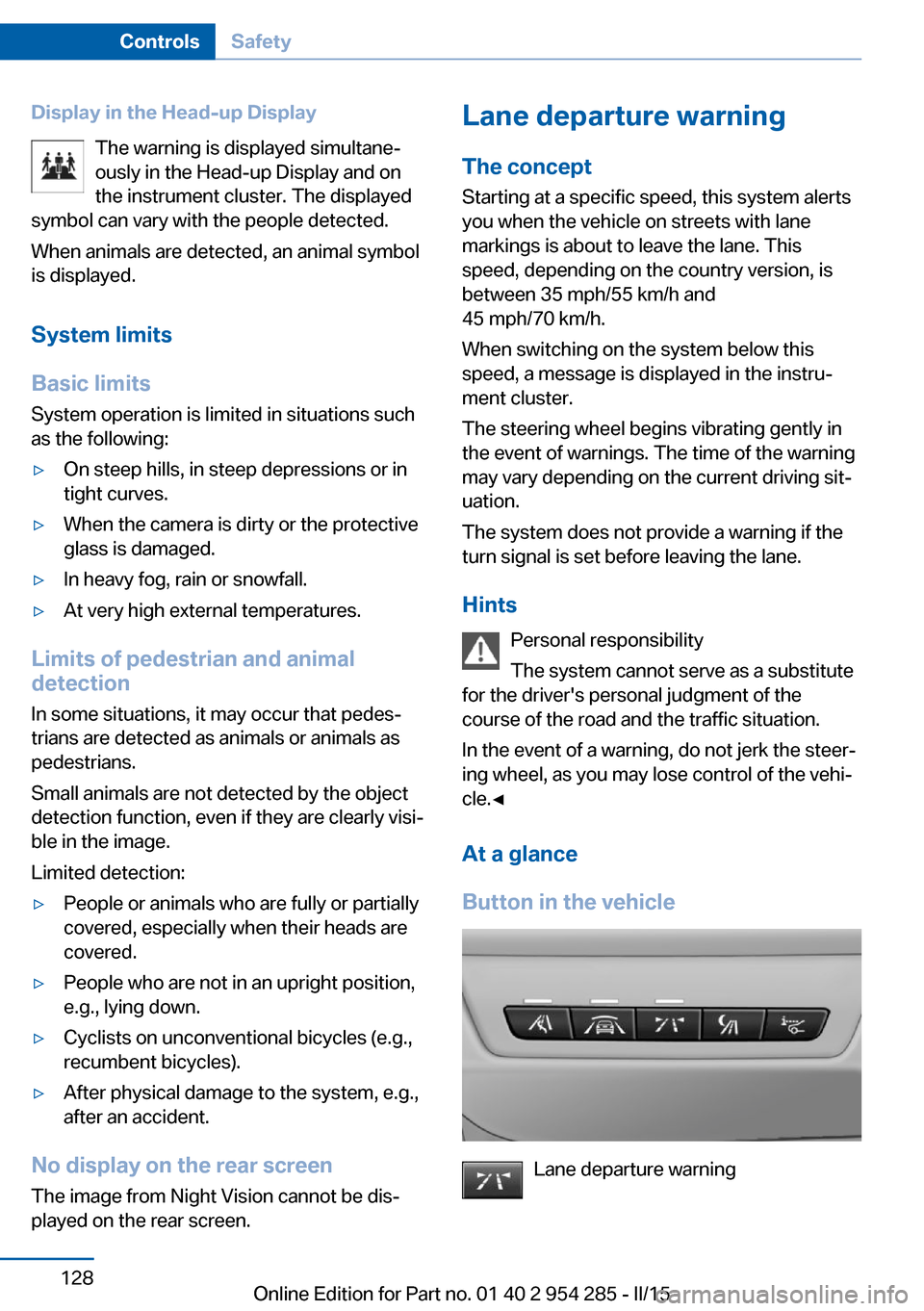

BMW 5 SERIES GRAN TURISMO 2015 F07 Owners Manual Display in the Head-up DisplayThe warning is displayed simultane‐
ously in the Head-up Display and on
the instrument cluster. The displayed
symbol can vary with the people detected.
When animals are

Page 133 of 263

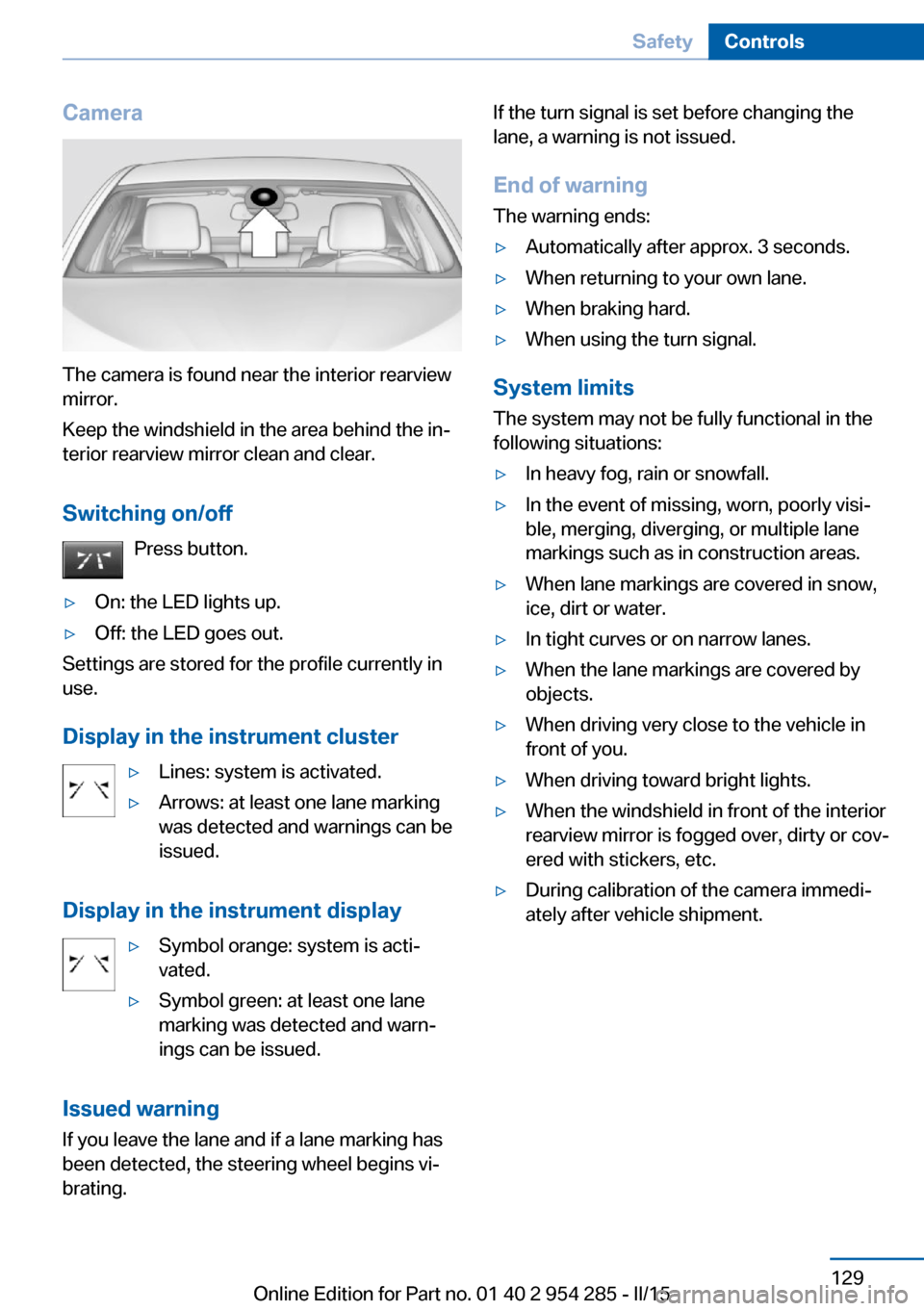

BMW 5 SERIES GRAN TURISMO 2015 F07 Owners Manual Camera
The camera is found near the interior rearview
mirror.
Keep the windshield in the area behind the in‐
terior rearview mirror clean and clear.
Switching on/off Press button.
▷On: the LED lig

Page 134 of 263

BMW 5 SERIES GRAN TURISMO 2015 F07 Owners Manual Active Blind Spot Detection
The concept
Two radar sensors below the rear bumper
monitor the area behind and next to the vehicle
at speeds above approx. 30 mph/50 km/h.
The system indicates whether the

Page 135 of 263

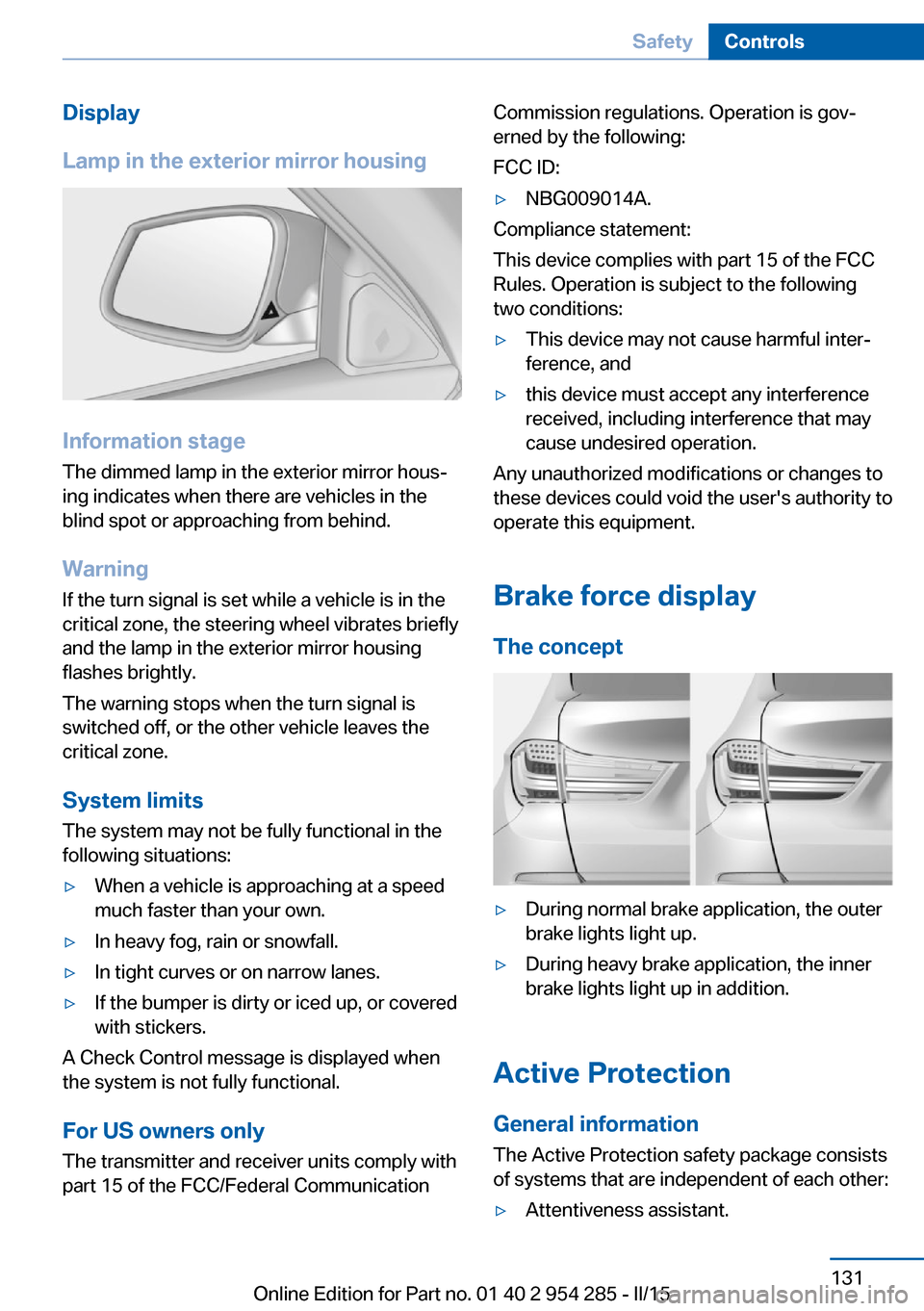

BMW 5 SERIES GRAN TURISMO 2015 F07 Owners Manual Display
Lamp in the exterior mirror housing
Information stage
The dimmed lamp in the exterior mirror hous‐
ing indicates when there are vehicles in the
blind spot or approaching from behind.
Warning

Page 136 of 263

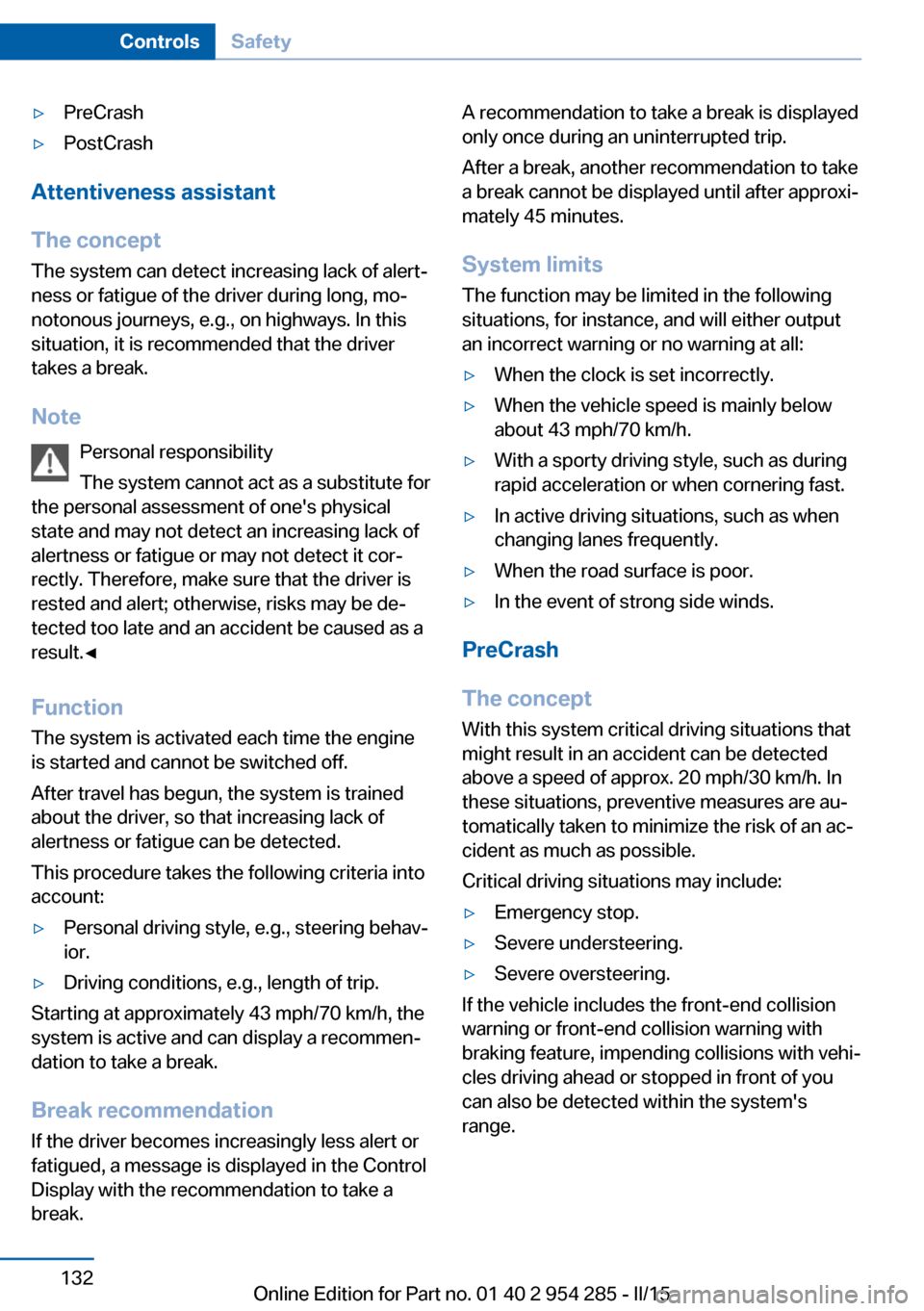

BMW 5 SERIES GRAN TURISMO 2015 F07 Owners Manual ▷PreCrash▷PostCrash
Attentiveness assistant
The concept The system can detect increasing lack of alert‐
ness or fatigue of the driver during long, mo‐
notonous journeys, e.g., on highways. In
