Warm and cold

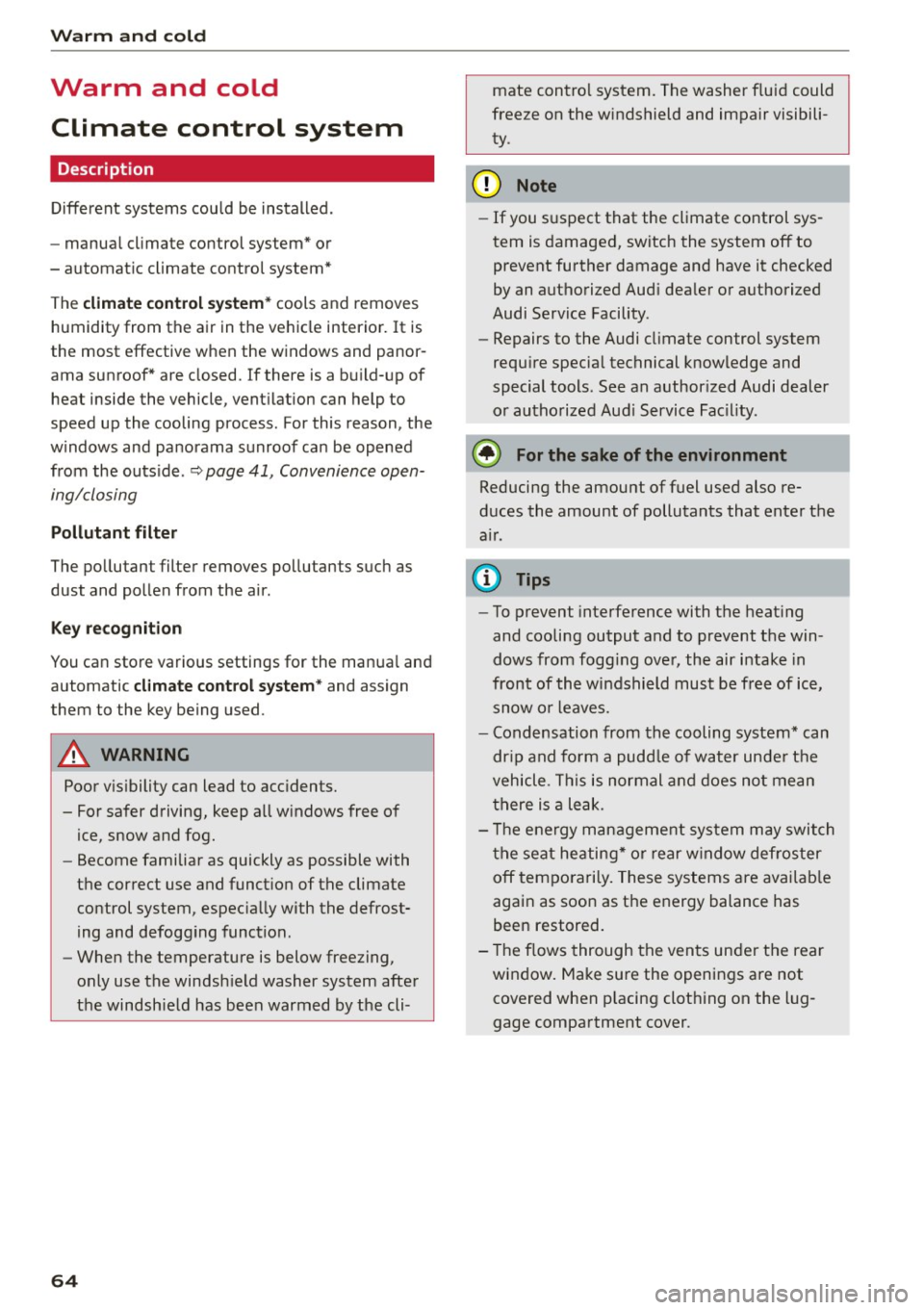

Warm and cold Climate control system
Description
Different systems could be installed.
- manual climate control system* or
- automatic climate control system*
The
climate control system* cools and removes
humidity from the air in the vehic le interior. It is
the most effective when the windows and panor­
ama sunroof* are closed.
If there is a build-up of
heat inside the vehicle, ventilation can help to
speed up the cooling process . For this reason, the
windows and panorama sunroof can be opened
from the outside .~
page 41, Convenience open­
ing/closing
Pollutant filter
The pollutan t filter removes pollutants such as
dust and pollen from the air.
Key recognition
You can store various settings for the manua l and
automatic
climate control system* and assign
them to the key being used .
A WARNING
Poor visibility can lead to acc idents.
- For safer driving, keep all w indows free of
ice, snow and fog.
- Become familiar as quickly as possible with
the correct use and function of the climate
control system, espec ially with the defrost­
ing and defogging function .
- When the temperature is below freezing,
only use the windsh ield washer system after
the windsh ield has been warmed by the cli -
64
mate control system. The washer f luid could
freeze on the w indshield and impair visibili­
ty.
(D Note
- If you suspect that the climate control sys­
tem is damaged, switch the system off to
prevent further damage and have it checked
by an authorized Audi dealer or authorized
Audi Service Facility .
- Repairs to the Audi climate control system
require special technical knowledge and
special tools. See an author ized Audi dealer
or authorized Audi Service Facility .
@ For the sake of the environment
Reducing the amount of fuel used also re­
duces the amount of pollutants that enter the
a ir .
@ Tips
- To prevent interference with the heating
and cooling output and to prevent the win­
dows from fogg ing over, the air intake in
front of the w indshield must be free of ice,
snow or leaves.
- Condensation from the cooling system* can
dr ip and form a pudd le of water under the
vehicle . This is normal and does not mean
there is a leak .
- Th e energy management system may switch
the seat heating* or rear window defroster
off temporarily. These systems are available
again as soon as the energy balance has
been restored.
- The f lows through the vents under the rear
window. Make sure the openings are not
covered when p lacing clothing on the lug­
gage compartment cover.

shown in the disp lay. To exit "Eco" mode*, press
the
! AUTO ! button again .
I• I • I Setting the temperature
The temperature can be adjusted individually for
the dr iver and front passenger using the dials.
Tempe ratures between 60 °F ( +16 °C) and 84 ° F
(+28 °C) can be set. If outside of this range, LO or
HI will appear in the climate control system dis­
p lay. In both settings, the climate contro l runs
with constantly at the maximum cooling or heat­ ing level. The temperature is not regulated.
Synchronization: by pressing the IAUTO I button
for two seconds, the temperature setting for the
driver is transferred to the front passenger's side.
This applies a temperature change to the front
passenger's side.
~ Adjusting the blower
To prevent the windows from fogging over, the b lower sho uld a lways ru n at a low speed. You can
ad just the volume of air generated by the b lower
to your preference. To have the blower regu lated
automatically, press the !AU TO I button .
Adjusting the air distribution
The air distribution is adjusted with the~, U!i
and ~ buttons. To have the air d istr ibut ion regu­
lated automatically, press the
IAUTOI button.
The round air vents in the cockpit are adjustable
¢page 68.
To keep the windows from fogging in damp
weather, we recommend opening the side air
vents and ti lting them to the side
~ page 68,
Adjusting the air vents .
Foot vents are located under the front seats and
adjustable vents on the end o f the center console
to heat the rear of the vehicle .
~ Switching the defroster on and off
The windshield and side windows are defrosted
or cleared of condensation as quickly as possible .
The maximum amount of air flows main ly from
M
N the vents below the windshie ld. Recirculation 0
iii mode switches off . The temperat ure is contro lled
~ automatically. In the Ii] sett ing, the IA/C i cooling
Vl
Vl
......
Warm and cold
mode switches on automatically, depending on
the outside air temperat ure.
T he
IAUTO ! button switches the defroster off.
l"""I Switching recirculation mode on and off
The recircu lation mode can be turned on manual­
ly or automatically* .
- Switching manual recirculation mode on and
off : press
1.,,.,1 The LED light up when switched
on .
- Automatic* recirculation mode: the auto recir­
culat ion must be act ivated in the MMI. Select:
the
I MENU I button > Car > Systems* control
button
> AC > Auto recirculation . The air quali­
ty sensor that is designed for diesel and gaso­
line exhaust automatically switches the recircu­
lation mode on or off depending on the level of
pollutants in the outside air .
In recircu lation mode, the air inside the vehicle is
c ir cula ted and filtered. This prevents the unfil­
tered air outside the vehicle from entering the
vehicle interior. We recommend switching recir­
cu lation mode on when driving through a tunnel
or when sitting in traffic~ &.
T he
1-1 button, !AUTO ! or the [ii bu tton switches
recirculation mode off.
T he system switches to recirculation mode when
driv ing in reverse when the engine is cold.
_&. WARNING
You should not use the recirculation mode for
an extended period sin ce no fresh air is drawn
in. With the air-conditioning switched off, the
windows can fog up, which increases the risk
of an acc ident.
67

Warm and col d

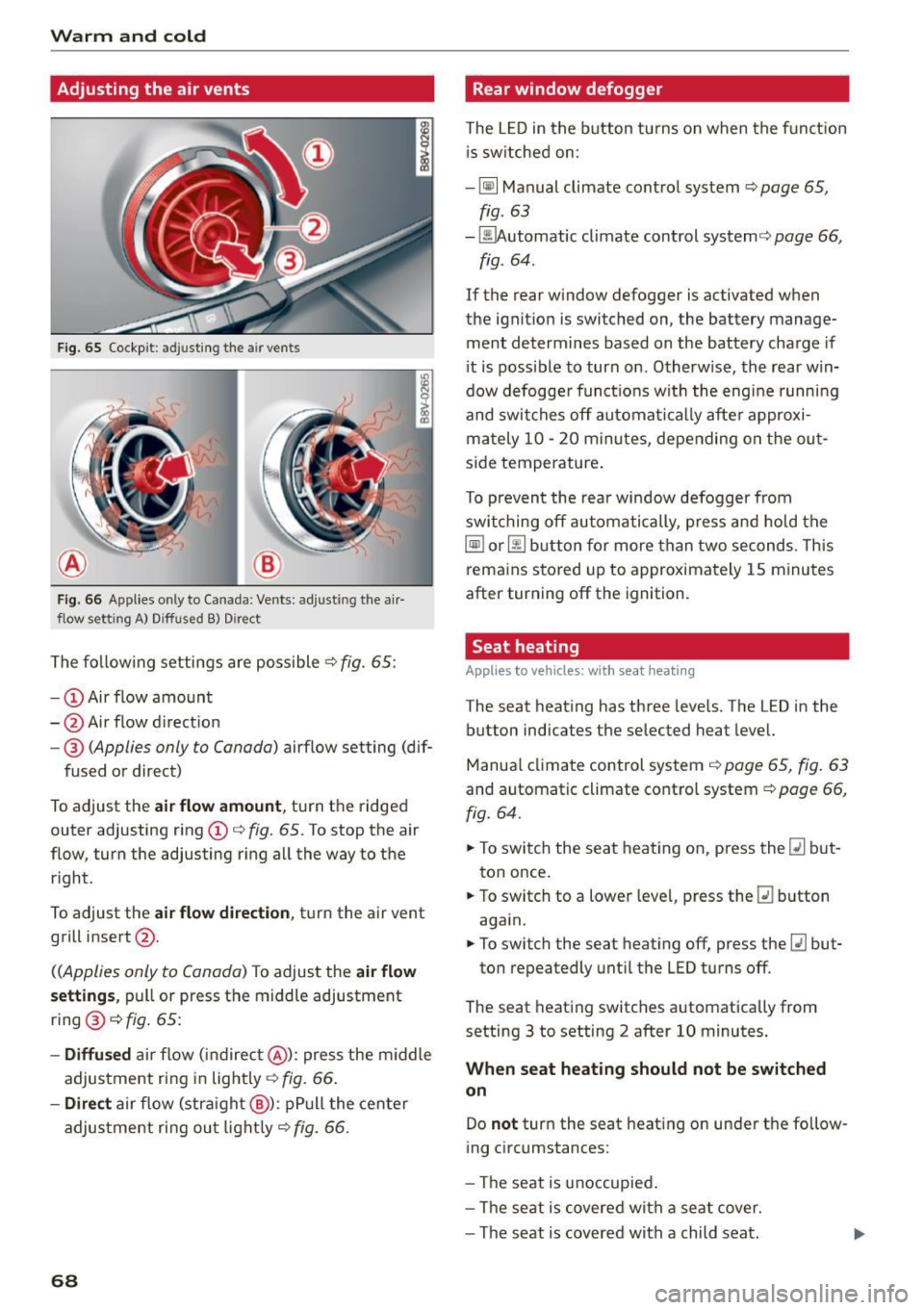

Adjusting the air vents
Fig. 65 Cockp it: adjusting the air vents
®
Fig. 66 Applies on ly to Canada: Ven ts: adjusting the air­
flow setting A) Diffused B) Dire ct
The fo llow ing settings are possible .:;> fig. 65:
- CD Air flow amount
- @ Air flow d irection
- @
(Applies only to Canada) airflow setting (dif-
fused or direct)
To adjust the
air flow amount , turn the ridged
outer adjusting ring CD¢
fig. 65. To stop the air
flow, turn the adjusting r ing all the way to the
right .
To adjust the
air flow di rection , tu rn the air vent
grill insert @.
((Applies only to Canada) To adjust the air flow
s etting s,
pull or press the midd le adjustment
ring @¢
fig. 65:
-Diffu sed ai r flow (indirec t@ ): press the m iddle
adjustment ring in lightly¢
fig. 66 .
-Direct air flow (stra ight @): pP ull the center
adjus tment ri ng ou t light ly¢
fig. 66 .
68
Rear window defogger
The L ED in the button tu rns on when the funct ion
i s sw itched on:
- ~ Manual climate contro l system ¢
page 65,
fig. 63
- ~ utomatic climate control system¢ page 66,
fig . 64 .
If the rear window defogger is activated when
the ignit ion is switched on, the battery manage­
ment determines based on the battery charge if
i t is possible to turn on . Otherw ise, the rear win­
dow defogge r funct ions w ith the eng ine runni ng
and swit ches off automat ically afte r approxi­
mately 10 -20 m inu tes, depending o n the ou t­
s ide temperature .
To p revent the rear window defogger from
swi tching off automatically, p re ss and hold t he
~ or~ button fo r more than two seconds. Th is
rema ins stored up to approximately 1 5 minutes
after turning off the ignition .
Seat heating
Applies to vehicles: with seat heating
The seat heat ing has three leve ls. The LED in the
button indicates the selected heat level.
Manua l climate control system ¢
page 65, fig. 63
and automatic climate control system ¢ page 66,
fig. 64.
.. To swi tch the seat heat ing on, press the~ but­
ton once.
.. To switch to a lowe r leve l, p ress the ~ button
aga in.
.. To switch the seat heating off, press the~ but-
ton repeatedly unti l the LED turns off.
The seat heating switches automatically from
setting 3 to setting 2 after 10 minutes .
When seat heating should not be switched
on
Do not turn the seat heating on under t he fo llow­
ing circumstances:
- The seat is unoccupied .
- The se at is covered wit h a seat cover.
- The seat is covered with a child seat.

Index
Safety features for occupant restraint and
protection . . . . . . . . . . . . . . . . . . . . . . . . . . . 130
Safety guidelines Seat adjustment. . . . . . . . . . . . . . . . . . . . . . S3
Safety instructions for side curta in airbags . . . . . . . . . . . . . . . 171
for using child safety seats . . . . . . . . . . . . 175
fo r using safety belts . . . . . . . . . . . . . . . . . 142
Monitoring the Advanced Airbag System . 162
Safety systems (indicator light) . . . . . . . . . . . 20
Screwdriver . . . . . . . . . . . . . . . . . . . . . . . . . . 241
Seat adjustment Driver's seat . . . . . . . . . . . . . . . . . . . . . . . . . 53
Fr ont passenger's seat . . . . . . . . . . . . . . . . . 54
Head restraints . . . . . . . . . . . . . . . . . . . . . 134
Safety guidelines . . . . . . . . . . . . . . . . . . . . . 53
Seat heating . . . . . . . . . . . . . . . . . . . . . . . . . . 68
Seating position Driver . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 131
Front passenger . . . . . . . . . . . . . . . . . . . . . 132
How to adjust the front seats . . . . . . . . . . 132
Incorrect seat posit ion . . . . . . . . . . . . . . . . 134
Occupants . . . . . . . . . . . . . . . . . . . . . . . . . . 131
Rear passengers . . . . . . . . . . . . . . . . . . . . . 133
Seats
adjusting . . . . . . . . . . . . . . . . . . . . . . . . 54, 55
Correct seating posit ion . . . . . . . . . . . . . . 131
Folding . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 60
Seats (number) . . . . . . . . . . . . . . . . . . . . . . . 140
Selective catalytic reduction
refer to Ad Blue . . . . . . . . . . . . . . . . . . . . . . 195
Select ive wheel torque control . . . . . . . . . . 123
Selector lever (automatic transmission)
Emergency operation . . . . . . . . . . . . . . . . . . 89
Position . . . . . . . . . . . . . . . . . . . . . . . . . . . . 82
Service and disposal Safety belt pretensioner . . . . . . . . . . . . . . 147
Service interval display
w ith driver information system . . . . . . . . . 212
Setting the clock . . . . . . . . . . . . . . . . . . . . . . . 10
Setting the date . . . . . . . . . . . . . . . . . . . . . . . 10
Sett ing the temperature
automatic climate control system . . . . . . . 67
Setting the time . . . . . . . . . . . . . . . . . . . . . . . 10
SETUP (basic settings) . . . . . . . . . . . . . . . . . . 10
Shift paddles (automat ic transm iss ion) . . . . 87
Short-term memory . . . . . . . . . . . . . . . . . . . . 28
276
Side airbags
Description . . . . . . . . . . . . . . . . . . . . . . . . . 166
Howtheywork ... .. ................. 168
Side assist . . . . . . . . . . . . . . . . . . . . . . . . . . . 109
Adjusting the brightness . . . . . . . . . . . . . . 111
Cleaning the sensors . . . . . . . . . . . . . . . . . 236
Sensor range . . . . . . . . . . . . . . . . . . . . . . . 110
switching on and off . . . . . . . . . . . . . . . . . 111
also refer to Side assist . . . . . . . . . . . . . . . 109
Side curtain airbags . . . . . . . . . . . . . . . . . . . 169
Description . . . . . . . . . . . . . . . . . . . . . . . . . 169
How they work . . . . . . . . . . . . . . . . . . . . . . 170
Safety instructions . . . . . . . . . . . . . . . . . . . 171
Sliding/tilting sunroof
refer to Panorama sunroof . . . . . . . . . . . . . 42
Snow chains . . . . . . . . . . . . . . . . . . . . . . . . . 230
All wheel drive . . . . . . . . . . . . . . . . . . . . . . 127
Socket . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 57
Sources of information about child restraints
and their use . . . . . . . . . . . . . . . . . . . . . . . . . 189
Speed limiter . . . . . . . . . . . . . . . . . . . . . . . . . 94
Speedometer . . . . . . . . . . . . . . . . . . . . . . . . . 27
Speed warning system . . . . . . . . . . . . . . . . . . 94
Sport mode . . . . . . . . . . . . . . . . . . . . . . . . . . 124
Stabilization program
refer to Electronic Stabilization
Control (ESC) . . . . . . . . . . . . . . . . . . . . . . . 123
Star button . . . . . . . . . . . . . . . . . . . . . . . . . . . 28
START ENGINE STOP button (conven ience
key) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 75
START ENGINE STOP (convenience key) . . . . . 76
Start ing
Hill ho ld . . . . . . . . . . . . . . . . . . . . . . . . . . . . 80
Starting from a stop Hill start assist . . . . . . . . . . . . . . . . . . . . . . . 80
Starting (engine) Malfunction (button) . . . . . . . . . . . . . . . . . . 76
Malfunction (key) . . . . . . . . . . . . . . . . . . . . . 73
With button . . . . . . . . . . . . . . . . . . . . . . . . . 7S
With key . . . . . . . . . . . . . . . . . . . . . . . . . . . . 73
Steering Electromechanical steering .......... 126, 0
Indicator light . . . . . . . . . . . . . . . . . . . . . . . 20
Locking steering (ignition key) . . . . . . . . . . 74
Locking the steering (button) . . . . . . . . . . . 76
Locking (mechanical ignition lock) . . . . . . . 73
also refer to Electromechanical steering . 126
