Q/P -Adjusting the left/right exterior mirror.
Move the knob in the desired direction.
®-Heat ing the mirror g lass depending on the
ou tside temperature* .
8 -Folding exterior mirrors*. In the Infotain­
ment system, you can select if the mirrors fold in
automatically when you lock the veh icle
¢page 35.
F ront p assen ger's ext erior mirror tilt
fun ction *
To help you see the cu rb when backing into a
parking space, the surface of the mi rror tilts
slightly. For this to happen, the knob must be in
the position for the front passenger 's outside
mirror .
You can adj ust the ti lted mirror surface by turn ­
ing the knob in the desired direction . When you
move out of reverse and into another gear, the
new mirror position is stored and assigned to the
key you are using.
The mirror goes back into its origina l position
once you drive forward faster than 9 mph
(15 km/h) or turn the ignition
off.
A WARNING
Curved mirror surfaces (convex or spherical*)
increase your field of view. Remember that
vehicles or other objects will appear smaller
and farther away than when seen in a flat mir­
ror .
If you use this mirro r to estimate distan­
ces of following veh icles when changing
lanes, you cou ld es timate incorrectly and
cause an accident .
(D Note
-If the mirror hous ing was moved by force
(fo r example, by running into an object
when maneuvering the vehicle), the m irror
must be folded all the way in using the pow­
er folding function. The mirror housing
must not be moved back into place by hand
because this would impair the function of
the mirror mechanism.
- If you wash the vehicle in an automatic car
wash, you must fold the exterior mirrors in
Li ghts a nd Visio n
to reduce the risk of damage to the mirrors.
Never fold power fo lding exterior mirrors*
by hand . On ly fold them in and out us ing
the power controls.
@ Tips
- If the power adjusting function malfunc­
tions, the glass in both mirrors can be ad­
justed by pressing on the edge of it by hand.
- The exterior mirror settings are stored with
the memory function*¢
page 57.
Dimming the mirrors
N
Fig. 43 Auto matic dimming rearview m irro r*
Manu al dim ming re arvi ew mirror
.. Pull the lever on the bot tom of the m irror back.
Automatic dimming r earvi ew mirror *
.. Press the button@¢ fig. 43 . The indicator
light @ turns on . The rearview and exter ior*
m irrors dim automatically when light shines on
them, for examp le from headlights on a vehicle
to the rear .
A WARNING
Electrolyte fluid can leak from automatic dim ­
ming mirrors if the g lass is broken. Electrolyte
flu id can irritate skin, eyes and respiratory
system.
- Repeated or prolonged exposure to e lectro­
lyte can cause irritat ion to the respiratory
system, especially among people with asth­
ma or other resp iratory conditions. Get
fresh a ir immediately by leaving the vehicle
or, if t hat is not possible, open windows and
doors all the way.
91>
47

Wheels
Wheels and Tires
General information
.,.Che ck your tires regularly for
damage (punctures, cuts, cracks
and bulges). Remove foreign ob­
jects from the tire tread.
.,. If driving over curbs or similar
obstacles, drive slowly and ap­
proach the curb at an angle.
.,.Have faulty tires or rims re­
placed immediately.
"'Protec t your tires from oil,
grease and fuel.
.,.Ma rk tires before removing
them so that the same running direction can be maintained if
they are reinstalled .
.,.Lay tires flat when storing and
store them in a cool, dry location
with as little exposure to light as
possible.
(D Note
-Please note that summer and
winter tires are designed for
the conditions that are typical
in those seasons. Audi recom­
mends using winter tires dur­
ing the winter months. Low
temperatures significantly de­ crease the elasticity of summ­
er tires, which affects traction
Wheels
and braking ability. If summer
tires are used in very cold tem­
peratures, cracks can form on
the tread bars, resulting in
permanent tire damage that
can cause loud driving noise
and unbalanced tires.
-Burnished, polished or
chromed rims must not be
used in winter driving condi­
tions. The surface of the rims
does not have sufficient corro­
sion protection for this and
could be permanently dam­
aged by road salt or similar
substances.
Tire designations
Fig. 169 T ir e designations on the sid e-
wall ,..
201

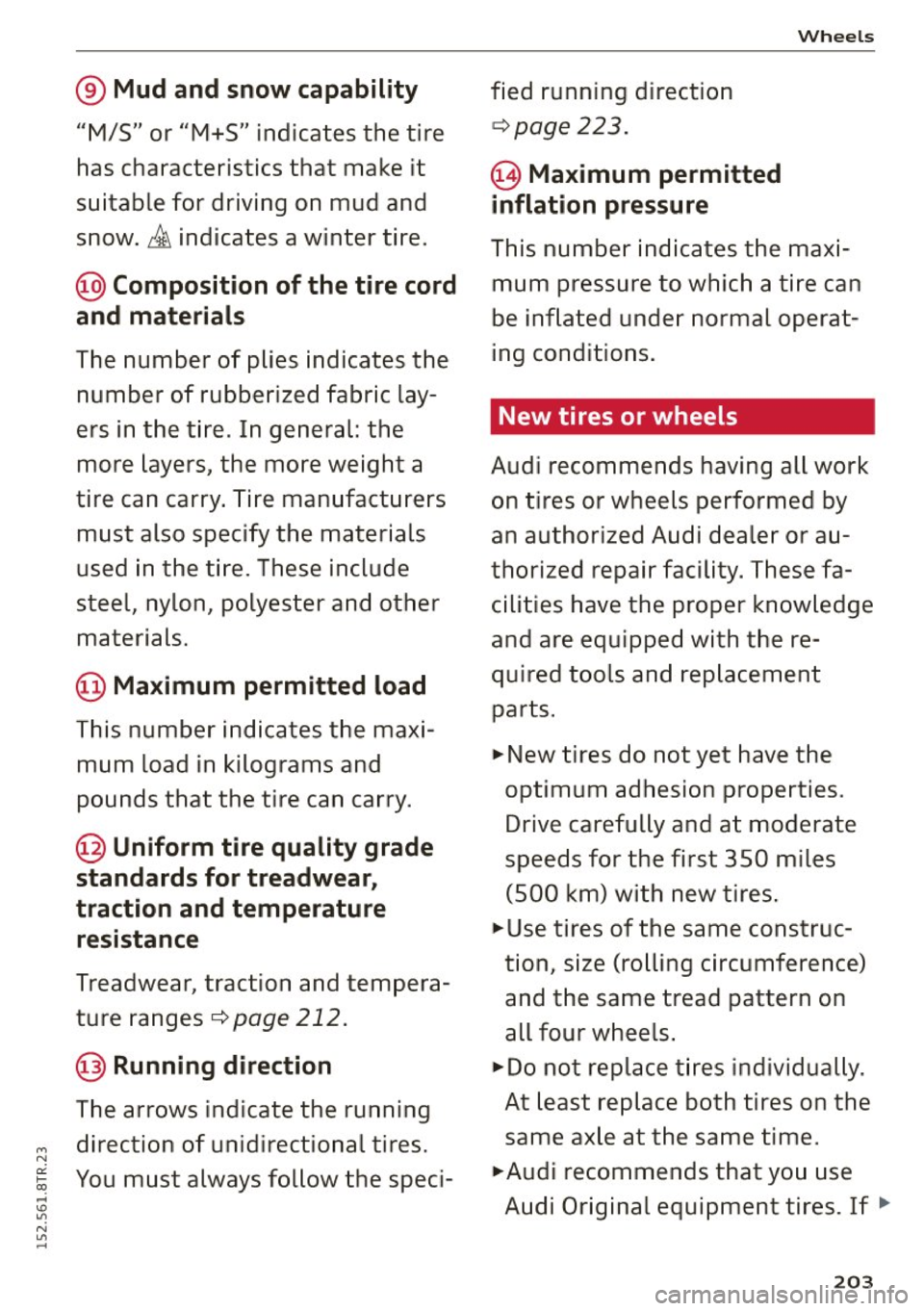

® Mud and snow capability
"M/S" or "M+S" indicates the tire
has characte ris tics that make it
suitable for driving on mud and snow .
& indica tes a winter tire.
@ Composition of the tire cord
and materials
T he number of plies indicates the
number of rubbe rized fabr ic lay­
e rs in the t ire . In general: t he
more layers, the more weight a
tire can carry. Tire manufa ctu re rs
must also specify the mater ials
used in the t ire. These include
stee l, nylon, polyester and other
materials.
@ Maximum permitted load
This number indicates the maxi­
mum load in kilograms and
pounds that the tire can carry.
@ Uniform tire quality grade
standards for treadwear,
traction and temperature resistance
Treadwear, traction and tempera­
ture ranges¢
page 212 .
@Running direction
The arrows ind icate the running
direction of un idirect ional tires.
You m ust always follow the speci- fied
running d irection
¢ page 223.
€3) Maximum permitted
inflation pressure
Whe els
T his number ind icates the max i­
mum pressure to which a ti re can
be inflated unde r no rmal opera t­
ing conditio ns.
New tires or wheels
Audi recommends having al l work
on t ires or wheels pe rformed by
an authorized Audi dealer or au­
thorized repair facility. These fa­
cilities have the proper know le d ge
and are equippe d with t he re­
qu ired t ools and rep lacement
parts.
... New tires do not yet have the
optimum adhesion properties.
Drive caref ully and a t moderate
speeds for the first 3S0 m iles
(500 km) with new tires .
... use tires of the same cons truc­
tion , size (ro lling circum ference)
and the same tread pattern on
a ll four w hee ls .
... Do not replace t ires individua lly.
At least rep lace b oth tires on the
same ax le at the same time .
.,. A udi recommends t hat yo u use
A udi Or ig inal equipment tires. If ,.
20 3

"' N er .... "!
Tire wear
Check the tires regularly for wear.
-Inflation pressure that is too low
or high can increase tire wear
considerably.
-Driving quickly through curves, rapid acceleration and heavy
braking increase tire wear.
-Have an authorized Audi dealer or authorized repair facility
check the wheel alignment if
there is unusual wear.
-Have the wheels rebalanced if an
imbalance is causing noticeable
vibration in the steering wheel.
If you do not, the tires and other
vehicle components could wear more quickly.
Treadwear indicator
Original equipment tires contain
treadwear indicators in the tread pattern, which are bars that are 1/16 inch (1.6 mm) high and are
spaced evenly around the tire per­
pendicular to the running direc­
tion
c:> fig. 170. The letters "TWI"
or triangles on the tire sidewall
indicate the location of the tread­
wear indicators.
;;; l) Obey any applicable regulations in your "?
~ country . .....
Wheels
The tires have reached the mini­
mum tread depth
l) when they
have worn down to the treadwear
indicators. Replace the tires with
new ones
c:> .&. .
Wheel rotation
Rotating the wheels regularly is
recommended to ensure the tires
wear evenly . To rotate wheels, in­
stall the wheels from the rear
axle on the front axle and vice ver­
sa. This will allow the tires to
have approximately the same
length of service life.
For unidirectional tires, make sure
the tires are installed according to
the running direction indicated on
the tire sidewall
c:> page 223.
Hidden damage
Damage to tires and rims can of­
ten occur in locations that are hid­
den. Unusual vibrations in the ve­
hicle or pulling to one side may
indicate that there is tire damage.
Reduce your speed immediately.
Check the tires for damage. If no
damage is visible from the out­
side, drive slowly and carefully to
the nearest authorized Audi
205

M N
0:: l­oo ,...., \!) 1.1'1
N 1.1'1 ,....,
-Under certain cond itions (such as a sporty
dr iv ing style, winter cond itions or unpaved
roads), the t ire pressure monitoring system
indicator may be delayed .
- Do not use run-flat tires on your veh icle. Us­
ing them when not permitted can lead to
vehicle damage or accidents.
(D Tips
- The t ire pressure monitoring system can al­
so stop work ing when there is an ESC ma l­
funct ion.
- Using snow chains may result in a system
malfunction.
- The t ires with the ident ificat ion "RO"
c:> page 203 have been matched with your
Audi tire pressure monitoring system. We
recommend that you use these tires.
Storing tire pressures
App lies to vehicles: with tire pressure monitoring system
If the tire pressure changes or a tire is replaced,
it must be confirmed in the Infotainment sys­
tem .
.. Make sure before storing that the tire pressures
of all four t ires meet the specified va lues and
are adapted to the load
c:> page 206 .
.. Switch the ign ition on .
.. Se lect: the
ICARI function button > Tire pres ­
s ur e m onitoring
control button. Or
.. Se lect: the
I CAR I function button > Car Sy s­
tem s*
control button > Servici ng & check s >
Tir e p re ss ure monitorin g.
@ Tips
Do not store the t ire press ures if snow cha ins
are installed.
Wheels
215

"' N
0:: l­oo
rl I.O
"' N
"' rl
TMS can be used at temperatures down to -4 °F
(- 20 °C).
A WARNING
Take the following precautions after repairing
the tire:
- Do not drive faster than 50 mph (80 km/ h)!
- Avoid full -throttle acceleration, heavy brak -
ing and fast corner ing.
- T he ve hicle's road behavior can be affec ted.
- T ir es sealed w ith
TMS a re intended only for
temporary , short-t erm use. Damaged t ires
must be replaced. D rive carefully to the nex t
professional repair facility .
- After using the tire sea lant the tire pressure
monitoring system may no longer work
properly . Drive ca refully to the next profes­
sional repair facility.
- TMS must NOT be used,
- for cuts or punctures in the tire which a re
larger than 0.16 inch (4 mm)
- for damage to the rim
- if you have been driv ing with very low tire
pressures or tires with no air
- Seek profess ional assistance if it is not pos­
sible to repair the tire with the tire sealant.
- The tire sealant must not come into contact
with skin, eyes or clothing.
- If you get any tire sealant in your eyes or
come into contact with it, rinse the affected
area thoroughly with clean water. F ind a
physician immediately!
- Change any cloth ing contaminated with t ire
sealant immediately.
- Do not inhale the vapor!
- If you have swallowed tire sealant, rinse
yo ur mouth thorough ly right away and drink
plenty of water.
- Do not induce vomiting! F ind a phys ic ian
immed iate ly!
- If you have allergic reactions, find a physi­
cian immediately.
- Keep the t ire sealant away from chi ldren.
(D Note
Do not use commerc ia lly available tire sea l­
ants. The electrical components of the tire
Em erg en cy ass is tan ce
press ure monitoring system w ill no longe r
work properly .
@ For the sake of the environment
Used sealant bottles ca n be dropped off a t a
recycling fac ility.
© Tips
- If sea la nt has run o ut, allow i t to d ry. Then
yo u ca n pee l it off.
- Have the tire sea lant rep laced eve ry 4 years
at a de alership.
Making a tire repair
Fig. 176 Maki ng a t ire repair
Pr eliminary steps
"' If you have a flat tire, park the vehicle as far as
possible from moving traffic .
"' App ly the parking b rake firmly.
"' Move the selector lever to the P pos ition
"' Check whether a repair using the Tire Mobility
System is possib le
~ page 216.
"' Have all passengers leave the vehicle and stay
away from the danger zone
Q _A .
"'Take the sea lant bottle and the electric air
pump from the luggage compartment under
the floor <=>
page 216.
"' Remove the "max . 50 mph" (80 km/h) sticker
from the sealant bottle and aff ix it to the in­
s trument cluster in the driver 's view.
Filling a tire
"' Shake the bott le thoroughly before filling.
"' Screw the accompanying fi lling hose complete-
ly onto the bottle . This breaks through the foil
s e al automat ica lly a t the connect ion.
217

M N
0:: l­oo ,...., \!) ..,.,
N ..,., ,....,
Horn . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
H ow are child restra int system anchors rela t-
ed to ch ild safety . . . . . . . . . . . . . . . . . . . . .
163
How many airbags does my vehicle have? . . 134
H ow sa fety be lt pretensioners work 12 6
I
Ignition
switch ing on/o ff.......... .... .. ......
7 1
Ignition key
Emergency unlocki ng . . . . . . . . . . . . . . . . . . 33
Ignition lock . . . . . . . . . . . . . . . . . . . . . . . . . .
71
Indicator light . . . . . . . . . . . . . . . . . . . . . . . 18
Malfunct ion . . . . . . . . . . . . . . . . . . . . . . . . . 22
Imba lance (w heels) . . . . . . . . . . . . . . . . . . . 204
Immobilizer . . . . . . . . . . . . . . . . . . . . . . . . . . 12
Important things to do before driving . . . . 111
Imp roperly wor n sa fety be lts. . . . . . . . . . . . 125
Indicator lights . . . . . . . . . . . . . . . . . . . . . . . . 13
A' b 1r ag system . . . . . . . . . . . . . . . . . . . . . . 138
Dynamic stee ring . . . . . . . . . . . . . . . . . . . . 17 4
P ASSENG ER AIR BAG OFF . . . . . . . . . . . . .
138
al so refer to War ning/ indica to r lig hts . . . . 1 3
Infant seats . . . . . . . . . . . . . . . . . . . . . . . . . 155
Inflation pressure (tires) . . . . . . . . . . . . . . . 206
Instal ling the uppe r tethe r st rap on the an-
chor age . .. .. .... ............. .. .. .. .
166
10
Instruments ..... .... ... .. .. .. .. .. ... .
Adjust ing the lighting . . . . . . . . . . . . . . . . . 46
Instruments an d contro ls
General i llustration . . . . . . . . . . . . . . . . . . . . 8
I n ter ior lights
Fr ont . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
4 6
Rear . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 46
Intermittent (windsh ield wipe rs) . . . . . . . . . 49
]
Jump -starting 228
J umpe r cables . . . . . . . . . . . . . . . . . . . . . . . . 229
K
Key ... .. .. .. .. .... .. .... ... .. .. .... .. 3 1
Battery rep lacement . . . . . . . . . . . . . . . . . . 32
C heck light . . . . . . . . . . . . . . . . . . . . . . . . . . 32
Emergency key . . . . . . . . . . . . . . . . . . . . 31, 72
Index
Ignit ion/engine on/off . . . . . . . . . . . . . . . . . 71
Key rep lacement . . . . . . . . . . . . . . . . . . . . . 31
Mechan ica l key ... ... .. ..... ... .. .. 31 , 32
removing . . . . . . . . . . . . . . . . . . . . . . . . . . . 73
unlocking/lock ing . . . . . . . . . . . . . . . . .
33, 35
Ki ck -down . . . . . . . . . . . . . . . . . . . . . . . . . . . . 85
K . b nee air ags . . . . . . . . . . . . . . . . . . . . . . . . . 142
D .. escriptron .. .. .. ... .......... .. .. . .
How they wor k ... ............. ..... . 142
143
Important sa fe ty instru ctions . . . . . . . . . . 144
L
Lane Change Assista nt
refer to side assis t . . . . . . . . . . . . . . . . . . . . 97
Lap timer. . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27
Evaluating times . . . . . . . . . . . . . . . . . . . . .
28
p .
t· . ausrng ,ming . . . . . . . . . . . . . . . . . . . . . . . 27
Sta rt ing . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27
LATCH . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
163
Description . . . . . . . . . . . . . . . . . . . . . . . . . 164
In stalling a c hild restra int . . . . . . . . . . . . . 164
Location . . . . . . . . . . . . . . . . . . . . . . . . . . . 163
Mounting and releasing the anchorage
hoo k . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
164
Launc h Control Program . . . . . . . . . . . . . . . . 85
Leaving home
Left hand drive 44
45
Lifting jack .
. . . . . . . . . . . . . . . . . . . . . . . . . 221
Li ght
adaptive light . . . . . . . . . . . . . . . . . . . . . . . .
43
Coming/Leaving home . . . . . . . . . . . . . . . . . 44
Daytime runn ing lights . . . . . . . . . . . . .
43, 44
Exterior lighting . . . . . . . . . . . . . . . . . . . . . . 44
Interior/reading lights . . . . . . . . . . . . . . . . . 46
Low beam ... .. .. .. ... .. ... ..... .. .. . 43
Rea r fog lights . . . . . . . . . . . . . . . . . . . . . . . 43
Side marker lights . . . . . . . . . . . . . . . . . . . . 43
Trave l mode . . . . . . . . . . . . . . . . . . . . . . . . . 45
Light/rain sensor
Head lights . . . . . . . . . . . . . . . . . . . . . . . . . .
43
In termittent (w indshield w ipers) . . . . . . . . 49
Senso r defective . . . . . . . . . . . . . . . . . . . . . .
21
Light ing
Exterior . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
43
In terior . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 46
245
