Instrument s and warning /indicator lights 11
A WARNING
- Always observe the warning in
c::> page 195 , before opening the hood
and checking the engine coolant level.
- Never open the engine hood if you see or
hear steam, or if you see engine coolant
dripping from the engine compartment.
You could burn yourself. Let the engine
cool off first so that you cannot hear or
see any steam or engine coolant .
(D Note
-Mounting additional lights or accessories
in front of the air inlets reduces the cool­
ing effect of the rad iator. At high outside
temperatures or high eng ine load , the
engine could overheat.
- The front spoiler has been designed to
properly distribute the cooling air when
the veh icle is moving .
If the spoiler is
damaged , this cou ld reduce the cooling
effect and the engine co uld then over­
heat. Ask your authorized Aud i dealer for
assistance.
Tachometer (engine rev counter)
The tachometer indicates the engine RPM
(revolutions per minutes).
I f engine RPM drops below 1,500, you should
downshift to the next lower gear . T he red area
at the end of the scale indicates maximum
perm issible engine RPM after the break-in pe­
riod. Before reaching this area, move these­
lector lever to position 0/5 or ease your foot
off the accelerator pedal.
@) Note
The tachometer needle@c::> page 10 ,
fig. 3 shou ld only briefly be in the red
zone: you could damage your engine! The
beg inning of the red zone varies depend-
ing on the engine .
@) For the sake of the environment
Upshifting early saves fuel and reduces en­
gine noise.
~ button
Fig. 4 SET button in th e ins trume nt cluster
The !SET ! button performs the following func­
tions:
Switching on time, date, temperature
display and odometer
The display appears for approximate ly 30 sec­
onds when you press the
I S ET ! button c::> fig . 4
with the ignit ion off .
Starting the Auto-Check sequence
The Auto-Check system constantly monitors
certa in individual functions and components
of the vehicle when the ignition is turned on
and when the vehicle is moving .
With the ignition turned on, you can start the "Auto-Check sequence" by pressing the
! SE T!
button . You can perform an Auto-Check se­
quence when the vehicle is stationary and the
ignition is turned on or when the vehicle is
moving slower than 3 mph (5 km/h).
In addition, the number of keys initialised for
your vehicle is displayed.
L2 3 /3 means that
three keys have been initialised . This feature
enables used car buyers to make sure they
have received all of the keys.
If you are given only two keys, for ins tance ,
you should take the vehicle and the ex isting
keys to an authorized Audi dealer to have the
missing key d isabled .
It is also important to
notify your insurance company about the loss.
Setting the speed warning
By pressing the !SET ! button briefly, you can
set threshold 1 of the speed warning wh ile
you are driving
c::> page 80 . By maintaining II>

196 Checking and filling
-To reduce the risk of being burned, never
open the hood if you see or hear steam
or coolant escaping from the engine
compartment . Wait until no steam or
coolant can be seen or heard before care­
fully opening the hood .
- Keep children away from the engine com ­
partment .
- Never spill fluids on hot engine compo­
nents. They can cause a fire.
- Never touch the radiator fan. The auxili­
ary electric fan is temperature controlled
and can switch on suddenly.
- Never open the coolant reservoir cap
when the engine is still warm. The cool­
ant system is pressurized and hot cool­
ant could spray out.
- Protect your face, hands and arm from
steam or hot engine coolant by placing a
thick rag over the cap when you open the
coolant reservoir .
- Do not remove the engine cover under
any circumstances. This increases the
risk of burns.
- If work on the fuel system or the electri­
cal system is necessary:
- Always disconnect the battery.
- Never smoke or work near heaters or
open flames. Fluids in the engine com­ partment could start a fire.
- Keep an approved fire extinguisher im­
mediately available.
- To avoid electrical shock and personal in­
jury while the engine is running or being
started, never touch:
- Ignition cables
- Other components of the high voltage
electronic ignition system.
- If you must perform a check or repair
with the engine running:
- First, fully apply the parking brake,
move selector lever of automatic trans­
mission to "P" (Park). -
Always use extreme caution to prevent
clothing, jewelry, or long hair from get­
ting caught in the radiator fan, V-belts
or other moving parts, or from contact­ ing hot parts . Tie back hair before
starting, and do not wear clothing that
will hang or droop into the engine.
- Minimize exposure to emission and
chemical hazards~& .
A WARNING
California Proposition 65 Warning:
- Engine exhaust, some of its constituents,
and certain vehicle components contain
or emit chemicals known to the State of
California to cause cancer and birth de­
fects and reproductive harm. In addition,
certain fluids contained in vehicles and
certain products of component wear con­
tain or emit chemicals known to the
State of California to cause cancer and birth defects or other reproductive harm.
- Battery posts, terminals and related ac­
cessories contain lead and lead com·
pounds, chemicals known to the State of
California to cause cancer and reproduc­
tive harms . Wash hands after handling .
(I) Note
When adding fluids, always make sure that
they are poured into the proper container
or filler opening, otherwise serious dam ­
age to vehicle systems will occur.
@) For the sake of the environment
To detect leaks in time, inspect the vehicle
floor pan from underneath regularly. If
you see spots from oil or other vehicle flu­
ids, have your vehicle inspected by an au­
thorized Audi dealer.

"' N
a: LL co
rl I.O
"' rl
"' rl
Checking and fillin g 197
Engine compartment
Engine compartment
These are the most important items that you can check.
Fig. 174 Typical layout for containers and engine oil filler cap
(D Coolant expansion tank (- L) . . . 202
@ Jump start point(+) under a cov-
er .. .. ... ....... ........ ..
207, 256
@ Engine o il filler cap ( @ Jump start point(-) with hex
head screw ............ .... .
207, 256
© Brake flu id reservoi r((())) . . . . . 204
® W indshie ld/headlight* washer
container
(0) . . . . . . . . . . . . . . 208
A WARNING
Before yo u check anything in the engine
compartment, always read and heed all
WARNINGS
q .& in Working in the engine
compartment on page 195.
-
Engine oil
Engine oil specifications
The engine oil used must conform to exact
specifications .
The service interval disp lay in the instrument
cluster of your vehicle will inform y ou when it
is time for an oil change. We recommend that
you have your oil changed by an authorized
Audi Se rv ice Advisor .
If you have to top off the o il between o il
changes, use the Audi o il quality standard
specified in the tab le.
Audi oil quality standard
Gasoline
VW 502 00 or
eng ine vw 504 00 ...

198 Checking and filling
Using the proper engine oil is important for
the functionality and service life of the en­
gine. Your engine was factory-filled with a
high-quality oil which can usually be used
throughout the entire year.
0 Note
Your Limited New Vehicle Warranty does
not cover damage or malfunctions due to
failure to follow recommended mainte­
nance and use requirements as set forth in
the Audi Owner's Manual and Warranty
&
Maintenance booklet.
- Use only a high quality engine oil that ex­
pressly complies with the Audi oil quality
standard specified for your vehicle's en­
gine . Using any other oil can cause seri­
ous engine damage.
- Do not mix any lubricants or other addi­
tives into the engine oil. Doing so can
cause engine damage.
If you need to add oil and there is none
available that meets the Audi oil quality
standard your engine requires, you may
add a total of no more than 0.5 quart/liter
of a high-quality "synthetic"oil that meets
the following specifications.
- Vehicles with gasoline engine: ACEA A3
or API SM with a viscosity grade of
SAE 0W-30, SAE SW-30 or SAE SW-40.
- For more information about engine oil
that has been approved for your vehicle, please contact either your authorized
Audi dealer or Audi Customer Relations
at 1 (800) 822-2834 or visit our web site
at www.audiusa .com or
www .audicanada .ca .
Engine oil consumption
The engine in your vehicle depends on an ade ­
quate amount of oil to lubricate and cool all
of its moving parts.
In order to provide effective lubrication and
cooling of internal engine components, all in­
ternal combustion engines consume a certain amount of oil. Oil consumption varies from
engine to engine and may change significantly
over the life of the engine. Typically, engines
with a specified break-in period (see
¢ page 179) consume more oil during the
break -in period than they consume after oil
consumption has stabilized.
Under normal conditions, the rate of oil con­
sumption depends on the quality and viscosity
of the oil, the RPM (revolutions per minute) at
which the engine is operated, the ambient
temperature and road conditions . Further fac­
tors are the amount of oil dilution from water
condensation or fuel residue and the oxida­
tion level of the oil. As any engine is subject to
wear as mileage builds up, the oil consump­
tion may increase over time until replacement of worn components may become necessary.
With all these variables coming into play, no
standard rate of oil consumption can be es­
tablished or specified. There is no alternative
to regular and frequent checking of the oil lev­ el, see
Note.
If
the yellow engine oil level warning symbol
El in the instrument cluster lights up, you
should check the oil level as soon as possible
¢ page 199. Top off the oil at your earliest
convenience
¢ page 199.
A WARNING
--
Before you check anything in the engine
compartment, always read and heed all
WARNINGS¢
& in Working in the engine
compartment on page 195.
{(D Note
Driving with an insufficient oil level is like­
ly to cause severe damage to the engine .
(D Tips
- The oil pressure warning display. is
not an indicator of the oil level. Do not
rely on it. Instead, check the oil level in
your engine at regular intervals, pref­ erably each time you refuel, and always
before going on a long trip. .,.

"' N
a: LL co
rl I.O
"' rl
"' rl
-If you have the impression your engine
consumes excessive amounts of oi l, we
recommend that you consult an author­
ized Audi dealer to have the cause of
your concern properly diagnosed. Keep in mind that the accurate measurement of
oil consumption requires great care and may take some time. An authorized Audi
dealer has ins tructions about how to
measure oil consumpt ion accura tely.
Checking the engine oil level
F ig. 175 MMI Display: Oil leve l indicator
Read oil le vel
"' Park your vehicle so that it is horizonta lly
level.
"' Shut the engine off when it is at operating
temperature.
"' Switch only the ignition back on .
"' Wa it approx. two minutes.
"' Se lect: Funct ion button
I _C_A_R_I > Oil l e v e l. Or
"' Se lect: Funct ion button
I CARI > Car sy s-
tem s* control button > Servicing & check s >
Oil level.
"' Read the oil leve l in the MMI* Display
r:::> fig. 175. Add engine oi l if the bar of the
o il level indicator is near "min"
r:::> page 199
Depending on the way the vehicle is driven
and the operating conditions, oil consumption
can be up to 1 quart per 600 mi les (0.8 liter
per 1,000 km). Consumption may be higher
within the first 3,000 miles (5,000 km) .
(D Tips
The oil level indicator in the MMI* Disp lay
is only an information display . If the oil
level is too low, a min imum oil warning ap-
Checkin g and fillin g 199
pears in the instrument cl uster . Add oil
Q page 199. If the hood has been opened,
the current oil leve l is shown in the instr u­
ment cluster the next time the ignition is
switc hed on.
F ig . 17 6 En gin e compart ment: Cover on the oil filler
n eck
"' Before you check anything in the engine
compa rtment,
alwa ys read and h eed all
WARNINGS r::> .&. in Working in the engine
compartment on page 195.
"' Shu t the eng ine off.
"' Unscrew the cap
't::::r. to the engine oil filling
hole
¢ fig. 176, ¢page 197, fig. 174.
"'Carefully top off with 0 .5 quarts (0 .5 liters)
of the appropr iate oil
¢page 197.
"'Check the oil level again after two minutes
r:::> page 199, Checking the engine oil level.
"'Top off the o il aga in, if necessary .
"' Screw the cap back on the fi lling hole .
.&_ WARNING
-W hile topping off, the o il m ust n ot come
in contact with hot e ngine parts -fir e
hazard !
- Th e oi l filler cap mus t be p roperly se­
cured to prevent oil from being sp rayed
on the hot engine and exhaus t system
when the engine is runn ing -fire haza rd!
- If you r skin has come in contact wi th the
e ngine o il, you must subse quently
cleanse it thorough ly.
(D Note
- Check the oil leve l using the r adio or
M MI*. I f the message
Plea se reduce oil

202 Checking and filling

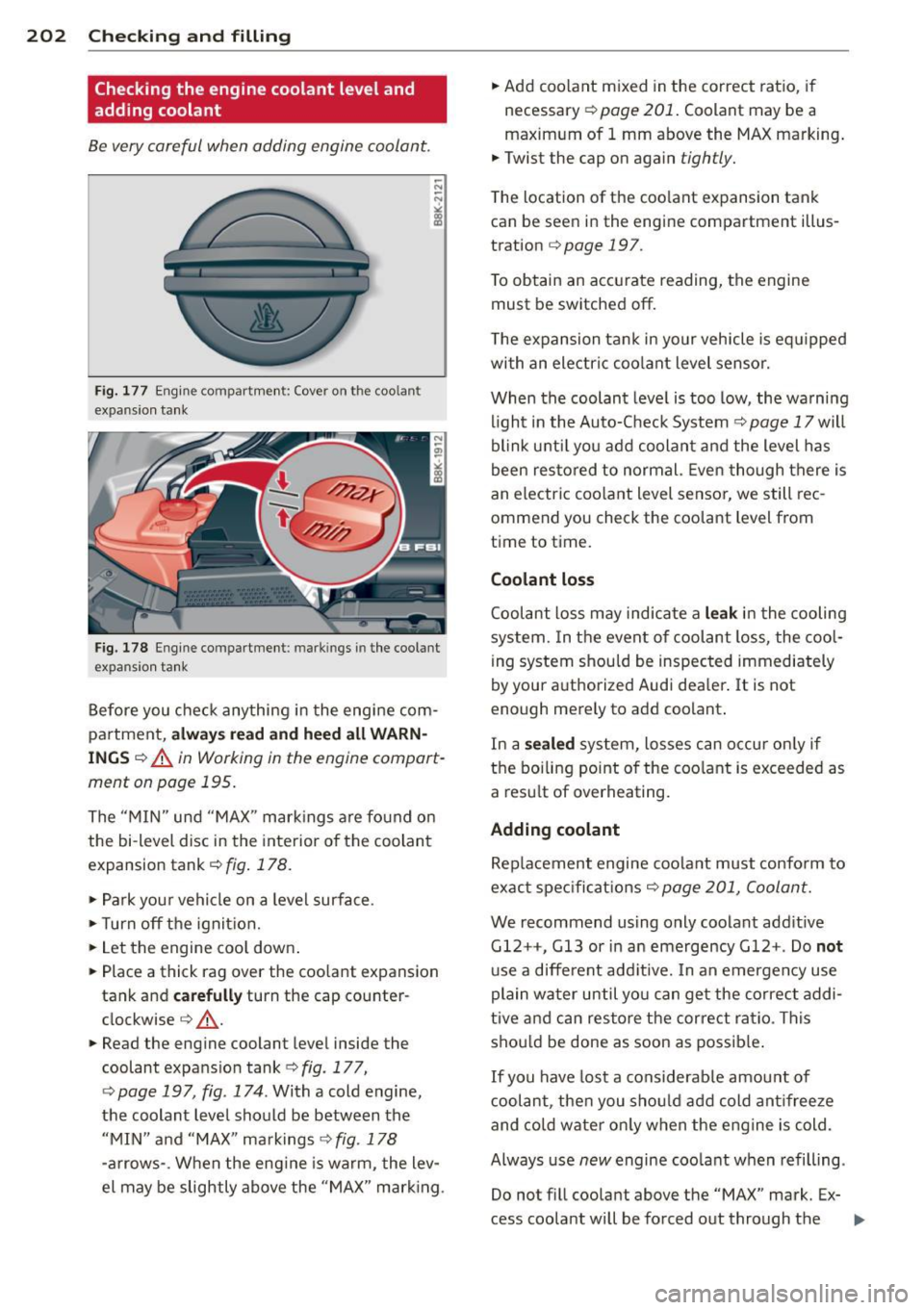

Checking the engine coolant level and
adding coolant
Be very careful when adding engine coolant.
Fi g. 1 77 En g in e c ompart men t: C over on the coola nt
ex pan sion ta nk
Fig. 178 Engine co mpar tment : ma rkin gs in th e coolant
ex pan sio n ta nk
Before you che ck anything in the engi ne com­
partment,
a lwa ys r ead and heed all WARN­
INGS c> A in Working in the engine compart ­
ment on page
195.
The "M IN " und "MAX " mark ings a re found o n
the bi -level disc in the in terior of the coolant
expansion tank
¢ fig . 178.
.,. Pa rk you r vehi cle on a level sur face .
.,. Turn off t he igni tion.
.,. Let the engine coo l down .
.,. Place a thick rag over the coolant expansion
tank and
c a refully turn the cap cou nte r­
clockwise
c> _&. .
.,. Read the eng ine coolant level inside the
coolant expans io n tank
c> fig . 177,
c>page 197 , fig. 174 . With a cold engine,
the coolant level sho uld be betwe en the
" M IN " and "MAX " ma rkings <=>
fig. 178
-arrows- . W he n t he eng ine is wa rm, the lev­
el may be slightly
above the "MAX" marking . .,.
Add coo lant mixed in the correct rat io, if
necessary
c> page 201 . Coolant may be a
maxim um of 1 mm above the MAX marking .
.,. Twist the cap on again
tightly.
The location of the coo lant expansion tan k
can be seen i n the engine compartment illus ­
tration
c> page 197.
T o obtain an acc urate reading, the engine
must be sw itched off.
T he ex pan sion ta nk in your vehicle is eq uipped
with an ele ctric coo lant level senso r.
When the coolant level is too low , the wa rn ing
li ght in the Au to-Check System <=>
page 17 will
blink u nti l yo u ad d coolant and the level has
been restored to normal. Eve n t hough t here i s
an e lectri c coo lant level senso r, we still rec ­
ommend you check the coola nt level from
time to t ime.
Coolant loss
Coolant loss may indica te a leak in the cooling
system. In t he event o f coolant loss, the coo l­
i ng system shou ld be inspected immediately
by your a uthorized Audi dea ler . It is not
eno ugh mere ly to add coolant.
In a
sealed sys tem, losses can occur on ly i f
the boili ng point o f the coo lant is exceeded as
a res ult of overheating.
Adding coolant
Rep la cement engine coo la nt must conform to
exact spe cificat ions
c> page 201, Cool ant .
We recommend using only coolant add it ive
Gl 2++ , Gl3 or in an emergency G 12 +. Do not
use a diffe rent add itive. In an emerge ncy use
plain w ater until yo u can get the correc t addi­
tive a nd can res tore the cor rect ra tio. T hi s
sho uld be done as soon as possib le .
If you have lost a considerab le amou nt of
c oolant , the n you shoul d a dd cold an tifreeze
and co ld wate r on ly w hen the e ng ine is cold.
Always use
n ew engine coo lant w hen refilling .
Do not f ill coo la nt
above the "MA X" mark. Ex-
cess coolant will be forced o ut through the .,,_

204 Checking and filling
Brake fluid
Checking brake fluid level
The brake fluid level can be checked with a
quick glance .
N N ~ N
" (X) (0
Fig. 179 Engine compartme nt: Cover on the brake flu ·
id reservo ir
Before you check anything in the engine com­
partment,
a lwa ys re ad and heed all WARN·
ING S ¢.&._ in Working in the engine compart­
ment on page 195 .
.. Read the brake fluid level from the brake
fluid reservoir
¢ fig . 179 , ¢page 197,
fig . 174.
The brake fluid level must be be ­
tween the "MIN" and
"MAX" markings.
The brake fluid reservoir is located at the rear
partition of the engine compartment on the
left side
¢ page 197.
The fluid level may drop slightly after some
time due to the automatic adjustment of the
brake pads. This is not cause for alarm.
If the brake fluid level falls
considerably be­
low the "MIN" mark, the brake warning/indi­
cator light (U.S. models:
11111 , Canadian
models :. ) will come on
¢page 15. Do not
continue to operate the vehicle. The complete brake system should be thoroughly checked
by an authorized Audi dealer or qualified
workshop and the cause corrected .
If the
brake fluid level is too low, the brake warn ing/
indicator light w ill illuminate. Contact an au­
thorized Audi dealer
immedi atel y.
@ Tips
The brake fluid reservoir is located under­
neath the cover.
Changing brake fluid
Have the brake fluid changed by an experi­
enced technician .
Brake fluid absorbs moisture from the air. If
the water content in the brake fluid is too
high, corrosion in the brake system may result
after a period of time . The boiling point of the
brake flu id will also decrease conside rably and
decrease braking pe rformance.
Therefore, the brake fluid must be changed
every two year s. Always use new brake flu id
which conforms to Federal Motor Veh icle
Standard "F MVSS 116 DOT 4".
The brake fluid reservoir can be diff icult to
reach, therefore, we recommend that you
have the brake fluid changed by your author­
ized
Audi d ealer . Your dealer has the correct
tools, the right brake fl uid and the know -how
to do this for you .
A WARNING
- Brake fluid is poisonous . It must be stor­
ed only in the closed original container
out of the reach of children!
- Brake failure can resu lt from o ld or inap­
propriate brake flu id. Observe these pre­
cautions:
- Use only brake f luid that meets SA E
specifica tion
J 1 7 03 and conforms to
Federa l Moto r Ve hicle Standard 1 16.
Always check with yo ur authorized Aud i
dealer to make sure yo u are using the
correct brake fluid. The correct type of brake f lu id is also indicated on the
brake fluid reservoir.
- The brake fluid must be new. Heavy use
of the brakes can cause a vapor lock if
the brake fluid is left in the system too
l ong. This can seriously affect the effi­
c iency of the brakes as well as your
safety. This cou ld resu lt in an accident.
(D Note
Brake fluid will damage the paint of your
vehicle .
