pressure relie f valve in the cap when the en­
gine becomes hot.
A WARNING
- The cooling system is under pressure and
can get very hot. Reduce the risk of
sca lding from hot coolant by following
these steps .
- T urn off the engine and a llow it to cool
down.
- Protect your face, hands and arms from
escap ing flu id and steam by cover ing
the cap with a large, thick rag.
- Tu rn the cap slowly and very ca refully
in a counte r-clockw ise d irection while
applying light, downward p ress ure on
the top of the cap.
- To avo id being burned, do not sp ill an­
tifreeze or coolant on the exhaust sys­
tem or hot engine parts. Under certain
conditions, the ethylene glyco l in en­
g ine coolant can catch f ire.
- Antifreeze is poisonous. Always store an­
t ifreeze in its or iginal container and we ll
out of the reach of children.
- If you drain the coolant, it must be
caught and safely stored in a proper con­
tainer clear ly marked "poison".
Q) Note
- Do not add any type of radiator leak sea l­
ant to your veh icle's engine coolant.
Adding rad iator repair fluid may adverse­
l y affect the function and performance of
you r cooling system and could result in
damage not covered by your New Vehicle Limited Wa rra nty.
- Coolant pollutes the env ironment and
could cause an engine fire. Excess coo l­
ant w ill be forced ou t through the pres­
su re re lief va lve in the cap when the en­
gine becomes hot .
- If, in an emergency, only water can be
added, t he cor rect ratio between wate r
and an tifreeze<=> page 201 must be re ­
stored as soon as possib le .
Checkin g and fillin g 203
'
@) For the sake of the environment
Drained coolant sho uld not be reused. A l­
ways d ispose of used coolant while observ­
i ng a ll environmental regulations.
Radiator fan
The radiator fan switches on automatically by
itself .
T he radiator fan is dr iven by the engine via the
V-belt. The viscous clutch regulates the speed
of the fan according to the temperature of the coolant.
An a uxiliary electric radiator fan* switches on
and off depending on coolant temperature
and othe r vehicle ope rat ing cond it ions.
After yo u switch the eng ine off, the aux iliary
f an can continue running for up to 10 m inutes
- even with the ignition off. It can even switch
on again later by itself<=>.&. , if
- t he temperatu re of the engine coo lant rises
due to the heat build -up from the engine in
the engine compa rtment, or
- the engine compa rtment heats up because
the vehicle is parked in intense sunlight.
A WARNING
=
- To reduce the risk of personal inju ry nev-
er touch the radiator fan.
- The a uxiliary electric fan is tempe rat ure
contro lled and can switch on suddenly
even when the engine is not running.
- The a uxiliary radiator fan switches on a u­
tomatically when the engine coo lant
reaches a certain temperature and will
continue to run until the coo lant temper­
ature drops.
•
•

204 Checking and filling
Brake fluid
Checking brake fluid level
The brake fluid level can be checked with a
quick glance .
N N ~ N
" (X) (0
Fig. 179 Engine compartme nt: Cover on the brake flu ·
id reservo ir
Before you check anything in the engine com­
partment,
a lwa ys re ad and heed all WARN·
ING S ¢.&._ in Working in the engine compart­
ment on page 195 .
.. Read the brake fluid level from the brake
fluid reservoir
¢ fig . 179 , ¢page 197,
fig . 174.
The brake fluid level must be be ­
tween the "MIN" and
"MAX" markings.
The brake fluid reservoir is located at the rear
partition of the engine compartment on the
left side
¢ page 197.
The fluid level may drop slightly after some
time due to the automatic adjustment of the
brake pads. This is not cause for alarm.
If the brake fluid level falls
considerably be­
low the "MIN" mark, the brake warning/indi­
cator light (U.S. models:
11111 , Canadian
models :. ) will come on
¢page 15. Do not
continue to operate the vehicle. The complete brake system should be thoroughly checked
by an authorized Audi dealer or qualified
workshop and the cause corrected .
If the
brake fluid level is too low, the brake warn ing/
indicator light w ill illuminate. Contact an au­
thorized Audi dealer
immedi atel y.
@ Tips
The brake fluid reservoir is located under­
neath the cover.
Changing brake fluid
Have the brake fluid changed by an experi­
enced technician .
Brake fluid absorbs moisture from the air. If
the water content in the brake fluid is too
high, corrosion in the brake system may result
after a period of time . The boiling point of the
brake flu id will also decrease conside rably and
decrease braking pe rformance.
Therefore, the brake fluid must be changed
every two year s. Always use new brake flu id
which conforms to Federal Motor Veh icle
Standard "F MVSS 116 DOT 4".
The brake fluid reservoir can be diff icult to
reach, therefore, we recommend that you
have the brake fluid changed by your author­
ized
Audi d ealer . Your dealer has the correct
tools, the right brake fl uid and the know -how
to do this for you .
A WARNING
- Brake fluid is poisonous . It must be stor­
ed only in the closed original container
out of the reach of children!
- Brake failure can resu lt from o ld or inap­
propriate brake flu id. Observe these pre­
cautions:
- Use only brake f luid that meets SA E
specifica tion
J 1 7 03 and conforms to
Federa l Moto r Ve hicle Standard 1 16.
Always check with yo ur authorized Aud i
dealer to make sure yo u are using the
correct brake fluid. The correct type of brake f lu id is also indicated on the
brake fluid reservoir.
- The brake fluid must be new. Heavy use
of the brakes can cause a vapor lock if
the brake fluid is left in the system too
l ong. This can seriously affect the effi­
c iency of the brakes as well as your
safety. This cou ld resu lt in an accident.
(D Note
Brake fluid will damage the paint of your
vehicle .

M N
er
u..
co ,...., \!) 1.1'1 ,...., 1.1'1 ,....,
@ For the sake of the environment
Because of the pr oblem of proper d isposa l
of brake flu id as we ll as the special tools
requ ired and the necessary expert ise, we
recommend that you have the brake fluid
changed by your author ized Audi dealer .
Battery
General information
Under normal operating conditions, the bat­
tery in your Audi does not need any mainte ­
nance. With
high outside temperatures or
long daily dr ives we recommend that you have
the electro lyte level checked by an authorized
Aud i dealer or qualified workshop . The elec­
trolyte leve l should also be checked each time
the battery is charged c>
page 207.
Have the battery checked when you take your
ve hicle in for service . You are well adv ised to
replace a battery that is older than 5 yea rs .
W ith certa in types of a irbag deployment, t he
battery is d isconnected from the vehicle elec­
tr ica l system for safety reasons c>
.&. in Re­
pair, care and disposal of the airbags on
page 144.
Disconnecting the battery terminals
Some vehicle functions (power w indow regu­
lators, for example) are lost if the battery ter­
m inals a re d isconnected. These func tions have
to be re lea rned after the batte ry term inals a re
connected agai n. T o prevent this, the bat tery
should only be d isconnec ted from the vehicle
e lec tric al system when absolu tely necessa ry
for repairs .
Vehicles not driven for long periods
If you do not drive you r vehicle over a period
of severa l days or weeks, elec trical compo­
nen ts are gr adually cut b ack o r swi tched off .
This redu ces energy cons umption and main­
tains starting capab ility over a longer per io d
c> page 177.
Some o f the conven ience f unctions m ay not
ope rate, su ch as the in ter ior lig hts or t he
Checkin g and fillin g 205
power seat adjus tment. The convenience
funct io ns w ill be available again when yo u
turn o n the ign ition and start the engine.
Winter operation
D ur ing the w inte r mon ths, bat tery capa city
tends to dec rease as tempera tures drop . This
is beca use more power is a lso consumed wh ile
starting, and the headlights, rear window de­
fogger, etc., are used more often.
Avoid unnecessary powe r consumpt ion, pa r­
ticular ly in city traffic or when traveling only
sho rt distances. Let yo ur authorized A udi
dealer check the capacity of the vehicle bat ­
tery before w inter sets inc>
page 207. A well
charged battery will not on ly prevent starti ng
problems w hen the weather is cold, but w ill
also last longer.
@ Tips
If your vehicle is left standing for seve ral
weeks at extremely low temperatures, the
vehicle battery s hou ld be removed and
stored where it will not freeze . This will
p revent it from be ing damaged and having
to be repla ced.
Working on the battery
Be especially careful when working on or near
the bat tery.
The battery is located in the luggage compar t­
ment under the floor . B efo re you che ck any­
thi ng in the luggage compartment,
read and
heed all WARNINGS
c> ,&. .
Always heed the safety warnings , when work­
i ng on the veh icle batte ry or t he vehicle e lec­
t rical sys tem to p reven t inju ry.
The following WARNINGS are very
important when working on the battery:
Always heed the following WARNING SYM· BO LS and safety precautions when working
on the battery .
®
Always wear eye protection.
•
•

206 Check ing and filling
&
Batter y aci d contain s sulfuric acid . Al·
w ays we ar glo ves and e ye prote ction .
@
No
- spar ks
- flam es
- smoking .
~
When a battery i s ch arg ed , it p roduce s
h y d rogen ga s whi ch i s ex plosi ve and
c ould c au se per sonal inju ry.
®
Alwa ys keep the battery well out of
r ea ch of children .
A WARNING
Whenever working on the battery or on
the electrical system, there is the risk of
injury , acc ident and even fire. Read and
heed the following WARNINGS:
-Always wear eye protection. Do not let battery acid or any lead part icles get on
your sk in or cloth ing . Sh ield your eyes .
Explosive gases can cause blindness or
other injury .
- Battery acid contains sulfur ic acid . Sulfu­
ric acid can cause blindness and severe
burns.
- Always wear gloves and eye protection.
Do not tilt the battery because ac id
could leak out of the vent ilation open­
ings.
- If you get battery acid in yo ur eyes or
on your sk in, immediately rinse with
cold water for severa l minutes and get
medical attention .
- If you should ingest any battery acid,
seek medical attention immediately.
- Do not expose the battery to an open
flame, electric sparks or an open light.
- Do not smoke.
- Do not interchange the positive and neg -
ative cab les.
- When working on the battery, be sure
not to short-circuit the terminals with
tools or other metal objects. This would
cause the battery to heat up very quickly,
wh ich could lead to damage or explosion
and personal injury.
-
- When a battery is charged, it produces
hydrogen gas which is explosive and
could cause personal injury.
- Always keep the battery well out of the
reach of children.
- Before work is done on the electrical sys­
tem, disconnect the negat ive ground ca­
ble.
- Before performing any work on the e lec­
trica l system, switch off the engine and
ignit ion as well as any electrical equip­
ment. The negative cable on the battery
must be disconnected .
If you are just go­
ing to replace a light bulb, then it is
enough to swi tc h off the lights.
- Before disconnecting the battery, switch
off the anti-theft alarm system! Other­
wise you wi ll set off the alarm.
- When disconnecting the battery, f irst
d isconnect the negat ive cab le and then
the posit ive c ab le.
- Before reconnecting the batte ry, ma ke
sure all e lectr ica l consumers are sw itch­
ed off. Re connect the pos it ive cable first
and then the negative cable. Never inter ­
change the cables - this could start a fire!
- Never charge a frozen or a thawed-out
battery. It could exp lode! If a battery has
frozen, then it must be replaced . A dis­
charged battery can freeze over at 32°F
(QOC).
- Make sure the vent hose is always attach­
ed to the opening on the s ide of the bat­
tery.
- Never use batteries which are damaged.
There is the danger of an explosion! Al­
ways rep lace a damaged battery.
A WARNING
Ca lifornia Proposition 65 Warning:
- Battery posts, terminals and related ac­
cessories conta in lead and lead com­
pounds, chemicals known to the State of
California to cause cancer and reproduc­
tive problems . Wash hands after han-
dling.
~

"' N
a: LL co
rl I.O
"' rl
"' rl
(D Note
-Do not disconnect the ve hicle battery
when the ignition is switched on or when
the engine is running, otherwise, you will
damage e lectronic components in the
electrica l system .
- If your vehicle is going to stand for a
l ong period of time without being driven,
protect the battery from "freezing", oth­
erwise it w ill be damaged and w ill then
have to be replaced .
Battery charging
Starting the engine requires a well charged
battery.
Fi g. 1 80 Engin e comp artm ent: Conn ecto rs for char ger
an d jumper cables
Always read and heed all WARNINGS be low
c::, &. and c::, &. in Working on the battery on
page
206 .
.,. Turn off the ignit io n and all electrical con­
s umer s .
.,. Make sure the area is well vent ilated when
you charge the bat tery .
.,. Open the engi ne hood
c::, page 195.
.,. Open the cover on the posit ive pole
¢ fig . 180 .
.,. Connect the charger connectors according to
the instructions to the
jump start bolts.
(Bolts under the cover= "positive", Bolts
with hex head = "negative").
.,. Only now plug the mains lead for the charg­
i ng equipment into the wall outlet a nd turn
it on
c::, &_ .
.,. Make sure the charging rate i s not over
30 amp s/14 .8 Volt .
Checkin g and fillin g 207
.,. When the battery is fully cha rged : T urn the
charging equ ipment off and
remove the
mains lead from the wa ll out let .
.,. Now remove the clamps for the charging
equ ipment.
.,. Close the cover on the positive pole .
.,. Close the hood
c::, page 195.
A d ischarged bat tery can freeze at tempera­
tures of only 32 °F (0 °C) . Allow a frozen bat­
tery to thaw completely before attempting to cha rge it
c::, .&. . However, we recommend not
u sing a thawed batte ry aga in because the bat­
tery casing can be cracked due to i ce fo rma­
tion an d can leak b attery a cid.
Battery charging (Maximum charging rate
of 30 amps /14.8 Volt )
When charg ing at low vo ltages (e.g. wi th a
t rickle charger ), the ba tte ry cables do no t
have to be disconne cte d firs t. T he bat tery
caps should
not be opened when charging a
batte ry .
It is no t necessa ry to remove the b attery from
the luggage compartment.
Fast charging the battery (charging rate
above 14 .8 Volts)
Fo r tec hni cal re asons do not use a bat tery
c h arger that uses voltage g reater than
1 4 .8
Volts to c harge yo ur veh icle's battery.
A WARNING
C harging a battery can be dangero us.
-A lways follow the operati ng instr uctions
provided by the battery charger manu ­
facturer when charging your battery .
- Never charge a fro zen battery. It may ex­
p lode because of gas trapped in the ice .
A llow a frozen battery to thaw out first.
- Do not reuse batteries wh ic h were fro­
zen. The battery housing may have
cracked and weakened w hen the battery
froze.
- Charge the battery in a well venti lated
area . Keep away from open flame or elec­
trical spark. Do not smoke . Hydrogen gas
generated by the battery is explos ive . ..,

208 Check ing and filling
- To r educe the danger of explosion, never
co nnect or disconn ect cha rger cables
wh ile the c harger is operating.
- Fast char ging a battery is dangerous and
shou ld on ly be attempted by a compe­
tent technician w ith the proper equip­
ment .
- Battery acid that may spill during charg­
ing should be washed
off with a solution
of warm water and baking soda to neu ­
tralize the acid.
(Q) Note
Never use a fast charger as a booster to
start the engine . This will seriously dam­
age sensitive electronic components, such
as control units, relays, rad io, etc., as we ll
as the battery charger.
Battery replacement
The new battery must have the same specif/·
cations and dimensions as the original equip­
ment battery.
Intell igent energy management in your veh i­
cle is respons ible for d istributing the e lectr i­
cal energy throughout you r vehicle
q page 177. The intell igen t energy m anage­
men t system w ill keep the engine ba tte ry
charged better then vehicles w ithout this sys­
tem . To make sure the additional e lectrica l en­
ergy is available once again after you have
changed the battery, we recommend that you install batteries o f the same type and ma nu­
facture only (the same as those installed at
the time your vehicle was delivered). Specifi­
cations are listed on the battery hous ing. Your
author ized Audi dealer must code the battery
in the ene rgy management system to enable
you to use the energy management functions
correctly after replac ing the battery.
I f it is not poss ible to use a battery of this
type, the new bat tery m ust h ave the s ame ca­
pac ity, voltage ( 12-volts), amperage, con ­
struction and plug sea ling. When installing the battery, make su
re the ig ­
nition and a ll electrical consumers are turned
off.
(D Note
Make sure the ventilation hose on the side
of the battery is connected, otherwise
fumes or battery acid can leak out .
@ For the sake of the environment
Because o f the p rob lem of p roper disposal
of a battery, we recommend your author ­
i zed Audi dealer change the battery for
you. Batteries contain sulfur ic acid and
l ead and must always be disposed of prop­
erly in comp liance with all environmental
regulations. Dispos ing of vehicle batter ies
i mprope rly is very dange rous to the envi­
r o nment .
Windshield/headlight*
washer container
Fig. 181 En gin e compa rt m en t: Cove r on the w ind·
s h iel d a nd h eadligh t• was her fluid conta in er
.., N
-~ (X) a,
The washer fluid conta iner is marked w ith the
symbol
O on its cap q fig . 181, qpage 197,
fig . 174 .
.. Before yo u check any thing in the engine
compa rtment,
always read and heed all
WARNINGS q A in Working in the engine
compartm ent on page 195 .
.. Lift the fi ller cap tongue to add washer flu­
id. You can f ill the container to the top.
.. Press the cap back onto the filler neck after
fi lling the conta iner .
You can find the reservo ir
capacity in the table
in
q page 262. .,.

M N
er
u..
co ,...., \!) 1.1'1 ,...., 1.1'1 ,....,

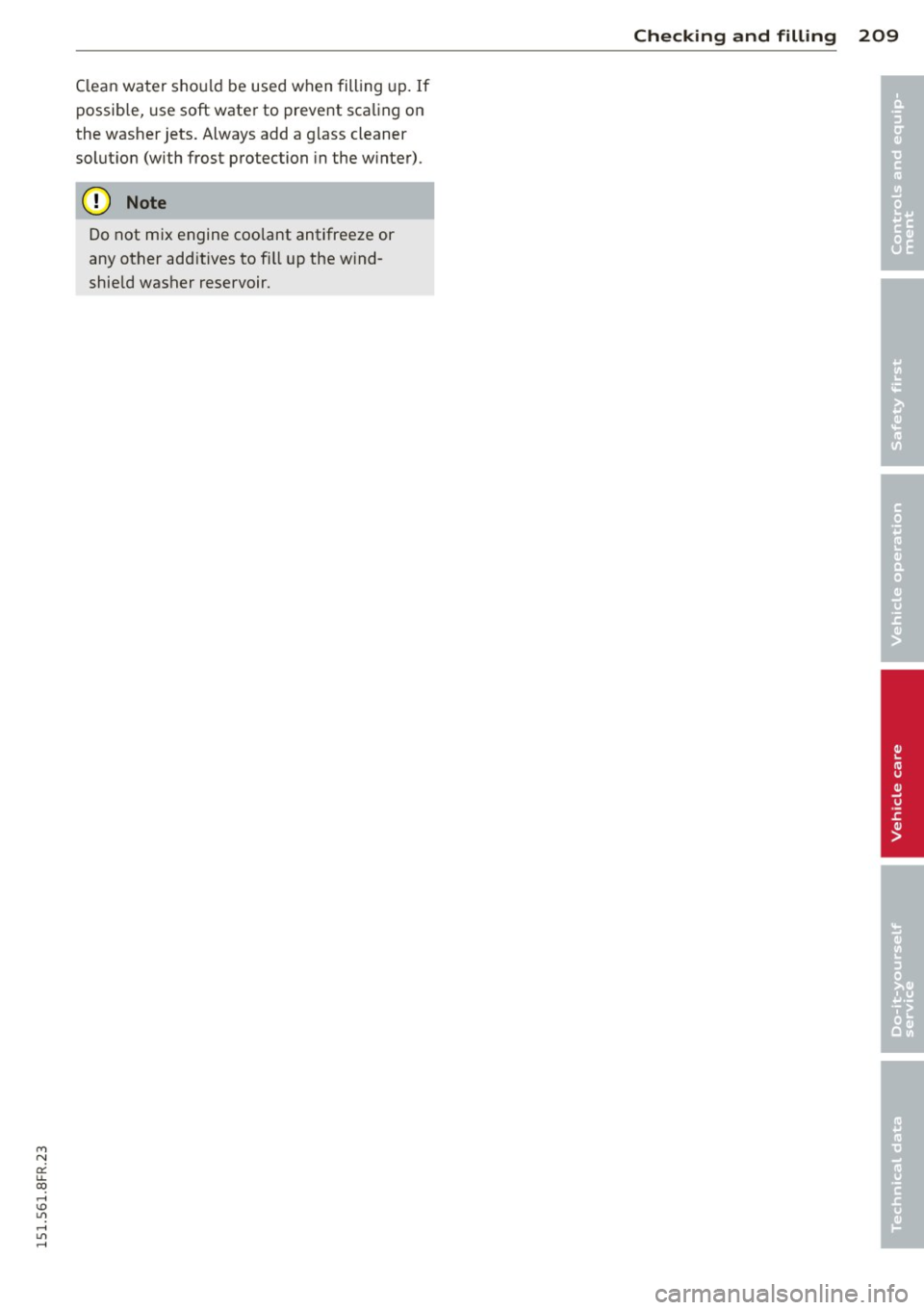

Clean water sho uld be used when filling up. If
possible, use soft water to prevent scaling on
the washer jets. Always add a glass cleaner
solut ion (with frost protection in the w inter).
(D Note
Do not mix engine coo lant antifreeze or
any other add itives to fi ll u p the w ind­
shie ld washer reservoir.
Checkin g and fillin g 209
•
•

M N
er
u..
co ,...., \!) 1.1"1 ,...., 1.1"1 ,....,
Emergency situations
General
This chapter is intended for trained emer­
gency crews and working personnel who have the necessary tools and equipment to
perform these operations.
Starting by pushing or
towing
(D Note
Vehicles with an automatic transmission
cannot be started by pushing or towing.
Starting with jumper
cables
If necessary, the engine can be started by
connecting it to the battery of another vehi­
cle.
If the engine should fail to start because of a
discharged or weak battery, the battery can be
connected to the battery of
another vehicle,
using a
pair of jumper cables to start the en­
gine.
Jumper cables
Use only jumper cables of sufficiently
largecross section to carry the starter current
safely. Refer to the manufacturer's specifica­
tions.
Use only jumper cables with
insulated termi­
nal clamps which are distinctly marked:
plus(+) cable in most cases colored red
minus(-) cable
in most cases colored black .
A WARNING
Batteries contain electricity, acid, and gas.
Any of these can cause very serious or fatal
injury. Follow the instructions below for
safe handling of your vehicle's battery.
- Always shield your eyes and avoid lean­
ing over the battery whenever possible.
Emergency situations 255
-A discharged battery can freeze at tem­
peratures just below 32 °F (0 °C). Before
connecting a jumper cable, you must
thaw the frozen battery completely, oth­
erwise it could explode.
- Do not allow battery acid to contact eyes
or skin . Flush any contacted area with
water immediately .
- Improper use of a booster battery to
start a vehicle may cause an explosion.
- Vehicle batteries generate explosive gas­
es. Keep sparks, flame and lighted ciga­
rettes away from batteries.
- Do not try to jump start any vehicle with
a low acid level in the battery.
- The voltage of the booster battery must
also have a 12-Volt rating. The capacity
(Ah) of the booster battery should not be
lower than that of the discharged bat­
tery. Use of batteries of different voltage
or substantially different "Ah" rating
may cause an explosion and personal in­
jury.
- Never charge a frozen battery. Gas trap­
ped in the ice may cause an explosion.
- Never charge or use a battery that has
been frozen. The battery case may have
be weakened.
- Use of batteries of different voltage or
substantially different capacity (Ah) rat­
ing may cause an explosion and injury.
The ca pa city (Ah) of the booster battery
should not be lower than that of the dis­
charged battery.
- Before you check anything in the engine
compartment, always read and heed all
WARNINGS
c::;,page 195.
(D Note
-Applying a higher voltage booster bat­
tery will cause expensive damage to sen­
sitive electronic components, such as
control units, relays, radio, etc.
- There must be no electrical contact be­ tween the vehicles as otherwise current
could already start to flow as soon as the
positive(+) terminals are connected. ..,. •
•
