(D Tips
Cockpit
34
60
106
64
61
75
72
134 48
138
80
38
40
68
- Some of the equipment or features shown
in the general illustration may be standard
equipment on your vehicle or my be option­
al equipment depending on your mode l.
- A separate brochure is p rovided for your fac­
tory-installed audio system and/or the Audi
Navigation System.
7

Driver information system
Driver information
system
Introduction
The Driver information display inside the instru­
ment cluster provides you, the driver, with im­
portant information.
F ig. 6 Instr um en t cluster: center display
Fig. 7 Wiper lever: controls for the menu display
Center display
With the ignition on, the display in the Driver In­
formation System shows the following informa­
tion :
- CD inserted or Radio station set
- Outs ide temperature: At temperatures below
41 °F (+ S
0
(), a snowflake symbol appears in
front of the temperature display ¢,& .
- Warning when a door, the engine compartment
lid or the trunk lid is not closed.
Additional functions
You can open the following functions in the Driv­
er Information System disp lay by pressing the
I RES ET I button ¢ fig. 7 one or more times:
Digital speedometer*
T ir e pressu re monitoring
¢page 196
20
Trip computer ¢ page 21
Menu display ¢ page 22
Service interval display¢ page 24
Lap timer* ¢page 25
Speed warn ing ¢ page 69
Auto Check Control
Some functions and vehicle components are
scanned for their operating status when you
switch the ignition on and whi le you are driving .
Malfunctions or required service procedures are
signaled audib ly and ind icated by red and yellow
ill uminated symbols and reminders in the dis­
play.
& WARNING -
- Never re ly exclusively on the outside tem­
perature display to determine if a road sur­
face is icy or not. Keep in mind that road sur­
faces, especially bridges and overpasses,
could be ice covered and slippery even at an
outside temperature above 41 °F (+S °C).
-Always remember, even if the "snowflake"
symbol (ice warning) does not appear in the
display, black ice could be on the road.
- Always reduce your speed and drive with
special care in cold weather cond itions when
the chance of encountering icy road surfaces
increases.
(D Tips
On vehicles with Aud i Navigation system, the
displays may differ from their normal appear­
ance during navigation.

Parking system
Parking system
Parking system advanced
Introduction
Applies to vehicles: with park ing system advanced
Ll
I
Fig. 89 Parking mode 1: Reverse park ing
F ig. 90 Parking mode 2: Parallel parking
Ll
I
Vehicles with the parking system are equ ipped
with a
rear view camera in addition to the acous­
tic and visual parking system.
You can choose between two modes to help you
when parking your vehicle. Use "parking mode 1"
when parking in a parking space or garage
c:;, fig. 89. If you are going to be parallel parking,
use "parki ng mode 2"
r=;,fig. 90.
80
General Information
Applies to vehicles: with parking system advanced
Fig. 91 View from top: Rearview camera coverage area
-------.. -..
Fig. 92 Side view: Rearv iew camera cove rage area
Sensors in the bumper
Sensors are located in the front and rear bump­
ers. If these detect an obstacle, audible and visu­
al signals warn you . The range at wh ich the sen­
sors begin to measure is approximately:
side 3 ft (0.90 m)
front center 4 ft (1.20 m)
side 2
ft (0.60 m)
rear center 5 .2 ft (1.60 m)
The closer you get to the obstacle, the shorter
the interval between the audible signals . A con­
tinuous tone sounds when the obstacle is less
than approximately 1 foot (0 .30 meters) away.
Do not continue dr iving farther.
If the distance to an obstacle remains constant,
the volume of the distance warning gradually
drops after about four seconds (this does not ap­
ply in the continuous tone range).
Rear view camera coverage area
The rearview camera shows you the area beh ind
your vehicle in the navigation system display. This..,_

..... N
r-­N "': ..... \!) 1.1'1
N 1.1'1 .....
area roughly corresponds to the area in¢ fig. 91
and (D ~ fig . 92. Orientation lines and colored
surfaces are projected in the area shown, which
can help you with parking and maneuvering. Ob­
jec ts that are located in an area that is not cap­
tured by the camera@¢
fig. 92 and that are
closer to the bumper will not appea r on the navi­
gation system display .
We recommend that you practice park ing with
the rearview camera in a traffic -free location o r
parking lot to become familiar w ith the system,
the orientation lines, a nd their funct ion . There
should be suff icient light and good weather con­
d itions w hen do ing so.
In the nav igat io n system display, objects or
vehicles appear closer or fu rther away if:
Objects or vehicles appear closer or farther away in the navigation system if :
- you are driving in reverse gear from a level sur ­
face onto an incl ine, or a downward slope,
- you are driving in reverse gear toward protrud-
ing objects .
The accuracy o f the orientation lines and blue
surfaces diminishes if:
- the rearv iew came ra does not p rovide a reliab le
image, for example, in poor visibility cond itions
or if the lens is d irty,
- the image on the screen is not visible due to
s u n g lare and reflect ion.
Caring for th e rearvi ew cam era len s
The rearview camera is located in the center of
the vehicle above the rear license p late bracket.
In order for the rearview camera to function
p roperly, the camera lens must be kept clean and
free of snow and ice .
- Dampen the lens with a househo ld alcoho l­
based glass cleane r, and clea n the lens with a
dry cloth .
- Remove snow with a hand brush and ice pref ­
erably with a de- ic ing spray ¢(j) .
A WARNING
- T he pa rking system cannot rep lace the d riv­
er' s a ttention . The d rive r alone is responsi-
P a rk ing system
ble for parking and simi lar d riving maneu­
vers.
- Sensors have blind spots in whic h objects
cannot be detected. Pay spec ia l attention to
small children and an imals beca use the sen­
sors cannot always detect them.
- Always keep your eyes on the vehicle 's sur­
round ings, using the rearview mirror as
well.
- Do not allow yourself to be distracted from
traffic by the rearview camera pictures in
the navigation system display .
-If the position and the installation angle of
the camera has changed, for example, after
a rear end collision, do not continue to use
the system fo r safety reasons . Have it
checked by a n author ized Audi dealer or oth­
er q ua lif ied wor kshop .
(!) Note
-Low obstacles a lready s ignaled by a war ning
can disappea r from the system 's detection
range as they a re approached and w ill not
cont in ue to be s ignaled . Objec ts such as
barrie r cha ins, trailer draw ba rs, narrow
painted vertical poles o r fences may not be
detected by the system, pos ing risk of dam­
age .
- Never use warm or hot wate r to remove
snow or ice from the rearv iew camera lens
because the lens could crack .
- Never use products that a re abrasive when
cleaning the lens .
81

Parking syste m
Switching on /off
App lies to veh icles: w ith park ing system advanced
SPORT •
Fig. 93 Section of the cente r conso l-e : Park ass ist sw itch
F ig . 94 Naviga tio n sys tem display : v isual distance display
Sw itching on
... Switch the navigation system and the nav iga­
tion system display o n .
... Engage the reverse gea r, or
... Press the
!l¾ I switch in the center console
Q fig. 93. A short confirmation tone sounds and
the indicator light in the switch lights up.
Switching betwe en th e rear view c amera and
vi su al d isplay
... Press the Graphic control button ¢ page 83,
fig . 95
to see the visual disp lay .
... Press the
Rea r v iew contro l button to see the
rear view camera image¢
fig. 94.
Switch ing off
... Drive faster than 6 mph (10 km/h), or
... Press the
!P-<. I switch, or
... Switc h off the ignition .
Segments in the visual d isplay
The red segments in front of and be hind the vehi­
cle¢
fig. 94 help you to determine the distance
between you and a n obstacle. As your vehicle
82
comes closer to the obstacle, the segments move
closer to the vehicle . The collision area has been
reached when the next to last segment is dis ­
played. Do not continue driving farther
Q & in
General Information on page 81
!
A WARNING
-The navigation system display cannot show,
or cannot adequately show, certain objects (such as small posts or grating), recesses in
the ground and protrud ing parts on another
car.
- Only use the rearv iew camera to assist you if
it s hows a good, clear pictu re. For examp le,
the image may be affected by t he sun shin ­
ing i nto the lens, dirt oh the lens or if there
is a defect .
(1) Tips
- The sensors m ust be kept clean and free of
snow and ice for the park ass ist to operate.
- Yo u can change the vo lume and pit ch of the
signa ls
Qpage 85.
-What appears in the display is time-delayed.

.... N
l'­
N "1: .... I.O
"' N
"' ....
Reverse parking
Applies to vehicles: with parking system advanced
Parking mode 1 can be used when parking in a
garage or into a parking space .
Fig. 95 Navigation system display : Aiming at a p arkin g
spot
Fig. 96 Naviga tion sy ste m display: Al ig ni ng t he ve hicle
"'Switch the navigation system and the display of
the navigation system on.
"'Select the reverse gear.
"'Turn the steering wheel until the orange orien­
tation lines(!) appear in the parking spot
c> fig. 95. Use the markings @to help you esti­
mate the distance from an obstacle. Each mark­
ing represents 3
ft. (1 m). The blue area repre­
sents an extension of the vehicle's outline by
approximately 16
ft. (5 m) to the rear .
"'While driving in reverse gear, adjust the steer­
ing wheel angle to fit the parking spot with the
aid of the orange orientation lines
c> 0 . ®
marks the rear bumper. Stop the vehicle once
the red orientation line@ touches an object
¢&, .
_& WARNING
-The rearview camera does not show the en­
tire area behind the vehicle
c> page 80,
Parking system
fig. 92. Watch out especially for small chil­
dren and animals. The rear view camera can­
not always detect them, posing risk of an
accident!
- Please note that objects not touching the
ground can appear to be farther away than
they really are (for example, the bumper of
a vehicle or the rear of a truck). In this case,
you should not use the orientation lines to
help with parking, which poses danger of an
accident!
(D Note
In the navigation system display, the direction
of travel of the vehicle rear is represented de­ pending on the steering wheel angle. The ve­
hicle front swings out more than the vehicle
rear. Maintain plenty of distance so that your
outside mirror or a corner of your vehicle does
not collide with any obstacles. This can dam­
age to your vehicle.
83

Parking system

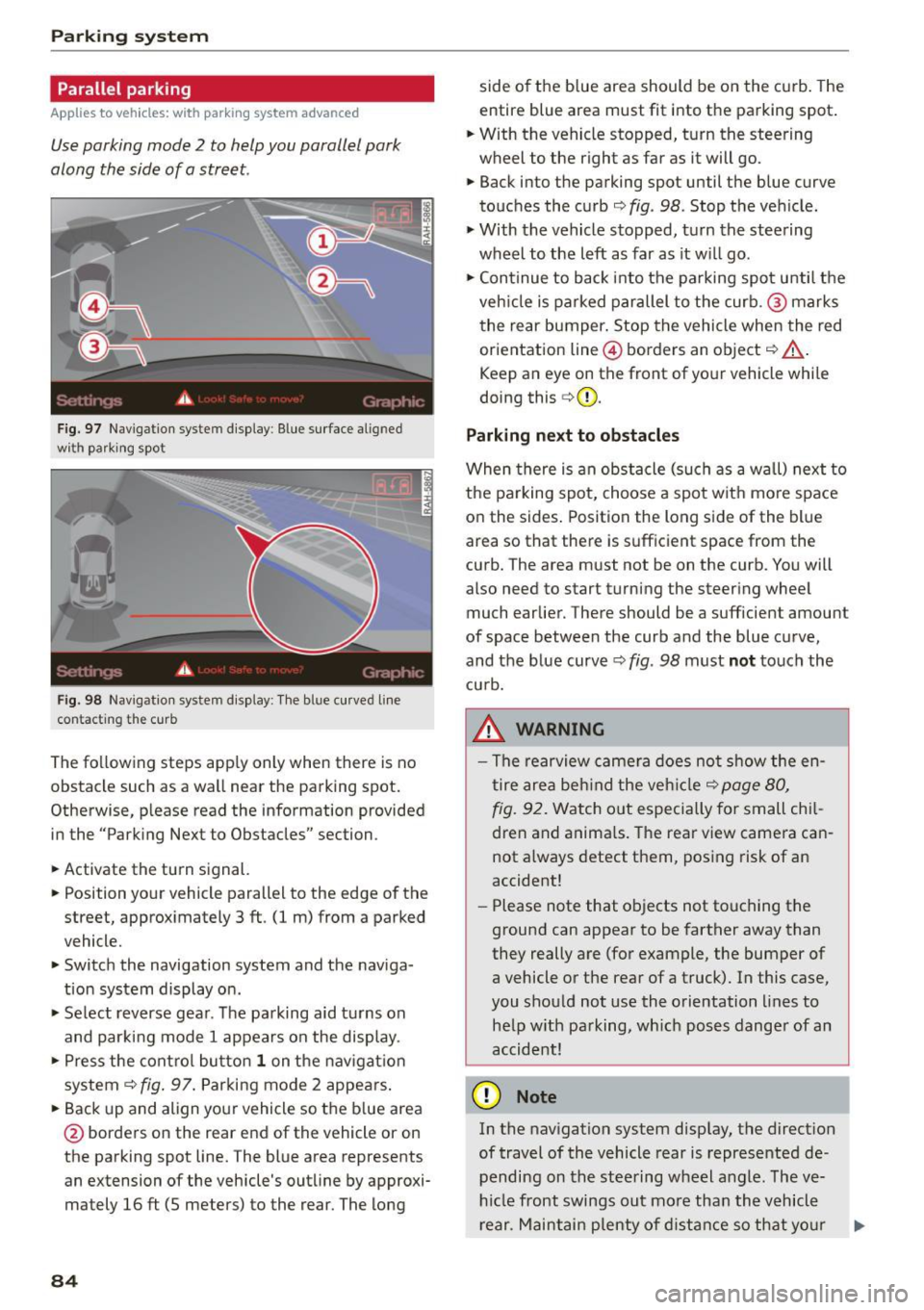

Parallel parking
Applies to vehicles: with parking system advanced
Use parking mode 2 to help you parallel park
along the side of a street.
Fig . 97 Na vigation system d isplay : Blue sur face aligned
wit h parking spot
0
-
Fig. 98 Navigatio n system display: The blue cu rved line
contacting the curb
The following steps app ly only when there is no
obstacle such as a wall near the parking spot.
Otherwise, please read the information provided
in the "Parking Next to Obstacles" section .
• Activate the turn signal.
• Position your vehicle parallel to the edge of the
street, approximately 3 ft . (1 m) from a parked
vehicle.
" Switch the navigation system and the naviga­
tion system display on .
• Se lect reverse gear. The parking aid t urns on
and parki ng mode 1 appears on the display.
• Press the control button
1 on the navigat ion
system
9fig . 97. Parking mode 2 appears.
•B ackup and align your vehicle so the blue area
@ borde rs on the rear end of the vehicle or on
the parking spot line. The blue area represents
an extension of the vehicle's outline by approxi­
mately 16 ft (5 meters) to the rear. The long
84
side o f the b lue area should be on the curb . The
entire blue area must fit into the parking spot .
"W ith the vehicle stopped, turn the steering
wheel to the right as far as it will go.
• Back into the parking spot until the blue curve
touches the curb
9 fig . 98. Stop the veh icle .
" With the vehicle stopped, turn the steering
wheel to the left as far as it wi ll go .
• Con tinue to back into the parking spot until the
veh icle is parked parallel to the curb .@ marks
the rear bumper. Stop the vehicle when the red
orientation line@ borders an object
9 ,&.
Keep an eye on the front of yo ur vehicle while
doing this
c> (D.
Parking next to obstacles
When there is an obstacle (such as a wall) next to
the parking spot, choose a spot with more space
on the sides . Position the long side of the blue
area so that there is sufficient space from the
curb. The area must not be on the curb . You will
also need to start turning the steering wheel
much earlier. There should be a sufficient amoun t
of space between the curb and the blue curve,
and the blue curve¢
fig. 98 must not touch the
cu rb.
_& WARNING
- The rearview camera does not show the en­
tire area behind the vehicle
c> page 80,
fig .
92. Watch out especially for small chil­
dren and animals. Th e rear view camera can­
not a lways detect them, posing risk of an
accident!
- Please note that objects not touching the
ground can appear to be farther away than
they really are (for example, the bumper of
a vehicle or the rear of a truck). In this case,
you should not use the orientation lines to
he lp with parking, wh ich poses danger of an
accident!
(D Note
In the navigation system disp lay, the direction
of travel of the vehicle rear is represented de­
pending on the steering wheel angle. The ve­
hicl e front swings out more than the vehicle
rear . Maintain plenty of distance so that your
lllJ,,
