2015 AUDI A8 ESP

,....,
N ,....,
N
0 J:
'SI: ,...., \!) 1.1'1 ,...., 1.1'1 ,....,
& WARNING
Improper care, servicing and repair proce­
dures can increase the risk of personal in­
jury and death by preventing an airbag from deploying when needed or deploying an airbag unexpectedly:
- Never cover, obstruct, or change the steering wheel horn pad or airbag cover
~r the instrument panel or modify them
in anyway .
- Never attach any objects such as cup
holders or telephone mountings to the
surfaces covering the airbag units .
- For cleaning the horn pad or instrument
panel, use only a soft, dry cloth or one
moistened with plain water. Solvents or
cleaners could damage the airbag cover
or change the stiffness or strength of the
material so that the airbag cannot de­
ploy and protect properly.
- Never repair, adjust, or change any parts
of the airbag system.
- All work on the steering wheel, instru­
ment panel, front seats or electrical sys­
tem (including the installation of audio
equipment, cellular telephones and CB
radios, etc.) must be performed by a
qualified technician who has the training
and special equipment necessary.
- For any work on the airbag system, we
strongly recommend that you see your authorized Audi dealer or qualified work­
shop .
- Never modify the front bumper or parts
of the vehicle body .
- Always make sure that the side airbag can inflate without interference:
- Never install seat covers or replace ­
ment upholstery over the front seat­
backs that have not been specifically
approved by Audi.
- Never use additional seat cushions that
cover the areas where the side airbags
inflate.
- Damage to the original seat covers or
to the seam in the area of the side air­
bag module must always be repaired
Airbag system 165
immediately by an authorized Audi
dealer.
- The airbag system can be activated only
once . After an airbag has inflated, it
must be replaced by an authori zed Audi
dealer or qualified technician who has
the technical information, training and
special equipment necessary.
- The airbag system can be deployed only
once . After an airbag has been deployed,
it must be replaced with new replace­
ment parts designed and approved espe­
cially for your Audi model version . Re­
placement of complete airbag systems
or airbag components must be per­
formed by qualified workshops only. Make sure that any airbag service action
is entered in your Audi Warranty
& Main­
t enance booklet under
AIRBAG REPLACE­
MENT RECORD .
-For safety reasons in severe accidents,
the alternator and starter are separa ted
from the vehicle battery with a pyrotech ­
nic circuit interrupter .
- Work on the pyrotechnic circuit inter­
rupter must only be performed by a
qualified dealer -risk of an accident!
- If the vehicle or the circuit interrupter
is scrapped , all applicable safety pre­
cautions must be followed.
@ For the sake of the environment
Undeployed airbag modules and preten­
sioners might be classified as Perchlorate
Material -special handling may apply, see
www .dtsc .ca. gov/hazard o u swaste/ per­
chlorate . When the vehicle or parts of the
restraint system including airbag modules
and safety belts with pretensioners are
scrapped, all applicable laws and regula­
tions must be observed. Your authorized
Audi dealer is familiar with these require­
ments and we recommend that you have
your dealer perform this service for you.
•
•

168 Airbag system
Fully inflated airbags in combination with
properly worn safety belts slow down and lim­
it the occupant's forward movement and help
to reduce the risk of injury.
Important safety instructions on the
knee airbag system
Airbags are only supplemental restraints. Al­
ways wear safety belts correctly and ride in a
proper seating position.
There is a lot that you and your passengers
must know and do to help the safety belts and
airbags to provide supplemental protection .
A WARNING
An inflating knee airbag can cause serious
injury. Wearing safety belts incorrectly and
improper seating positions increase the
r isk of serious personal injury and death
whenever a vehicle is being used .
- The knee airbag system cannot protect
you properly if you are seated too close
to any of the airbag locations. When ad­
justing their seat positions, it is impor­
tant that both the driver and the front passenger keep their upper bodies and
knees at the following minimum safe
distances:
- at least 10 inches (25 cm) between the
chest and the steering wheel/instru­
ment panel.
- at least 4 inches (10 cm) between the
knees and the lower part of the instru­
ment panel.
- T he risk of personal injury increases if
you lean forward or to the side, or if the seat is improperly positioned and you are
not wearing your safety belt. The risk in­
creases even more should the airbag de­
ploy.
- Always make sure that the knee airbag
can inflate without interference. Objects
between you and the airbag can increase
the risk of injury in an accident by inter­
fering with the way the airbag dep loys or by being
pushed into you as the airbag
deploys.
- Never let anybody, especially children
o r anima ls ride in the footwell in front
of the passenger seat. If the airbag de­
ploys, this can result in serious or fatal
injuries.
- Never carry objects of any kind in the
footwell area in front of the driver's or
passenger's seat. Bulky objects (shop­
ping bags, for example) can interfere
with or prevent proper deployment of
the airbag. Small objects can be
thrown through the vehicle if the air­ bag deploys and injure you or your pas­
sengers.
- Make sure there are no cracks, deep scratches or other damage in the area of
the instrument panel where the knee air­
bags are located.
- If children are incorrectly seated, their
risk of injury increases in a collision
~page 174, Child Safety.
Side airbags
Description of side airbags
The airbag system can provide supplemental
protection to properly restrained occupants.
Fig. 171 S id e airbag location in the driver's seat
The side airbags are located in the sides of the
front seat backrests
¢ fig . 171 and the rear
backrest facing the doors. They are identified
by the word "AIRBAG".
The side airbag system basically consists of:
-the electronic control module and external
side impact sensors

1 7 0 Airbag system
How supplemental side airbags work
Side airbags deploy instantly and con help re­
duce the risk of upper torso injuries for occu­
pants who ore properly restrained.
Fi g. 1 72 Infla ted s ide airbags o n left side of ve hicle,
r ea r side a irbag
When the system is triggered, the airbag is
fil led with propellant gas and breaks through
a seam in the seat surface area marked "AIR­
BAG".
It expands between the side trim panel
and the passenger. In order to help prov ide
this additiona l prote ction, the side a irbag
must inf late within a fraction of a second at
very high speed and with great force. The sup­
p lemental side a irbag co uld injure you if your
seating position is not proper or upright or if
items are located in the area where the sup­
plemental side a irbag expands . Th is applies
espec ially to childre n
c::> page 174, Child Safe­
ty .
Supplementa l s ide airbags inflate between
the occupant and the doo r pane l on the side
of the vehicle that is struck in ce rtain side col­
lision
c::> fig . 172.
A lthough they a re not a soft pillow, they can
" cushion" the impact and in th is way they can
he lp to reduce the r isk of injury to the upper
part of the body.
A fine dust may develop when the airbag de­ p loys. This is no rmal and does not mean there
is a fire in the vehicle.
Important safety instructions on the
side airbag system
Airbags ore only supplemental restraints . Al­
ways properly wear safe ty belts and ride in a
proper seating position.
The re is a lot that you and your passengers
must know and act accord ingly to help the
safe ty belts and airbags do their job to pro­
vide supplementa l protect ion .
A WARNING
An inflating side ai rbag can cause serious
or fata l injury. Improperly weari ng safety
belts and improper seating positions in­
crease the risk of serious personal injury
and death whenever a vehicle is being
used .
- In order to reduce the risk of inj ury when
the supplemental side airbag inflates:
- Always sit in an upright posi tion and
never lea n aga inst the a rea whe re the
s u ppleme nta l side air bag is located .
- Never let a child or a nyone e lse rest
t h eir head aga inst the s ide trim pane l
in the area where the supplementa l
side airbag inflates.
-A lways make sure tha t safety be lts a re
worn correctly,
- Do no t let anyone s itting in the fron t
seat put t hei r hand or any ot her parts
of their body out of the win dow.
-Always make sure that the side airbag can inf late without interference.
- Neve r install seat covers or rep lace ­
ment upholstery over th e front seat­
backs that have not been specifically
approved by Audi.
- Neve r use additional seat c ushions that
cove r the areas where the side a irbags
deploy.
- Damage to the orig inal seat cove rs or
to t he seam in the area of the si de a ir­
bag module mus t always be repaired
i mmediately by a n author ized Audi
dealer.

,....,
N ,....,
N
0 J:
'SI: ,...., \!) ..,.,
,...., ..,., ,....,

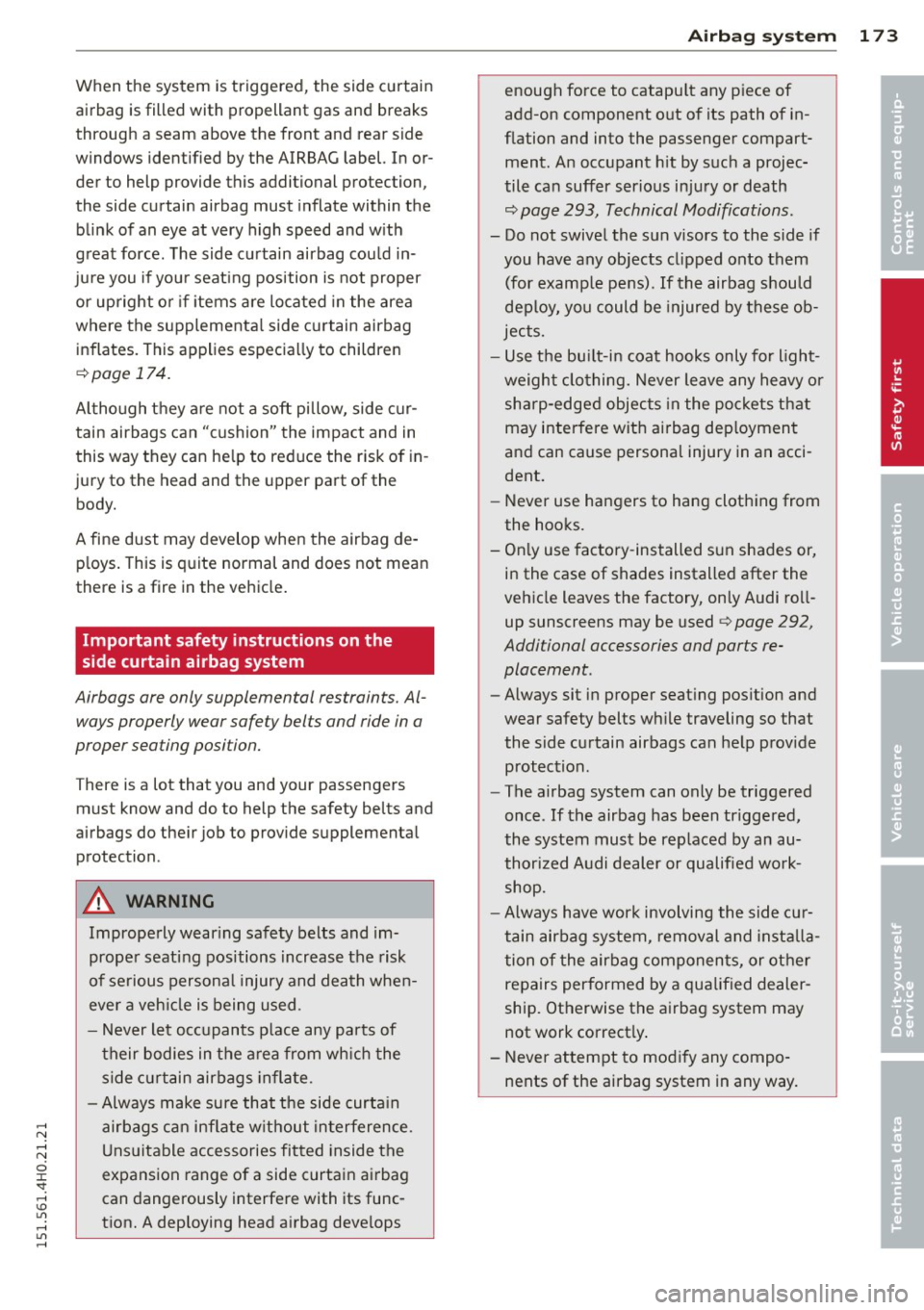

When the system is triggered, the side curtain
airbag is filled with propellant gas and breaks
through a seam above the front and rear side
windows identified by the AIRBAG label. In or­ der to help provide this additional protection,
the side curtain airbag must inflate within the
blink of an eye at very h igh speed and w ith
great force. The side curtain airbag cou ld in­
jure you if you r seat ing position is not proper
or upright o r if items are located in the area
where the supplementa l side curtain airbag
inflates. This applies espec ia lly to children
¢ page 174.
Although they are not a soft pillow, side c ur­
tain airbags can "cushion" the impact and in
this way they can he lp to reduce the risk of in ­
jury to the head and the upper part of the
body.
A fine dust may develop when the airbag de ­
p loys . This is q uite normal and does not mean
there is a fire in the vehicle .
Important safety instructions on the
side curtain airbag system
Airbags are only supplemental restraints. Al­
ways properly wear safety belts and ride in a
proper seating position.
There is a lot that you and your passengers must know and do to help the safety belts and
airbags do the ir job to provide supplementa l
protection .
A WARNING
-
Improperly wear ing safety belts and im­
prope r seating positions increase the risk
of serious personal injury and dea th when­
ever a veh icle is being used.
- Never let occ upants p lace any parts of
their bodies in the a rea from wh ich the
side curt ain airbags infla te.
- Always make sure that the side curta in
airbags can inflate w ithout interference.
Uns uitable accessories fitted inside the
expansion range of a side curta in airbag
can dangerously interfere with its func­
t ion. A deploying head a irbag deve lops
A irbag system 173
enough force to catapu lt any p iece of
add-on component o ut of its path of in­
flation and into the passenger compart­ ment. An occupant h it by such a projec­
tile can suffer serio us in ju ry or death
c:!;> page 293, Technical Modifications.
- Do not swive l the sun visors to the side if
you have any objects clipped onto them (for examp le pens). If the airbag should
deploy , you could be injured by these ob­
jects.
- Use the bu ilt-in coat hooks only for light­
weight clo thing. Never leave any he avy or
sharp-edge d objects in the pockets that
may interfere with ai rbag dep loyment
and can cause personal injury in an acci­
dent .
- Never use hangers to hang cloth ing from
the hooks.
- On ly use factory -installed sun shades or,
in the case of shades installed after the
veh icle leaves the factory, only Audi roll­
up sunscreens may be used
¢ page 292,
Additional accessories and parts re­
placement .
-Always sit in proper seat ing pos ition and
wear safety belts wh ile traveling so that
the side curtain airbags can he lp p rov ide
protection.
- The airbag system can only be triggered
once . If the airbag has been triggered,
the system must be rep laced by an au­
thori zed A udi dealer or qualified work­
shop.
- Always have work involving the side cu r­
tain airbag system, removal and insta lla ­
tion of the air bag components, or other
re pairs per formed by a qualified dealer­
ship. Otherwise the airbag system may not work correct ly .
- Never attempt to mod ify any compo ­
nents of the airbag system in any way.
•
•

174 Child Saf ety
Child Safety
Important things to
know
Introduction
The rear seat is generally the safest place in a
collision.
The physical principles of what happens when
your veh icle is in a crash app ly also to chi ldren
~ page 144, What happens to occupants not
wearing safety belts?.
But unlike adults and
teenagers, their muscles and bones are not
fu lly developed. In many respects children are
at greater risk of serious injury in crashes than
adults.
Because children's bodies are not fully deve l­
oped, they require restraint systems especial­
ly designed for their size, weight, and body
structure. Many countries and all states of the
United States and provinces of Canada have
laws requiring the use of approved child re­
straint systems for infants and small ch ildren.
In a fronta l crash at a speed of 20 -35 mph
(30-56 km/h) the forces acting on a 13-pound
(6 kg) infant w ill be more than 20 t imes the
weight of the child. This means the weight of
the child would suddenly be more than 260 pounds (120 kg). Under these conditions,
only an appropriate ch ild restraint properly
used can reduce the risk of ser ious injury.
Child restraints, like adult safety belts, must
be used properly to be effective. Used improp­
erly, they can increase the risk of serious in­
jury in an accident.
Consult the child safety seat manufacturer's instructions in order to be sure the seat is
right for your ch ild's size ~
page 177, Impor­
tant safety instructions for using child safety
seats.
Please be sure to read and heed all of
the important information and WARNINGS
about child safety, Advanced A irbags, and the
installation of child restraints in this chapter .
There is a lot you need to know about the Ad­
vanced Airbags in your vehicle and how they
work when infants and children in child re- straints are on the front passenger seat
. Be­
cause of the large amount of important infor­
mation, we cannot repeat it all here . We urge
you to read the detailed information in this
owner's manual about airbags and the Ad­
vanced Airbag System in your vehicle and the
very important information about transport­
ing children on the front passenger seat.
Please be sure to heed the WARNINGS -they
are extremely important for your safety and
the safety of your passengers, especially in­
fants and small children.
A WARNING
-Accident statistics have shown that chil­
dren are generally safer in the rear seat
area than in the front seating position.
Always restrain any child age 12 and un­
der in the rear.
- All vehicle occupants and especially chil­
dren must be restrained properly when­
ever riding in a vehicle. An unrestrained
or improperly restrained chi ld could be
injured by str iking the i nterior or by be­
ing ejected from the vehicle during a
sudden maneuver or impact. An unre­
strained or improperly restrained chi ld is
also at greater risk of injury or death
through contact with an inflating airbag.
- A suitable chi ld restraint properly instal ­
led and used at one of the rear seating positions provides the highest degree of
protection for infants and small children
in most accident situations.
A WARNING ,_
Children on the front seat of any car even
with Advanced Airbags can be ser iously in­
jured or even killed when an airbag in­
flates. A child in a rearward-facing child
safety seat installed on the front passen­
ger seat will be ser iously injured and can
be killed if the front airbag inflates.
- The inflating airbag will hit the child
safety seat or infant carrier with great
force and will smash the child safety seat and child against the backrest, center
armrest, or door.
II>-

.... N .... N
0 J:
-st: .... \!) 1.1"1
.... 1.1"1 ,-0
-Always install rear-facing child safety
seats on the rear seat.
- If you must install a rearward facing
child safety seat on the front passenger
seat in exceptional circumstances and
the
PASSENGER AIR BAG OFF light does
not come on and stay on, immediately
install the rear-facing child safety seat in
a rear seating position and have the air­
bag system inspected immediately by
your Audi dealer.
_& WARNING
If, in exceptional circumstances, you must
install a forward-facing child restraint on
the front passenger's seat:
- Always make sure the forward-facing
seat has been designed and certified by its manufacturer for use on a front seat
with a passenger front and side airbag.
- Always follow the manufacturer's in­
structions provided with the child safety
seat or carrier.
- Always move the passenger seat into its
rearmost position in the seat's fore and
aft adjustment range, as far away from
the airbag as possible before installing
the child restraint. The backrest must be adjusted to an upright position .
- Always make sure that the
PASSENGER
AIR BAG OFF
light comes on and stays
on all the time whenever the ignition is
switched on.
(D Tips
Always replace child restraints that were
installed in a vehicle during a crash. Dam­
age to a child restraint that is not visible
could cause it to fail in another collision
situation.
Advanced front airbag system and children
Your vehicle is equipped with a front "Ad­
vanced Airbag System" in compliance with United States Federal Motor Vehicle Safety
Child Safety 175
Standard (FMVSS) 208 as applicable at the
time your vehicle was manufactured.
The Advanced Airbag system in your vehicle
has been certified to meet the "low-risk" re­
quirements for 3- and 6-year old children on
the passenger side and small adults on the driver side. The low risk deployment criteria
are intended to reduce the risk of injury
through interaction with the airbag that can
occur, for example, by being too close to the
steering wheel and instrument panel when
the airbag inflates . In addition, the system
has been certified to comply with the "sup­
pression" requirements of the Safety Stand­
ard, to turn off the front airbag for infants up
to 12 months who are restrained on the front
passenger seat in child restraints that are list­
ed in the Standard.
Even though your vehicle is equipped with an
Advanced Airbag system, all children, espe­ cially those 12 years and younger, should al­
ways ride in the back seat properly restrained
for their age and si ze. The airbag on the pas­
senger side makes the front seat a potentially dangerous place for a child to ride . The front
seat is not the safest place for a child in a for­
ward-facing child safety seat. It can be a very
dangerous place for an infant or a larger child
in a rearward-facing seat .
Advanced Airbags and the weight­
sensing mat in the front seat
The Advanced Airbag System in your vehicle
detects the presence of an infant or child in a
child restraint on the front passenger seat us­
ing the weight -sensing mat in the seat cush­
ion and the sensor below the safety belt latch
on the front passenger seat that measures the
tension on the safety belt.
The weight -sensing mat measures total
weight of the child and the child safety seat
and a child blanket on the front passenger seat. The weight on the front passenger seat
is related to the design of the child restraint
and its "footprint", the size and shape of the
bottom of the child restraint as it sits on the ..,.
•
•

,....,
N ,....,
N
0 J:
'SI: ,...., \!) 1.1'1 ,...., 1.1'1 ,....,
Model Manufactured on or
after
Evenflo First Choice December 1, 1999
204
Graco Infant 8457 December 1, 1999
Graco Snugride September 25, 2007
Peg Perego Primo Vi- September 25, 2007
aggio SIP IMUN00US
Subpart C - Forward-facing and
convertible child restraints
Model Manufactured on or
after
Britax Roundabout September 25, 2007
E9L02xx
Cosco Touriva 02519 December 1, 1999
Cosco Summit Deluxe September 25, 2007
H igh Back Booster
22-262
Cosco High Back September 25, 2007
Booster 22-209
Evenflo Tribute V September 25, 2007
379xxxx
Evenflo Medallion December 1, 1999
254
Evenflo Generations September 25, 2007
352xxxx
Graco Comfo rtSport September 25, 2007
Graco Toddler Safety September 25, 2007
Seat Step 2
Graco Platinum Cargo September 25, 2007
A WARNING
To reduce the risk of serious injury, make
sure that the
PASSENGER AIR BAG OFF
light comes on and stays on whenever a
child restraint is installed on the front pas­
senger seat and the ignition is switched
on.
- Take the child restraint off the front pas­
senger seat and install it properly at one
of the rear seat positions if the
PASSEN­
GER AIR BAG OFF
light does not stay on.
Child Safety 177
-Have the airbag system inspected by
your author ized Audi dealer immed iate­
ly.
@ Tips
The child seats listed in categories A to C
have been statically tested by Audi on ly for
the Advanced Airbag function.
Important safety instructions for using
child safety seats
Correct use of child safety seats substantially
reduces the risk of injury in an accident!
As the driver, you are responsib le for the safe­
ty of everybody in the veh icle, especially ch il­
dren:
... Always use the right chi ld safety seat for
each child and always use it properly
¢page 180.
... Always carefully follow the child safety seat
manufacturer's instruct ions on how to route
the safety belt properly through the child
safety sea t .
... When using the vehicle safety belt to install
a child safety seat, you must first activate
t he convertible locking retractor on the
safety belt to prevent the child safety seat
from moving
¢ page 184.
... Push the ch ild safety seat down with yo ur
full weight to get the safety belt really tight
so that the seat cannot move forward or
sideways more than one inch (2 .5 cm) .
... If a strap or tether is be ing used to tie the
child safety seat to the front passenger
seat, make sure that it is not so tight that it
causes the weight-sens ing mat to measure
more weight than is actually on the seat.
... Secure unused safety belts on the rear seat
¢page 179.
Always remember: Even though your vehicle is
equipped with an Advanced Airbag system, all
c hild ren, especially those 12 years and young ­
er, shou ld always r ide in the back seat proper-
ly restrained for the ir age and size. ..,. •
•

178 Child Safety
&_ WARNING
Not using a child safety seat, using the
wrong child safety seat or improperly in­
stalling a child restraint increases the risk
of serious personal injury and death .
-All vehicle occupants and especially chil ­
dren must always be restrained properly
whenever riding in a vehicle.
-
- An unrestrained or improperly restrain­
ed child can be injured or killed by be­
ing thrown against the inside of the ve­
hicle or by being ejected from it during
a sudden maneuver or impact .
- An unrestrained or improperly restrain­
ed child is at much greater risk of injury
or death by being struck by an inflating
airbag.
- Commercially available child safety seats
are required to comply with U.S. Federal
Motor Vehicle Safety Standard (FMVSS)
213 (in Canada CMVSS 213).
- When buying a child restraint, select
one that fits your child and the vehicle.
- Only use child restraint systems that
fully contact the flat portion of the
seat cushion. The child restraint must not tip or lean to either side. Audi does
not recommend using child safety
seats that rest on legs or tube -like
frames . They do not provide adequate
contact with the seat.
-Always heed all legal requirements per­
taining to the installation and use of
child safety seats and carefully follow
the instructions provided by the manu­
facturer of the seat you are using.
- Never allow children under 57 inches
(1.45 meters) to wear a normal safety
belt. They must always be restrained by a
proper child restraint system. Otherwise,
they could sustain injuries to the abdo­
men and neck areas during sudden brak­
ing maneuvers or accidents.
- Never let more than one child occupy a
child safety seat . -
Never let babies or older children ride in
a vehicle while sitting on the lap of an­
other passenger .
- Holding a child in your arms is never a
substitute for a child restraint system.
- The strongest person could not hold
the child with the forces that exist in
an accident. The child will strike the in­
terior of the vehicle and can also be
struck by the passenger.
- The child and the passenger can also
injure each other in an accident.
- Never install rear-facing child safety
seats or infant carriers on the front pas­
senger seat. A child will be seriously in­
jured and can be killed when the passen­
ger airbag inflates -even with an Ad­
vanced Airbag System .
- The inflating airbag will hit the child
safety seat or infant carrier with great
force and will smash the child safety seat
and child against the backrest, center
armrest, door or roof.
-Always install rear-facing child safety
seats or infant carriers on the rear seat .
- Forward-facing child safety seats instal­
led on the front passenger's seat can in­
terfere with the airbag when it inflates
and cause serious injury to the child. Al­
ways install forward-facing child safety
seats on the rear seat.
- If exceptional circumstances require the
use of a forward-facing child restraint on
the front passenger's seat, the child's
safety and well-being require that the
following special precautions be taken :
- Make sure the forward-facing seat has
been designed and certified by its man­
ufacturer for use on a front seat with a
passenger front and side airbag.
-Always carefully follow the manufac­
turer's instructions provided with the child safety seat or carrier.
- Always move the front passenger seat
into the rearmost position of the pas­
senger seat's fore and aft adjustment range, and as far away from the airbag
