26 Instruments and warning /indicator lights
Efficiency program
App lies to vehicles: with efficiency program
Fig . 9 Tri p com puter: ot her equipment
Fig. 10 D isplay: example of a f uel eco no m y message
The effic iency program can help you to use
l ess fuel.
It shows other eq uipment influenc­
ing consumpt ion and fue l economy messages
p rov ide tips f or efficient driv ing . The efficiency
prog ram uses distance a nd consumption data
from tr ip compute r
1.
To display the efficiency program, ca ll up Ve­
hicle functions
and select the menu option
Efficiency program .
Other equipment
Other equipment that is currently affecting
fuel consumption is listed in t he v iew
Con ­
sumer .
The display shows up to three other
items of equipment @¢
fig. 9. The equip ­
ment us ing the most fuel is listed f irst . If
mo re than three it ems using fue l ar e swit ch ed
on, the eq uip ment th at is cur ren tly using the
most fuel is d isp laye d.
A scale @also shows the cu rrent total con­
sumpt ion of all other equ ipme nt.
Fuel economy messages
F ue l economy messages are disp layed when
fue l consumption is increased by certain con- di
tions ¢
fig. 10 . If you follow these fuel
economy messages, you can reduce you r vehi­
cle's consumpt io n of fuel. The messages ap ­
pear automatically and are on ly disp layed in
t h e efficiency program . The f uel economy
messages tu rn
off automatically after a cer ­
ta in period of ti me.
To turn an economy message
off i mmediately
after it appears, press any button on t he mul­
t if u nct ion steer ing whee l.
@ Tips
- If the data are deleted in the efficiency
program , those values a re a lso reset i n
t rip computer.
- Once you have turned a fuel economy
message
off, it will on ly appear agai n af­
ter you turn the ig nition on again .
- The f uel economy messages are not dis­
played in every instance, but rather in in ­
t ervals over a period of time .
Odometer
Fig. 11 Instrume nt cluster O do m eter a nd r eset button
The odometer shows you how many m iles
(k ilomete rs) you have drive n. You can switch
the d isplay from miles to ki lometers and v ice
versa via the MMI.
Upper odometer
The trip odometer shows the distance driven
since it was last reset . It can be used to meas­
u re s hort dista nces . The last digit indicates
1/10 of a mile (100 meters).
You can reset the trip odometer to zero by pressing the Reset button~-

Instruments and warning/indicator lights 2 7
Lower odometer
The lower odometer shows the total number
of miles (kilometers) driven.
Malfunction message
If there is a malfunction in the instrument
cluster ,
DEF will appear in the trip odometer
display area. Contact your authorized Audi
dealer to have the problem corrected.
Time and date display
Fig. 12 Center console : analog cloc k
The date and time are shown in the instru­
ment cluster display ¢
page 23, fig. 4. There
is also an analog clock in the center console
¢fig. 12.
When you open the driver's door, the date and
time appear in the instrument cluster display
for 30 seconds. When the ignition is switched
on, the time is always displayed in the status
line © regardless of the current display.
You can set the time on both clocks and the
date display in the MMI. Refer to the MMI
owner's manual for instructions.
Service interval display
The service interval display reminds you when
your next service is due .
Fig. 13 Instrume nt cluster: Serv ice interva l dis play
The schedule for the next oil change or inspec­
tion is calculated automatically and displayed
accordingly. The display works in two stages:
Service reminder
30 days before the next service is due, a serv­
ice reminder appears in the display when you
switch the ignition on¢
fig. 13.
After about 5 seconds the display switches
back to normal. The distance and time re­
maining are updated each time the ignition is
switched on until the date due for service is
reached.
Service due
When the due date for service is reached, the
message
Service due! appears in the instru­
ment cluster immediately after you switch the
ignition on. Additionally, a warning tone
sounds. After about 5 seconds the display
switches back to normal.
Calling up the service schedules
If or when an oil change or inspection is due,
can be shown in the MMI display by selecting
the service interval display in the car menu.
Select the
I CAR I function button > Car sys­
tems control button > Servicing & checks >
Service interval displays .
Resetting the service interval display
Your authorized Audi dealer will reset the cor­
responding service schedule after performing ..,_

28 Instruments and warning /indicator lights
the app rop riate serv ice on yo ur vehicle. Yo u
a lso have the possibility to reset the oil
change sched ule after having performed an
oil change accord ing to Audi specifications.
Select the
! CAR ! function button> Car sys ­
tems
co ntrol button > Servicing & checks >
Service Intervals > Re set oil change interval.
(D Note
- Only reset the o il change d isp lay when
you hav e completed an o il chang e.
- If you d isconnect t he battery term inals,
no calculations can be made for the serv­
i ce i nterva l display du ring this t ime and
n o s ervi ce rem ind er w ill appea r. Remem­
be r that ob se rvi ng the pr ope r se rvice in ­
te rv als is vitally impor ta nt t o extendi ng
the life o f yo ur vehicle, p articula rly th e
engine, an d main tainin g its va lue . Even i f
the mileage dr iven is low, t he max imum
p eriod of one year from one se rv ice to
the next must n ot be e xceeded.
@ Tips
- The information in the Service Reminder
r ema ins sto red even when the vehicle
batte ry is disconnected .
Head-up Display
Applies to vehicles: with Hea d-up Display
Fig. 14 Examp le: in di cato rs in the Head-up Disp lay
Fig . 15 Instrument pa nel: k nob fo r the Head -up D is ­
p lay
T he Head -up Disp lay projec ts cer tain warnings
or se lected information from the ass istance
systems * or navigation* on the windshie ld.
The display appea rs within t he driver's field of
vision.
Switching on /off
.,. Press the knob~ to switch t he Head -up
Display on/off ¢
fig. 15.
Adjusting the height
The heig ht of th e d is p lay can be adju sted to
t h e i nd ividua l dr ive r.
.,. Mak e s ure you are s eated co rre ctly
co page 134.
.,. Tur n th e kn ob~ to adjust t he di sp lay.
Settings in the MMI
.,. Select: !CARI function button> ( Car) * sys­
tems
co ntrol button > Driver Assist > Head­
up Di splay
> Head-up Display content o r
Di splay brightness .
Display content
In the MMI, you can spec ify w hich information
shou ld be disp layed such as nav igat io n in for­
mation* or Night v is io n assis tant* .
The speed disp lay and some of the red i nd ica­
tor lights cannot be hidden in the MMI.
Display brightness
Y ou can adjust the disp lay br ig ht ness in the
MMI. The d isp lay brightness decreases a uto ­
matically as the amount of light decreases.
The basic level of br ightness is adjusted w ith
t h e instr ume nt ill uminati on
co page 51 . ..,.

Instrument s and warning /indicator lights 29
(D Note
To prevent sc ratches on the g lass covering
the Head-up Disp lay, do not place any ob ­
jects i n the projection opening.
(D} Tips
- Sunglasses with polarizat ion fi lters and
u nfavo rable lighting condit ions can af­
fect the display.
- A specia l windshield is needed for the
Head-up Display funct ion .
- Fo r information on cleaning, refe r to
c:!) table on page 216.
Open door/hood/rear lid warning
Fig. 16 Dis play: door s and rear lid o pe n
W ith the ignition swi tched on , the w arning il ­
l um ina tes when at le ast
one d oor or the hood
or the rear lid is not closed . The symbol also
shows you
which door(s) or lid is not closed.
I n the illus trati on
Q fig. 16 it i s the drive r's
door and the left rear door.
On-Board Diagnostic
system (OBD)
Malfunction Indicator Lamp (MIL)
The Malfunction In dica tor Lamp (M IL) ¢..ifl in
the ins trument clus ter is part of the On-B oard
D iagnostic (OB D II) system .
The warning/ind icator l ight illum ina tes when
the ign ition is switc hed o n and goes o ut afte r
the eng ine starts and the idle has stabilized.
This indicates that t he MIL is working proper ·
Ly .
If the light does not go out afte r th e engine
is starte d, or illumi nates while you are driv­
i ng , a mal function may e xist in the eng ine sys ­
tem .
If the light illumi nate s, the catalytic con­
verter could be d amaged .
Contin ue d riving
with reduced power (avo id­
i ng s usta ined h igh speeds and/or rapid accel ­
erations) and have the cond ition corrected .
Contact your authori zed Audi dea ler.
If the light illuminates, the electronic speed
li miter may also be malfunct ioning. For more
i nformation
Q page 30, Elec tronic speed
limiter.
An imprope rly closed fuel fille r cap may a lso
ca use the MIL light to ill uminate
~ page 223.
On-Board Diagnostics
Fig. 17 Locat io n of Data Link Co nn ector (D LC)
On- Boa rd Diagnost ics monitors the compo­
nents of your emiss ion cont ro l s ystem. Each
monitored component in your eng ine system
has been ass igned a code . In case of a mal­
funct ion, the component will be identified
and the fault stored as a code in the control
module memory.
T he MIL light may also illuminate if there is a
leak in the on -board fuel vapor recovery sys­
tem. If the lig ht illuminates after a refueling,
stop the vehicle a nd make sure the fuel fi ller
cap is prope rly closed
c:!) page 223.
In order to make an accurate diagnosis, the
stored data can on ly be displayed using spe­
c ia l diagnostic equipment (generic scan tool
furOBru.
~

32 Opening and clo sing
Remov ing the mechanical key
Fig. 19 Remote control master key : removing the me­
chanical key
.. Press the release button@r=>.> fig. 19.
• Pull the mecha nica l key @ out of the master
key.
Using the mechan ica l key, you can:
- lock and unlock* the storage compartment
on the passenger's side c::>
page 75.
-lock and unlock the vehicle manually
<=>page 36.
-lock the front and rear passenger doors me­
chanically
c::> page 37.
- unlock the luggage compartment lid man­
ually
c::> page 40.
Check light and battery in the master
key
Fig. 20 Remote master key: Removing the battery
holder
Check light in the master ke y
The check light@c::> fig. 20 in the master key
prov ides informat ion about d ifferent cond i­
tions.
• The check light turns on briefly once when a
button is pressed, and dur ing an "inquiry"
by the convenience key system. •
If the check light does not come on, the bat ­
tery is dead and has to be replaced. In addi­
tion, when the battery is dead the
!I indi ­
cator light appears in the instrument cluster
display as well as the message
Pl ease
chang e th e ke y b attery .
Ma ster key batter y replacement
• Remove the mechanica l key c::> page 32.
• Press the release button@¢ fig. 20 on the
battery holder and at the same time pull the
battery holder out of the master key in the
direction of the arrow .
.. Install the new battery CR 2032 with the
"+" sign facing down.
.. Push the battery holder carefu lly into the
maste r key.
• Insta ll the mechanical key .
@ For the sake of the environment
Dis p ose of dead batteries prope rly so as
not to poll ute the environment.
{D Tips
The replacement battery mus t be the
same specification as the o rigina l.
Electronic immobilizer
The immobilizer helps to prevent unauthor­
ized use of your vehicle .
A computer chip ins ide your key automatically
deact ivates the elect ron ic immobilizer when
the key is ins ide the veh icle. When you remove
the key from the vehicle, the elect ron ic immo­
bilizer is au tomatically activa ted once aga in.
& WARNING -
A lways take the key w ith you when you
l eave the vehicle. The key can disarm the
e lectronic engine immobilizer and permit
an una uthorized person to start the engine
and enable operation of the vehicle sys­
tems such as power w indow or power sun-
r oof leading to se rious pe rsonal injury.
~

.... N .... N
0 J:
"". .... I.O
"' ....
"' ....

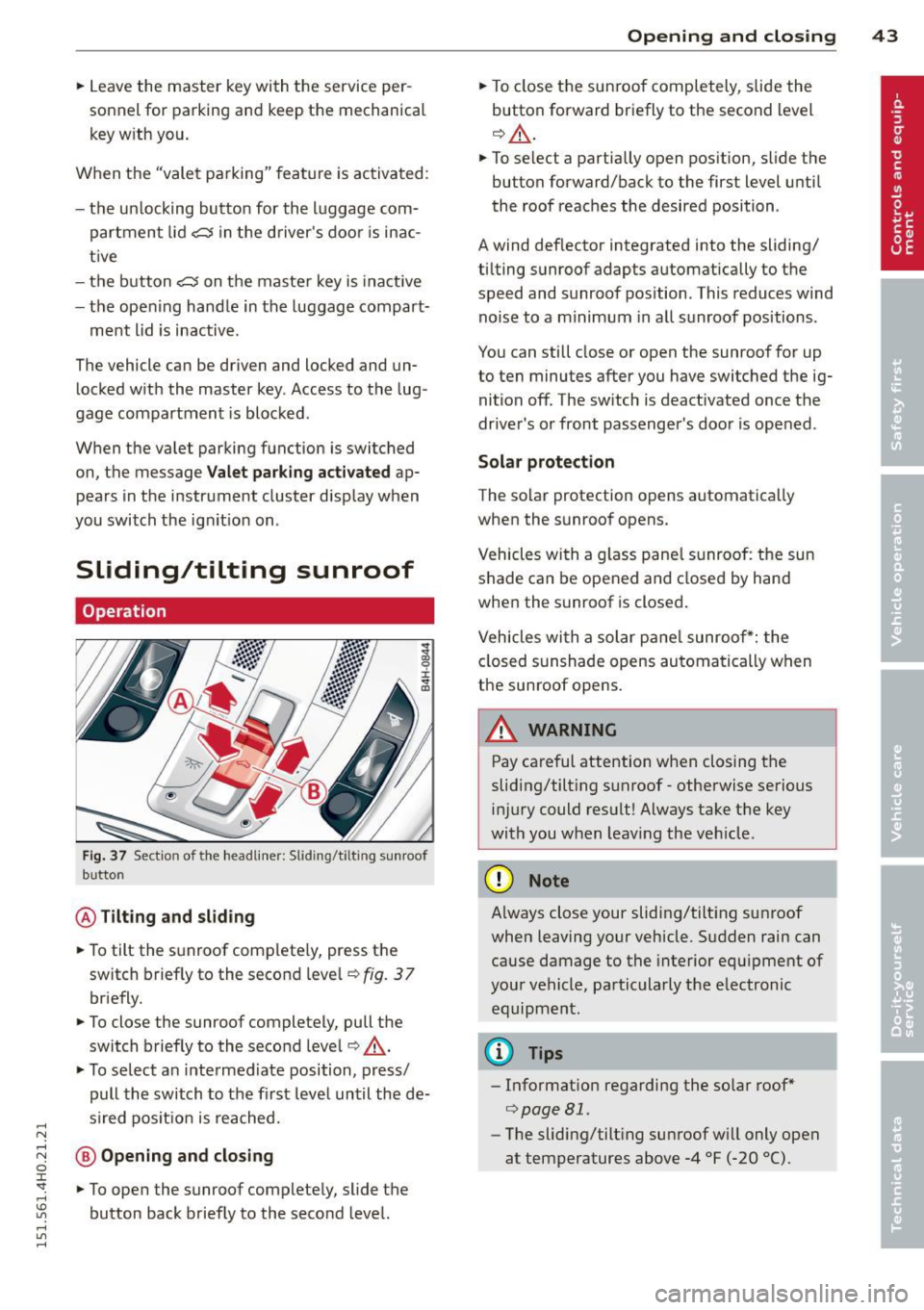

.. Leave the master key with the service per­
sonnel for park ing and keep the mechanica l
key w ith you.
When the "valet parking" feature is activated:
- the un locking button for the luggage com­
partment lid~ in the d river's door is inac­
t ive
- the button~ on the master key is inactive
- the opening handle in the luggage compart-
ment lid is inactive .
The vehicle can be driven and locked and un­ locked with the master key . Access to the lug­
gage compartment is blocked .
When the valet parking function is switched on, the message
Valet parking activated ap­
pears in the instrument cluster display when
you switch the ign it ion on .
Sliding/tilting sunroof
Operation
Fig. 37 Sectio n of the headliner: Slid ing/t ilting sunroof
b utto n
@ Tilting and sliding
.. To tilt the sunroof complete ly, press the
switch briefly to the second leve l¢
fig. 3 7
briefly.
.. To close the sunroof completely, pull the
switch brief ly to the second leve l¢ ,&. .
.. To select a n intermediate position, press/
pull the switch to the first level until the de­
s ir ed pos it ion is reached .
@ Opening and closing
.. To open the sunroof completely, slide the
button back briefly to the second level.
Opening and closing 43
.. To close the sunroof completely, slide the
button forward briefly to the second level
¢ ,&. .
.. To select a partially open position, slide the
button forward/back to the first level until
the roof reaches the desired position .
A wind deflector integrated into the sliding/
t ilting sunroof adapts automatically to the
speed and sunroof pos ition . This reduces wind
noise to a minimum in all sunroof positions .
You can still close or open the sunroof for up
to ten minutes after you have switched the ig­ nition off . The sw itch is deactivated once the
driver's or front passenger's door is opened .
Solar protection
The solar protection opens automatically
when the sunroof opens.
Vehicles with a glass pane l sunroof : the sun
shade can be opened and closed by hand
when the sunroof is closed.
Vehicles with a solar pane l sunroof*: the
closed sunshade opens automatically when
the sunroof opens.
A WARNING
-Pay careful attention when closing the
sliding/tilt ing sunroof -otherwise serious
injury could result! Always take the key
with you when leav ing the veh icle .
(D Note
-
Always close your sliding/tilting sunroof
when leaving your vehicle. Sudden rain can
cause damage to the interior equipment of
your vehicle, particularly the electronic equipment .
@ Tips
-Information regarding the so lar roof*
¢page 81 .
-The sliding/tilt ing sunroof w ill only open
at temperatures above -4 °F
(-20 °() .

46 Clear vis ion
Clear vision
Lights
Switching the headlights on and off
Fig . 40 Instr ument pane l: lig ht sw itc h w it h all -weath­
er lig hts
The headlights only wo rk when the ignition is
sw itched on. Wh ile start ing the eng ine or
when switching off the ig nition, the head­
lights will go off and on ly the s ide marker
lights w ill be on .
I f the sys tem is not operating properly, a
warn ing symbol in the dr iver information dis­
p lay is displayed <=>page
22 .
Light switch -~ -
Turn the switch <=>fig. 40 to the co rrespond ing
position . When the lights a re switched on , the
:o o: symbo l turns on .
0 -The lights are off or the dayt ime run ning
lights are on:
- US A model s: The daytime running ligh ts
will come on automatically when the igni­
t ion is on and the light switch<=> fig .
40 is in
the
O posit ion or the A UTO position (only in
daylight cond itions) . T he
Daytime running
lights
function can be turned on and off in
the MMI <=> page
47, <=> .& .
-Canada model s: T he daytime running lig hts
will come on automa tically when the igni ­
t ion is on and the light switch<=> fig .
40 is in
the
O posit ion, the :oo~ position or the AUTO
posit ion (on ly in daylight conditions)<=>.& .
AUTO -Automatic headlights swi tch on and
off depend ing o n brightness , fo r example in
twi light, during rain or in tunnels<=>.& .
:oo~ -Side marker lights
io -Low beam head lights
~ -All-weather lights
@!l -Rear fog lights *. When th e rear fog lights
a re on , the symbol
0$ on the sw itch will i llu­
minate .
All-weather light s
In vehicles with all -weather lights, the front
lights are ad justed automatically so that you
are less like ly to see glare from your own
headlig hts, for example when driving on a wet
road .
Automatic dynamic headlight range
control *
Your vehicle is equipped with a headlight
range control sys tem so that the headligh ts
do not blind oncoming traffic if the vehicle
load cha nges . The headlight range a lso ad­
justs automatically when braking and acceler­ at ing .
Light function s
The following ligh t funct ions are available de·
pending on veh icle equipment and o nly fu nc­
t io n when the lig ht switch is i n the AUTO pos i­
t ion . You can deactivate these functions in the
MM I under
Audi adaptive light r:!> page 47 .
Static cornering light *· the cornering light
switches on automatically when the steering
wheel is turned at a certa in angle at speeds
u p to approxima tely 44 mph ( 70 km/h) and
when the t urn sign al is activated at speeds up
to approximately 25 mph (40 km/h) . The area
to the s ide of the vehicle is illuminated better
whe n turning.
Dynamic curv e light * -the curve ligh t only
f unct ions at speeds between approximately 6
mph (10 km/h) and 68 mph ( 110 km/h) and
adapts itse lf to the cu rves in the road.
Highway light function* -this function
adapts the lighting for highway driving based
o n ve hicle speed .
Ill>

_& WARNING
-Automatic headlights are only intended
to assist the driver . They do not relieve
the driver of his responsibility to check
the headlights and to turn them on man­
ually according to the current light and
visibility conditions. For example, fog
cannot be detected by the light sensors.
So always switch on the headlights
io
under these weather conditions and
when driving in the dark.
- Crashes can happen when you cannot see
the road ahead and when you cannot be
seen by other motorists. Always turn on
the headlights so that you can see ahead
and so that others can see your car from
the back.
- Please observe legal regulations when
using the lighting systems described.
(D Note
The rear fog lights should only be turned
on in accordance with traffic regulation, as
the lights are bright for following traffic.
(D Tips
- The light sensor* for automatic dynamic
headlight range control* is located in the
rear view mirror mount. You should
therefore not apply any stickers to the
windshield in this area in order to pre­
vent malfunctions or failures.
- In the event of a light sensor malfunc­
tion, the driver is notified in the instru­
ment cluster display ~
page 22.
- You will hear a warning tone if you open
the driver door when the exterior lights
are switched on.
- In cool or damp weather, the inside of
the headlights, turn signals and tail
lights can fog over due to the tempera­
ture difference between the inside and
outside. They will clear shortly after
switching them on. This does not affect
the service life of the lighting. Clear vision 4
7
Emergency flasher
The emergency flasher makes other motorists
aware that you or your vehicle are in an emer­
gency situation .
Fig. 41 Center consol e: eme rge ncy flash er sw itc h
.,. Press the switch&..~ fig. 41 to turn the
emergency flashers on or off.
When the emergency flasher is on, all four
turn signals blink at the same time. The turn
signal indicator lights
B DI in the instru­
ment cluster, as well as the light in the emer­
gency flasher switch &.. blink likewise. The
emergency flasher also works when the igni­
tion is turned off.
The emergency flashers will turn on automati­
cally if you are in an accident where the airbag
has deployed.
@ Tips
You should turn on the emergency flashers
when:
- you a re the last vehicle standing in a traf­
fic jam so that any other vehicles coming
can see you, or when
- your vehicle has broken down or you are
in an emergency situation, or when
- your vehicle is being towed by a tow
truck or if you are towing another vehicle
behind you.
Adjusting the exterior lighting
The settings ore adjusted in the MMI.
.,. Select: !CAR ! function button> Car systems
control button > Vehicle settings > Exterior
lighting. ..,.
