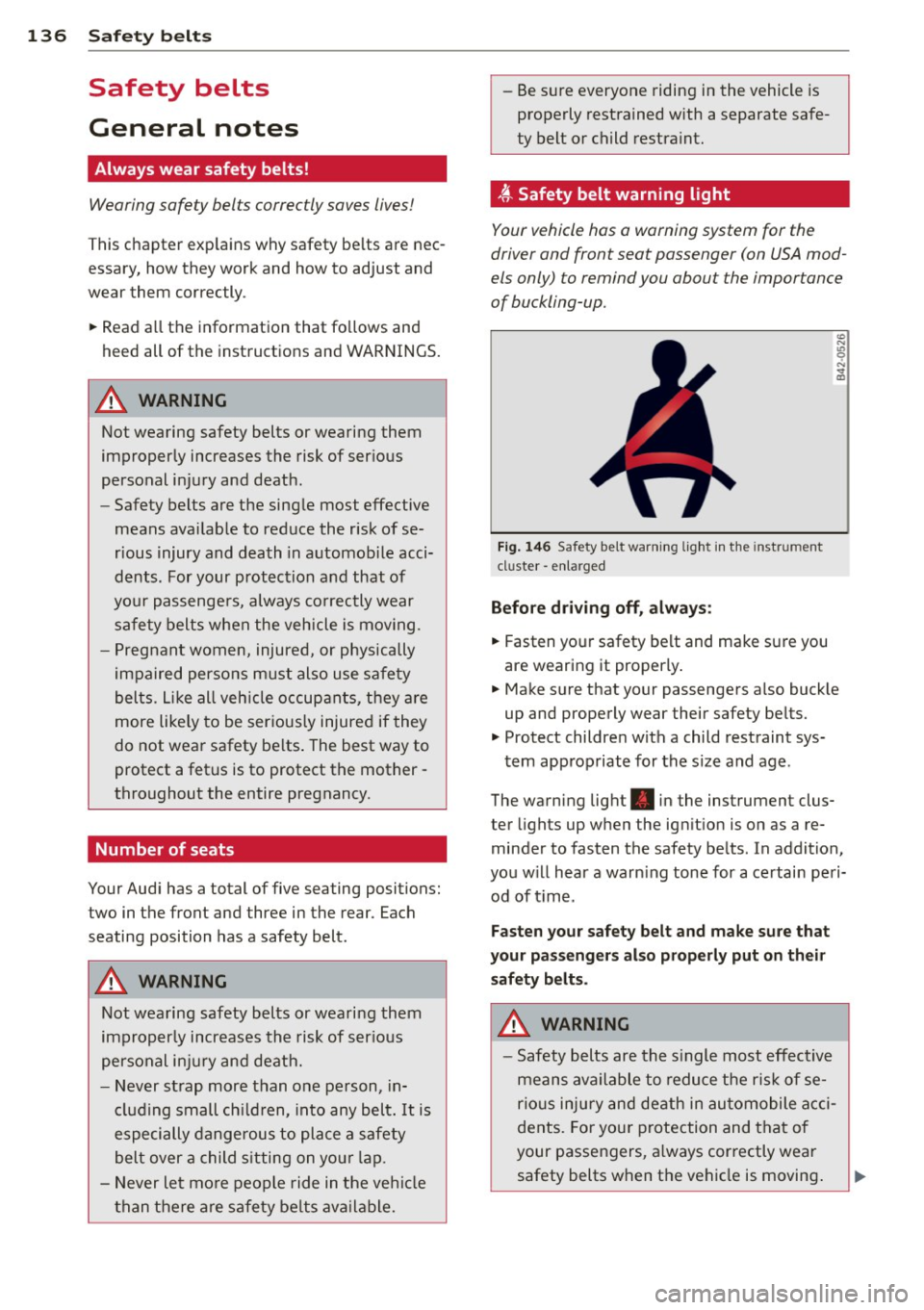

136 Safety belts
Safety belts
General notes
Always wear safety belts!
Wearing safety belts correctly saves lives!
This chapter explains why safety be lts are nec ­
essary, how they work and how to adjust and
wear them correctly .
.. Read a ll the information that fo llows and
heed all of the instructions and WARNINGS.
A WARNING
Not wearing safety belts or wearing them
improperly increases the risk of ser ious
personal in jury and death .
- Safety belts are the sing le most effective
means avai lab le to reduce the risk of se­
r ious injury and dea th in a utomob ile acci­
dents. For your protection and that of
yo ur passenge rs, always co rrectly wear
safety belts when the vehicle is moving.
- Pregnant women, injured, or physically
im paired perso ns m ust also use safety
belts. Lik e all veh icle occup ants, they are
more like ly to be ser iously injured if they
do not wea r safety be lts . The best way to
protect a fetus is to protect the mother -
throughout the entire pregnancy.
Number of seats
Your Audi has a total of five seating positions: two in the front and three in the rear. Each
seating position has a safety belt.
A WARNING
Not wea ring safety belts or weari ng them
improp erly increases the risk of ser ious
pe rsonal i njury and deat h.
- Never st rap more than one pe rson, in­
cl uding small ch ild ren, into any belt.
It is
e speci ally dange rous to pla ce a safety
belt over a child s itting on yo ur lap.
- N ever le t mo re people ride in the ve hicl e
than there are s afe ty be lts avail able. -
Be s ure everyone riding in the vehicle is
properly restrained w ith a separate safe ­
ty belt or child restra int.
t Safety belt warning light
Your vehicle hos o warning system for the
driver and front seat passenger (on USA mod­
els only) to remind you about the importance
of buckling-up .
Fi g. 146 Safety belt warni ng light in the instrument
cluster -en larged
Before driv ing off, alway s:
.. Fasten yo ur safety belt and make su re you
are wearing it properly .
.. Make s ure that your passengers also buck le
up and properly wear their safety be lts.
.. Protect childre n w ith a child restraint sys-
tem app ropriate for the s ize and age.
The warn ing light . in the instrument clus­
ter lights up when the ign ition is on as a re­
minder to fasten the safety be lts. In addition,
you w ill hear a warn ing tone for a ce rtai n pe ri­
od of t ime.
Fasten you r safety belt and make sure that
your pass eng ers also properly put on the ir
s afety belt s.
A WARNING .....=-
-Safety b elts are the s ingle most eff ect ive
means avai lable to reduce t he ri sk of se­
rio us inju ry and de ath in au tomobile acci­
dents. Fo r you r protection and that of
your passengers, a lways cor rectly wear
safety belts when t he vehicle is moving .

M N
0 I.J ' "' ,....,
"' rl
-Failure to pay attention to the warning
light that come on, could lead to person­
al injury.
Why safety belts?
Frontal collisions and the law of physics
Frontal crashes create very strong forces for
people riding in vehicles .
Fig. 147 Unbelted occupants in a ve hicle heading for a
wall
Fig. 148 The vehicle cras hes into the wall
The physical principles are simple. Both the
vehicle and the passengers possess energy
which varies w ith veh icle speed and body
weight . Engineers call this energy "kinetic en­
ergy."
The higher the speed of the vehicle and the
greater the vehicle's weight, the more energy
that has to be "absorbed" in the crash .
Vehicle speed is the most significant factor . If
the speed doubles from 15 to 30 mph (25 to
SO km/h), the energy increases 4 t imes!
Because the passengers of this vehicle are not
using safety belts¢
fig. 147, they will keep
moving at the same speed the vehicle was
moving just before the crash, until something
stops them - here, the wall ¢
fig. 148.
Safety belts 13 7
The same principles apply to people sitting in
a vehicle that is involved in a frontal collision.
Even at city speeds of 20 to 30 mph (30 to 50
km/h), the forces acting on the body can
reach one ton (2,000 lbs, or 1,000 kg) or
more . At greater speeds, these forces are even
higher.
People who do not use safety belts are also
not attached to their vehicle . In a frontal colli­
sion they will also keep moving forward at the
speed their vehicle was travelling just before
the crash . Of course, the laws of physics don't
just app ly to frontal collisions, they determine
what happens in all kinds of accidents and col­
lisions.
What happens to occupants not wearing safety belts?
In crashes unbelted occupants cannot stop
themselves from flying forward and being in­
jured or killed. Always wear your safety belts!
Fig. 149 A driver not wea ring a safety be lt is vio lently
thrown forward
Fig. 150 A rear passenger not wearing a safety belt
w ill fly forward and strike the driver
Unbelted occupants are not able to resist the
tremendous forces of impact by holding tight
or bracing themselves. Without the benefit of
safety restraint systems, the unrestrained .,..

140 Safet y belts
To provide maximum protection, sa fety belts
must always be positioned correctly on the
wearer 's body.
.,. Adjus t the front seat and head restr aint
properly ¢
page 52, General recommenda­
tions .
.,. Make sure the seatback of the rear seat
bench is in an upright position and securely
latched in place before using the belt¢ .&,.
.,. Hold the be lt by the tongue and pull it even­
ly across the chest and pelvis¢ .&,.
.,. Inse rt the tongue into the correct buckl e of
yo ur sea t until you hea r it latc h securely
¢fig. 152.
.,. Pull on the be lt to make sure that it is se-
cu rely latched in th e buckle.
Automatic safety belt retractors
Every safety belt is equipped w ith an automat­
i c belt retracto r on the shoulder be lt. This fea­
ture locks the be lt whe n the belt is pulled out
fast, dur ing hard braking and in an accident.
The belt may also lock when yo u drive up or
down a steep hill or throug h a sharp curve.
During normal driving the belt lets you move
freely.
Safety belt pretensioners
The sa fety belts are equipped with a belt pre ­
tensioner that helps to tighten the safety be lt
and remove slack when the pretensione r is ac­
tivated ¢
page 143. The function of the pre­
tensioner is mon itored by a warning light
¢page 19.
Convertible locking retractor
Every safety belt except the one on the driver
seat is eq uipped w ith a convertib le loc king re­
tractor that
must be used when the safety
be lt is used to attach a child seat. Be sure to
read the important information about this
featu re
¢page 182 .
.,& WARNING
Imprope rly posit ioned safety belts can
cause se rious injury in an accident
¢ page 140, Safety bel t posi tion.
- Safety belts offer opt imum protection
only when the seatback is upr ight and
be lts are properly posit ioned o n the
body .
- Always make sure that the rear seat
backrest to wh ich the center rear safety
be lt* is attached is securely latched
wheneve r the rea r center safety belt is
be ing used.
If th e bac krest is not secu re­
ly latched, the passenge r will move fo r­
ward with the ba ckr est dur ing s udden
brak ing, in a sudden maneuver and es pe­
cially in a crash.
- Never at tach the safety bel t to the buck­
le for ano ther seat. Attaching the belt to
the wron g buckle will reduce safety be lt
effectiveness and can cause serio us per­
sonal injury .
- A passenger who is not proper ly restrain­
ed can be seriously injured by the safety
be lt itself w hen it moves from the stron­
ger parts of the body into cr itical areas
like the abdomen .
- Always lock the conve rtible locking re­
tracto r when you are secu ring a child
seat in the vehicle¢
page 184.
(D Tips
Fo r inf ormation on safety belt pretension­
ers, refer to ¢
page 143.
Safety belt position
Correct belt position is the key to getting
maximum protection from safety belts.
Fig . 15 3 Safety belt posit ion
"' .... 0
~ CD

and diagnostic equipment to properly re­
place any airbag in your vehicle and
assure system effectiveness in a crash.
- Never permit salvaged or recycled air­
bags to be installed in your vehicle.
Child restraints on the front seat -some
important things to know
.. Be sure to read the important informat ion
and heed the WARNINGS for important de­
ta ils about ch ildren and Advanced Airbags
¢page 171.
Even though your vehicle is equ ipped with an
Advanced Airbag System, make ce rtain that
all chi ldren, especially those 12 years and
younger, a lways ride in the back seat p roperly
restrained for their age and size. The airbag
on the passenger side makes the front seat a
potentially dangerous place for a chi ld to ride.
The front seat is not the safest place for a
child in a forward-facing child seat. It can be a
very dange rous place for an infant or a ch ild in
a rearward-facing seat.
The Advanced Airbag System in your veh icle
has been certified to comply with the require­
ments of United States Federal Motor Veh icle
Safety Standard 208 as applicable at the time
your ve hicle was manufactured .
The Standard requires the front a irbag on the
passenger side to be turned off ("sup ­
pressed") if a c hild up to about one yea r of
age restra ined in one of the rear-facing or fo r­
ward-facing infan t restra ints listed i n Federal
Motor Vehicle Safety Standard 208 with w hich
the Advanced Ai rbag System in you r vehicle
was certified has been installed on the front
passenger seat. For a listing of the child re­
straints that were used to certify compliance
with the US Safety Standard
¢ page 173.
The PASSENGER AIR BAG OFF light in the in­
strument panel te lls you when the front Ad -
M vanced Airbag on the passenger side has been N
o turned off by the electronic control unit. <.J 'SI: ,...., \!) 1.1"1 ,...., 1.1"1 ,....,
A irbag system 147
Each time you switch on the ignition , the PAS·
SENGER AIR BAG OFF
light will come on for a
few seconds and :
- w ill stay on if the front passenger seat is not
occ upied,
- w il l stay on i f th e e lec trica l capacitan ce
meas ured by the capacitive passenger de­
tection system for the front passenger seat
equa ls the combined capacitance of an in­
fant up to about one year of age and one of
the rearward-facing or forward-facing ch ild
restrai nts listed in Federal Motor Vehicle
Safety Standard 208 with which the Ad ­
vanced Airbag System in your vehicle was
cert ified . Fo r a listing of the chi ld restraints
t ha t were used to certify you r veh icle's com­
pliance w ith the U.S. Safety Standard
¢ page 173.
-w il l stay on i f the re is a small ch ild or child
restraint on the front passenger seat,
- w il l go off if the front passenger sea t is oc­
c upied by an adult as registered by the c a­
pacitive passenger detection system
c:> page 157 , Monitoring the Advanced Air,
bag System.
The PAS SENGER AIR BAG OFF lig ht comes on
when e lec trical capacitance registered on the
front passenger seat is equa l to or less than
the comb ined capacitance of a typical 1 year­
o ld infant and one of the rearward-facing or
forward-facing chi ld restraints listed in Feder­
al Motor Vehicle Safety Standard 208 with
wh ich the Advanced Airbag System in your ve­
hicle was certified .
If the total e lectr ical capacitance registered
o n the front passenger seat is more than that
of a typical 1 year -o ld child but less than the
weight of a small adu lt, the front airbag on
t h e passenger side can deploy (the
PASSEN ­
GER AIR BAG OFF
ligh t does no t come on).
If the
PASSENGER AIR BAG OFF light does
not come on, the front airbag on the passen­
ger side has not been turned off by the e lec­
tron ic cont ro l uni t and ca n deploy if the con­
trol unit senses an impact tha t mee ts the co n-
ditions s to red in its memory .
111>
•
•

148 Airbag sys tem
For exa mple , the ai rb ag ma y depl oy if:
-a small child that is heavier than a typical 1
year-o ld child is on the front passenger seat
(regardless of whe ther the child is in one of
the chi ld seats listed
¢ page 173), or
- a ch ild who has outg rown child rest raints is
on the front passenger seat.
If the front passenger airbag is turned off, the
PA SSENGER AIR BAG OFF light comes on in
the ins trumen t cluster and stays on .
If the front passenger airbag deploys, the F ederal Standard requires the a irbag to meet
the "low risk" deployment criteria to reduce
the r isk o f injury through interaction with the
ai rbag . "Low risk" deployment occurs in those
crashes that take place at lower decelerations
as defined in the electronic control unit
¢ page 158, PASSENGER AIR BAG OFF light.
A lways remember, a chi ld seat or infant carri ­
er insta lled on t he front seat may be struck
and knocked out of position by the rapidly in­
flating passenger's airbag in a frontal colli­
sion. The airbag could greatly reduce the ef­
fectiveness of the child restraint and even se­
riously injure the child during inflat ion.
For this reason, and because the back seat is
the safest place for children - when properly
restra ined accord ing to their age and size - we
strongly recommend that children always sit
i n the back seat¢
page 171, Child Safety .
A WARNING
A child in a rearward-facing child seat in­
stalled on the front passenger seat will be
ser iously injured and can be killed if the
front airbag inflates -even with an Ad ­
vanced Airbag System.
- T he inflating a irbag will hit the child seat
or infant carrier with great force and will
smash the child seat and child against
the backrest, center armrest, door or roof.
- Always insta ll rear-facing child seats on
the rear seat.
- If you must install a rearward facing
child seat on the front passenge r seat because of exceptional circumstances
and the
PASSENGER AIR BAG OFF light
does not come on and stay on, immed i­
ately insta ll the rear-facing child seat in a
rea r seat ing pos ition and have the airbag
system inspected by you r Audi dealer.
- Forward-facing child seats installed on the front passenger's seat may interfere
with the dep loyment of the a irbag and
cause serious persona l injury to the
child.
A WARNING
If, i n except iona l circumstances, you m ust
i nsta ll a forward -facing child res traint on
the front passenge r's seat:
- Always make sure the forwar d-fa cing
seat has been designe d and cer tified by
its manufacture r for use on a front seat
with a passenger front and s ide a irbag.
- Never p ut the forward-facing child re­
straint up against or very near the instru­
ment panel.
- Always move the passenge r seat into its
rearmost pos ition in the seat's fore and
aft ad justment range, as fa r away from
the airbag as possible before installing the forward-fac ing ch ild restra int. The
backrest must be adj usted to an up right
position .
- Make sure that the
PASSENGER AIR BAG
OFF
li ght comes on and stays on all t he
time wheneve r the ignit ion is switched
on.
A WARNING
To reduce the risk of serious inju ry, m ake
sure that the
PASSENGER AIR BAG OFF
light w ill be displayed whenever a child re ­
straint is insta lled on the front passenger
seat and the ignition is switched on.
- If the
PASSENGER AIR BAG OFF light
does not stay on, perform the checks de­
scribed
c> page 15 7, Monitoring the Ad-
vanced Airbag System. ..,.

M N
0 I.J ""'. rl I.O
"' rl
"' rl
-Take the child restraint off the front pas­
senger seat and install it properly at one
of the rear seat positions if the
PASSEN­
GER AIR BAG OFF
light does not stay on .
- Have the airbag system inspected by
your Audi dealer immediately.
- Always carefully follow instructions from
child restraint manufacturers when in­
stalling child restraints .
_& WARNING
If, in exceptional circumstances, you must
install a forward or rearward-facing child
restraint on the front passenger's seat:
- Improper installation of child restraints
can reduce their effectiveness or even
prevent them from providing any protec­
tion.
- An improperly installed child restraint
can interfere with the airbag as it de­
ploys and seriously injure or even kill the
child - even with an Advanced Airbag
System.
- Always carefully follow the manufactur­
er's instructions provided with the child
seat or carrier.
- Always make sure that there is nothing
on the front passenger seat that will
cause the capacitive passenger detection
system in the seat to signal to the Airbag
System that the seat is occupied by a person when it is not, or to signal that it
is occupied by someone who is heavier
than the person actually sitting on the
seat . The presence of additional objects
could cause the passenger front airbag
to be turned on when it should be off, or
could cause the airbag to work in a way
that is different from the way it would have worked without the object on the
seat.
Airbag system 149
Front airbags
Description of front airbags
The airbag system can provide supplemen tal
protection to properly restrained front seat occupants.
Fig. 157 Locat io n of drive r airbag : in steering wheel
Fig. 158 Locat ion of fron t pa ssenger' s airbag: in the in·
st rument panel
Your vehicle is equipped with an "Advanced
Airbag System" in compliance with United
States Federal Motor Vehicle Safety Standard
(FMVSS) 208 as applicable at the time your
vehicle was manufactured. The safety belts
for the seats have "pretensioners " that help
to take slack out of the belt system. The pre­
tensioners are also activated by the electronic
control unit for the airbag system.
The front safety belts also have load limiters
to help reduce the forces applied to the body
in a crash.
The airbag for the driver is in the steering
wheel hub
~ fig . 157 and the airbag for the
front passenger is in the instrument panel
¢ fig. 158. The general location of the airbags
is marked "AIRBAG".
There is a lot you need to know about the air­
bags in your vehicle. We urge you to read the .,..

152 Airbag sys te m
of a typ ica l 1 year -old, but less than the
weight of a sma ll adult, the front airbag on
the passenger side may deploy (the
PASSEN­
GER AIR BAG OFF
li ght does not come on).
For exa mple , the air bag m ay depl oy if:
- a small child that is heavier than a typical 1
year-o ld child is on the front p assenger seat
(regardless of whe ther the child is in one of
the chi ld seats listed
c':> page 173),
-a ch ild who has o utgrown child rest raints is
on the front passenger seat.
If the front passenger airbag is turned off, the
PA SSENGER AIR BAG OFF light in the cente r
of the instrument panel w ill come on and stay
on.
If the front passenger airbag deploys, the Federal Standard requires the a irbag to meet
the "low risk" deployment criteria to help re­
duce the risk of injury through interaction
with the airbag. " Low risk" deployment occurs
in those crashes that take place at lower de­
celerations as defined in the e lectronic control
un it
c':>page 157.
Alway s remember: Even tho ugh your vehicle
is equipped with Advanced Airbags, the safest
p lace for children is properly restrained on the
back seat. Please be sure to read the impor­
tant information i n the sect ions that follow
and be sure to heed a ll of the WARNINGS .
A WARNING
To reduce the risk of injury when an airbag
inf lates, a lways wear safety belts prope rly.
- If you are unrestrained, lean ing forward,
sitting sideways or out of position in any
way, your risk of injury is much higher.
- You w ill also receive serious in juries and
cou ld even be killed if you are up against
the a irbag or too close to it when it in­
fla tes -even with an Advanced Airbag
c':> page 145.
A WARNING
A child in a rearward -facing child seat in ­
stalled on the front passenger seat will be seriously injured and can be killed if the
front airbag inflates - even w
ith an Ad­
vanced Airbag System.
- Altho ugh the Advanced Airbag System in
your veh icle is designed to turn off the
front airbag when a rearward-facing
child restraint has been installed on the
front passenge r seat, nobody can abso­
lutely guarantee that dep loyment is im­
possible in all con ceivable s ituations that
may h appen dur ing the usefu l life of y our
veh icle .
- T he inflating airbag will h it the ch ild seat
or infant carrier wi th grea t force and will
smash the child seat an d child against
the backrest, center armrest, doo r, or
roof.
- Always install rearward-facing chi ld re­
straints on the rear seat.
- If you must install a rearward fac ing
child seat on the front passenger seat
because of exceptional circumstances
and the
PASSENGER AIR BAG OFF light
does not come on and stay on, immed i­
ately insta ll the rear-facing child seat in a
rea r seat ing pos ition and have the airbag
system inspected by you r Audi dealer.
A WARNING
If, in except iona l circumstances, you must
i nsta ll a forward-facing child restraint on
the front passenge r's sea t:
- Always make sure the forward-facing
seat has been designed and ce rtified by
its manufacture r fo r u se on a fron t seat
with a passenger fron t and s ide a irbag .
- Never p ut the fo rward-facing child re­
straint up agains t or ve ry near the instru­
ment panel.
- Always move the p assenge r seat into its
rearmost pos ition in the seat's fore and
aft ad justment range, as fa r away from
the airbag as possible, before installing
the forward-facing ch ild restra int. The
backrest must be ad justed to an upright
position.

M N
0 <.J 'SI: ,...., \!) 1.1'1 ,...., 1.1'1 ,....,
-Always make sure that there is nothing
on the front passenger seat that will
cause the capacitive passenger detection
system in the seat to s ignal to the A irbag
System that the seat is occupied by a person when it is not, or to signal that it
is occupied by someone who is heavier
than the person actu ally s itting on t he
sea t. The presence of additiona l objects
cou ld cause the passenger front airbag
to be t urned on when it sho uld be off, or
cou ld cause the airbag to work in a way
that is different from the way it wou ld
have worked without the object on the
seat .
- Make sure that the
PASSENGER AIR BAG
OFF
light comes o n and stays on all the
t ime whenever the ignition is switc hed
on.
Advanced Airbag System components
The front passenger seat in your vehicle has a
l ot of very important parts of the Advanced
Ai rbag System in it. These parts incl ude the
capacitive passenger detect ion system, wir ­
i n g, brackets, and more . The control unit
monitors the system o n the front passenger
seat when the ign ition is switched on and
turns the airbag indicator light on when a
malfunct ion in the one of the system compo­
nents is detected ¢
page 158 . Because the
fro nt passenger seat contains important pa rts
of the Advanced Airbag System, you must
t ake care to p reven t it from being damaged.
D amage to the seat may preven t the Ad­
vanced A irbag System for the front passenger
seat from doing its job in a crash .
The front Advanced Airbag System
consists of the following:
-Crash sensors in the fro nt o f the veh icle that
measure vehicle acceleration/dece leration
to provide information to the Advanced Air­
bag System about the severity of the crash .
- An electronic co ntrol unit, with integrated
c rash sensors for front and side impacts .
The cont ro l unit "decides" whether to fire
A irbag system 153
the front a irbags based on the in format ion
received from the crash sensors. The contro l
un it also "decides" whether the sa fety be lt
pretens ioners sho uld be activated .
- An Advanced Airbag with gas generator and
contro l valve for the driver ins ide the steer­
ing wheel hub.
- An Advanced A irbag w ith gas gene rator and
cont ro l valve inside the instrument pane l for
the front passenger.
- A capacitive passenger detection system un­
derneath the front passenger seat cover.
This system measures the electrical capac i­
tance of the perso n in the seat. The informa­
tion registered is se nt cont inuous ly to the
el ectr onic contro l un it to regu late d eploy­
m ent of the front Advan ced A irbag on the
p assenger side .
- An airbag monitoring system and ind icator
light in the instr ument cluster ¢
page 157 .
-A sensor in each front seat registers the dis­
t ance be twee n the respec tive seat a nd the
s teer ing whee l or inst rumen t pa nel. The i n­
forma tion regis tered is sent cont inuo usly to
the electronic cont ro l unit to regulate de­
p loyment of the front Adv a need Airbags.
- The
PASSENGER AIR BAG OFF light comes
on and stays on in the center of the instr u­
ment panel ¢
page 158, fig . 160 and tells
you when the front Advanced Airbag on the passenger side has been turned off.
- A sensor in the safety be lt latch for the driv­
e r and for the front seat passenger that
senses whether that safe ty belt is latched or
not and transmits this information to the
elect ronic control un it .
.&_ WARNING
D amage to the front passe ng er seat ca n
p revent the front air bag from wor king
p roperly.
- I mp roper repa ir or d isassembly of the
fro nt passenge r and dr iver sea t will pre­
vent the Advanced Airbag System from
functioning p roperly.
- Repair s to t he fron t passenge r seat m ust
be pe rformed by qualified an d properly
-
trained workshop person ne l. 111>
•
•
