2015 Alfa Romeo MiTo Owner's Manual

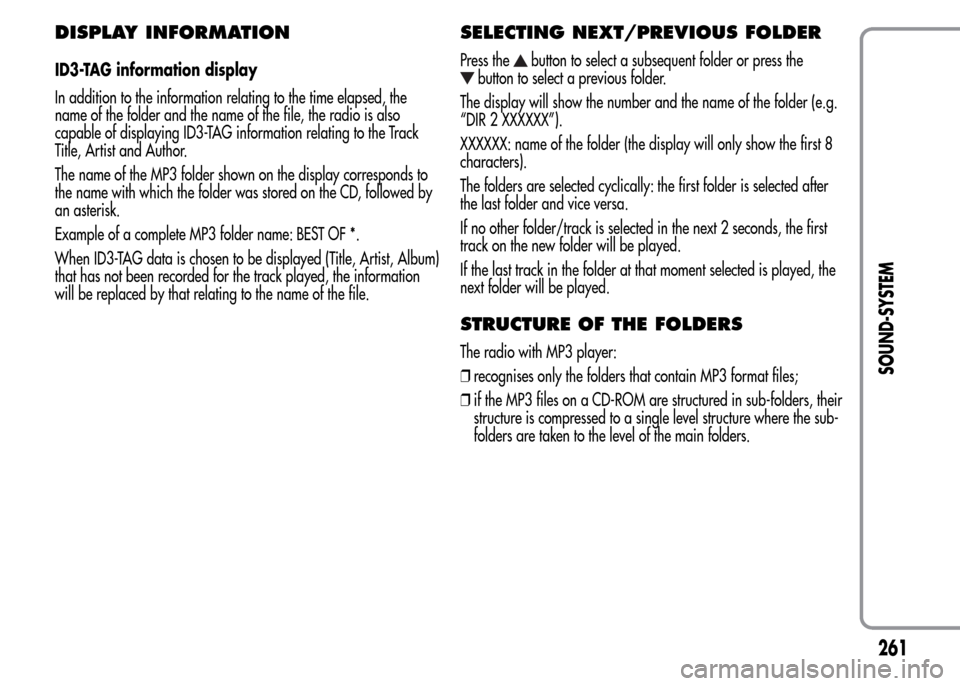

DISPLAY INFORMATION
ID3-TAG information display
In addition to the information relating to the time elapsed, the
name of the folder and the name of the file, the radio is also
capable of displaying ID3-TAG information relating to the Track
Title, Artist and Author.
The name of the MP3 folder shown on the display corresponds to
the name with which the folder was stored on the CD, followed by
an asterisk.
Example of a complete MP3 folder name: BEST OF *.
When ID3-TAG data is chosen to be displayed (Title, Artist, Album)
that has not been recorded for the track played, the information
will be replaced by that relating to the name of the file.
SELECTING NEXT/PREVIOUS FOLDER
Press thebutton to select a subsequent folder or press the
button to select a previous folder.
The display will show the number and the name of the folder (e.g.
“DIR 2 XXXXXX”).
XXXXXX: name of the folder (the display will only show the first 8
characters).
The folders are selected cyclically: the first folder is selected after
the last folder and vice versa.
If no other folder/track is selected in the next 2 seconds, the first
track on the new folder will be played.
If the last track in the folder at that moment selected is played, the
next folder will be played.
STRUCTURE OF THE FOLDERS
The radio with MP3 player:
❒recognises only the folders that contain MP3 format files;
❒if the MP3 files on a CD-ROM are structured in sub-folders, their
structure is compressed to a single level structure where the sub-
folders are taken to the level of the main folders.
261
SOUND-SYSTEM

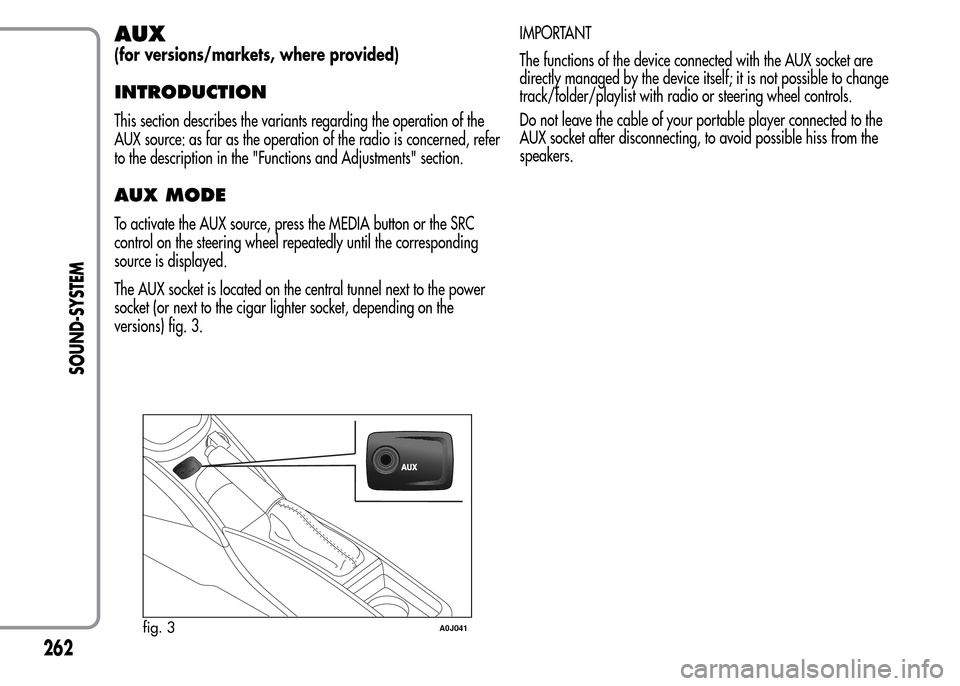

AUX
(for versions/markets, where provided)
INTRODUCTION
This section describes the variants regarding the operation of the
AUX source: as far as the operation of the radio is concerned, refer
to the description in the "Functions and Adjustments" section.
AUX MODE
To activate the AUX source, press the MEDIA button or the SRC
control on the steering wheel repeatedly until the corresponding
source is displayed.
The AUX socket is located on the central tunnel next to the power
socket (or next to the cigar lighter socket, depending on the
versions) fig. 3.IMPORTANT
The functions of the device connected with the AUX socket are
directly managed by the device itself; it is not possible to change
track/folder/playlist with radio or steering wheel controls.
Do not leave the cable of your portable player connected to the
AUX socket after disconnecting, to avoid possible hiss from the
speakers.
fig. 3A0J041
262
SOUND-SYSTEM

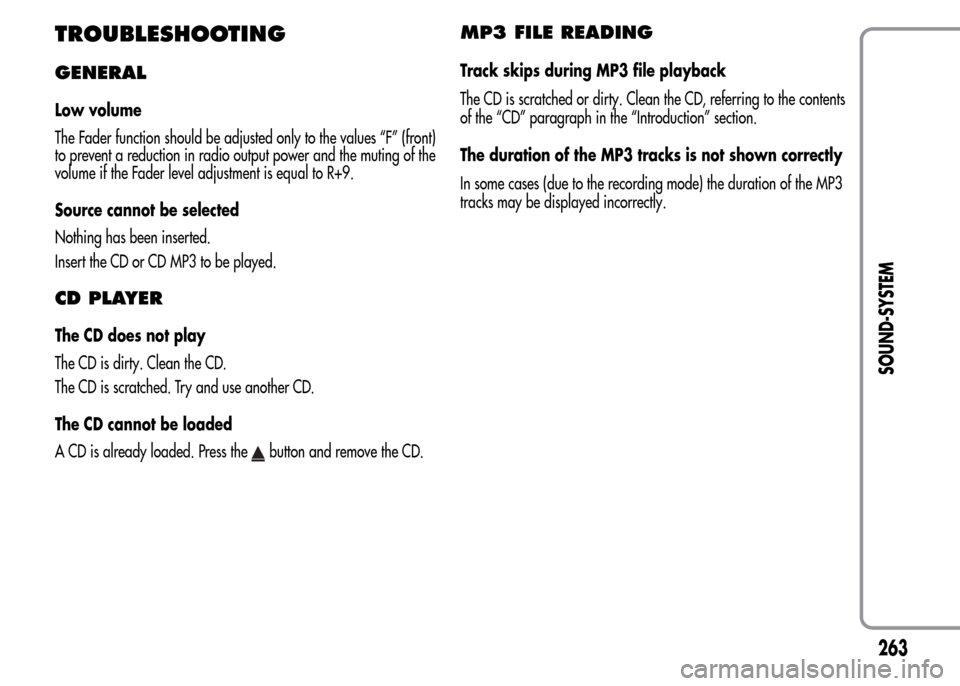

TROUBLESHOOTING
GENERAL
Low volume
The Fader function should be adjusted only to the values “F” (front)
to prevent a reduction in radio output power and the muting of the
volume if the Fader level adjustment is equal to R+9.
Source cannot be selected
Nothing has been inserted.
Insert the CD or CD MP3 to be played.
CD PLAYER
The CD does not play
The CD is dirty. Clean the CD.
The CD is scratched. Try and use another CD.
The CD cannot be loaded
A CD is already loaded. Press the
button and remove the CD.
MP3 FILE READING
Track skips during MP3 file playback
The CD is scratched or dirty. Clean the CD, referring to the contents
of the “CD” paragraph in the “Introduction” section.
The duration of the MP3 tracks is not shown correctly
In some cases (due to the recording mode) the duration of the MP3
tracks may be displayed incorrectly.
263
SOUND-SYSTEM

ENGLISH

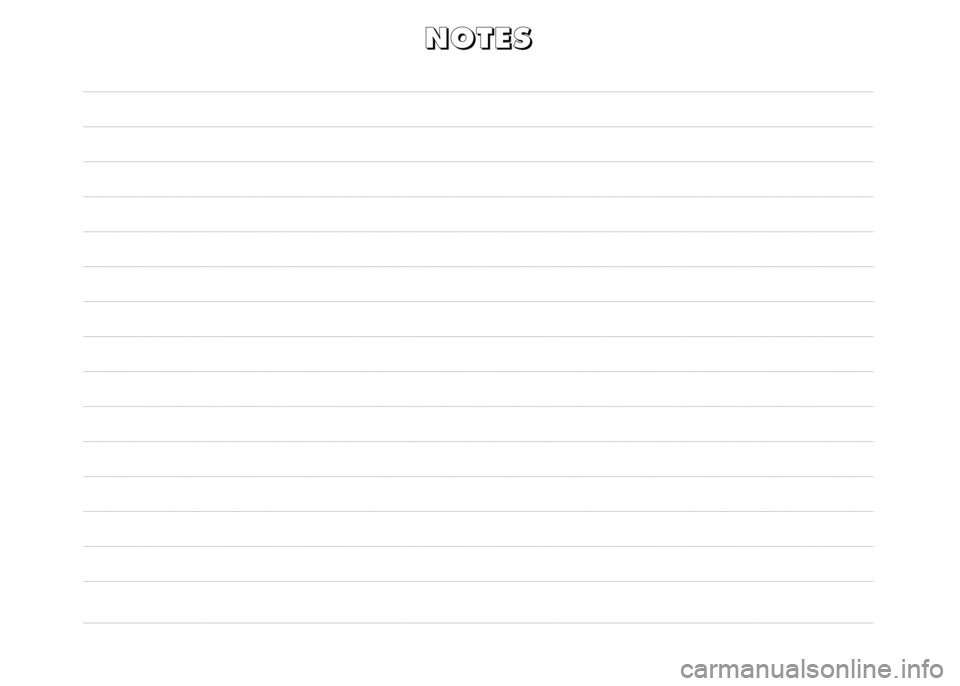

N N
