Page 203 of 288
Thousands of miles 9 18 27 36 45 54 63 72 81 90
Thousands of kilometres 15 30 45 60 75 90 105 120 135 150
Years12345678910
Change engine oil and replace oil filter (1750 Turbo Petrol
versions) (3)
Replace spark plugs (1.4 Turbo Petrol and 1.4 Turbo
MultiAir versions) (4)●●●●●
Replace spark plugs (1750 Turbo Petrol versions)●●
Replace accessory drive belt(s) (5)●
Replace toothed timing drive belt (5)●
(3) The actual interval for changing engine oil and replacing the engine oil filter depends on the vehicle usage conditions and is signalled by the warning light or
message in the instrument panel. Anyway, it must never exceed 1 year.
(4) For 1.4 Turbo Petrol and 1.4 Turbo MultiAir versions, to guarantee correct operation and prevent serious damage to the engine, it is essential to proceed as
follows: only use spark plugs specifically certified for these engines; all spark plugs should be of the same type and brand (see the “Engine” paragraphinthe
“Technical specifications” section); strictly comply with the replacement intervals in the Scheduled Servicing Plan. It is advisable to contact anAlfa Romeo
Dealership for spark plug replacement.
(5) Areas that are not dusty: advised maximum mileage 120,000 km. Regardless of the mileage, the belt must be replaced every 6 years.
Dusty areas and/or demanding use of the car (cold climates, town use, long periods of idling): advised maximum mileage 60,000 km. Regardless of the mileage,
the belt must be replaced every 4 years.
199
Page 230 of 288
ENGINE
GENERAL INFORMATION
1.4 Turbo Petrol 105 HP (*)1.4 Turbo Petrol 120 HP
Engine code 940B8000 940B7000
Cycle Otto Otto
Number and arrangement of cylinders 4 in line 4 in line
Piston bore and stroke (mm) 72.0 x 84.0 72.0 x 84.0
Total displacement (cm³) 1368 1368
Compression ratio 9.8 9.8
Maximum power (EC) (kW) 77 88
Maximum power (EC) (HP) 105 120
corresponding engine speed (rpm) 5000 5000
Maximum torque (EC) (Nm) 215 215
Maximum torque (EC) (kgm) 22 22
corresponding engine speed (rpm) 2500 2500
Spark plugs NGK IKR9J8 NGK IKR9J8
FuelUnleaded petrol 95 RON (EN 228
Specification)Unleaded petrol 95 RON (EN 228
Specification)
(*) For versions/markets, where provided
226
TECHNICAL SPECIFICATIONS
Page 231 of 288
GENERAL INFORMATION
1.4 Turbo MultiAir 163 HP (*)1.4 Turbo MultiAir 170 HP
Engine code 955A8000 940A2000
Cycle Otto Otto
Number and arrangement of cylinders 4 in line 4 in line
Piston bore and stroke (mm) 72.0 x 84.0 72.0 x 84.0
Total displacement (cm³) 1368 1368
Compression ratio 10 10
Maximum power (EC) (kW) 120 125
Maximum power (EC) (HP) 163 170
corresponding engine speed (rpm) 5500 5500
NATURAL DYNAMIC NATURAL DYNAMIC
Maximum torque (EC) (Nm) 230 250 230 250
Maximum torque (EC) (kgm) 23.4 25.4 23.4 25.4
corresponding engine speed (rpm) 2250 2500 2250 2500
Spark plugs NGK IKR9J8 NGK IKR9J8
FuelUnleaded petrol 95 RON or 98 RON
(EN 228 Specification)Unleaded petrol 95 RON or 98 RON
(EN 228 Specification)
(*) For versions/markets, where provided
227
Page 232 of 288
GENERAL INFORMATION
1750 Turbo Petrol 235 HP (*)1.6 JTDM105 HP
Engine code 940A1000 940A3000
Cycle Otto Diesel
Number and arrangement of cylinders 4 in line 4 in line
Piston bore and stroke (mm) 83.0 x 80.5 79.5 × 80.5
Total displacement (cm³) 1742 1598
Compression ratio 9.8 16.5
Maximum power (EC) (kW) 172.5 77
Maximum power (EC) (HP) 235 105
corresponding engine speed (rpm) 5500 4000
NATURAL DYNAMIC NATURAL DYNAMIC
Maximum torque (EC) (Nm) 300 340 280 320
Maximum torque (EC) (kgm) 30.5 34.6 28.5 32.6
corresponding engine speed (rpm) 4500 1900 1500 1750
Spark plugs NGK ILKAR7D6G –
FuelUnleaded petrol 98 RON or 95 RON
(EN 228 Specification)Diesel for automotive engines (EN
590 Specification)
(*) For versions/markets, where provided
228
TECHNICAL SPECIFICATIONS
Page 233 of 288
GENERAL INFORMATION 2.0 JTDM150 HP
2.0 JTDM136 HP(*)
Engine code 940B5000 940B6000
Cycle Diesel Diesel
Number and arrangement of cylinders 4 in line 4 in line
Piston bore and stroke (mm) 83 x 90.4 83 x 90.4
Total displacement (cm³) 1956 1956
Compression ratio 16.5 16.5
NATURAL DYNAMIC
Maximum power (EC) (kW) 103 110 100
Maximum power (EC) (HP) 140 150 136
corresponding engine speed (rpm) 3750 3750 3750
NATURAL DYNAMIC NATURAL DYNAMIC
Maximum torque (EC) (Nm) 320 380 320 380
Maximum torque (EC) (kgm) 32.5 38.7 32.5 38.7
corresponding engine speed (rpm) 1500 1750 1500 1750
Spark plugs – –
FuelDiesel for automotive engines (EN
590 Specification)Diesel for automotive engines (EN 590
Specification)
(*) For versions/markets, where provided
229
Page 234 of 288
GENERAL INFORMATION 2.0 JTDM175 HP
2.0 JTDM163 HP(*)
Type code 940B4000 940B9000
Cycle Diesel Diesel
Number and arrangement of cylinders 4 in line 4 in line
Piston bore and stroke (mm) 83 x 90.4 83 x 90.4
Total displacement (cm³) 1956 1956
Compression ratio 16.5 16.5
NATURAL DYNAMIC
Maximum power (EC) (kW) 125 128.5 120
Maximum power (EC) (HP) 170 175 163
corresponding engine speed (rpm) 3750 3750 4000
NATURAL DYNAMIC NATURAL DYNAMIC
Maximum torque (EC) (Nm) 320 350 320 350
Maximum torque (EC) (kgm) 32.5 35.6 32.5 35.6
corresponding engine speed (rpm) 1500 1750 1500 1750
Spark plugs – –
FuelDiesel for automotive engines (EN
590 Specification)Diesel for automotive engines (EN 590
Specification)
(*) For versions/markets, where provided
230
TECHNICAL SPECIFICATIONS

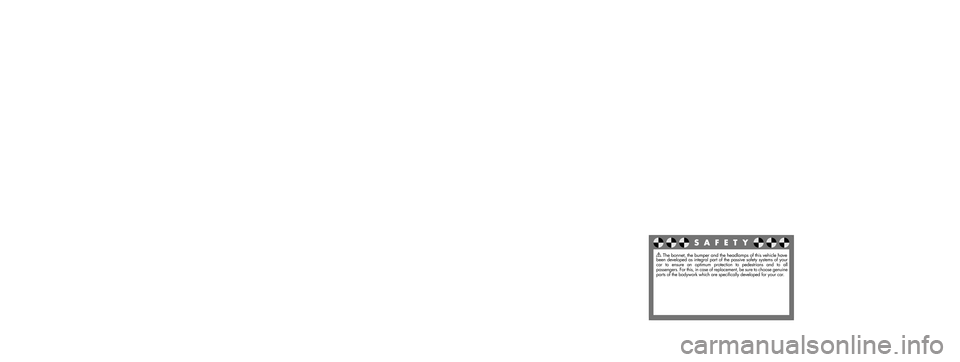

Page 287 of 288
