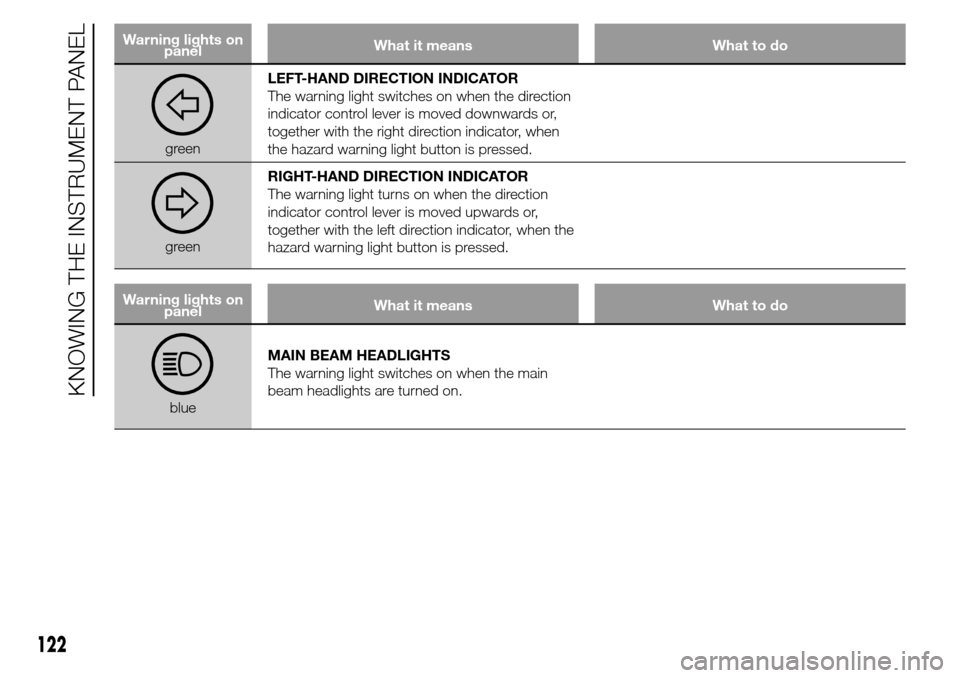

2015 Alfa Romeo Giulietta warning

Warning lights on
panelWhat it means What to do
greenLEFT-HAND DIRECTION INDICATOR
The warning light switches on when the direction
indicator control lever is moved downwards or,
together with the right direction indicator, when
the hazard warning light button is pressed.
greenRIGHT-HAND DIRECTION INDICATOR
The warning light turns on when the direction
indicator control lever is moved upwards or,
together with the left direction indicator, when the
hazard warning light button is pressed.
Warning lights on
panelWhat it means What to do
blueMAIN BEAM HEADLIGHTS
The warning light switches on when the main
beam headlights are turned on.
122
KNOWING THE INSTRUMENT PANEL

Symbol on the
displayWhat it means What to do
START&STOP SYSTEM ACTIVATION/
DEACTIVATION (for versions/markets, where
provided)
Start&Stop system activation
A message will appear on the display when the
Start&Stop system is activated. In this case the
LED located on the
button is off (see the
“Start&Stop” paragraph in this chapter).
Start&Stop system deactivation
Versions with multifunction display: a message is
displayed when the Start&Stop system is
deactivated.
Versions with reconfigurable multifunction display:
the
symbol + message appear on the display
when the Start&Stop system is deactivated.
The LED on the
button is on when the system
is deactivated.
START&STOP FAILURE
If the Start&Stop system is faulty the
(versions
with multifunction display) or
(versions with
reconfigurable multifunction display) symbol
flashes on the display.
For versions/markets, where provided, a warning
message is also displayed.In these cases contact an Alfa Romeo Dealership
to have the fault fixed as soon as possible.
125

Symbol on the
displayWhat it means What to do
DISPLAY OF SELECTED DRIVING MODE
(“Alfa DNA” system)
On versions equipped with a "Reconfigurable
multifunction display", a message and the symbol
associated with the selected driving mode
“DYNAMIC”, “NATURAL” or “ALL WEATHER” are
shown. A warning message is shown on the
display if one of these driving modes is not
available.
On versions equipped with "Multifunction
display", a letter ("d" or "a") associated with the
selected driving mode is shown together with a
dedicated message.
126
KNOWING THE INSTRUMENT PANEL

SEAT BELTS
USING THE SEAT BELTS
The belt should be worn keeping the
torso straight and rested against the
backrest.
To fasten the seat belts, hold the
tongue A fig. 106 and insert it into the
buckle B, until it clicks into place.
On removal of the belt, if it jams, let it
rewind for a short stretch, then pull
it out again without jerking.
To unfasten the seat belts, press button
C and guide the seat belt with your
hand while it is rewinding, to prevent it
from twisting.
70) 71) 72)
The retractor may lock when the car is
parked on a steep slope: this is
perfectly normal. Furthermore, the
retractor mechanism locks the belt if it
is pulled sharply or in the event of
sudden braking, collisions or
high-speed bends.
The rear seat is fitted with inertia seat
belts with three anchor points and a
retractor.
Wear the rear seat belts as illustrated in
fig. 107.
IMPORTANT The backrest is correctly
secured when the red band B fig.
108 on backrest folding handle A
disappears. This red band indicates
that the backrest is not secured.IMPORTANT When putting the rear
seats back to their normal position,
make sure the seat belts are positioned
so they are ready to use.
WARNING
70) Never press button C fig. 106
while travelling.
71) Remember that, in the event of
an accident, the rear seat
passengers not wearing seat belts
are exposed to a very serious
risk and also represent a serious
danger for the front seat
occupants.
106A0K0659
107A0K0161
108A0K0628
128
SAFETY

72) Make sure that the backrest is
correctly secured on both sides
("red bands" B fig. 108 not visible)
to prevent it from moving forward
in the event of sharp braking,
causing injuries to occupants.SBR SYSTEM (Seat
Belt Reminder)
This system comprises an acoustic
warning which, in conjunction with the
warning lights flashing on the
instrument panel, advises the front seat
passengers if their seat belt has not
been fastened.
On some versions there is also a panel
(provided as an alternative to the
warning light on the instrument panel)
located above the interior rear view
mirror, which warns the front and back
seat passengers through acoustic
and visual signals if their seat belts have
not been fastened.
Contact an Alfa Romeo Dealership to
deactivate this acoustic warning
permanently.
The acoustic warning can be
reactivated at any time through the
Setup Menu (see "Menu options"
paragraph in the “Knowing the
instrument panel” chapter).
The warning lights may be red or green
and operate as follows:
❒1 = front left seat (driver status for
left-hand drive versions);
❒2 = rear left seat (passenger);
❒3 = rear centre seat (passenger);❒4 = rear right seat (passenger);
❒5 = front right seat (passenger status
for left-hand drive versions).
109A0K0075
129

Driver
If the driver is the only occupant and
their seat belt is not fastened, when 20
km/h is exceeded or when travelling
at a speed between 10 and 20 km/h for
longer than 5 seconds, an acoustic
signal cycle will be started for the front
seats (continuous acoustic signal for
6 seconds followed by a 90 second
beep). The warning light will flash.
The warning lights will stay on
constantly at the end of the cycle until
the engine is stopped. The acoustic
signal will be interrupted immediately
when the driver’s seat belt is fastened
and the warning light will turn green.
The reminder cycle (acoustic and visual)
will be repeated as described above
and the red warning light will flash if the
seat belt is unfastened again while
travelling.
Passenger
A similar situation applies to the front
passenger, with the difference that the
warning light turns green and the
indication is also interrupted when the
passenger leaves the car.If both front seat belts are unfastened a
few seconds apart while the car is
travelling, the acoustic signal will refer
to the most recent event and the two
warning lights will proceed with the
visual indication independently.
REAR SEATS (warning
light no. 2, no. 3 and no.
4)
For the rear seats, the reminder cycle is
only activated when any seat belt is
unfastened (flashing red).
In this condition, the warning light for
the seat belt which has been
unfastened will flash (red) for
approximately 30 seconds. An acoustic
signal is also emitted.
The visual indication (flashing red) will
start and stop independently for each
warning light if several seat belts are
unfastened. The warning light will
become green when the relevant seat
belt is fastened again.
The rear seat warning lights will switch
off, regardless of the state of the belt
(red or green) approximately 30
seconds after the last signal.IMPORTANT
The warning lights are all off if all seat
belts (front and rear) are already
fastened when the ignition key is turned
to MAR.
All warning lights switch on when at
least one belt changes from fastened to
unfastened or vice versa.
130
SAFETY
FRONT SEATS (warning
light no. 1 = driver and
no. 5 = passenger)

Each seat belt must be used by only
one person. Never travel with a child
sitting on a passenger’s lap and a single
belt to protect them both fig. 112. In
general, do not place any objects
between the person and belt.SEAT BELT
MAINTENANCE
❒Always use the seat belt well
stretched and never twisted; make
sure that it is free to run without
obstructions;
❒replace the belt after an accident of a
certain severity even if it does not
appear to be damaged. Always
replace the belt if the pretensioners
were deployed;
❒hand wash the seat belts with water
and neutral soap, rinse and leave to
dry in the shade. Never use strong
detergents, bleach, paints or any
other substance which could
damage the belt fibres;
❒prevent the retractors from getting
wet: their correct operation is only
guaranteed if water does not get
inside;
❒replace the seat belt when there is
wear or cuts.
WARNING
73) The pretensioner may be used
only once. After its activation,
contact an Alfa Romeo Dealership
to have it replaced.
74) Removing or otherwise
tampering with pretensioner and
seat belt components is strictly
prohibited. Any operations on
these components must be
performed by qualified and
authorised technicians. Always
contact an Alfa Romeo
Dealership.
75) For maximum protection, keep
the backrest upright, lean back
into it and make sure the seat belt
fits closely across your chest
and pelvis. Always fasten the seat
belts for both the front and rear
seats! Travelling without wearing
seat belts will increase the risk
of serious injury and even death in
the event of an accident.
111A0K0012
112A0K0013
132
SAFETY

All restraint devices must bear the
type-approval data along with
the control mark on a label firmly
secured to the child seat which must
never be removed.
Lineaccessori Alfa Romeo includes
child restraint systems for each weight
group. These devices are
recommended having been specifically
tested for Alfa Romeo cars.
WARNING
77) SEVERE DANGER. When an
active passenger airbag is fitted,
DO NOT install rear facing child
restraint systems on the front
seat. Deployment of the airbag in
an accident could cause fatal
injuries to the baby regardless of
the severity of the impact. It is
advisable to always carry children
in a child restraint system on the
rear seat, which is the most
protected position in the event of
a collision.78) On the sun visor there is a label
with suitable symbols
remembering that it is compulsory
to deactivate the airbag if a rear
facing child restraint system is
fitted. Always comply with the
instructions on the passenger's
side sun visor (see the "Front
airbag" paragraph).
FITTING
“UNIVERSAL” CHILD
SEAT (with seat
belts)
GROUP 0 and 0+
80)
Infants up to 13 kg must be carried with
a child seat facing backwards of a
type as shown in fig. 113 which,
supporting the head, does not induce
stress on the neck in the event of
sudden decelerations.
The child seat is secured by the car
seat belts, as shown in fig. 113 and it
must restrain the child in turn with
its own belts.
113A0K0014
134
SAFETY
