2015 Alfa Romeo Giulietta ESP

GENERAL INFORMATION 2.0 JTDM175 HP
2.0 JTDM163 HP(*)
Type code 940B4000 940B9000
Cycle Diesel Diesel
Number and arrangement of cylinders 4 in line 4 in line
Piston bore and stroke (mm) 83 x 90.4 83 x 90.4
Total displacement (cm³) 1956 1956
Compression ratio 16.5 16.5
NATURAL DYNAMIC
Maximum power (EC) (kW) 125 128.5 120
Maximum power (EC) (HP) 170 175 163
corresponding engine speed (rpm) 3750 3750 4000
NATURAL DYNAMIC NATURAL DYNAMIC
Maximum torque (EC) (Nm) 320 350 320 350
Maximum torque (EC) (kgm) 32.5 35.6 32.5 35.6
corresponding engine speed (rpm) 1500 1750 1500 1750
Spark plugs – –
FuelDiesel for automotive engines (EN
590 Specification)Diesel for automotive engines (EN 590
Specification)
(*) For versions/markets, where provided
230
TECHNICAL SPECIFICATIONS

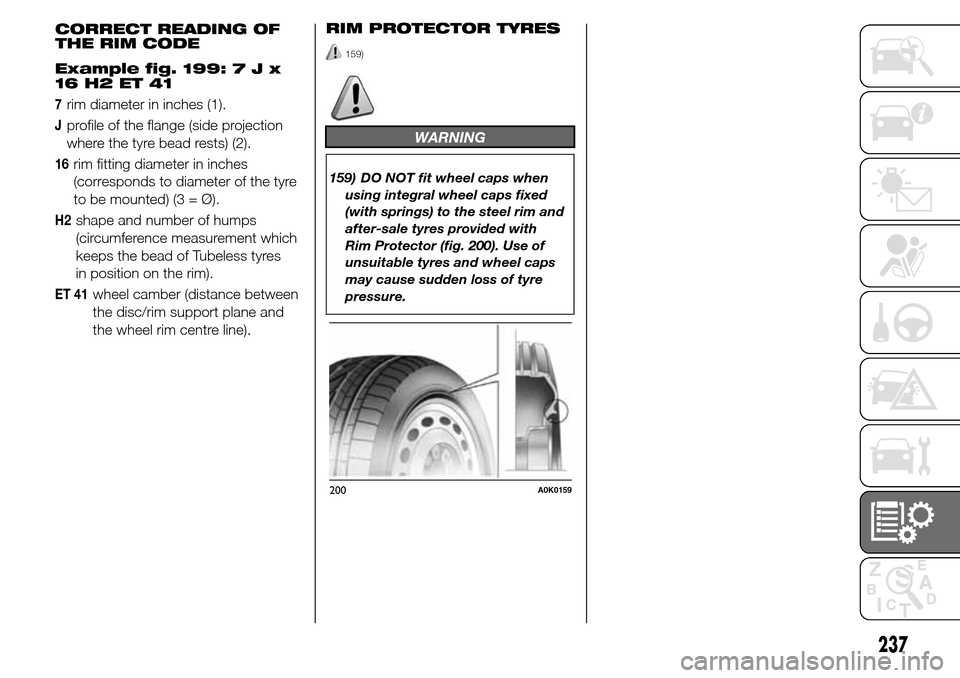

Example fig. 199:7Jx
16 H2 ET 41
7rim diameter in inches (1).
Jprofile of the flange (side projection
where the tyre bead rests) (2).
16rim fitting diameter in inches
(corresponds to diameter of the tyre
to be mounted) (3 = Ø).
H2shape and number of humps
(circumference measurement which
keeps the bead of Tubeless tyres
in position on the rim).
ET 41wheel camber (distance between
the disc/rim support plane and
the wheel rim centre line).RIM PROTECTOR TYRES
159)
WARNING
159) DO NOT fit wheel caps when
using integral wheel caps fixed
(with springs) to the steel rim and
after-sale tyres provided with
Rim Protector (fig. 200). Use of
unsuitable tyres and wheel caps
may cause sudden loss of tyre
pressure.
200A0K0159
237
CORRECT READING OF
THE RIM CODE

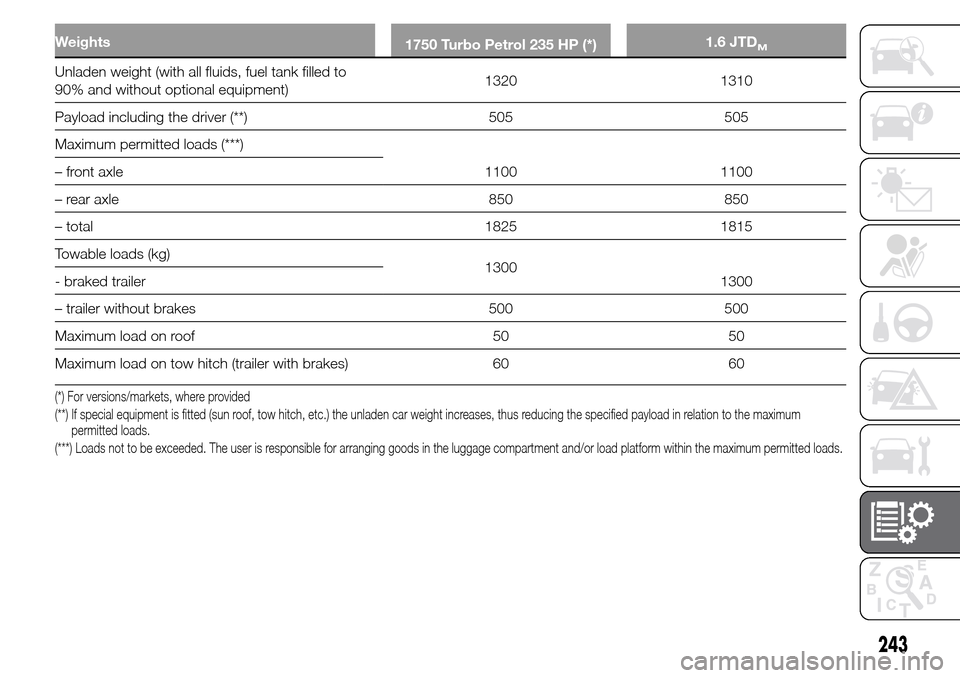

Weights
1750 Turbo Petrol 235 HP (*)1.6 JTDM
Unladen weight (with all fluids, fuel tank filled to
90% and without optional equipment)1320 1310
Payload including the driver (**) 505 505
Maximum permitted loads (***)
1100 1100 – front axle
– rear axle 850 850
– total 1825 1815
Towable loads (kg)
1300
1300 - braked trailer
– trailer without brakes 500 500
Maximum load on roof 50 50
Maximum load on tow hitch (trailer with brakes) 60 60
(*) For versions/markets, where provided
(**) If special equipment is fitted (sun roof, tow hitch, etc.) the unladen car weight increases, thus reducing the specified payload in relation to the maximum
permitted loads.
(***) Loads not to be exceeded. The user is responsible for arranging goods in the luggage compartment and/or load platform within the maximum permitted loads.
243

Weights
2.0 JTDM(*) 2.0 JTDM(**)
Unladen weight (with all fluids, fuel tank filled to
90% and without optional equipment)1320 1335
Payload including the driver (***) 505 505
Maximum permitted loads (****)
1100 1100 – front axle
– rear axle 850 850
– total 1825 1840
Towable loads (kg)
1300
1300 / 600 (*****) - braked trailer
– trailer without brakes 500 500
Maximum load on roof 50 50
Maximum load on tow hitch (trailer with brakes) 60 60
(*) Versions with manual gearbox
(**) Versions with Alfa TCT
(***) If special equipment is fitted (sun roof, tow hitch, etc.) the unladen car weight increases, thus reducing the specified payload in relation to the maximum
permitted loads.
(****) Loads not to be exceeded. The user is responsible for arranging goods in the luggage compartment and/or load platform within the maximum permitted
loads.
(*****) 2.0 JTD
M163 HP TCT versions
244
TECHNICAL SPECIFICATIONS

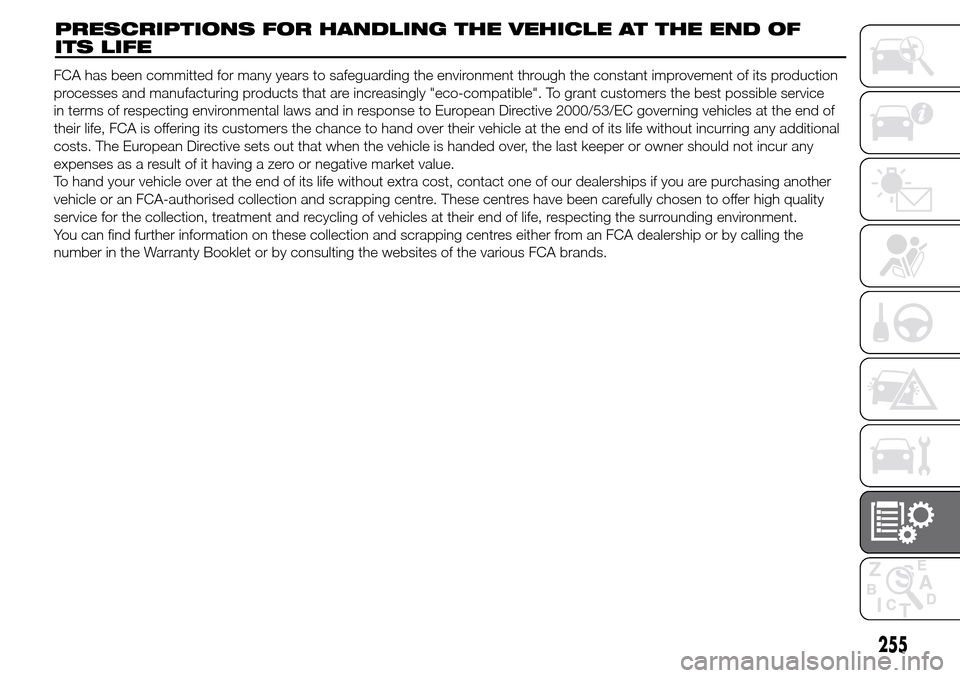

PRESCRIPTIONS FOR HANDLING THE VEHICLE AT THE END OF
ITS LIFE
255
FCA has been committed for many years to safeguarding the environment through the constant improvement of its production
processes and manufacturing products that are increasingly "eco-compatible". To grant customers the best possible service
in terms of respecting environmental laws and in response to European Directive 2000/53/EC governing vehicles at the end of
their life, FCA is offering its customers the chance to hand over their vehicle at the end of its life without incurring any additional
costs. The European Directive sets out that when the vehicle is handed over, the last keeper or owner should not incur any
expenses as a result of it having a zero or negative market value.
To hand your vehicle over at the end of its life without extra cost, contact one of our dealerships if you are purchasing another
vehicle or an FCA-authorised collection and scrapping centre. These centres have been carefully chosen to offer high quality
service for the collection, treatment and recycling of vehicles at their end of life, respecting the surrounding environment.
You can find further information on these collection and scrapping centres either from an FCA dealership or by calling the
number in the Warranty Booklet or by consulting the websites of the various FCA brands.
