2015 Acura RLX Owner's Manual

496

497
Information
This chapter includes your vehicle’s specifications, locations of identification numbers, and other
information required by regulation.
Specifications .................................... 498
Identification NumbersVehicle Identification Number (VIN), Engine
Number and Transmission Number .... 500Devices that Emit Radio Waves ....... 501
Reporting Safety Defects ................. 502Emissions Testing
Testing of Readiness Codes.............. 503
Warranty Coverages ........................ 505
Authorized Manuals ......................... 507
Client Service Information ............... 508

498Information
Specifications■Vehicle SpecificationsModel
Acura RLX
No. of Passengers:
Front 2
Rear 3
Total 5
Weights:Gross Vehicle Weight
Rating
U.S.: 4,993 lbs (2,265 kg)
Canada: 2,265 kg
Gross Axle Weight
Rating (Front)
U.S.: 2,778 lbs (1,260 kg)
Canada: 1,260 kg
Gross Axle Weight
Rating (Rear)
U.S.: 2,271 lbs (1,030 kg)
Canada: 1,030 kg
Air Conditioning:
Refrigerant Type HFC-134a (R-134a)
Charge Quantity 15.8 – 17.6 oz (450 – 500 g)
Lubricant Type ND-OIL 8
■ Engine Specifications
■ Fuel
■ Washer FluidDisplacement
212 cu-in (3,471 cm
3)
Spark Plugs NGK DILZKR7B11G
Type
Unleaded premium gasoline, Pump octane
number of 91 or higher
Fuel Tank Capacity 18.5 US gal (70 ℓ)
Tank Capacity
U.S.: 2.6 US qt (2.5 ℓ)
Canada: 5.3 US qt (5.0 ℓ)
■ Light Bulbs*1: Not available on all modelsHeadlights (Low Beam)
LED
Headlights (High Beam) LED
Front Turn Signal/Parking Lights
27/8W (Amber)
Front Side Marker Lights 3CP
Side Turn Signal Lights
(on Door Mirrors)
LED
Brake/Taillights/Rear Side Marker
Lights LED
Taillights
LED
Back-Up Lights 16W
Rear Turn Signal Lights
21W
High-Mount Brake Light LED
Rear License Plate Lights
LED
Door Outer Handle Ambient Lights LED
Interior Lights
Front and Rear Map Lights
LED
Front and Rear Ambient Lights
LED
Vanity Mirror Lights
2.1W
Front Door Pocket Lights
LED
Center Pocket Light
LED
Beverage Holder Light
LED
Door Courtesy Lights
3.4W
Console Compartment Light
LED
Glove Box Light
LED
Front and Rear
*1 Foot Lights
LED
Door Inner Handle Lights
LED
Trunk Lights
5W

499
uuSpecifications u
Information
■Brake Fluid
■ Automatic Transmission FluidSpecified
Acura Heavy Duty Brake Fluid DOT 3
Specified
Acura ATF DW-1
(automatic transmission fluid)
Capacity Change 3.3 US qt (3.1 ℓ)
■ Engine Oil
■ Engine CoolantRecommended
·Genuine Acura Motor Oil 0W-20
·API Premium-grade 0W-20 detergent oil
Capacity Change 4.2 US qt (4.0 ℓ)
Change
including
filter
4.5 US qt (4.3 ℓ)
Specified
Acura Long-Life Antifreeze/Coolant Type2
Ratio 50/50 with distilled water
Capacity
2.1 US gal (8.0 ℓ)
(change including the remaining
0.225 US gal (0.85 ℓ) in the reserve tank)
■ Tire*1: Except TECH, ADVANCE, and U.S. TECH-AUDIO models
*2: TECH, ADVANCE, and U.S. TECH-AUDIO models
*3: Vehicles with optional spare tire kitRegular
Size
P245/45R18 96V
*1
245/40R19 98W
*2
Pressure
psi (kPa [kgf/cm
2])
Front
32 (220 [2.2])
*1
35 (240 [2.4])
*2
Rear
32 (220 [2.2])
*1
33 (230 [2.3])
*2
Compact
Spare
*3
Size T155/70D17 110M
Pressure
psi (kPa [kgf/cm
2]) 60 (420 [4.2])
Wheel Size
Regular
18 x 8J
*1
19 x 8J
*2
Compact Spare
*3
17 x 4T

500Information
Identification NumbersVehicle Identification Number (VIN), Engine Number and Transmission NumberYour vehicle has a 17-digit vehicle identification number (VIN) used to register your
vehicle for warranty purposes, and for licensing and insuring your vehicle.
The locations of your vehicle's VIN, engine number and transmission number are
shown as follows.
1 Vehicle Identification Number (VIN), Engine Number and Transmission Number
The interior vehicle iden tification number (VIN) is
located under the cover.
Cover
Vehicle Identification Number
Engine Number
Automatic
Transmission
Number
Certification Label/
Vehicle Identification Number
Vehicle Identification Number

501Information
Devices that Emit Radio WavesThe following products and systems on your vehicle emit radio waves when in operation.Each of the above complies with the appropriate requirements or the required standards of FCC
(Federal Communications Commission) and Industry Canada Standard, described below:As required by the FCC:
This device complies with Part 15 of the FCC rules. Operation is
subject to the following two conditions: (1) This device may not
cause harmful interference, and (2) this device must accept any
interference received, including interference that may cause
undesired operation.
Changes or modifications not expressly approved by the party
responsible for compliance could void the user’s authority to
operate the equipment.This device complies with industry Canada Standard RSS-Gen/210/310. Operation is
subject to the following two conditions: (1) this device may not cause interference,
and (2) this device must accept any interference, including interference that may
cause undesired operation of the device.AcuraLinkAudio SystemBlind Spot Information SystemBluetooth ® AudioBluetooth® HandsFreeLink ®Collision Mitigation Braking System
TM
HomeLink® Universal TransceiverImmobilizer SystemKeyless Access SystemTire Pressure Monitoring System (TPMS)

502Information

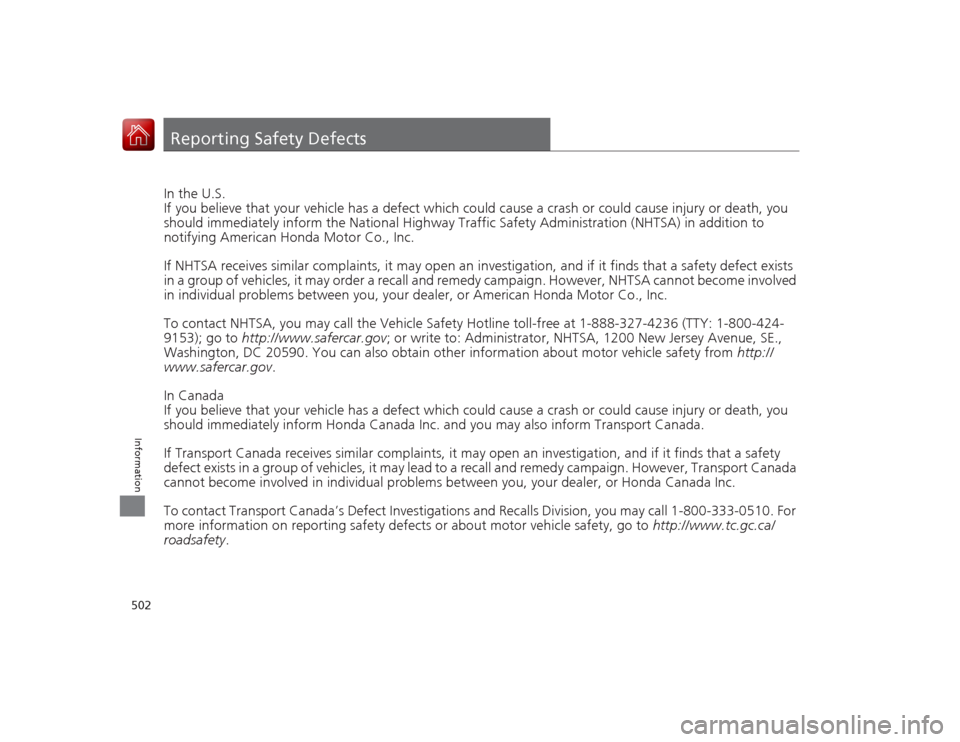

Reporting Safety DefectsIn the U.S.
If you believe that your vehicle has a defect which could cause a crash or could cause injury or death, you
should immediately inform the National Highway Traffic Safety Administration (NHTSA) in addition to
notifying American Honda Motor Co., Inc.
If NHTSA receives similar comp laints, it may open an investigation, and if it finds that a safety defect exists
in a group of vehicles, it may order a recall an d remedy campaign. However, NHTSA cannot become involved
in individual problems between you, your dealer, or American Honda Motor Co., Inc.
To contact NHTSA, you may call the Vehicle Safety Hotline toll-free at 1-888-327-4236 (TTY: 1-800-424-
9153); go to http://www.safercar.gov ; or write to: Administrator, NHTSA, 1200 New Jersey Avenue, SE.,
Washington, DC 20590. You can also obtain other information about motor vehicle safety from http://
www.safercar.gov .
In Canada
If you believe that your vehicle has a defect which could cause a crash or could cause injury or death, you
should immediately inform Honda Canada Inc. and you may also inform Transport Canada.
If Transport Canada receives simi lar complaints, it may open an investigation, and if it finds that a safety
defect exists in a group of vehicles, it may lead to a reca ll and remedy campaign. However, Transport Canada
cannot become involved in individual problems be tween you, your dealer, or Honda Canada Inc.
To contact Transport Canada’s Defect Investigations and Recalls Division, you may call 1-800-333-0510. For
more information on reporting safety defects or about motor vehicle safety, go to http://www.tc.gc.ca/
roadsafety .

503
Continued
Information
Emissions TestingTesting of Readiness CodesYour vehicle uses “readiness codes,” as part of its onboard self diagnostic system.
Some states refer to these codes during testing to see if your vehicle’s emissions
components are working properly.
The codes may not be read if you go through the testing just after the battery has
gone dead or been disconnected.
To check if they are set, set the power mode to ON, without starting the engine. The
malfunction indicator lamp will come on for several seconds. If it then goes off, the
readiness codes are set. If it blinks five times, the readiness codes are not set.
If you are required to have your vehicle tested before the readiness codes are ready,
prepare the vehicle for retesting by doing the following:
1. Fill the gas tank to approximately 3/4 full.
2. Park the vehicle and leave the engine off for 6 hours or more.
3. Make sure the ambient temperature is between 40°F and 95°F (4°C and 35°C).
4. Start the engine without touching the accelerator pedal, and let it idle for 20
seconds.
5. Keep the vehicle in
(P
. Increase the engine speed to 2,000 rpm, and hold it there
for about three minutes.
6. Let the engine idle with your foot off the accelerator for 20 seconds.
1Testing of Readiness Codes
The readiness codes are erased when the battery is
disconnected, and set again only after several days of
driving under a variety of conditions.
If a testing facility determines that the readiness
codes are not set, you may be requested to return at
a later date to complete the test.
If the testing faci lity determines the readiness codes
are still not set, see a dealer.
