2015 Acura ILX Engine

Contents
Child Safety P. 48Exhaust Gas Hazard P. 60Safety Labels P. 61
Opening and Closing the Trunk P. 102 Security System P. 106 Opening and Closing the Windows P. 108
Operating the Switches Around the Steering Wheel P. 112 Adjusting the Mirrors P. 121
Interior Lights/Interior Convenience It ems P. 131 Climate Control System P. 136
Audio Error Messages* P. 170General Information on the Audio System P. 173
Bluetooth ® HandsFreeLink ® P. 179
When Driving P. 216 Braking P. 237Parking Your Vehicle P. 241
Fuel Economy P. 245 Accessories and Modifications P. 246
Maintenance Under the Hood P. 256 Replacing Light Bulbs P. 274
Checking and Maintaining Tires P. 286 Battery P. 295 Remote Transmitter Care P. 296
Cleaning P. 298
Engine Does Not Start P. 311Jump Starting P. 314 Shift Lever Does Not Move P. 317
Fuses P. 324 Emergency Towing P. 327
Devices that Emit Radio Waves P. 335 Reporting Safety Defects P. 336
Authorized Manuals P. 341 Client Service Information P. 342
Quick Reference GuideP. 4
Safe DrivingP. 21
Instrument PanelP. 63
ControlsP. 91
FeaturesP. 141
DrivingP. 209
MaintenanceP. 247
Handling the UnexpectedP. 303
InformationP. 329
IndexP. 343
15 ACURA ILX-31TX66200.book 3 ページ ２０１４年３月２７日　木曜日　午前１０時３４分

4
Quick Reference Guide
Quick Reference Guide
Visual Index
❙Audio System (P 142)
❙Rear Window Defogger/
Heated Mirror Button
(P 120)
❙Steering Wheel Adjustments (P 120)
❙ (Vehicle Stability Assist (VSA®) System OFF) Button (P 233)
❙Climate Control System (P 136)
❙System Indicators (P 64)
❙Gauges (P 78)
❙Multi-Information Display (P 79)
❙Hazard Warning Button
❙ENGINE START/STOP Button (P 112)
❙Navigation System*
() See the Navigation System Manual
❙Audio/Information Screen* (P 146)
15 ACURA ILX-31TX66200.book 4 ページ ２０１４年３月２７日　木曜日　午前１０時３４分

9
Quick Reference Guide
Safe Driving (P 21)
Airbags (P 33)
● Your vehicle is fitted with ai rbags to help protect you and
your passengers during a moderate-to-severe collision.
Child Safety (P 48)
● All children 12 and younger should be seated in the rear seat.
● Smaller children should be properly restra ined in a forward-facing child seat.
● Infants must be properly restraine d in a rear-facing child seat.
Exhaust Gas Hazard (P 60)
● Your vehicle emits dangerous exhaust gases that contain carbon
monoxide. Do not run the engine in confined spaces where carbon
monoxide gas can accumulate.
Before Driving Checklist (P 25)
● Before driving, check that the front seats, head restraints,
steering wheel, and mirrors have been properly adjusted.
Seat Belts (P 26)
● Fasten your seat belt and sit upright well
back in the seat.
● Check that your passengers are wearing
their seat belts correctly.
Fasten your lap belt as
low as possible.
* Not available on all models
15 ACURA ILX-31TX66200.book 9 ページ ２０１４年３月２７日　木曜日　午前１０時３４分

11
Quick Reference Guide
Controls (P 91)
ENGINE START/STOP
Button
(P 112)
Press the button to change the vehicle’s
power mode.
Turn Signals (P 114)
Lights (P 114)
Turn Signal Control Lever
Right
Left
Light Control Switches
Low Beam High Beam
Flashing
Wipers and Washers
(P 118)
Wiper/Washer Control Lever Adjustment Ring: Long Delay
: Short Delay
MIST
OFF
INT: Low speed with intermittent
LO : Low speed wipe
HI: High speed wipe Pull toward
you to spray
washer fluid.
*
Not available on all models
15 ACURA ILX-31TX66200.book 11 ページ ２０１４年３月２７日　木曜日　午前１０時３４分

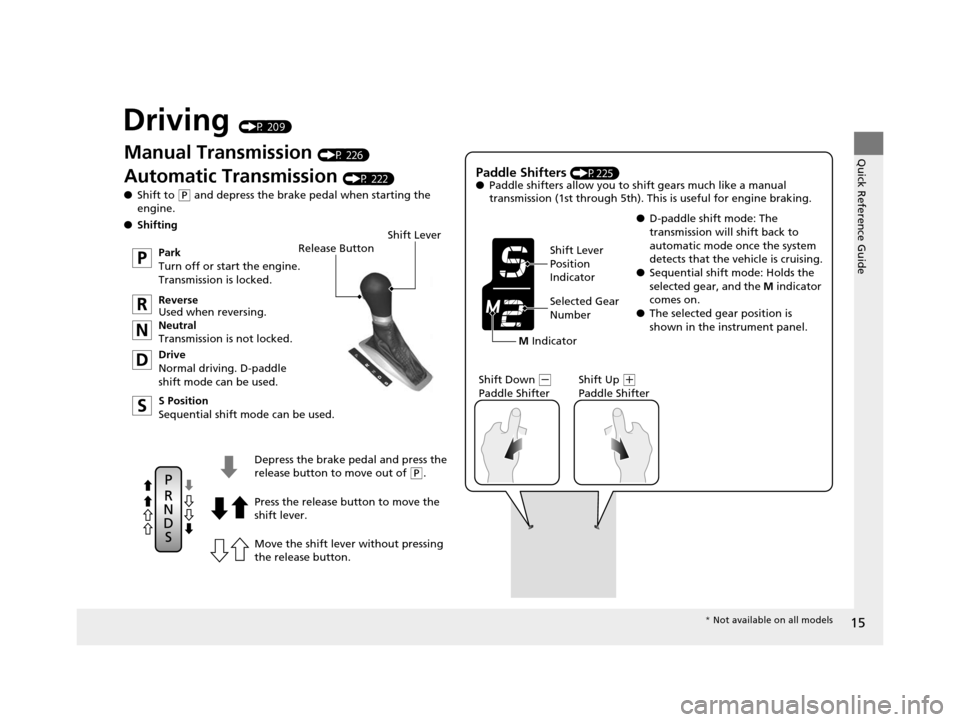

15
Quick Reference Guide
Driving (P 209)
Release Button
Depress the brake pedal and press the
release button to move out of
( P.
Move the shift lever without pressing
the release button. Press the release button to move the
shift lever.
Manual Transmission (P 226)
Automatic Transmission (P 222)
● Shift to
(P and depress the brake pedal when starting the
engine.
● Shifting
Park
Turn off or start the engine.
Transmission is locked.
Reverse
Used when reversing.
Neutral
Transmission is not locked.
S Position
Sequential shift mode can be used. Drive
Normal driving. D-paddle
shift mode can be used.
Paddle Shifters (P225)
● Paddle shifters allow you to shift gears much like a manual
transmission (1st through 5th). This is useful for engine braking.
●D-paddle shift mode: The
transmission will shift back to
automatic mode once the system
detects that the vehicle is cruising.
● Sequential shift mode: Holds the
selected gear, and the M indicator
comes on.
● The selected gear position is
shown in the instrument panel.
M Indicator Shift Lever
Position
Indicator
Shift Lever
Selected Gear
Number
Shift Down (
-
Paddle Shifter Shift Up (
+
Paddle Shifter
* Not available on all models
15 ACURA ILX-31TX66200.book 15 ページ ２０１４年３月２７日　木曜日　午前１０時３４分

16
Quick Reference Guide
VSA® OFF Button (P 233)
● The vehicle stability assist (VSA® ) system
helps stabilize the vehicle during
cornering, and helps maintain traction
while accelerating on loose or slippery
road surfaces.
● VSA ® comes on automatically every time
you start the engine.
● To turn VSA ® on or off, press and hold
the button until you hear a beep.
Cruise Control (P 229)
● Cruise control allows you to maintain a
set speed without keeping your foot on
the accelerator pedal.
● To use cruise control, press the CRUISE
button, then press DECEL/SET once you
have achieved the desired speed (above
25 mph or 40 km/h).
Tire Pressure Monitoring
System (TPMS)
(P 234)
● The TPMS monitors tire pressure.
● The TPMS is turned on automatically
every time you start the engine.
U.S. models only
Refueling (P 243)
aPush the fuel fill door
release handle.
bTurn the fuel fill cap
slowly to remove the
cap.
cPlace the cap in the
holder on the fuel fill
door.
dAfter refueling, screw
the cap back on until it
clicks at least once.
Fuel recommendation: Unleaded premiu m gasoline with a pump octane
number 91 or higher recommended
Fuel tank capacity: 13.2 US gal (50 L)
15 ACURA ILX-31TX66200.book 16 ページ ２０１４年３月２７日　木曜日　午前１０時３４分

17
Quick Reference Guide
Maintenance (P 247)
Under the Hood (P 256, 257)
● Check engine oil, engine coolant, and windshield washer
fluid. Add when necessary.
● Check brake fluid and clutch fluid.
● Check the battery condition monthly.
aPull the hood release handle under the corner of the
dashboard.
bLocate the hood latch lever, slide the lever and lift the
hood.
cWhen finished, close the hood and make sure it is firmly
locked in place.
Lights (P 274)
● Inspect all lights regularly.
Wiper Blades (P 284)
● Replace blades if they leave streaks
across the windshield.
Tires (P 286)
● Inspect tires and wheels regularly.
● Check tire pressures regularly.
● Install snow tires for winter driving.
15 ACURA ILX-31TX66200.book 17 ページ ２０１４年３月２７日　木曜日　午前１０時３４分

18
Quick Reference Guide
Handling the Unexpected (P 303)
Flat Tire (P 305)
● Park in a safe location and replace the
flat tire with the compact spare tire in the
trunk.
Indicators Come On
(P 320)
●Identify the indicator and consult the
owner's manual.
Engine Won't Start (P 311)
● If the battery is dead, jump start using a
booster battery.
Blown Fuse (P 324)
● Check for a blown fuse if an electrical
device does not operate.
Overheating (P 318)
● Park in a safe location. If you do not see
steam under the hood, open the hood,
and let the engine cool down.
Emergency Towing
(P 327)
●Call a professional towing service if you
need to tow your vehicle.
15 ACURA ILX-31TX66200.book 18 ページ ２０１４年３月２７日　木曜日　午前１０時３４分
