Quick Reference Guide
Quick Reference Guide
Visual Index
❙Audio System (P 142)
❙Rear Window Defogger/
Heated Mirror Button
(P 120)
❙Steering Wheel Adjustments (P 120)
❙ (Vehicle Stability Assist (VSA®) System OFF) Button (P 233)
❙Climate Control System (P 136)
❙System Indicators (P 64)
❙Gauges (P 78)
❙Multi-Information Display (P 79)
❙Hazard Warning Button
❙ENGINE START/STOP Button (P 112)
❙Navigation System*
() See the Navigation System Manual
❙Audio/Information Screen* (P 146)
15 ACURA ILX-31TX66200.book 4 ページ ２０１４年３月２７日　木曜日　午前１０時３４分

5
Quick Reference Guide
❙Wipers/Washers (P 118)
❙Cruise Control Buttons (P 229)
❙Remote Audio Control Buttons (P 149)
❙SEL/RESET Button (P 79)
❙ (Information) Button (P 79)
❙Brightness Control (P 119)
❙Headlights/Turn Signals (P 114)
❙Fog Lights* (P 117)
❙Paddle Shifter (Shift down)* (P 225)
❙Paddle Shifter (Shift up)* (P 225)
❙Horn (Press an area around .)
❙Navigation System Voice Control Buttons*
() See the Navigation System Manual
❙Bluetooth® HandsFreeLink ® System
Voice Control Buttons
(P 179)
* Not available on all models
15 ACURA ILX-31TX66200.book 5 ページ ２０１４年３月２７日　木曜日　午前１０時３４分

13
Quick Reference Guide
Climate Control System (P 136)
● Press the AUTO button to activate th e climate control system.
● Press the button to turn the system on or off.
● Press the button to de frost the windshield.
The climate control system is voice operabl e. See the Navigation System Manual for
complete details.
On models with navigation system
Driver's Side
Temperature
Control Dial
A/C (Air Conditioning) Button
Air flows from floor and
windshield defroster vents. Air flows from floor vents. Air flows from floor and
dashboard vents. Air flows from dashboard vents.
AUTO Button
(Recirculation) Button
Passenger's Side
Temperature
Control Dial
MODE Control Button
(ON/OFF) Button
SYNC (Synchronized) Button
(Windshield Defroster) Button
/ (Fan Control) Buttons
Clock (P 92)
aPress the CLOCK
(AUX ) button until the
displayed time begins flashing.
bPress Preset ( 4 (Hour) or (5 (Minute)
to set the time. Press Preset
( 6 (Reset)
to set the time to the nearest hour.
cPress the CLOCK button again to set
the time.
The navigation system receives signals from
GPS satellites, updating the clock
automatically.
Models without navigation system
Models with navigation system
15 ACURA ILX-31TX66200.book 13 ページ ２０１４年３月２７日　木曜日　午前１０時３４分

14
Quick Reference Guide
Features (P 141)
Audio system (P 142) For navigation system operation
() See the Navigation System Manual
Audio/
Information Screen
Selector Knob VOL
/ (Volume/Power) Knob
CD Button
CD Slot
(CD Eject) Button
Preset Buttons
SETUP Button
PHONE Button DISPLAY
Button
A.SEL
(Auto Select)
Button SKIP Bar AUX
Button
BACK Button
SCAN
Button
CATEGORY
Bar
*
FM/AM Button*
(XM®) Button*
FM Button*AM Button*
FOLDER Bar*
●Audio Remote Controls (P 149)
● VOL (Volume) Button
Press / to adjust the volume up/
down.
● MODE Button
Press to change the audio mode: FM1/
FM2/AM/XM1
*/XM2*/CD/AUX.
● CH (Channel) Button
Radio: Press to change the preset station. Press and hold to select the next or
previous strong station.
CD/USB device: Press to skip to the beginning of
the next song or return to the
beginning of the current song.
Press and hold to change a folder.
CH Button MODE
Button
VOL
Button
15 ACURA ILX-31TX66200.book 14 ページ ２０１４年３月２７日　木曜日　午前１０時３４分

92
Controls
Setting the Clock
Clock
You can adjust the time in the clock display, with the power mode in ON.1.Press the SETUP button.
2. Rotate to select Adjust Clock on the
screen.
3. Press . Adjust Clock appears.
4. Rotate to select the item you want to
adjust (12/24 hour mode, hour, minute).
Then press .
5. Rotate to make the adjustment.
6. Press to enter your selection. The display
returns to Adjust Clock . Repeat steps 4 to
6 to adjust other items.
7. To enter the selection, rotate and select
Set , then press .
1Clock
These indications are used to show how to operate
the selector knob.
Rotate to select.
Press to enter.
The clock is automatica lly updated through the
navigation system, so the ti me does not need to be
adjusted.
Models with navigation system
Models without navigation system
SETUP Button
15 ACURA ILX-31TX66200.book 92 ページ ２０１４年３月２７日　木曜日　午前１０時３４分

142
Features
Audio System
About Your Audio System
See the Navigation System Manual for operation of the audio system, AcuraLink*,
Bluetooth ® HandsFreeLink ®, and voice commands for these features.
The audio system features AM/FM radio and the XM ® Radio service. It can also play
audio CDs, WMA/MP3/AAC files, USB flash drives, and iPod, iPhone and Bluetooth®
devices.
You can operate the audio system from the buttons and switches on the panel, or
the remote controls on the steering wheel.
1About Your Audio System
XM ® Radio is available on a subscription basis only.
For more information on XM ® Radio, contact a
dealer. 2 General Information on the Audio System
P. 173
XM ® Radio is available in the United States and
Canada, except Ha waii, Alaska, and Puerto Rico.
XM ® is a registered trademark of Sirius XM Radio, Inc.
Video CDs, DVDs, and 3-inch (8-cm) mini CDs are not
supported.
iPod, iPhone and iTunes are trademarks of Apple Inc.
State or local laws may li mit the circumstances in
which you can launch or cont rol your attached audio
device.Models with navigation system
Remote Control iPod
USB Flash
Drive
* Not available on all models
15 ACURA ILX-31TX66200.book 142 ページ ２０１４年３月２７日　木曜日　午前１０時３４分

179Continued
Features
Bluetooth® HandsFreeLink ®
See the Navigation System Manual for how to operate Bluetooth® HandsFreeLink ®.
Bluetooth ® HandsFreeLink ® (HFL) allows you to place and receive phone calls using
your vehicle's audio system, without handling your cell phone.
Using HFL
(Pick-up) button: Press to go directly to the Phone screen or to answer an
incoming call.
(Hang-up) button: Press to end a call.
(Talk) button: Press to call a number with a stored voice tag.
(Back) button: Press to cancel a command.
PHONE button: Press to go directly to the Phone screen.
Selector knob: Rotate to select an item on the screen, then press .
■HFL Buttons
1Bluetooth ® HandsFreeLink ®
To use HFL, you need a Bluetooth-compatible cell
phone. For a list of compatible phones, pairing
procedures, and special feature capabilities:
•U.S.: Visit www.acura.com/handsfreelink , or call 1-
888-528-7876.
•Canada: Visit www.handsfreelink.ca , or call 1-888-
528-7876.
Voice control tips
•Aim the vents away from the ceiling and close the
windows, as noise coming fr om them may interfere
with the microphone.
•Press and release the button when you want to
call a number using a st ored voice tag. Speak
clearly and naturally after a beep.
•If the microphone picks up vo ices other than yours,
the command may be misinterpreted.
•To change the volume level, use the audio system's
volume knob or the remote audio controls on the
steering wheel.
State or local laws may pr ohibit the operation of
handheld electronic devi ces while operating a
vehicle.
If you receive a call while using the audio system, the
system resumes its operati on after ending the call.
Models with navigation system
Models without navigation system
Microphone
Pick-up
Button
Selector
KnobPHONE

Button
Hang-up ButtonVolume up
Volume
down
Back Button Talk Button
15 ACURA ILX-31TX66200.book 179 ページ ２０１４年３月２７日　木曜日　午前１０時３４分

242
Driving
Multi-View Rear Camera
About Your Multi-View Rear Camera
See the Navigation System Manual.
The audio/information screen can display your vehicle’s rear view. The display
automatically changes to the rear view when the shift lever is moved to
(R.
You can view three different camera angl es on the rearview display. Press the
selector knob to switch the angle.
If the last used viewing mode is Wide or Normal, the same mode is selected the next
time you shift into
(R. If Top View was last used , Wide mode is selected.

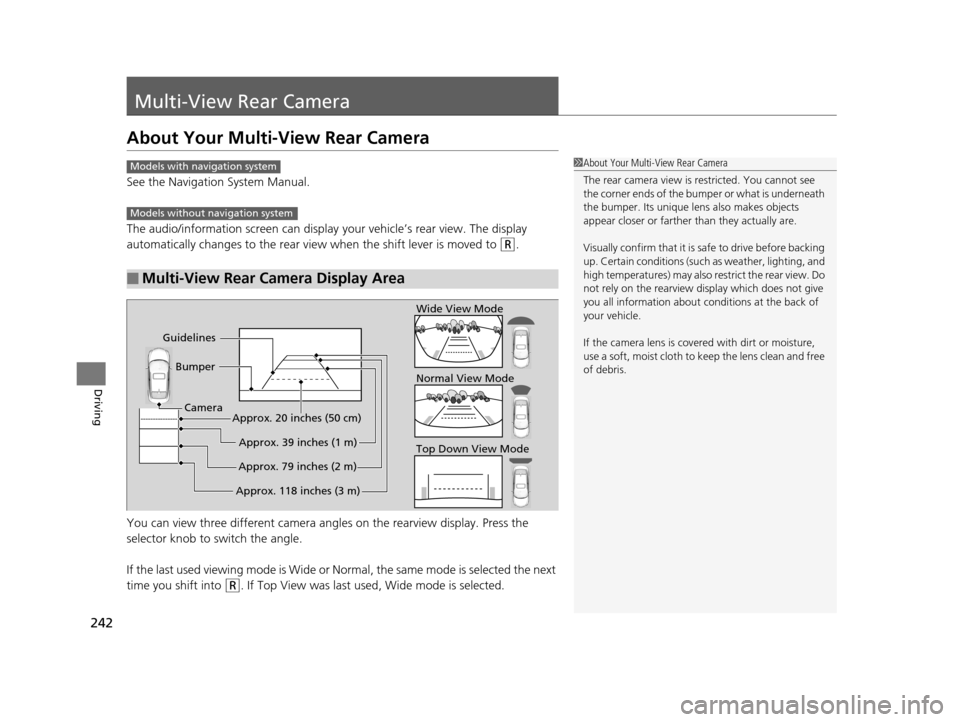

■Multi-View Rear Camera Display Area
