2015.5 Peugeot Boxer Owner's Manual - RHD (UK, Australia)

55
SPEEd LIMItEr
"this is the selected speed which the driver
does not wish to exceed".
this selection is made with the vehicle
stationary and the engine running or with the
vehicle moving and 2
nd gear or higher engaged.
the lowest speed that can be programmed


is 20 mph (30 km/h).
the speed of the vehicle responds to the
pressure of the driver's foot as far as the
accelerator pedal point of resistance which
indicates that the programmed speed has been
reached. However

, pressing the pedal beyond this
point of resistance to the floor permits
exceeding of the programmed speed.
to
resume use of the limiter
, simply reduce
the pressure on the accelerator pedal
gradually and return to a speed below that
programmed.
the operating actions may be carried out


with the vehicle stationary and the engine
running, or with the vehicle moving.
this speed limiter shows the status of the

system and the programmed speed in the
instrument panel screen:
System selected,
display of the "Speed
Limiter" indicator.
System deactivated,
last programmed speed -
oFF
(example at 65 mph


(107 km/h)).
System activated
(example at 65 mph (107 km/h)).
Vehicle speed above
(example 70 mph (118 km/h))
the programmed speed is
displayed flashing.
Operating fault detected,
oFF

- the dashes flash.
3
EASE oF uSE and coMFort
Steering mounted controls

56
Selecting the function
- turn the ring fully downwards. the
speed limiter is selected but is not yet
active.
the display indicates oFF

and
the last programmed speed.
Programming a speed
A speed can be programmed without
activating the limiter but with the engine
running.
to memorise a speed higher than the
previous one:
-
move the switch up (+).
A brief press increases the speed by


1
mph (km/h).
A

maintained press increases the speed in
steps of 5 mph (km/h).
to memorise a speed lower than the
previous one:
-
move the switch down (-).
A brief press decreases the speed by


1 mph (km/h).
A maintained press decreases the speed in
steps of 5 mph (km/h).
Activation/deactivation
Pressing this button once activates the
speed limiter,
oFF
disappears from the
screen and a message appears to confirm
the activation.
A second press deactivates it,
oFF
reappears in the screen and a message


appears to confirm the deactivation.
Steering mounted controls

57

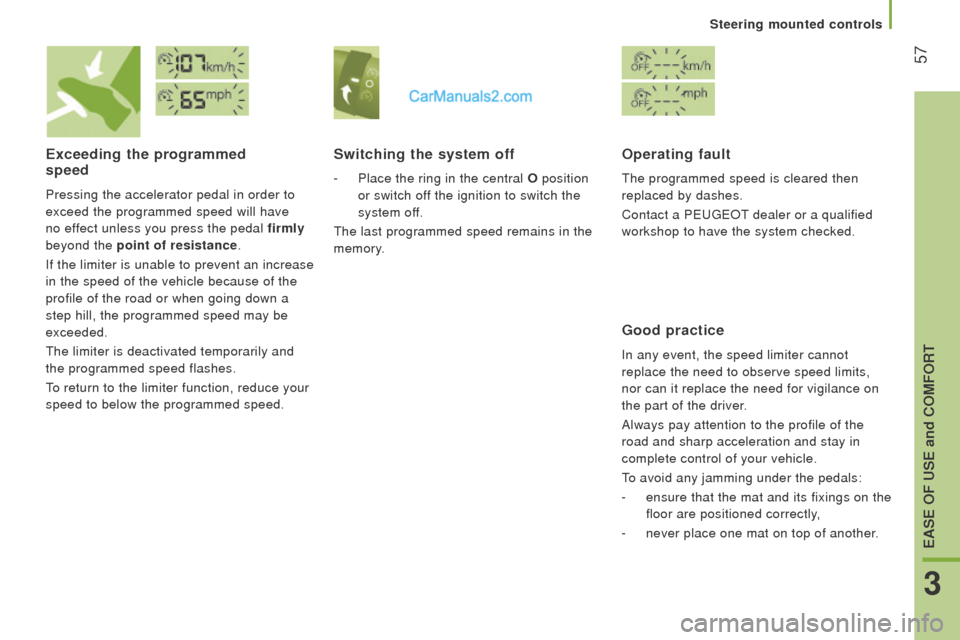

Exceeding the programmed
speed
Pressing the accelerator pedal in order to
exceed the programmed speed will have
no effect unless you press the pedal firmly
beyond the point of resistance.
If the limiter is unable to prevent an increase
in the speed of the vehicle because of the
profile of the road or when going down a
step hill, the programmed speed may be
exceeded.
the limiter is deactivated temporarily and


the programmed speed flashes.
to return to the limiter function, reduce your
speed to below the programmed speed.
Switching the system off
- Place the ring in the central o position
or switch of f the ignition to switch the
system off.
the last programmed speed remains in the


memory.
operating fault
the programmed speed is cleared then
replaced by dashes.
Contact a P
eugeOt dealer or a qualified
workshop to have the system checked.
Good practice
In any event, the speed limiter cannot
replace the need to observe speed limits,
nor can it replace the need for vigilance on
the part of the driver.
Always pay attention to the profile of the
road and sharp acceleration and stay in
complete control of your vehicle.
to avoid any jamming under the pedals:
-
ensure that the mat and its fixings on the
floor are positioned correctly

,
-
never place one mat on top of another.
3
EASE oF uSE and coMFort
Steering mounted controls

58

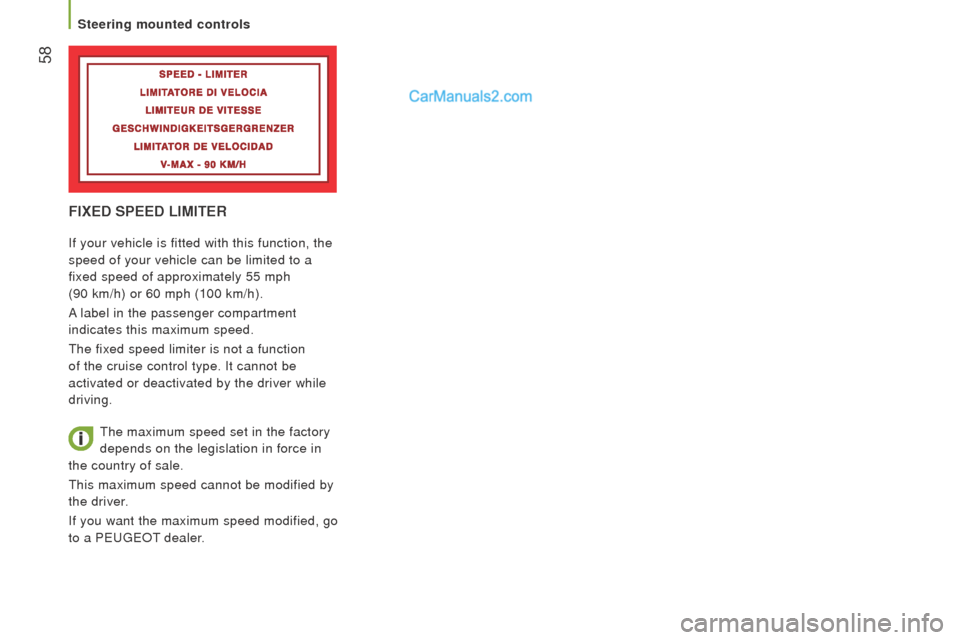

FIxEd SPEEd LIMItEr
If your vehicle is fitted with this function, the
speed of your vehicle can be limited to a
fixed speed of approximately 55 mph
(90 km/h) or 60 mph (100 km/h).
A label in the passenger compartment
indicates this maximum speed.
the fixed speed limiter is not a function


of the cruise control type. It cannot be
activated or deactivated by the driver while
driving.
the maximum speed set in the factory


depends on the legislation in force in
the country of sale.
this maximum speed cannot be modified by


the driver.
If you want the maximum speed modified, go
to a P
eugeOt dealer.
Steering mounted controls

59
dEMIStInG And dEFroStInG
Manual modeDirect the control to this air
distribution setting.
For faster and more effective


demisting and defrosting of the
windscreen:defrosting the rear screen

and mirrors
Only operates when the engine
is running. Pressing this button
activates the rapid demisting-
defrosting of the rear screen
and
door mirrors.
this function switches of

f automatically to
prevent excessive energy consumption. It
stops when the engine is switched off but
resumes when the engine is started again.
Pressing this button switches the
function
of

f.
-
increase the air flow setting,
Returning to the exterior air
intake position permits renewal


of the air in the passenger
compartment.
Windscreen and side windows
the ventilation outlets located at the base


of the windscreen and the side vents for the
side windows increase the effectiveness
of the demisting and defrosting. Do not
obstruct these air outlets.
the pollen filter continuously and ef

fectively
filters dust.
Air recirculation (which can be activated by
the driver or the passenger) isolates the
passenger compartment from the exterior
atmosphere. However, this position should
only be used temporarily, normal use is to
drive with the control positioned with the
exterior air intake open. -
move the exterior air intake
control temporarily to air


recirculation.
With Stop & Start, when the heated
rear screen is switched on, the S
tOP
mode is not available.
3
EASE oF uSE and coMFort
Ventilation

60
corrEct uSE oF tHE AIr
condItIonInG
In order to be effective, the air conditioning
should only be used with the windows
closed. However, if the interior temperature
remains high after a prolonged period
parked in the sun, first ventilate the
passenger compartment for a few minutes. For even air distribution, ensure that the
exterior air intake grille located at the base
of the windscreen, the side and central
vents, the air outlets on the floor and the air
extractor at the rear are not obstructed.
the air conditioning is useful in all seasons


as it eliminates condensation and air
humidity. Operate the air conditioning system for
5 to 10 minutes, once or twice a month,
to keep it in good working order.
Have the filter elements (air filter and
passenger compartment filter) replaced
regularly. If you drive in a dusty environment,
have them replaced twice as often.
It is normal that the condensation created by
the air conditioning system results in a flow
of water which may form a puddle under the
vehicle when parked.
If the system does not produce cold air,
do not use it and have it checked by a
P
eugeOt dealer or a qualified workshop.
"Leave them open"
For optimum distribution and diffusion of hot

or cool air in the passenger compartment,
there are: 4 adjustable central vents, of
which 2 can be directed sideways (right
or left) towards the top of the body and
4
side vents which can be directed towards


the passengers.
the air vents directed


towards the floor of the vehicle complete
the
equipment.
Vents
Ventilation

61
HEAtInG / MAnuAL AIr
condItIonInG
If your vehicle is fitted with these controls,
they are located on the dashboard on the
centre console control panel.
comfort value adjustment Air flow
the rate of air flow from the
vents, varies from 1 to the
strongest 4. Remember to adjust

this control in order to reach the
ambient air comfort level.
to switch off the


blower, place the control in position 0.
Air conditioning
the air conditioning can only operate with
the engine running.
the fan must be set to at least 1.
Pressing the button triggers the


operation of the air conditioning;
the L
eD is on. Pressing the


button again switches the function off; the
L
eD goes of

f.
Air distribution
the air supply distribution is directed by the
control turned towards:
the side vents and the central
vents,
the side vents, the central vents

and the footwells,
the footwells,
the windscreen, the footwells and
the side windows,
the windscreen and the side
windows.
-
in the blue zone provides
cool
air

,
-
in the red zone provides
heating of the interior


ambient
air

.
Control positioned:
3
EASE oF uSE and coMFort
Ventilation

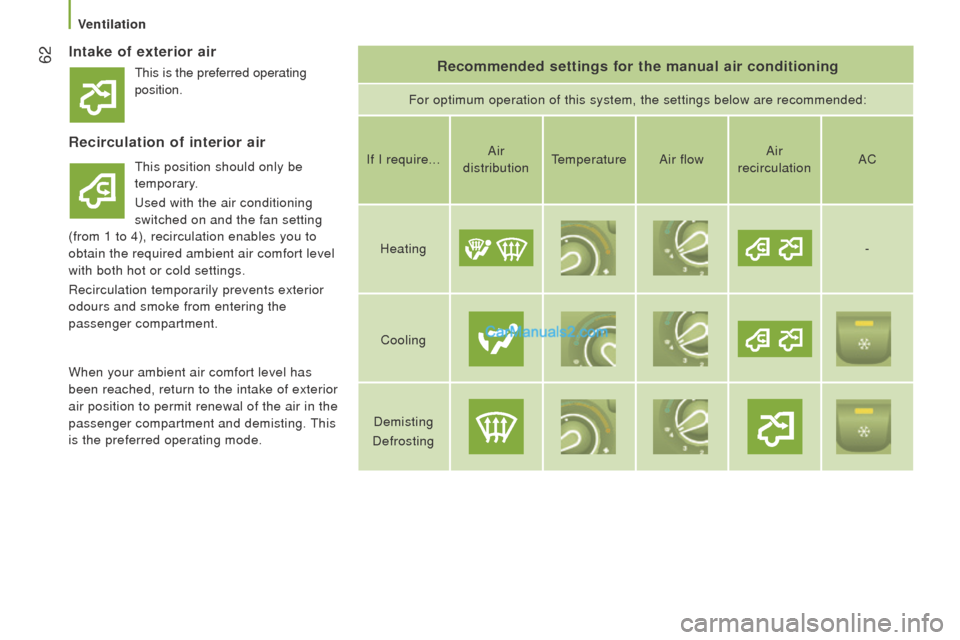

62Intake of exterior airrecommended settings for the manual air conditioning
For optimum operation of this system, the settings below are recommended\
:
recirculation of interior air
this position should only be
temporary.
used with the air conditioning


switched on and the fan setting
(from 1 to 4), recirculation enables you to
obtain the required ambient air comfort level
with both hot or cold settings.
Recirculation temporarily prevents exterior
odours and smoke from entering the
passenger compartment. If I require...
Air
distributiontemperature Air flow Air
recirculation AC
Heating -
Cooling
Demisting
Defrosting
When your ambient air comfort level has

been reached, return to the intake of exterior
air position to permit renewal of the air in the
passenger compartment and demisting.
this


is the preferred operating mode.
this is the preferred operating
position.
Ventilation
