2014 YAMAHA YZ450F ECO mode

ENGINE SPECIFICATIONS
2-2
EAS1SL1053
ENGINE SPECIFICATIONS
Engine
Engine type Liquid cooled 4-stroke, DOHC
Displacement 449 cm3
Cylinder arrangement Single cylinder
Bore  stroke 97.0  60.8 mm (3.82  2.39 in)
Compression ratio 12.50:1
Starting system Kickstarter
Fuel
Recommended fuel Premium unleaded gasoline only
Fuel tank capacity 7.5 L (1.98 US gal, 1.65 Imp.gal)
Engine oil
Lubrication system Wet sump
Recommended brand YAMALUBE
Type SAE 10W-30, SAE 10W-40, SAE 15W-40, 
SAE 20W-40 or SAE 20W-50
Recommended oil grade API service SG type or higher, 
JASO standard MA
Engine oil quantity
Quantity (disassembled) 0.95 L (1.00 US qt, 0.84 Imp.qt)
With oil filter element replacement 0.69 L (0.73 US qt, 0.61 Imp.qt)
Without oil filter element replacement 0.67 L (0.71 US qt, 0.59 Imp.qt)
Oil filter
Oil filter type Paper
Oil pump
Oil pump type Trochoid
Inner-rotor-to-outer-rotor-tip clearance Less than 0.150 mm (0.0059 in)
Limit 0.20 mm (0.0079 in)
Outer-rotor-to-oil-pump-housing clearance 0.13–0.18 mm (0.0051–0.0071 in)
Limit 0.24 mm (0.0094 in)
Oil-pump-housing-to-inner-and-outer-rotor 
clearance 0.06–0.11 mm (0.0024–0.0043 in)
Limit 0.17 mm (0.0067 in)
Cooling system
Radiator capacity (including all routes) 1.04 L (1.10 US qt, 0.92 Imp.qt)
Radiator capacity 0.57 L (0.60 US qt, 0.50 mp.qt)
Radiator cap opening pressure 108–137 kPa (1.08–1.37 kg/cm2 15.7–19.9 psi)
Radiator core
Width 112.6 mm (4.43 in)
Height 235.0 mm (9.25 in)
Depth 28.0 mm (1.10 in)
Water pump
Water pump type Single suction centrifugal pump
Spark plug
Manufacturer/model NGK/CR8E
Spark plug gap 0.7–0.8 mm (0.028–0.031 in)

ENGINE SPECIFICATIONS
2-7
Shifting mechanism
Shift mechanism type Shift drum and guide bar
Shift fork guide bar bending limit 0.050 mm (0.0020 in)
Shift fork thickness 4.85 mm (0.1909 in)
Decompression device
Device type Auto decomp
Air filter
Air filter element Wet element
Air filter oil grade Foam air-filter oil
Fuel pump
Pump type Electrical
Fuel injector
Model/quantity 1010/1
Resistance 12 
Throttle body
Type/quantity 30RA-A13M/1
ID mark 1SL1 00
Fuel pressure 324.0 kPa (3.24 kgf/cm2, 47.0 psi)
Throttle position sensor
Resistance 6.30 k
Output voltage (at idle) 0.48–0.52 V
Fuel injection sensor
Crankshaft position sensor resistance 248–372 
Intake air pressure sensor output voltage 3.57–3.71 V at 101.3 kPa
Intake air temperature sensor resistance 290–390  at 80 °C (176 °F)
Coolant temperature sensor resistance 2.51–2.78 k at 20°C (68°F)
210–221  at 100°C (212°F)
Idling condition
Engine idling speed 1900–2100 r/min
CO% 6.8–9.2 %
Intake vacuum 30.5–37.8 kPa (229–284 mmHg, 
9.0–11.2 inHg)
Water temperature 70–80 °C (158–176 °F)
Oil temperature 55-65 °C (131–149 °F)
Throttle grip free play 3.0–5.0 mm (0.12–0.20 in)

ELECTRICAL SPECIFICATIONS
2-12
EAS1SL1055
ELECTRICAL SPECIFICATIONS
Voltage
System voltage 12 V
Ignition system
Ignition system TCI
Advancer type Digital
Ignition timing (B.T.D.C.) 10.0 ° at 2000 r/min
Engine control unit
Model/manufacturer 1SL0/YAMAHA (USA) (CAN)
1SL1/YAMAHA (EUR) (JPN) (AUS) (NZL)
(ZAF)
Ignition coil
Minimum ignition spark gap 6.0 mm (0.24 in)
Primary coil resistance 2.16–2.64 
Secondary coil resistance 8.64–12.96 k
AC magneto
Standard output 14.0 V, 95 W at 5000 r/min
Stator coil resistance 0.624–0.936 
Rectifier/regulator
Regulator type Semi conductor-short circuit
No load regulated voltage 14.1–14.9 V
Rectifier capacity (DC) 23.0 A

FUEL INJECTION SYSTEM
8-12
YAMAHA DIAGNOSTIC TOOL
This model uses the Yamaha diagnostic tool to identify malfunctions.
For information about using the Yamaha diagnostic tool, refer to the operation manual that is included
with the tool.
FEATURES OF THE YAMAHA DIAGNOSTIC TOOL
A diagnosis can be made more quickly than traditional methods with the Yamaha diagnostic tool.
Using this software, ECU and sensor data, as well as fault diagnosis, vehicle maintenance, and any
necessary information can be recorded and displayed on your computer screen through a USB
adapter connected to the computer interface with a communication cable connected to the vehicle's
ECU.
Data obtained in various functions can be saved as vehicle history, and can be accumulated.
FUNCTIONS OF THE YAMAHA DIAGNOSTIC TOOL
However, the diagnostic tool cannot be used to freely change the basic vehicle functions, such as
adjusting the ignition timing.
CONNECTING THE YAMAHA DIAGNOSTIC TOOL
1. Remove the coupler for connecting setting tool.
Yamaha diagnostic tool
90890-03215
Fault diagnosis modeFault codes recorded on the ECU are read, and the con-
tents are displayed.
Function diagnostic modeCheck the operation of the output value of each sensor
and actuator.
Inspection modeDetermine whether each sensor or actuator is functioning
properly.
CO adjustment modeAdjust the concentration of CO admissions during idling.
Monitoring modeDisplays a graph of sensor output values for actual oper-
ating conditions.
Logging modeRecords and saves the sensor output value in actual driv-
ing conditions.
View logDisplays the logging data.
ECU rewriteIf necessary, the ECU is rewritten using the ECU rewrite
data provided by Yamaha. Ignition timing adjustment, etc.
cannot be changed from the vehicle's original state.

FUEL INJECTION SYSTEM
8-20
TIP
Make sure that the machine is completely cold before checking the coolant temperature sensor.
Fault code21
SymptomCoolant temperature sensor: open or short circuit detected.
Fail-safe systemAble to start engine
Able to drive vehicle
Diagnostic code No.06
Diagnostic tool displayDisplays the coolant temperature.
ProcedureCompare the actually measured coolant temperature with the
Yamaha diagnostic tool display value.
Or-
der
Probable cause of malfunc-
tion and checkMaintenance jobReinstatement method
1Connection of coolant tem-
perature sensor coupler.
Check the locking condition
of the coupler.
Disconnect the coupler, and
check the pins (for bent or
broken terminals and locking
condition of the pins).
Improperly connected 
Connect the coupler secure
-
ly, or repair/replace the wire
harness.
Turn “ON” the switch on the
FI diagnostic tool sub-lead.
Fault code No. is not dis-
played  Repair is finished.
Fault code No. is displayed 
Go to next order.
2Connection of wire harness
ECU coupler.
Check the locking condition
of the coupler.
Disconnect the coupler, and
check the pins (for bent or
broken terminals and locking
condition of the pins).
Improperly connected 
Connect the coupler secure
-
ly, or repair/replace the wire
harness.
Turn “ON” the switch on the
FI diagnostic tool sub-lead.
Fault code No. is not dis-
played  Repair is finished.
Fault code No. is displayed 
Go to next order.
3Wire harness continuity.Open or short circuit  Re-
place the wire harness.
Between coolant temperature
sensor coupler and ECU cou
-
pler.
green/white–green/white
black/blue–black/blue
Turn “ON” the switch on the
FI diagnostic tool sub-lead.
Fault code No. is not dis-
played  Repair is finished.
Fault code No. is displayed 
Go to next order.
4Mounted condition of coolant
temperature sensor.
Check for looseness or
pinching.
Check the mounted condition
for correctness.
Improperly mounted sensor
 Remount or replace the
sensor.Turn “ON” the switch on the
FI diagnostic tool sub-lead.
Fault code No. is not dis-
played  Repair is finished.
Fault code No. is displayed 
Go to next order.
5Defective coolant tempera-
ture sensor.
Execute the diagnostic mode.
(Code No. 06)
When the machine is cold,
displayed temperature is
close to the ambient temper
-
ature.
Improper display  Replace
the coolant temperature sen
-
sor.
Turn “ON” the switch on the
FI diagnostic tool sub-lead.
Fault code No. is not dis-
played  Repair is finished.
Fault code No. is displayed 
Go to next order.
6Faulty ECUReplace the ECU.

FUEL INJECTION SYSTEM
8-21
TIP
Make sure that the machine is completely cold before checking the intake air temperature sensor.
Fault code22
SymptomIntake air temperature sensor: open or short circuit detected.
Fail-safe systemAble to start engine
Able to drive vehicle
Diagnostic code No.05
Diagnostic tool displayDisplays the intake air temperature.
ProcedureCompare the actually measured intake air temperature with the
Yamaha diagnostic tool display value.
Or-
der
Probable cause of malfunc-
tion and checkMaintenance jobReinstatement method
1Connection of intake air tem-
perature sensor coupler.
Check the locking condition
of the coupler.
Disconnect the coupler, and
check the pins (for bent or
broken terminals and locking
condition of the pins).
Improperly connected 
Connect the coupler secure
-
ly, or repair/replace the wire
harness.
Turn “ON” the switch on the
FI diagnostic tool sub-lead.
Fault code No. is not dis-
played  Repair is finished.
Fault code No. is displayed 
Go to next order.
2Connection of wire harness
ECU coupler.
Check the locking condition
of the coupler.
Disconnect the coupler, and
check the pins (for bent or
broken terminals and locking
condition of the pins).
Improperly connected 
Connect the coupler secure
-
ly, or repair/replace the wire
harness.
Turn “ON” the switch on the
FI diagnostic tool sub-lead.
Fault code No. is not dis-
played  Repair is finished.
Fault code No. is displayed 
Go to next order.
3Wire harness continuity.Open or short circuit  Re-
place the wire harness.
Between intake air tempera-
ture sensor coupler and ECU
coupler.
brown/white–brown/white
black/blue–black/blue
Turn “ON” the switch on the
FI diagnostic tool sub-lead.
Fault code No. is not dis-
played  Repair is finished.
Fault code No. is displayed 
Go to next order.
4Mounted condition of intake
air temperature sensor.
Check for looseness or
pinching.
Check the mounted condition
for correctness.
Improperly mounted sensor
 Remount or replace the
sensor.Turn “ON” the switch on the
FI diagnostic tool sub-lead.
Fault code No. is not dis-
played  Repair is finished.
Fault code No. is displayed 
Go to next order.
5Defective intake air tempera-
ture sensor.
Execute the diagnostic mode.
(Code No. 05)
When the machine is cold,
displayed temperature is
close to the ambient temper
-
ature.
Improper display  Replace
the intake air temperature
sensor.
Turn “ON” the switch on the
FI diagnostic tool sub-lead.
Fault code No. is not dis-
played  Repair is finished.
Fault code No. is displayed 
Go to next order.
6Faulty ECUReplace the ECU.

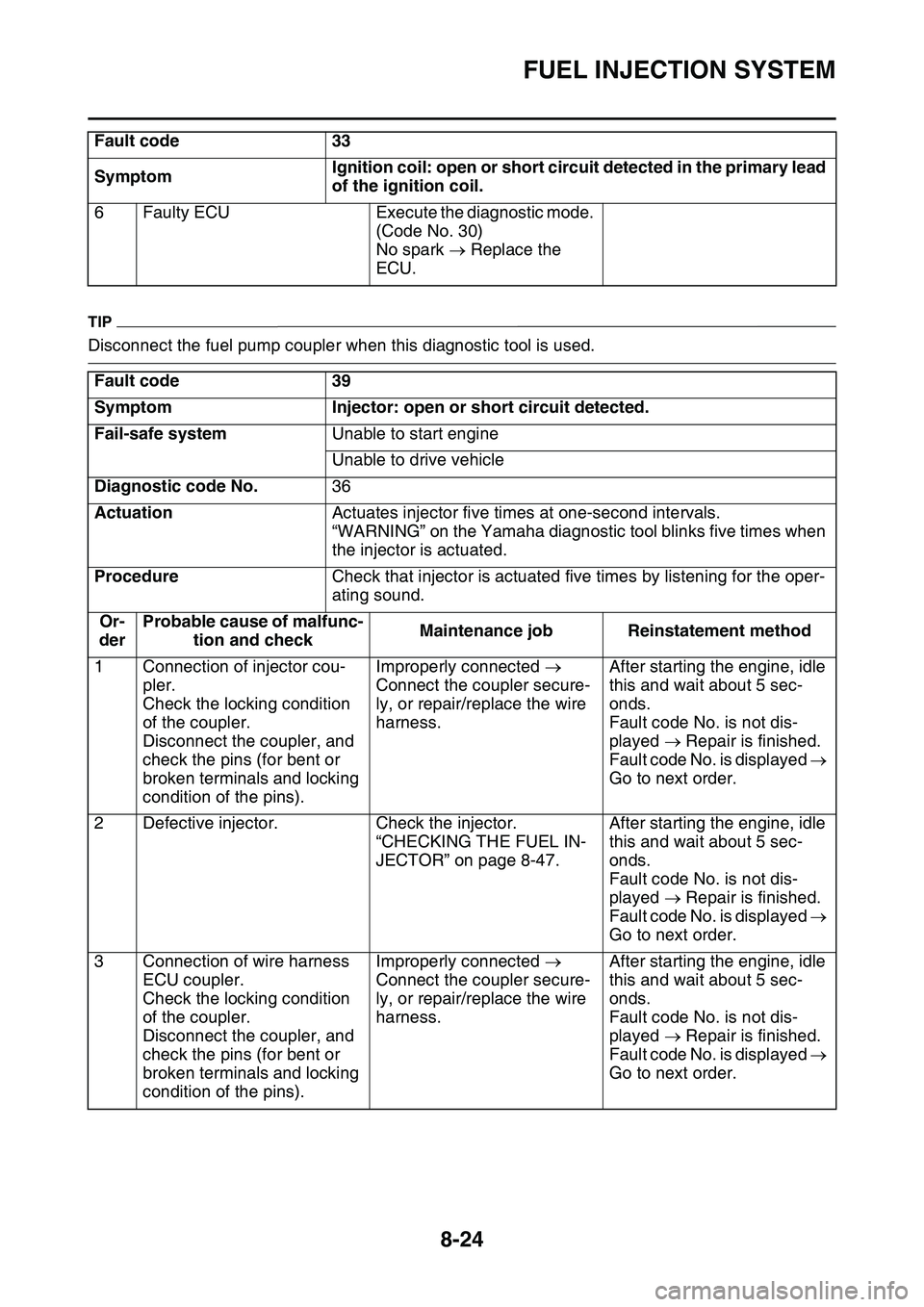

FUEL INJECTION SYSTEM
8-24
TIP
Disconnect the fuel pump coupler when this diagnostic tool is used.
6Faulty ECUExecute the diagnostic mode.
(Code No. 30)
No spark  Replace the
ECU.
Fault code39
SymptomInjector: open or short circuit detected.
Fail-safe systemUnable to start engine
Unable to drive vehicle
Diagnostic code No.36
ActuationActuates injector five times at one-second intervals.
“WARNING” on the Yamaha diagnostic tool blinks five times when
the injector is actuated.
ProcedureCheck that injector is actuated five times by listening for the oper-
ating sound.
Or-
der
Probable cause of malfunc-
tion and checkMaintenance jobReinstatement method
1Connection of injector cou-
pler.
Check the locking condition
of the coupler.
Disconnect the coupler, and
check the pins (for bent or
broken terminals and locking
condition of the pins).
Improperly connected 
Connect the coupler secure
-
ly, or repair/replace the wire
harness.
After starting the engine, idle
this and wait about 5 sec
-
onds.
Fault code No. is not dis-
played  Repair is finished.
Fault code No. is displayed 
Go to next order.
2Defective injector.Check the injector.
“CHECKING THE FUEL IN-
JECTOR” on page 8-47.
After starting the engine, idle
this and wait about 5 sec
-
onds.
Fault code No. is not dis-
played  Repair is finished.
Fault code No. is displayed 
Go to next order.
3Connection of wire harness
ECU coupler.
Check the locking condition
of the coupler.
Disconnect the coupler, and
check the pins (for bent or
broken terminals and locking
condition of the pins).
Improperly connected 
Connect the coupler secure
-
ly, or repair/replace the wire
harness.
After starting the engine, idle
this and wait about 5 sec
-
onds.
Fault code No. is not dis-
played  Repair is finished.
Fault code No. is displayed 
Go to next order.
Fault code 33
SymptomIgnition coil: open or short circuit detected in the primary lead
of the ignition coil.

FUEL INJECTION SYSTEM
8-26
Fault code44
SymptomEEPROM fault code No.: an error is detected while reading or
writing on EEPROM.
Fail-safe systemAble/Unable to start engine
Able/Unable to drive vehicle
Diagnostic code No.60
Diagnostic tool displayDisplays the location of the abnormal portion of the EEPROM data.
• 00: No fault
• 01: CO adjustment valve
• 07: Power Tuner injection correction setting 0–8, or Power Tuner
ignition timing correction setting 0–8
Procedure—
Or-
der
Probable cause of malfunc-
tion and checkMaintenance jobReinstatement method
1Identification of malfunction-
ing point.
Execute the diagnostic mode.
(Code No. 60)
00: Perform a checkup in or-
der 4.
01: Perform a checkup in or-
der 2.
07: Perform a checkup in or-
der 3.
2“01” is indicated in Diagnostic
mode (Code No. 60). EEP-
ROM data error for adjust
-
ment of CO concentration.
Change the CO concentra-
tion, and rewrite in EEPROM.
After this adjustment, turn
OFF the switch on the FI di
-
agnostic tool sub-lead, and
turn it ON again.
Memory not recovered  Re-
place the ECU.
Turn “ON” the switch on the
FI diagnostic tool sub-lead.
Fault code No. is not dis-
played  Repair is finished.
Fault code number is dis-
played  Repeat the proce-
dure in order 1. If the same
number is indicated, perform
the procedure in order 3.
3“07” is indicated in Diagnostic
mode (Code No. 60). EE
-
PROM data error for setting
tool adjustment values for
fuel injection amount or igni
-
tion timing.
Erase the setting map in the
diagnostic mode.
(Code No. 65)
Turn “ON” the switch on the
FI diagnostic tool sub-lead.
Fault code No. is not dis-
played  Repair is finished.
Fault code number is dis-
played  Repeat the proce-
dure in order 1. If the same
number is indicated, perform
the procedure in order 4.
4Faulty ECUReplace the ECU.
