2014 YAMAHA YZ250F sensor

ENGINE REMOVAL
5-3
Removing the electronic parts
Order Part name Q’ty Remarks
Use a suitable stand to raise the front wheel
off the ground.
Seat Refer to “GENERAL CHASSIS” on page 4-1.
Side cover (left/right) Refer to “GENERAL CHASSIS” on page 4-1.
Air scoop (left / right) Refer to “GENERAL CHASSIS” on page 4-1.
Fuel tank Refer to “FUEL TANK” on page 7-1.
Air filter case cover
1 Rectifier/regulator 1
2ECU 1
3 Ignition coil 1
4 Condenser 1
5 Neutral switch 1
6 AC magneto lead 1 Disconnect.
7 Crankshaft position sensor coupler 1 Disconnect.
8 Coolant temperature sensor coupler 1 Disconnect.
For installation, reverse the removal proce-
dure.
T.R.
T.R.
T.R.T.R.
8 3
7
6
154
2
LT
New
LS

CYLINDER HEAD
5-18
EAS1SM1214
CYLINDER HEAD
Removing the cylinder head
Order Part name Q’ty Remarks
Seat Refer to “GENERAL CHASSIS” on page 4-1.
Side cover (left/right) Refer to “GENERAL CHASSIS” on page 4-1.
Air scoop (left / right) Refer to “GENERAL CHASSIS” on page 4-1.
Fuel tank Refer to “FUEL TANK” on page 7-1.
Exhaust pipe and silencer Refer to “ENGINE REMOVAL” on page 5-1.
Radiator hose Disconnect.
Coolant temperature sensor coupler Disconnect.
Throttle body Refer to “THROTTLE BODY” on page 7-5.
Camshaft Refer to “CAMSHAFT” on page 5-11.
Upper engine bracket Refer to “ENGINE REMOVAL” on page 5-1.
1 Bolt (cylinder head) 2
2 Bolt (cylinder head) 4
3 Cylinder head 1
4 Cylinder head gasket 1
6
10 Nm (1.0 mkgf, 7.2 ftIbf)T.R.
33 Nm (3.3 mkgf, 24 ftIbf)T.R.
10 Nm (1.0 mkgf, 7.2 ftIbf)T.R.

AC MAGNETO
5-58
EAS1SM1272
AC MAGNETO
Removing the AC magneto
Order Part name Q’ty Remarks
Engine oilDrain.
Refer to “CHANGING THE ENGINE OIL” on
page 3-15.
Seat Refer to “GENERAL CHASSIS” on page 4-1.
Air scoop (left) Refer to “GENERAL CHASSIS” on page 4-1.
1 AC magneto lead Disconnect.
2 Crankshaft position sensor lead 1 Disconnect.
3 Shift pedal 1
4 Left crankcase cover 1
5 Gaskets 1
6 Dowel pin 2
7Holder 1
8 Stator assembly 1
9 Rotor 1
10 Woodruff key 1
For installation, reverse the removal proce-
dure.
110
2
4 7 5 8 3
96
8 Nm (0.8 mkgf, 5.8 ftIbf)T.R.
8 Nm (0.8 mkgf, 5.8 ftIbf)T.R.
10 Nm (1.0 mkgf, 7.2 ftIbf)T.R.
10 Nm (1.0 mkgf, 7.2 ftIbf)T.R.
65 Nm (6.5 mkgf, 47 ftIbf)T.R.
New
LT
6
LT
LT
12 Nm (1.2 mkgf, 8.7 ftIbf)T.R.

AC MAGNETO
5-59
EAS1SM1273REMOVING THE AC MAGNETO
1. Remove:
• Nut (rotor) “1”
• Washers
2. Remove:
• Rotor “1”
Use the rotor puller “2” to remove the rotor.
• Woodruff key
EAS1SM1274CHECKING THE AC MAGNETO
1. Check:
• Rotor inner surface “a”
• Stator outer surface “b”
Damage  Inspect the crankshaft runout
and crankshaft bearing.
EAS1SM1275
CHECKING THE WOODRUFF KEY
1. Check:
• Woodruff key “1”
Damage  Replace.
EAS1SM1276INSTALLING THE AC MAGNETO
1. Install:
• Stator “1”
• Screw (stator) “2”
• Crankshaft position sensor “3”
• Bolt (crankshaft position sensor) “4”
• Holder “5”
• Bolt (holder) “6”
TIP
• Apply the sealant to the grommet of the AC
magneto lead.
• Tighten the stator screws using the T25 bit.
• Pass the AC magneto lead “a” through the
crankcase cover side. Rotor puller
90890-04151
YM-04151
1
ab
Screw (stator)
8 Nm (0.8 m·kgf, 5.8ft·lbf)
LOCTITE®
Bolt (crankshaft position sensor)
10 Nm (1.0 m·kgf, 7.2 ft·lbf)
LOCTITE®
Holder
8 Nm (0.8 m·kgf, 5.8 ft·lbf)
LOCTITE®
Three Bond No.1215®
90890-85505
T R..
T R..
26
5
4
3
4a
1
LT
LT

RADIATOR
6-2
3 Right radiator 1
4 Radiator hose 2 1
5 Radiator hose 3 1
6 Radiator hose 4 1
7 Radiator pipe 2 1
8 Radiator breather hose 1
9 Left radiator 1
10 Radiator hose 1 1
11 Radiator pipe 1 1
12 Coolant temperature sensor 1
For installation, reverse the removal proce-
dure.
Removing the radiator
Order Part name Q’ty Remarks
11
12
New
New
New
LS
LS

7
FUEL SYSTEM
FUEL TANK...................................................................................................... 7-1
REMOVING THE FUEL TANK ................................................................... 7-2
REMOVING THE FUEL PUMP .................................................................. 7-2
CHECKING THE FUEL PUMP BODY........................................................ 7-2
INSTALLING THE FUEL PUMP ................................................................. 7-2
INSTALLING THE FUEL TANK.................................................................. 7-3
CHECKING THE FUEL PRESSURE ......................................................... 7-3
CHECKING THE DAMPER ........................................................................ 7-4
CHECKING AND REPLACING THE PROTECTOR .................................. 7-4
THROTTLE BODY............................................................................................ 7-5
CHECKING THE INJECTOR ..................................................................... 7-8
CHECKING THE THROTTLE BODY ......................................................... 7-8
CHECKING THE THROTTLE BODY JOINT .............................................. 7-8
ADJUSTING THE THROTTLE POSITION SENSOR................................. 7-9

THROTTLE BODY
7-5
EAS1SM1315
THROTTLE BODY

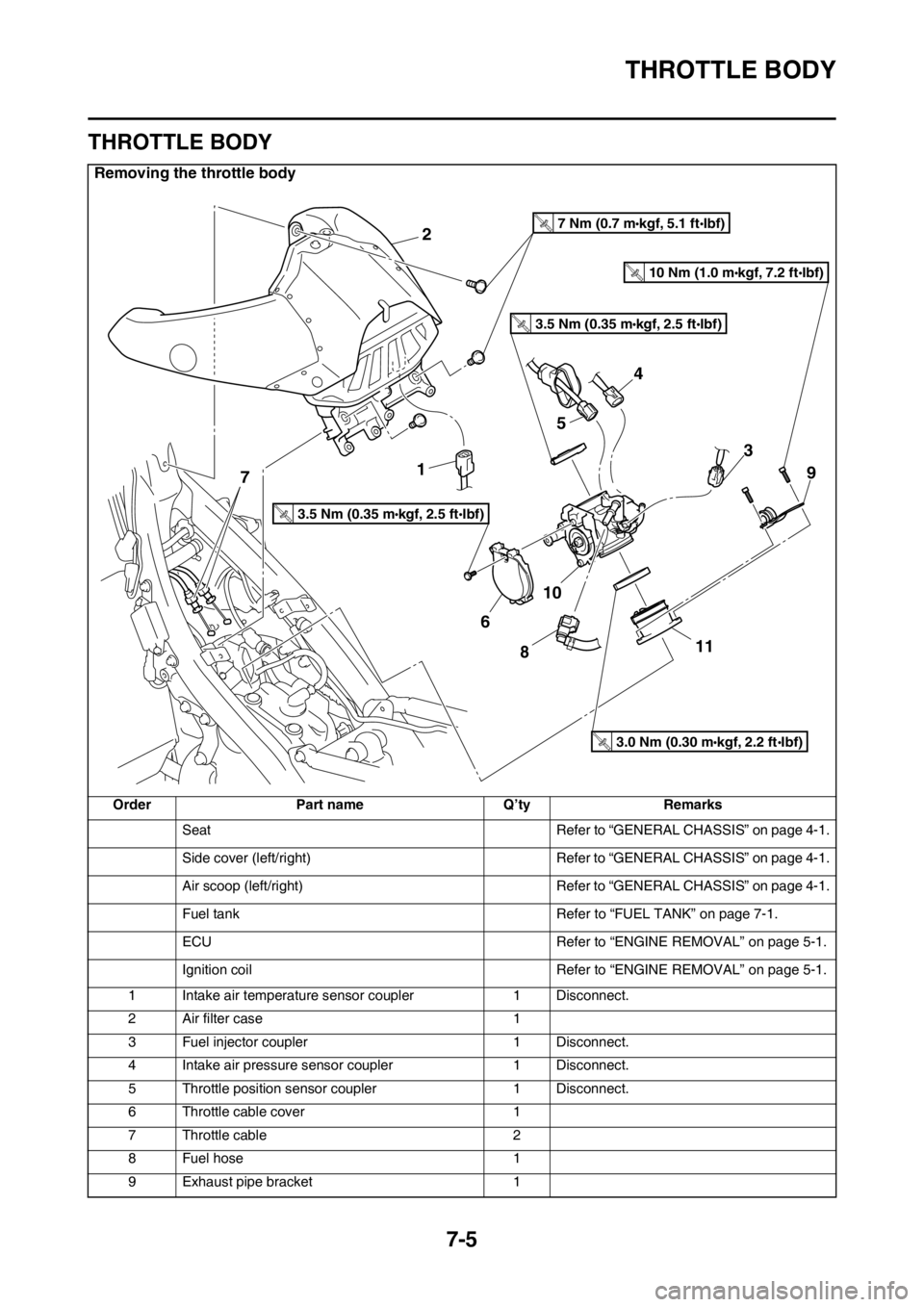

Removing the throttle body
Order Part name Q’ty Remarks
Seat Refer to “GENERAL CHASSIS” on page 4-1.
Side cover (left/right) Refer to “GENERAL CHASSIS” on page 4-1.
Air scoop (left/right) Refer to “GENERAL CHASSIS” on page 4-1.
Fuel tank Refer to “FUEL TANK” on page 7-1.
ECU Refer to “ENGINE REMOVAL” on page 5-1.
Ignition coil Refer to “ENGINE REMOVAL” on page 5-1.
1 Intake air temperature sensor coupler 1 Disconnect.
2 Air filter case 1
3 Fuel injector coupler 1 Disconnect.
4 Intake air pressure sensor coupler 1 Disconnect.
5 Throttle position sensor coupler 1 Disconnect.
6 Throttle cable cover 1
7 Throttle cable 2
8 Fuel hose 1
9 Exhaust pipe bracket 1
2
1
6
10
11
9
8
3
7
5
4
3.5 Nm (0.35 mkgf, 2.5 ftIbf)T.R
.
3.5 Nm (0.35 mkgf, 2.5 ftIbf)T.R
.
7 Nm (0.7 mkgf, 5.1 ftIbf)T.R.
3.0 Nm (0.30 mkgf, 2.2 ftIbf)T.R
.
10 Nm (1.0 mkgf, 7.2 ftIbf)T.R.

THROTTLE BODY
7-7
Removing the injector
Order Part name Q’ty Remarks
1 Fuel inlet pipe 1
2Injector 1
3 Gaskets 1
4 Throttle position sensor 1
5 Intake air pressure sensor 1
For installation, reverse the removal proce-
dure.
1
2 (2)
(2)5
43
T.R.3.4 Nm (0.34 mlbf) kgf, 2.5 ft
T.R.5 Nm (0.5 mlbf) kgf, 3.6 ft
T.R.3.4 Nm (0.34 mlbf) kgf, 2.5 ft
