2014 YAMAHA YZ250F relay

TIGHTENING TORQUES
2-17
Front wheel axle pinch bolt M8 4 21 Nm (2.1 m·kgf, 15 ft·lbf)
Front brake disc bolt M6 6 12 Nm (1.2 m·kgf, 8.7 ft·lbf)
Rear brake disc bolt M6 6 14 Nm (1.4 m·kgf, 10 ft·lbf)
Footrest bracket bolt M10 4 55 Nm (5.5 m·kgf, 40 ft·lbf)
Rear brake pedal bolt M8 1 26 Nm (2.6 m·kgf, 19 ft·lbf)
Rear brake pedal position locknut M6 1 6 Nm (0.6 m·kgf, 4.3 ft·lbf)
Rear brake master cylinder bolt M6 2 10 Nm (1.0 m·kgf, 7.2 ft·lbf)
Rear brake master cylinder reser-
voir cap boltM4 2 1.5 Nm (0.15 m·kgf, 1.1 ft·lbf)
Rear brake hose union bolt M10 2 30 Nm (3.0 m·kgf, 22 ft·lbf)
Rear brake caliper bleed screw M8 1 6 Nm (0.6 m·kgf, 4.3 ft·lbf)
Rear brake pad pin M10 1 17 Nm (1.7 m·kgf, 12 ft·lbf)
Rear brake pad pin plug M10 1 2.5 Nm (0.25 m·kgf, 1.8 ft·lbf)
Rear wheel axle nut M22 1 135 Nm (13.5 m·kgf, 98 ft·lbf)
Drive chain puller adjust bolt and
locknutM8 2 21 Nm (2.1 m·kgf, 15 ft·lbf)
Rear wheel sprocket nut M8 6 42 Nm (4.2 m·kgf, 30 ft·lbf)
Nipple (spoke) — 72 2.5 Nm (0.25 m·kgf, 1.8 ft·lbf)
Rear brake disc cover bolt M6 2 10 Nm (1.0 m·kgf, 7.2 ft·lbf)
Rear brake caliper protector bolt M6 2 7 Nm (0.7 m·kgf, 5.1 ft·lbf)
Engine mounting bolt (upper side) M10 2 45 Nm (4.5 m·kgf, 33 ft·lbf)
Engine mounting bolt (front side) M10 1 55 Nm (5.5 m·kgf, 40 ft·lbf)
Engine mounting bolt (lower side) M10 1 53 Nm (5.3 m·kgf, 38 ft·lbf)
Engine bracket bolt (upper side) M8 4 34 Nm (3.4 m·kgf, 25 ft·lbf)
Engine bracket bolt (front side) M8 4 34 Nm (3.4 m·kgf, 25 ft·lbf)
Rear frame and frame bolt M8 4 32 Nm (3.2 m·kgf, 23 ft·lbf)
Engine guard bolt (right side) M6 1 7 Nm (0.7 m·kgf, 5.1 ft·lbf)
Pivot shaft and nut M16 1 85 Nm (8.5 m·kgf, 61 ft·lbf)
Rear shock absorber assembly
upper boltM10 1 56 Nm (5.6 m·kgf, 41 ft·lbf)
Rear shock absorber assembly
lower boltM10 1 53 Nm (5.3 m·kgf, 38 ft·lbf)
Rear shock absorber locknut M60 1 30 Nm (3.0 m·kgf, 22 ft·lbf)
Relay arm bolt (swingarm side) M14 1 70 Nm (7.0 m·kgf, 51 ft·lbf)
Connecting arm bolt (relay arm
side)M14 1 80 Nm (8.0 m·kgf, 58 ft·lbf)
Connecting arm bolt (frame side) M14 1 80 Nm (8.0 m·kgf, 58 ft·lbf)
Swingarm and brake hose holder
screwM5 4 3.5 Nm (0.35 m·kgf, 2.5 ft·lbf) ITEMThread
sizeQ’ty TIGHTENING TORQUES Remarks
LT
LT
LT

LUBRICATION POINTS AND LUBRICANT TYPES
2-21
CHASSIS
Lubrication point Lubricant types
Upper bearings (steering head)
Upper bearings and bearing race cover (steering head)
Lower bearings and oil seal lip (steering head)
Steering stem threads and nut contacting surface
Pivot shaft bearing
Swingarm pivot portion (collar side surface and thrust bearing)
Swingarm pivot portion (collar outer surface)
Swingarm pivot portion (oil seal lip)
Pivot shaft outer surface
Relay arm bearing and oil seal lip
Relay arm thrust washer surface (both sides)
Relay arm collar outer surface and bolt outer surface
Relay arm bolt threads (swingarm side)
Connecting arm bearing and oil seal lip
Connecting arm collar outer surface and bolt outer surface
Rear shock absorber assembly collar outer surface and dust seal lip (upper
side)
Rear shock absorber assembly bearing and dust seal lip (lower side)
Brake pedal pivot portion (O-ring and bolt outer surface)
Front wheel oil seal lip
Front wheel axle outer surface
Rear wheel oil seal lip
Rear wheel axle outer surface
Push rod contacting portion (front brake master cylinder)
Front brake lever bolt outer surface
Clutch lever sliding surface and bolt outer surface
Clutch lever position adjuster end
Clutch lever adjuster rubber lip
Clutch cable end (clutch lever side)
Tube guide (throttle grip) inner surface and throttle cable end
Front brake caliper piston
Front brake caliper piston seal
Front brake caliper dust seal
Front brake caliper pin bolt and boot
Front brake master cylinder push rod end
Front brake master cylinder kit
Rear brake caliper piston
Rear brake caliper piston seal
Rear brake caliper dust seal
LS
LS
LS
LS
M
M
M
M
M
M
M
M
M
M
M
M
M
LS
LS
LS
LS
LS
LS
LS
LS
LS
LS
LS
LS
S
S
S
S

MAINTENANCE INTERVALS
3-5
Replace brake flu-
idEvery one year
SWINGARM
Inspect, lube and
retightenMolybdenum disulfide grease
RELAY ARM, CON-
NECTING ROD
Inspect, lube and
retightenMolybdenum disulfide grease
STEERING HEAD
Inspect free play
and retightenCheck for tightening torques.
Clean and lube After rain ride
Replace bearings
TIRE, WHEELS
Inspect air pres-
sure, wheel run-
out, tire wear and
spoke looseness
Retighten sprocket
bolt
Check the bearing
Replace bearings
Lubricate Lithium soap base grease
DRIVE CHAIN Use chain oil.
Clean, lubricate,
slack, alignment
Replace
DRIVE CHAIN
GUIDE
Inspect Inspect wear.
DRIVE CHAIN
GUIDE AND DRIVE
CHAIN SUPPORT
Replace
CABLES
Routing (Connec-
tion)
Check and grease
Check and clean
throttle cableCheck throttle cables on the
throttle body for dirt and wear. ITEMAfter
break-
inEvery
race
(about
2.5
hours)Every
third
(about
7.5
hours)Every
fifth
(about
12.5
hours)As re-
quiredRemarks

HANDLEBAR................................................................................................. 4-31
REMOVING THE HANDLEBAR............................................................... 4-33
CHECKING THE HANDLEBAR ............................................................... 4-33
INSTALLING THE HANDLEBAR ............................................................. 4-33
FRONT FORK................................................................................................. 4-37
REMOVING THE FRONT FORK LEGS ................................................... 4-39
DISASSEMBLING THE FRONT FORK LEGS ......................................... 4-39
CHECKING THE FRONT FORK LEGS ................................................... 4-40
ASSEMBLING THE FRONT FORK LEGS ............................................... 4-41
INSTALLING THE FRONT FORK LEGS ................................................. 4-47
STEERING HEAD........................................................................................... 4-49
REMOVING THE LOWER BRACKET...................................................... 4-50
CHECKING THE STEERING HEAD ........................................................ 4-50
INSTALLING THE STEERING HEAD ...................................................... 4-50
REAR SHOCK ABSORBER ASSEMBLY..................................................... 4-53
HANDLING THE REAR SHOCK ABSORBER ......................................... 4-56
DISPOSING OF A REAR SHOCK ABSORBER ...................................... 4-56
REMOVING THE REAR SHOCK ABSORBER ASSEMBLY.................... 4-56
REMOVING THE BEARING..................................................................... 4-56
CHECKING THE REAR SHOCK ABSORBER ASSEMBLY .................... 4-57
CHECKING THE CONNECTING ARM AND RELAY ARM ...................... 4-57
INSTALLING THE RELAY ARM............................................................... 4-57
INSTALLING THE REAR SHOCK ABSORBER ASSEMBLY .................. 4-58
SWINGARM.................................................................................................... 4-60
REMOVING THE SWINGARM................................................................. 4-61
REMOVING THE BEARING..................................................................... 4-61
CHECKING THE SWINGARM ................................................................. 4-61
INSTALLING THE SWINGARM ............................................................... 4-62
CHAIN DRIVE................................................................................................. 4-63
REMOVING THE DRIVE CHAIN.............................................................. 4-64
CHECKING THE DRIVE CHAIN .............................................................. 4-64
CHECKING THE DRIVE SPROCKET...................................................... 4-65
CHECKING THE REAR WHEEL SPROCKET ......................................... 4-65
INSTALLING THE DRIVE CHAIN ............................................................ 4-65

REAR SHOCK ABSORBER ASSEMBLY
4-55

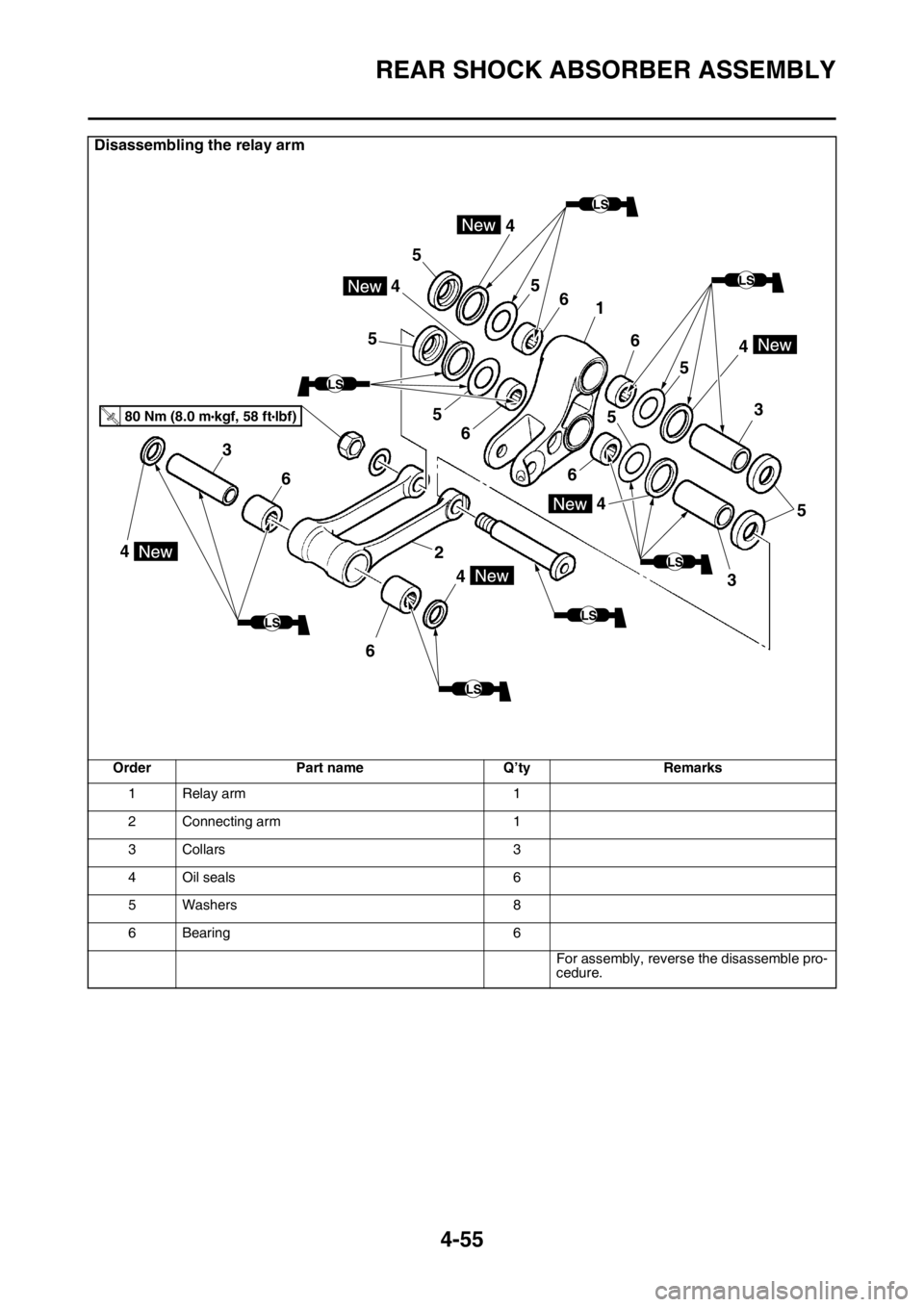

Disassembling the relay arm
Order Part name Q’ty Remarks
1 Relay arm 1
2 Connecting arm 1
3Collars 3
4Oil seals 6
5Washers 8
6 Bearing 6
For assembly, reverse the disassemble pro-
cedure.
5
3
5
6
165
4
5
5
4
5
6
6
5
4
3
2
4
6
6
3
4
4
T.R.80 Nm (8.0 mlbf) kgf, 58 ft

REAR SHOCK ABSORBER ASSEMBLY
4-57
2. Remove:
• Upper bearing “1”
TIP
Remove the bearing by pressing its outer race.
3. Remove:
• Lower bearing “1”
TIP
Remove the bearing by pressing its outer race.
EAS1SM1180CHECKING THE REAR SHOCK ABSORBER
ASSEMBLY
1. Check:
• Rear shock absorber rod
Bends/damage  Replace the rear shock
absorber assembly.
• Rear shock absorber
Gas leaks/oil leaks  Replace the rear
shock absorber assembly.
•Spring
Damage/wear  Replace.
• Spring guide
Damage/wear  Replace.
• Bearing
Damage/wear  Replace.
•Bolts
Bends/damage/wear  Replace.
EAS1SM1181
CHECKING THE CONNECTING ARM AND
RELAY ARM
1. Check:
• Connecting arm
• Relay arm
Damage/wear  Replace.
2. Check:
• Bearing
• Spacers
Damage/pitting/scratches  Replace the
bearings and spacers as a set.
3. Check:
• Oil seals
Damage/pitting  Replace.
EAS1SM1182INSTALLING THE RELAY ARM
1. Lubricate:
• Oil seals
• Bearing
• Spacers
• Washers
•Collars
2. Install:
• Bearing “1”
• Washer “2”
• Oil seals “3”
(to relay arm “4”)
3. Install:
• Bearing “1”
• Oil seals “2”
(to connecting arm “3”)
1
Recommended lubricant
Lithium-soap-based grease
Installed depth “a”
0 mm (0 in)
Installed depth “a”
0 mm (0 in)
New
3 3
43
2 2
22
a
1
11
New

REAR SHOCK ABSORBER ASSEMBLY
4-58
EAS1SM1183INSTALLING THE REAR SHOCK ABSORB-
ER ASSEMBLY
1. Lubricate:
• Bearing (lower side)
•Dust seal
•Collars
• Bushing
ECA1DX1012
NOTICE
Do not apply the grease to the bearing outer
race because it will wear the rear shock ab-
sorber surface on which the bearing is
press fitted.
2. Lubricate:
• O-ring
3. Install:
• Bearing
• Stopper ring
(to rear shock absorber assembly (upper
side))
TIP
• Install the bearing parallel until the stopper
ring groove appears by pressing its outer
race.
• After installing the stopper ring, push back the
bearing unit it contacts the stopper ring.
4. Install:
• Bearing “1”
• Bushing “2”
• Collar “3”
• Dust seal “4”
(to rear shock absorber assembly (lower
side))
TIP
Install the dust seals with their lips facing in-
ward.
5. Lubricate:
• Connecting arm and frame bolt
• Relay arm and connecting arm bolt
• Relay arm and swingarm bolt
(circumference and threaded portion)
• Rear shock absorber assembly upper bolt
• Rear shock absorber assembly lower bolt
6. Install:
• Rear shock absorber assembly
TIP
• When installing the rear shock absorber as-
sembly, lift up the swingarm.
• Install the rear shock absorber assembly up-
per bolt, and connecting arm bolt (frame side)
from the right.
• Install the rear shock absorber assembly low-
er bolts, connecting arm bolt (relay arm side),
and relay arm bolt (swingarm side) from the
left.
7. Tighten:
• Rear shock absorber assembly upper bolt
• Connecting arm bolt (frame side) Recommended lubricant
Lithium-soap-based grease
Recommended lubricant
Lithium-soap-based grease
3
a 1
12
a
2
New
Installed depth “a”
4.25 mm (0.17 in)
Recommended lubricant
Lithium-soap-based grease
Rear shock absorber assembly
upper bolt
56 Nm (5.6 m·kgf, 41 ft·lbf)
Connecting arm bolt (frame side)
80 Nm (8.0 m·kgf, 58 ft·lbf)
T R..
T R..

REAR SHOCK ABSORBER ASSEMBLY
4-59
• Connecting arm bolt (relay arm side)
• Relay arm bolt (swingarm side)
• Rear shock absorber assembly lower boltConnecting arm bolt (relay arm
side)
80 Nm (8.0 m·kgf, 58 ft·lbf)
Relay arm bolt (swingarm side)
70 Nm (7.0 m·kgf, 51 ft·lbf)
Rear shock absorber assembly
lower bolt
53 Nm (5.3 m·kgf, 38 ft·lbf)
T R..
T R..
T R..
