4. Turn the key to “ ” (on) and turn on theelectrical circuit in question to check if the
device operates. If the fuse blows again
immediately, have a Yamaha dealer
check the electrical system.
5. Install the hood.
EVU01670Replacing a headlight bulbIf a headlight bulb burns out, replace it as fol-

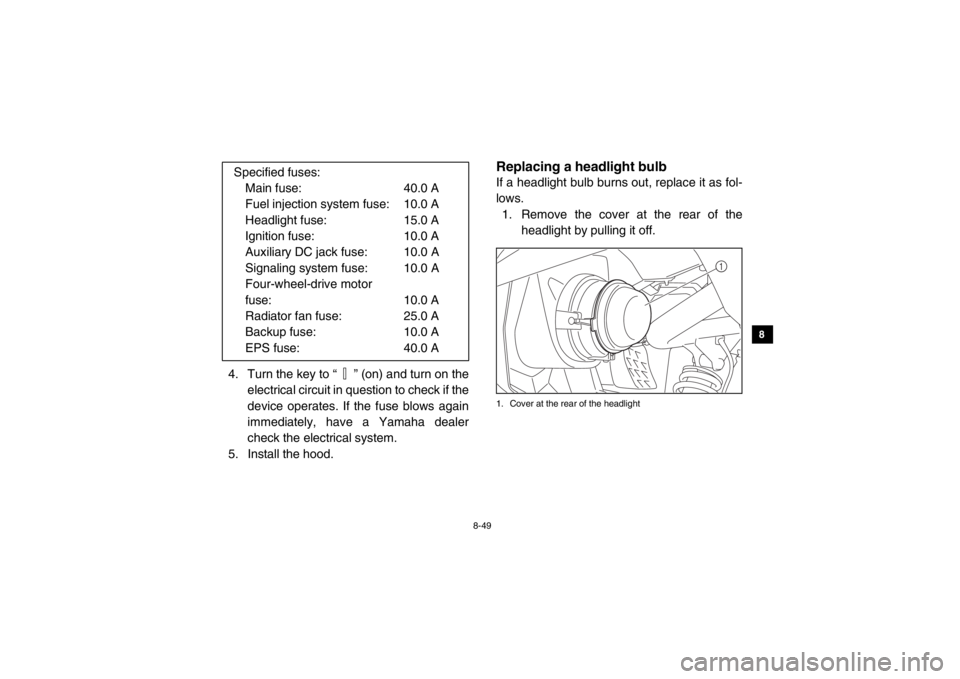

lows. 1. Remove the cover at the rear of the headlight by pulling it off.1. Cover at the rear of the headlight
Specified fuses:Main fuse: 40.0 A
Fuel injection system fuse: 10.0 A
Headlight fuse: 15.0 A
Ignition fuse: 10.0 A
Auxiliary DC jack fuse: 10.0 A
Signaling system fuse: 10.0 A
Four-wheel-drive motor
fuse: 10.0 A
Radiator fan fuse: 25.0 A
Backup fuse: 10.0 A
EPS fuse: 40.0 A
