If you think or feel that the vehicle may tip or roll, keep your body completely inside the protec-
tive structure of the vehicle:
Brace yourself by pressing your feet firmly on the floorboards and keep a firm grip on thesteering wheel or passenger handhold.
Do not put your hands or feet outside of the vehicle for any reason. Your arm or leg could be crushed.
Do not try to stop a vehicle tipover using your arm or leg.
●
Do not operate this vehicle on any public street , road, or highway, even if dirt or gravel.
●
Do not operate the vehicle in fast-flowing water or water deeper than 37 cm (15 in). If you must
cross shallow, slow-moving water, choose your path carefully to avoid sharp drop-offs, large
rocks, or slippery surfaces. Operating this vehicle through deep or fast-flowing water can lead
to loss of control or overturn. To reduce your risk of drowning or other injuries, use care when
crossing through water.
●
When loaded with cargo or towing a trailer:
Reduce speed, operate in low gear only, and allow more room to stop.
Avoid hills and rough terrain. Use extreme caution when towing or carrying a load on in-
clines.
Load trailer properly and use extra care when towing or pulling.
●
Do not tow or pull objects from any part of the vehicle other than the trailer hitch bracket or
winch (if installed).
1XP7B_EE.book Page 6 Tuesday, February 4, 2014 3:40 PM

3-2
3
4
5
6
7
8
9
10
11
12
13
14

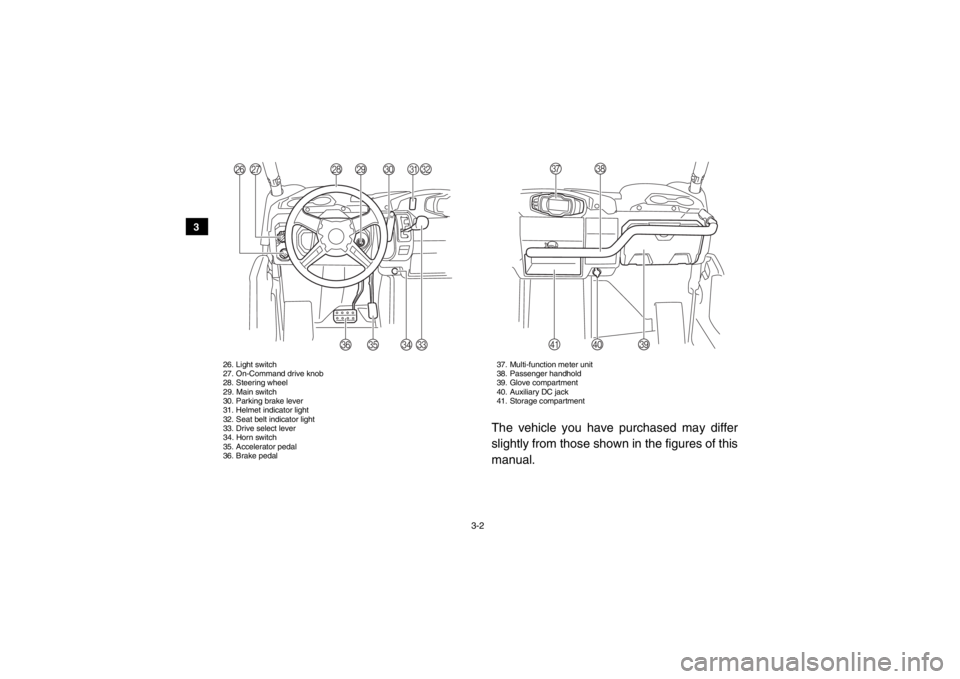

26. Light switch
27. On-Command drive knob
28. Steering wheel
29. Main switch
30. Parking brake lever
31. Helmet indicator light
32. Seat belt indicator light
33. Drive select lever
34. Horn switch
35. Accelerator pedal
36. Brake pedal 37. Multi-function meter unit
38. Passenger handhold
39. Glove compartment
40. Auxiliary DC jack
41. Storage compartment
The vehicle you have purchased may differ
slightly from those shown in the figures of this
manual.
Z
Y
Q
R
S
T
X
P
UVW
a
]
[
\^
1XP7B_EE.book Page 2 Tuesday, February 4, 2014 3:40 PM

4-2
4
5
6
7
8
9
10
11
12
13
14

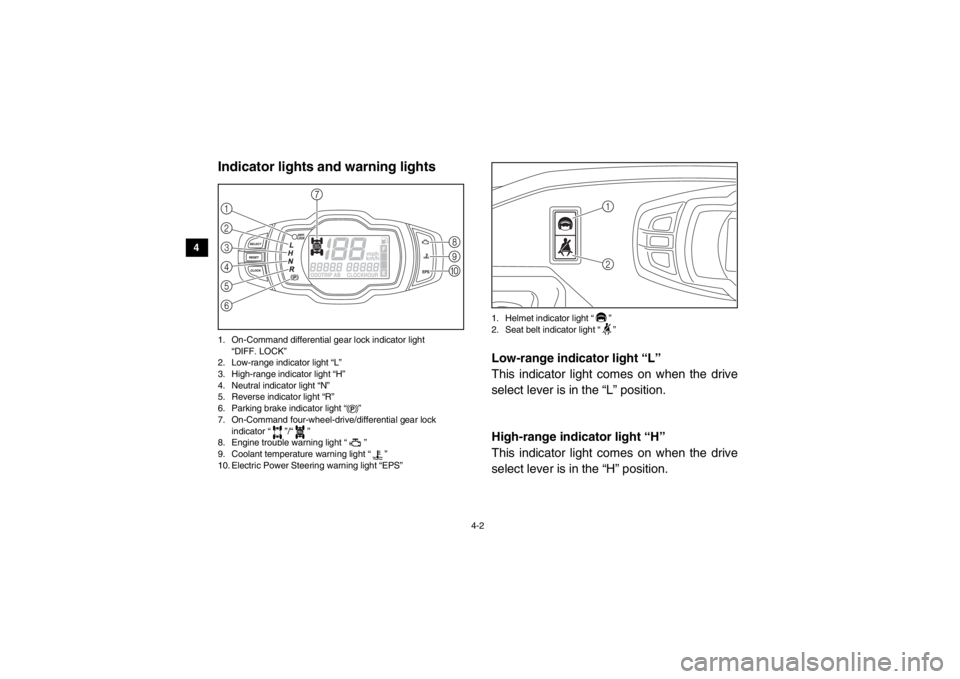

EVU00150Indicator lights and warning lights1. On-Command differential gear lock indicator light “DIFF. LOCK”
2. Low-range indicator light “L”
3. High-range indicator light “H”
4. Neutral indicator light “N”
5. Reverse indicator light “R”
6. Parking brake indicator light “ ”
7. On-Command four-wheel-drive/differential gear lock indicator “ ”/“ ”
8. Engine trouble warning light “ ”
9. Coolant temperature warning light “ ”
10. Electric Power Steering warning light “EPS” 1. Helmet indicator light “ ”
2. Seat belt indicator light “ ”
EVU01140Low-range indicator light “L”
This indicator light comes on when the drive
select lever is in the “L” position.EVU01150High-range indicator light “H”
This indicator light comes on when the drive
select lever is in the “H” position.
356421
7
809
DIFF.
LOCK
21
1XP7B_EE.book Page 2 Tuesday, February 4, 2014 3:40 PM

4-3
1
2
34
5
6
7
8
9
10
11
12
13
14
EVU00170Neutral indicator light “N”
This indicator light comes on when the drive
select lever is in the “N” position.5B410001Reverse indicator light “R”
This indicator light comes on when the drive
select lever is in the “R” position.EVU00210Parking brake indicator light “ ”
This indicator light comes on when the park-
ing brake is applied.EBU29621On-Command four-wheel-drive indicator
“ ”, On-Command differential gear lock
indicator “ ” and indicator light “DIFF.
LOCK”
The On-Command four-wheel-drive indicator
“ ” comes on when the On-Command drive
knob “2WD/4WD/DIFF LOCK” is set to the
“4WD” position.The On-Command differential gear lock indi-
cator “ ” and the On-Command differential
gear lock indicator light “DIFF. LOCK” come
on when the On-Command drive knob “2WD/
4WD/DIFF LOCK” is set to the “DIFF LOCK”
position.
TIP●
Due to the synchronizing mechanism in
the differential gear case, the four-wheel-
drive indicator may not come on until the
vehicle starts moving.
●
When the On-Command drive knob
“2WD/4WD/DIFF LOCK” is set to
“DIFF LOCK” or “4WD”, the indicator
“ ” and the indicator light “DIFF. LOCK”
will flash until the differential gear is com-
pletely locked or unlocked. If the indicator
and the indicator light continue to flash,
the differential is not completely locked or
unlocked. In this case, start moving to al-
low time for the differential to lock or un-
lock.
DIFF.
LOCK
DIFF.
LOCKDIFF.
LOCK
1XP7B_EE.book Page 3 Tuesday, February 4, 2014 3:40 PM

4-13
1
2
34
5
6
7
8
9
10
11
12
13
14
NOTICEDo not use the headlights with the engine
turned off for an extended period of time.
The battery may discharge to the point
that the starter motor will not operate
properly. If this should happen, remove
the battery and recharge it.

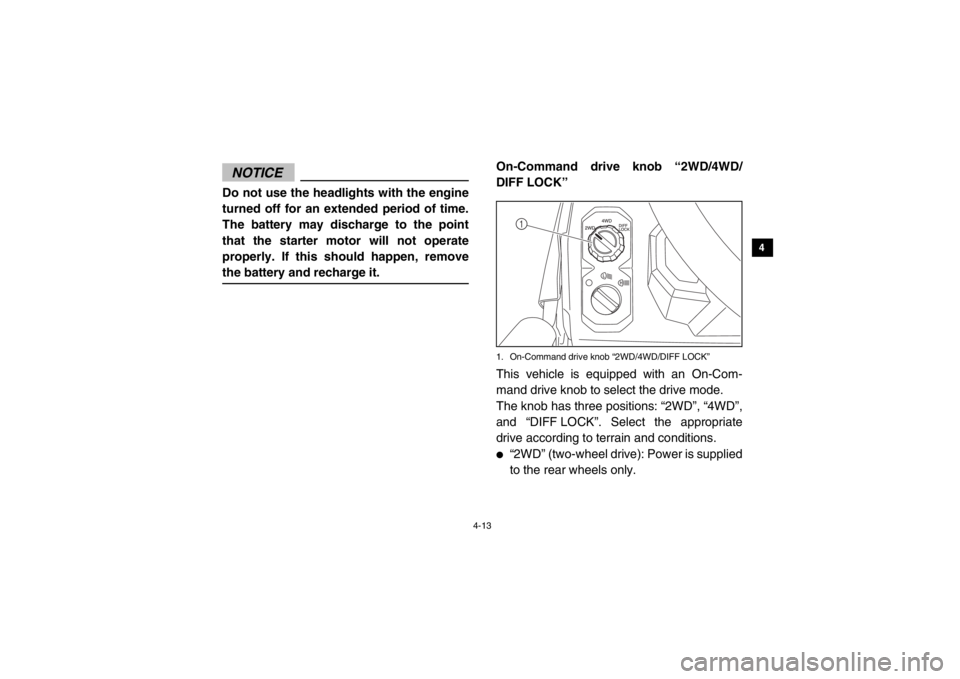

EVU01183On-Command drive knob “2WD/4WD/
DIFF LOCK”1. On-Command drive knob “2WD/4WD/DIFF LOCK”This vehicle is equipped with an On-Com-
mand drive knob to select the drive mode.
The knob has three positions: “2WD”, “4WD”,
and “DIFF LOCK”. Select the appropriate
drive according to terrain and conditions.●
“2WD” (two-wheel drive): Power is supplied
to the rear wheels only.1
1XP7B_EE.book Page 13 Tuesday, February 4, 2014 3:40 PM

4-14
4
5
6
7
8
9
10
11
12
13
14
●
“4WD” (four-wheel drive): Power is sup-
plied to the rear and front wheels.
●
“DIFF LOCK” (four-wheel drive with the dif-
ferential gear locked): Power is supplied to
the rear and front wheels with the differen-
tial gear locked. Unlike the “4WD” mode, all
wheels turn at the same speed regardless
of traction.

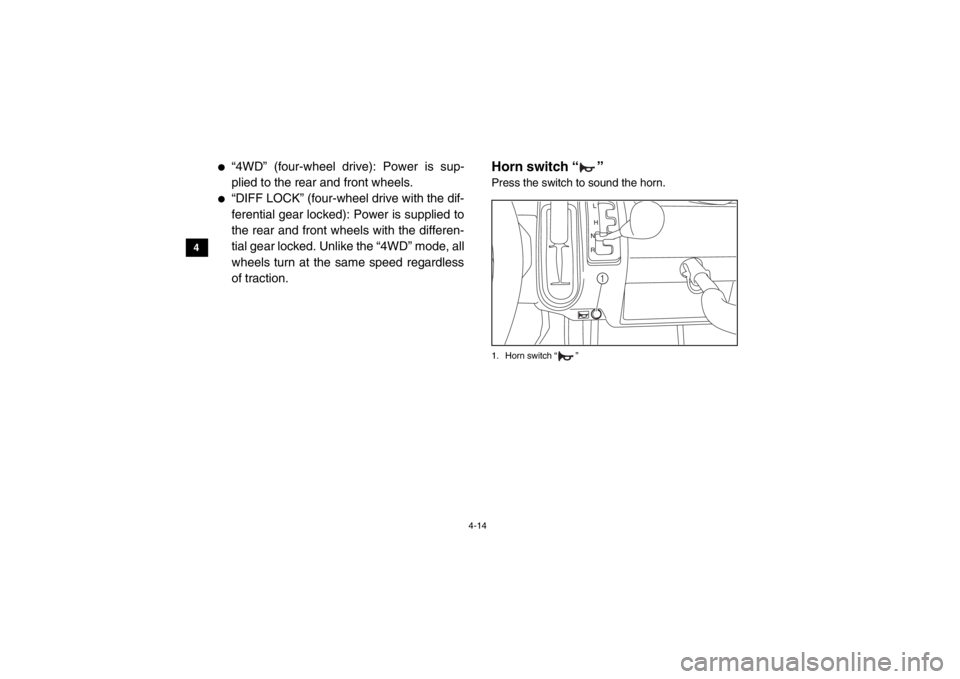

Horn switch “ ”Press the switch to sound the horn.1. Horn switch “ ”
1
1XP7B_EE.book Page 14 Tuesday, February 4, 2014 3:40 PM

4-16
4
5
6
7
8
9
10
11
12
13
14

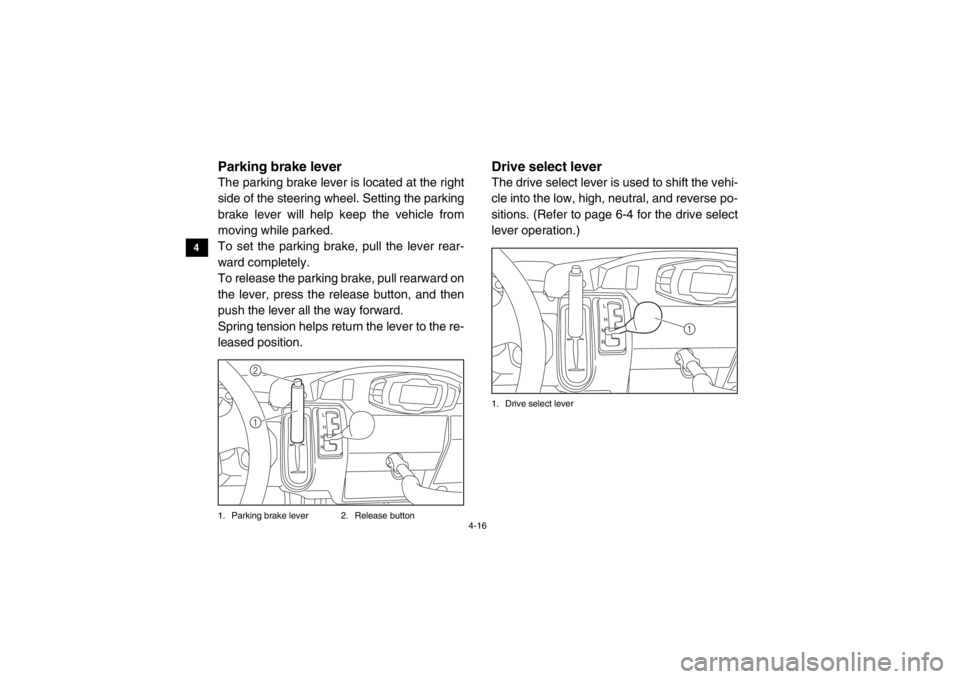

EVU00280Parking brake leverThe parking brake lever is located at the right
side of the steering wheel. Setting the parking
brake lever will help keep the vehicle from
moving while parked.
To set the parking brake, pull the lever rear-
ward completely.
To release the parking brake, pull rearward on
the lever, press the release button, and then
push the lever all the way forward.
Spring tension helps return the lever to the re-
leased position.1. Parking brake lever 2. Release button
EVU00290Drive select leverThe drive select lever is used to shift the vehi-
cle into the low, high, neutral, and reverse po-
sitions. (Refer to page 6-4 for the drive select
lever operation.)1. Drive select lever
12
1
1XP7B_EE.book Page 16 Tuesday, February 4, 2014 3:40 PM

5-2
5
6
7
8
9
10
11
12
13
14 Final gear oil/
Differential gear oil
Check for leakage. 5-7, 8-15, 8-17
Accelerator pedal Check for proper accelerator pedal operation. 5-7
Seat belts Check for proper operation and belt wear. 5-7
Passenger handhold Check for stability and proper fastening. 5-8, 7-9
Steering Check for proper operation. 5-8
Fittings and fasteners Check all fittings and fasteners. 5-8
Instruments, lights and
switches Check operation, and correct if necessary.
5-8, 8-49, 8-52, 8-53
Wheels and tires Check tire pressure and for wear and damage. 5-8, 8-39, 8-41
Axle boots Check for damage. 8-21
ITEM
ROUTINE PAGE
