Page 57 of 76
PERIODIC MAINTENANCE AND ADJUSTMENT
7-16
7
EAU23098
Checking an d lu bricatin g the
ca blesThe operation of all control cables and
the condition of the cables should be
checked before each ride, and the ca-
bles and cable ends should be lubri-
cated if necessary. If a cable is
damaged or does not move smoothly,
have a Yamaha dealer check or re-
place it. WARNING! Dama ge to the
outer housin g of cab les may result
in internal rustin g an d cause inter-
ference with ca ble movement. Re-
place damag ed cab les as soon as
possi ble to prevent unsafe con di-
tions.
[EWA10712] EAU23115
Checkin
g an d lu bricatin g the
throttle grip an d ca bleThe operation of the throttle grip
should be checked before each ride. In
addition, the cable should be lubricat-
ed by a Yamaha dealer at the intervals
specified in the periodic maintenance
chart.
The throttle cable is equipped with a
rubber cover. Make sure that the cover
is securely installed. Even though the
cover is installed correctly, it does not
completely protect the cable from wa-
ter entry. Therefore, use care not to
pour water directly onto the cover or
cable when washing the vehicle. If the
cable or cover becomes dirty, wipe
clean with a moist cloth.
EAU23121
A djustin g the Autolu be pumpThe Autolube pump is a vital and so-
phisticated component of the engine,
which must be adjusted by a Yamaha
dealer at the intervals specified in the
periodic maintenance and lubrication
chart.
Recommen ded lu bricant:
Yamaha cable lubricant or other
suitable cable lubricant
U2SA80E0.book Page 16 Monday, June 3, 2013 5:25 PM
Page 58 of 76
PERIODIC MAINTENANCE AND ADJUSTMENT
7-17
7
EAU43634
Lubricatin g the front an d rear
b rake leversThe pivoting points of the front and rear
brake levers must be lubricated at the
intervals specified in the periodic main-
tenance and lubrication chart.
EAU23193
Checkin g an d lu bricatin g the
centerstan dThe operation of the centerstand
should be checked before each ride,
and the pivots and metal-to-metal con-
tact surfaces should be lubricated if
necessary.
WARNING
EWA11302
If the centerstan d d oes not move up
an d d own smoothly, have a Yamaha
d ealer check or repair it. Otherwise,
the centerstan d coul d contact the
g roun d an d d istract the operator, re-
sultin g in a possi ble loss of control.
EAU42082
Checkin g the front forkThe condition and operation of the
front fork must be checked as follows
at the intervals specified in the periodic
maintenance and lubrication chart.
To check the con dition
Check the inner tubes for scratches
and damage.
To check the operation 1. Place the vehicle on a level sur- face and hold it in an upright posi-
tion. WARNING! To avoi d injury,
securely support the vehicle so
there is no dan ger of it fallin g
over.
[EWA10752]
2. While applying the front brake, push down hard on the handle-
bars several times to check if the
front fork compresses and re-
bounds smoothly.
Recommen ded lu bricant:
Lithium-soap-based grease
Recommen ded lu bricant:
Lithium-soap-based grease
U2SA80E0.book Page 17 Monday, June 3, 2013 5:25 PM

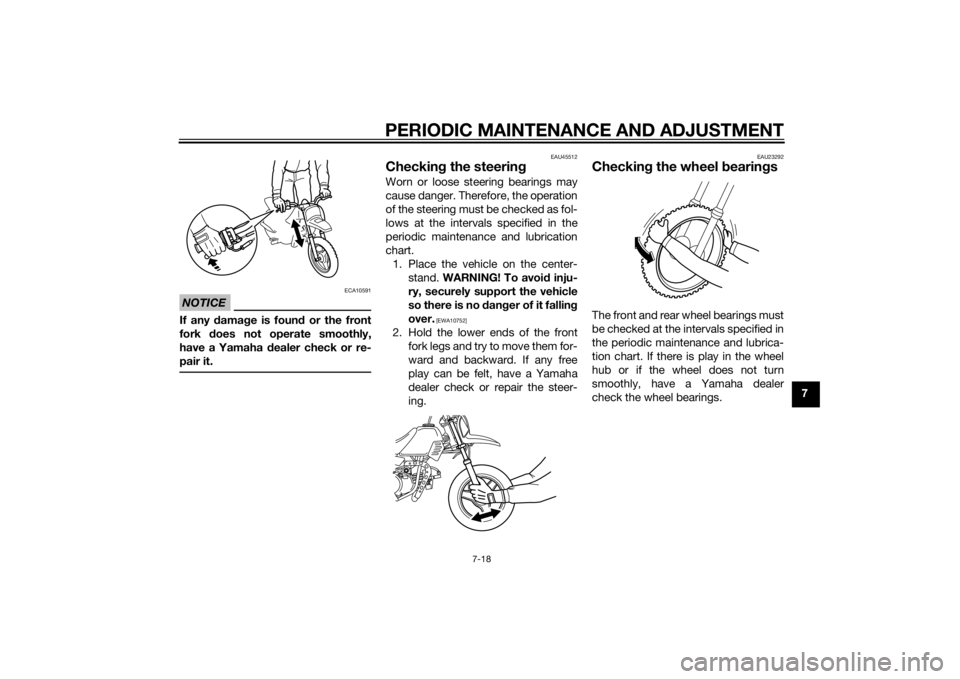

Page 59 of 76
PERIODIC MAINTENANCE AND ADJUSTMENT
7-18
7
NOTICE
ECA10591
If any damag e is foun d or the front
fork does not operate smoothly,
have a Yamaha d ealer check or re-
pair it.
EAU45512
Checkin g the steerin gWorn or loose steering bearings may
cause danger. Therefore, the operation
of the steering must be checked as fol-
lows at the intervals specified in the
periodic maintenance and lubrication
chart.
1. Place the vehicle on the center- stand. WARNING! To avoi d inju-
ry, securely support the vehicle
so there is no dan ger of it fallin g
over.
[EWA10752]
2. Hold the lower ends of the front fork legs and try to move them for-
ward and backward. If any free
play can be felt, have a Yamaha
dealer check or repair the steer-
ing.
EAU23292
Checkin g the wheel bearin gsThe front and rear wheel bearings must
be checked at the intervals specified in
the periodic maintenance and lubrica-
tion chart. If there is play in the wheel
hub or if the wheel does not turn
smoothly, have a Yamaha dealer
check the wheel bearings.
U2SA80E0.book Page 18 Monday, June 3, 2013 5:25 PM
Page 60 of 76
PERIODIC MAINTENANCE AND ADJUSTMENT
7-19
7
EAU24361
Front wheel
EAU56510
To remove the front wheel
WARNING
EWA10822
To avoid injury, securely support the
vehicle so there is no dan ger of it
fallin g over.1. Place the motorcycle on the cen-
terstand.
2. Disconnect the brake cable at the wheel hub by removing the front
brake lever free play adjusting nut,
then removing the cable from the
brake camshaft lever and brake
shoe plate. 3. Remove the axle nut and washer.
4. Pull the wheel axle out, and then
remove the wheel. To install the front wheel
1. Install the brake shoe plate into the wheel hub as shown.
2. Lift the wheel up between the fork legs.
TIPMake sure that the slot in the brake
shoe plate fits over the retainer on the
fork leg.
1. Brake camshaft lever
2. Brake shoe plate
3. Washer
4. Axle nut
5. Brake cable
6. Front brake lever free play adjusting nut
1. Wheel axle
5
6
1 3
4
2
1
U2SA80E0.book Page 19 Monday, June 3, 2013 5:25 PM
Page 61 of 76
PERIODIC MAINTENANCE AND ADJUSTMENT
7-20
7
3. Insert the wheel axle from the right
side.
4. Install the washer and axle nut, and then tighten the axle nut to the
specified torque.
5. Connect the brake cable at the wheel hub, and then install the
brake lever free play adjusting nut.
6. Adjust the brake lever free play. (See page 7-14.)
7. Take the motorcycle off the cen- terstand so that the front wheel is
on the ground. 8. Push down hard on the handlebar
several times to check for proper
fork operation.
EAU25081
Rear wheel
EAU56820
To remove the rear wheel
WARNING
EWA10822
To avoi d injury, securely support the
vehicle so there is no dan ger of it
fallin g over.1. Place the motorcycle on the cen-
terstand.
2. Remove the seat. (See page 4-7.)
3. Remove the muffler bolt and washers. WARNING! Always let
the exhaust system cool prior to
touchin g exhaust components.
[EWA14582]
4. Slide the spring clamp down, and
then remove the muffler.
1. RetainerTightenin g torque:
Axle nut: 40 Nm (4.0 m·kgf, 29 ft·lbf)
1
U2SA80E0.book Page 20 Monday, June 3, 2013 5:25 PM
Page 62 of 76
PERIODIC MAINTENANCE AND ADJUSTMENT
7-21
75. Remove the exhaust chamber bolt
and washers. 6. Remove the exhaust manifold
bolts, and then remove the ex-
haust chamber, the power reduc-
tion plate and the gasket.
7. Remove the right-side rear shock absorber mounting bolt and then
tilt the rear shock absorber up-
ward as shown. 8. Remove the axle nut while apply-
ing the rear brake.
9. Remove the rear arm by removing the nuts and washers.
1. Muffler
2. Washer
3. Muffler bolt
4. Spring clamp
1. Exhaust chamber
2. Exhaust chamber bolt
3. Washer
3
1
2 4
2
1
3
1. Exhaust manifold bolt
1
1. Rear shock absorber mounting bolt
1. Axle nut
1
1
U2SA80E0.book Page 21 Monday, June 3, 2013 5:25 PM
Page 63 of 76
PERIODIC MAINTENANCE AND ADJUSTMENT
7-22
7
10. Pull the wheel to the right to sepa-
rate it from the final gear case, and
then remove the wheel.
To install the rear wheel 1. Apply a light coating of lithium- soap-based grease to the splines
of the final gear case and wheel
hub.
2. Install the wheel by inserting it into the wheel hub.
3. Install the rear arm by installing the washers and nuts.
4. Install the axle nut. 5. Install the right-side rear shock
absorber by installing the mount-
ing bolt.
6. While applying the rear brake, tighten the axle nut to the speci-
fied torque.
7. Tighten the rear arm nuts and rear shock absorber mounting bolt to
the specified torques.
8. Install the exhaust chamber by in- stalling the bolt and washers.
9. Install the power reduction plate, a new gasket, and then install the
exhaust manifold bolts.
10. Tighten the exhaust manifold bolts and exhaust chamber bolt to the
specified torques. 11. Install the muffler by sliding the
spring clamp up to its original po-
sition, and then installing the
washers and muffler bolt.
TIPMake sure that the spring clamp is po-
sitioned with the projection side facing
inward.12. Tighten the muffler bolt to thespecified torque.
1. Rear arm
2. Washer
3. Rear arm nut
12
3
Tightenin g torques:
Axle nut: 60 Nm (6.0 m·kgf, 43 ft·lbf)
Rear arm nut:
29 Nm (2.9 m·kgf, 21 ft·lbf)
Rear shock absorber mounting bolt: 23 Nm (2.3 m·kgf, 17 ft·lbf)
Tightenin g torques:
Exhaust manifold bolt:
9 Nm (0.9 m·kgf, 6.5 ft·lbf)
Exhaust chamber bolt:
18 Nm (1.8 m·kgf, 13 ft·lbf)
1. Exhaust chamber
2. Spring clamp
3. Muffler
1
2
3
U2SA80E0.book Page 22 Monday, June 3, 2013 5:25 PM
Page 64 of 76
PERIODIC MAINTENANCE AND ADJUSTMENT
7-23
713. Adjust the brake lever free play.
(See page 7-14.)
14. Install the seat.
EAU25852
Trou bleshootin gAlthough Yamaha motorcycles receive
a thorough inspection before shipment
from the factory, trouble may occur
during operation. Any problem in the
fuel, compression, or ignition systems,
for example, can cause poor starting
and loss of power.
The following troubleshooting chart
represents a quick and easy procedure
for checking these vital systems your-
self. However, should your motorcycle
require any repair, take it to a Yamaha
dealer, whose skilled technicians have
the necessary tools, experience, and
know-how to service the motorcycle
properly.
Use only genuine Yamaha replace-
ment parts. Imitation parts may look
like Yamaha parts, but they are often
inferior, have a shorter service life and
can lead to expensive repair bills.
WARNING
EWA15142
When checkin g the fuel system, do
not smoke, an d make sure there are
no open flames or sparks in the ar-
ea, inclu din g pilot lig hts from water heaters or furnaces. Gasoline or
g
asoline vapors can i gnite or ex-
plod e, causin g severe injury or prop-
erty damag e.
Tightenin g torque:
Muffler bolt:
18 Nm (1.8 m·kgf, 13 ft·lbf)
