04 Interior
Securing cargo
04
119
G027031
As a safety precaution, all cargo in your vehi- cle should be securely anchored to keep itfrom being thrown forward in the event ofsudden braking, etc. The vehicle is equippedwith eyelets in the cargo space to whichstraps or other cargo restraints can beattached.
WARNING
The eyelets are not to be used as passen- ger restraints or as anchorages for childrestraints.
Consult your Volvo retailer about suitable accessories for this purpose.Remember that an object weighing 44 lbs(20 kg) produces a force of 2,200 lbs(1,000 kg) in a head-on collision at 30 mph(50 km/h)! Keep the following in mind when loading the vehicle:
• The load carrying capacity of your vehicle is determined by factors such as thenumber of passengers, the amount ofcargo, the weight of any accessories thatmay be installed, etc. See the section"Vehicle loading" in the chapter "Wheeland tires" for more detailed information.
• Load the cargo
against the backrest.
• Load heavy cargo as low as possible.
• If no one is sitting in the outboard rearseat(s), reinforce the backrest by fasten-ing the seat belts.
• Never load cargo above the backrestwithout a cargo net.
WARNING
When the rear backrest(s) are folded down, the vehicle should not be loaded toa level higher than 2 in. (5 cm) below theupper edge of the rear side windows.Objects placed higher than this level couldimpede the function of the inflatable cur-tain.
G027058
Attachment bracket
Nylon cargo net (accessory)The Volvo XC90 can be equipped with a cargo net made of strong nylon fabric. This net can be installed in two places:
• Behind the rear seat backrests (the sec- ond row of seats)
• Behind the front seat backrests if the rearseat backrests (the second row of seats)have been folded down.

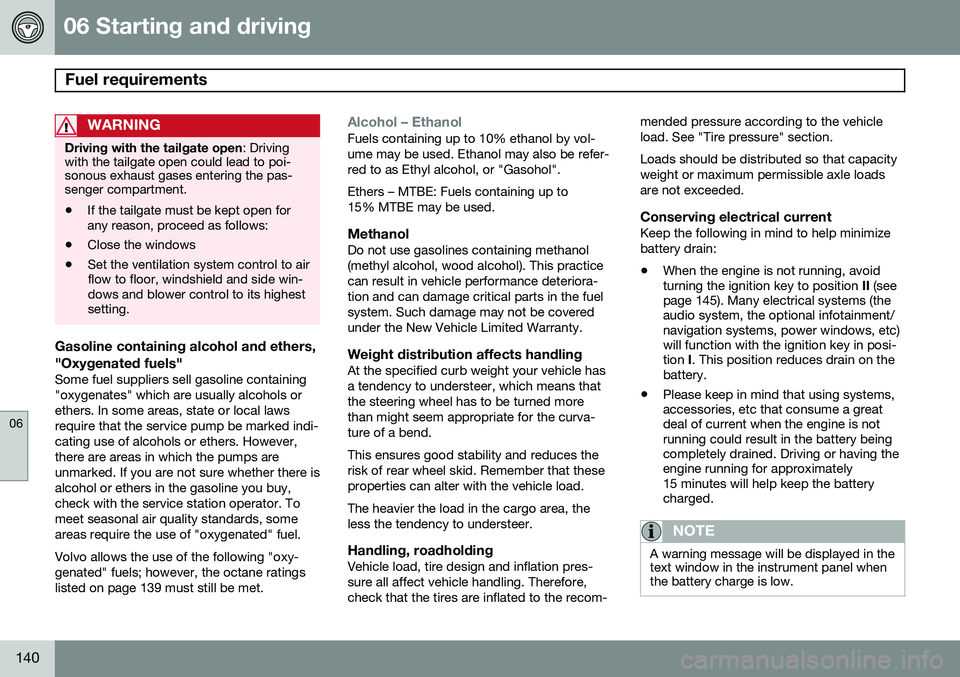

06 Starting and driving
Fuel requirements
06
140
WARNING
Driving with the tailgate open: Driving
with the tailgate open could lead to poi- sonous exhaust gases entering the pas-senger compartment.
• If the tailgate must be kept open for any reason, proceed as follows:
• Close the windows
• Set the ventilation system control to airflow to floor, windshield and side win-dows and blower control to its highestsetting.
Gasoline containing alcohol and ethers, "Oxygenated fuels"
Some fuel suppliers sell gasoline containing "oxygenates" which are usually alcohols orethers. In some areas, state or local lawsrequire that the service pump be marked indi-cating use of alcohols or ethers. However,there are areas in which the pumps areunmarked. If you are not sure whether there isalcohol or ethers in the gasoline you buy,check with the service station operator. Tomeet seasonal air quality standards, someareas require the use of "oxygenated" fuel. Volvo allows the use of the following "oxy- genated" fuels; however, the octane ratingslisted on page 139 must still be met.
Alcohol – EthanolFuels containing up to 10% ethanol by vol- ume may be used. Ethanol may also be refer-red to as Ethyl alcohol, or "Gasohol". Ethers – MTBE: Fuels containing up to 15% MTBE may be used.
MethanolDo not use gasolines containing methanol(methyl alcohol, wood alcohol). This practicecan result in vehicle performance deteriora-tion and can damage critical parts in the fuelsystem. Such damage may not be coveredunder the New Vehicle Limited Warranty.
Weight distribution affects handlingAt the specified curb weight your vehicle hasa tendency to understeer, which means thatthe steering wheel has to be turned morethan might seem appropriate for the curva-ture of a bend. This ensures good stability and reduces the risk of rear wheel skid. Remember that theseproperties can alter with the vehicle load. The heavier the load in the cargo area, the less the tendency to understeer.
Handling, roadholdingVehicle load, tire design and inflation pres-sure all affect vehicle handling. Therefore,check that the tires are inflated to the recom- mended pressure according to the vehicleload. See "Tire pressure" section. Loads should be distributed so that capacity weight or maximum permissible axle loadsare not exceeded.
Conserving electrical currentKeep the following in mind to help minimizebattery drain:
• When the engine is not running, avoid turning the ignition key to position
II (see
page 145). Many electrical systems (theaudio system, the optional infotainment/navigation systems, power windows, etc)will function with the ignition key in posi-tion I. This position reduces drain on the
battery.
• Please keep in mind that using systems,accessories, etc that consume a greatdeal of current when the engine is notrunning could result in the battery beingcompletely drained. Driving or having theengine running for approximately15 minutes will help keep the batterycharged.
NOTE
A warning message will be displayed in the text window in the instrument panel whenthe battery charge is low.

06 Starting and driving
Cold weather precautions
06
169
If you wish to check your vehicle before the approach of cold weather, the followingadvice is worth noting:
• Make sure that the engine coolant con- tains 50 percent antifreeze. Any othermixture will reduce freeze protection. Thisgives protection against freezing down to–31 °F (–35 °C). See section "Coolant".
• The use of "recycled" antifreeze is notapproved by Volvo. Different types ofantifreeze must not be mixed.
• Volvo recommends using only genuineVolvo antifreeze in your vehicle's radiator.Your Volvo retailer stocks plenty of Volvoengine coolant to protect your vehicleduring cold weather.
• Try to keep the
fuel tank well filled – this
prevents the formation of condensation inthe tank. In addition, in extremely coldweather conditions it is worthwhile to addfuel line de-icer before refueling.
• The viscosity of the engine oil is impor-tant. Oil with low viscosity (thinner oil)improves cold-weather starting as well asdecreasing fuel consumption while theengine is warming up. Full synthetic0W-30 oil is recommended for driving inareas with sustained low temperatures.
• The load placed on the
battery is greater
during the winter since the windshieldwipers, lighting, etc. are used more often. Moreover, the capacity of the batterydecreases as the temperature drops. Invery cold weather, a poorly charged bat-tery can freeze and be damaged. It istherefore advisable to check the state ofcharge more frequently and spray an anti-rust oil on the battery posts.
• Volvo recommends the use of
snow tires
on all four wheels for winter driving – seesection "Wheels and tires."
• To prevent the
washer fluid reservoir
from freezing, add washer solvents con-taining antifreeze (see page 224 for thelocation of the washer fluid reservoir).This is important since dirt is oftensplashed on the windshield during winterdriving, requiring the frequent use of thewashers and wipers. Volvo Washer Sol-vent should be diluted as follows:
• Down to 14 ° F (–10 ° C):
1 part washer
solvent and 4 parts water
• Down to 5 ° F (–15 ° C):
1 part washer
solvent and 3 parts water
• Down to 0 ° F (–18 ° C):
1 part washer
solvent and 2 parts water
• Down to –18 ° F (–28 ° C):
1 part washer
solvent and 1 part water
• Use Volvo Teflon Lock Spray in the locks.
NOTE
Avoid the use of de-icing sprays as they can cause damage to the locks.
W – Winter/Wet driving mode – enhanced vehicle traction
•Mode W will only function if the gear selector is in the (
D)rive position.
• Press the button at the base of the gearselector to engage/disengage this drivingmode.
• An LED in the button will light up to indi-cate that W is engaged and this will alsobe displayed in the instrument panel (seepage 58).
• This mode may be selected for starting/moving off on slippery roads.

07 Wheels and tires
Tire inflation
07
181
Inflation placard
G032513
Tire inflation placardCheck tire inflation pressure regularly. A table listing the recommended inflation pressure for your vehicle can be found onpage 183. A tire inflation pressure placard isalso located on the driver's side B-pillar (thestructural member at the side of the vehicle,at the rear of the driver's door opening). Thisplacard indicates the designation of the fac-tory-mounted tires on your vehicle, as well asload limits and inflation pressure.
NOTE
The placards shown indicate inflation pres- sure for the tires installed on the vehicle atthe factory only.
• Use a tire gauge to check the tire inflation pressure, including the spare, at leastonce a month and before long trips. Youare strongly urged to buy a reliable tirepressure gauge, as automatic service sta-tion gauges may be inaccurate.
• Use the recommended cold inflationpressure for optimum tire performanceand wear.
• Under-inflation or over-inflation maycause uneven treadwear patterns.
WARNING
•Under-inflation is the most common cause of tire failure and may result insevere tire cracking, tread separation,or "blow-out," with unexpected loss ofvehicle control and increased risk ofinjury.
• Under-inflated tires reduce the loadcarrying capacity of your vehicle.
When weather temperature changes occur, tire inflation pressures also change. A 10- degree temperature drop causes a corres-ponding drop of 1 psi (7 kPa) in inflation pres-sure. Check your tire pressures frequentlyand adjust them to the proper pressure,which can be found on the vehicle's tire infor-mation placard or certification label.
Checking tire pressureA certain amount of air seepage from the tiresoccurs naturally and tire pressure fluctuateswith seasonal changes in temperature.Always check tire pressure regularly.
Cold tiresInflation pressure should be checked when the tires are cold. The tires are considered to be cold when they have the same temperature as thesurrounding (ambient) air. This temperature is normally reached after the vehicle has been parked for at least 3 hours. After driving a distance of approximately 1 mile (1.6 km), the tires are considered to behot. If you have to drive farther than this dis-tance to pump your tire(s), check and recordthe tire pressure first and add the appropriateair pressure when you get to the pump. If checking tire pressure when the tire is hot, never "bleed" or reduce air pressure. Thetires are hot from driving and it is normal forpressures to increase above recommended

07 Wheels and tires
Vehicle loading
07
187
Properly loading your vehicle will provide maximum return of vehicle design perform-ance. Before loading your vehicle, familiarize your- self with the following terms for determiningyour vehicle's weight ratings, with or withouta trailer, from the vehicle's Federal/ CanadianMotor Vehicle Safety Standards (FMVSS/CMVSS) label, and the vehicle's tire informa-tion placard.
Curb weightThe weight of the vehicle including a full tankof fuel and all standard equipment. It doesnot include passengers, cargo, or optionalequipment.
Capacity weightAll weight added to the curb weight, includingcargo and optional equipment. When towing,trailer hitch tongue load is also part of cargoweight.
NOTE
For trailer towing information, please refer to the section "Towing a trailer."
Permissible axle weightThe maximum allowable weight that can be carried by a single axle (front or rear). Thesenumbers are shown on the Federal/CanadianMotor Vehicle Safety Standards (FMVSS/CMVSS) label. The total load on each axlemust never exceed its maximum permissibleweight.
Gross vehicle weight (GVW)The vehicle's curb weight + cargo + passen-gers. A table listing important weight limits for your vehicle, is in chapter "Dimension andweights". For the location of the various labels in your vehicle, see page 282
Steps for Determining Correct Load Limit
•
Locate the statement "the combined weight of occupants and cargo shouldnever exceed XXX pounds" on your vehi-cle's placard.
• Determine the combined weight of thedriver and passengers that will be ridingin your vehicle. •
Subtract the combined weight of thedriver and passengers from XXX kilo-grams or XXX pounds.
• The resulting figure equals the availableamount of cargo and luggage loadcapacity. For example, if the "XXX"amount equals 1400 lbs. and there will befive 150 lb. passengers in your vehicle,the amount of available cargo and lug-gage load capacity is 650 lbs. (1400-750(5 x 150) = 650 lbs.)
• Determine the combined weight of lug-gage and cargo being loaded on the vehi-cle. That weight may not safely exceedthe available cargo and luggage loadcapacity calculated in Step 4.
• If your vehicle will be towing a trailer, loadfrom your trailer will be transferred to your vehicle. Consult this manual 1
to deter-
mine how this reduces the available cargo and luggage load capacity of yourvehicle.
1 For "Towing a trailer" see page 164.

07 Wheels and tires
Vehicle loading
07
188
WARNING
•Exceeding the permissible axle weight, gross vehicle weight, or any otherweight rating limits can cause tireoverheating resulting in permanentdeformation or catastrophic failure.
• Do not use replacement tires withlower load carrying capacities than thetires that were original equipment onthe vehicle because this will lower thevehicle's GVW rating. Use only tireswith the correct load carrying capacity.Consult your Volvo retailer for informa-tion.

11 Specifications
Weights
11
286
CategoryUSACanada
Gross vehicle weightA
7-seat, 6-cyl, FWD B
7-seat, 6-cyl, AWD C
5925 lbs 6080 lbs– 2760 kg
Capacity weight 7-seat models
1210 lbs550 kg
Permissible axle weight, front A
7-seat, 6-cyl, FWD 7-seat, 6-cyl, AWD
2770 lbs 2880 lbs– 1310 kg
Permissible axle weight, rear A
7-seat, 6-cyl, FWD 7-seat, 6-cyl, AWD
3170 lbs 3240 lbs– 1470 kg
Curb weight All models
4560 - 4790 lbs2130 -2180 kg
Max. roof load220 lbs100 kg
Trailer weight, w/o brakes1650 lbs750 kg
Trailer weights, with brakesSee the table on page 164See the table on page 164
Max. tongue weightSee the table on page 164See the table on page 164
A Permissible axle weight or gross vehicle weight must never be exceeded.
B Front Wheel Drive
C All Wheel Drive

11 Specifications
Weights
11
287
CAUTION
The maximum permissible axle loads and/or the gross vehicle weight must notbe exceeded.
WARNING
When adding accessories, equipment, lug- gage and other cargo to your vehicle, thetotal capacity weight must not be excee-ded.
