10 Specifications
Specifications
10
375
Specification/Model3.2 6-cyl.3.2 6-cyl.3.0TA
Torque (Nm/rps)320/53300/55440/35 – 70
Torque (ft. lbs./rpm)236/3200221/3300325/2100 – 4200
No. of cylinders666
Bore (in/mm)3.3/843.3/843.23/82
Stroke (in/mm)3.78/963.78/963.67/93.2
Displacement3.19 liters (194.8 cu. in.)3.19 liters (194.8 cu. in.)2.95 liters (175 cu. in.)
Compression ratio10.8:110.3:19.3:1
A
This engine may not be available on all markets
Oil specifications
Full synthetic engine oil meeting the minimum ACEA A5/B5 must be used. Lower quality oilsmay not offer the same fuel economy, engineperformance, or engine protection. Refer to the warranty and Service Records information booklet for information on oilchange intervals and oil type requirements.
NOTE
This vehicle comes from the factory with synthetic oil.
Oil additives must not be used.
Oil viscosityIncorrect viscosity oil can shorten engine life under normal use. SAE 5W-30 will providegood fuel economy and engine protection.See the viscosity chart.
Viscosity chart

10 Specifications
Specifications
10
376

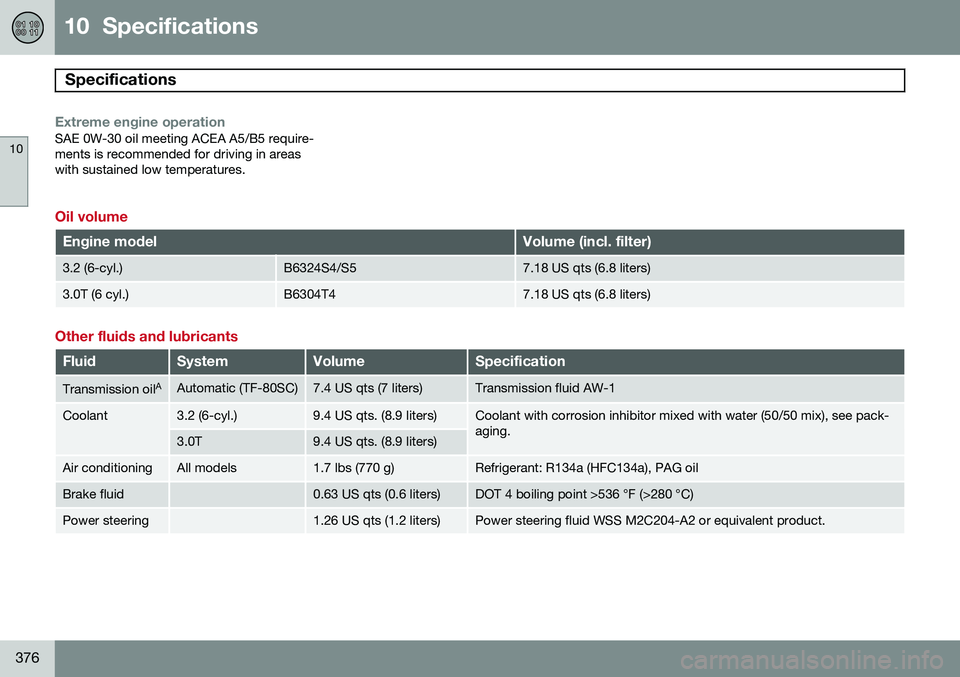

Extreme engine operationSAE 0W-30 oil meeting ACEA A5/B5 require- ments is recommended for driving in areaswith sustained low temperatures.
Oil volume
Engine modelVolume (incl. filter)
3.2 (6-cyl.)B6324S4/S57.18 US qts (6.8 liters)
3.0T (6 cyl.)B6304T47.18 US qts (6.8 liters)
Other fluids and lubricants
FluidSystemVolumeSpecification
Transmission oilAAutomatic (TF-80SC)7.4 US qts (7 liters)Transmission fluid AW-1
Coolant3.2 (6-cyl.)9.4 US qts. (8.9 liters)Coolant with corrosion inhibitor mixed with water (50/50 mix), see pack- aging.
3.0T9.4 US qts. (8.9 liters)
Air conditioningAll models1.7 lbs (770 g)Refrigerant: R134a (HFC134a), PAG oil
Brake fluid0.63 US qts (0.6 liters)DOT 4 boiling point >536 °F (>280 °C)
Power steering1.26 US qts (1.2 liters)Power steering fluid WSS M2C204-A2 or equivalent product.

10 Specifications
Specifications
10
377
FluidSystemVolumeSpecification
Washer fluid6.8 US qts (6.5 liters) 4.7 US qts (4.5 litersB
)Use a washer antifreeze recommended by Volvo, mixed with water.
Fuel tank volume3.0T/3.2 6 cyl.18.5 US gallons (70 liters)
A Under normal driving conditions the transmission oil does not need changing during its service life. However, it may be necessary under adverse driving conditions.
B Models without headlight washers
Electrical system
General information12 volt system with a voltage-regulated alter- nator. Single pole system in which the chas-sis and engine block are used as conductors.The negative terminal is connected to thechassis.
Performance, battery
Engine3.2 6-cyl./3.0T
Voltage (V)12
Cold start capacity (A)520 – 700
Reserve capacity (min)100 – 135
WARNING
PROPOSITION 65 WARNING! Battery posts, terminals, and related accessories contain lead and lead com-pounds, chemicals known to the state ofCalifornia to cause cancer and reproduc-tive harm. Wash hands after handling.
CAUTION
If the battery is replaced, replace it with a battery of the same cold start capacity andreserve capacity as the original (see thedecal on the battery).

10 Specifications
Overview of information and warning symbols
10
378* Option/accessory, for more information, see Introduction.
Introduction
The symbols in the vehicle's various displays are divided into three main categories:
• Warning symbols
• Indicator symbols
• Information symbols
The following tables list the most commonsymbols, their meaning and the pages in thismanual that provide more detailed informa-tion.
NOTE
Not all of the symbols shown in the follow- ing tables are available in all models or onall markets. Local variations may occur.
Warning symbol
: The red warning symbol illuminates to
indicate a problem related to safety and/or drivability. A message will also appear in themain instruments panel's display.
Information symbol
: The information symbol illuminates
and a text message is displayed to provide the driver with necessary information aboutone of the vehicle's systems.
Symbols in the main instrument panel
Warning symbols in the instrument
panel
SymbolDescriptionPg. no.
Low oil pressure82
Parking brake82
SRS airbags82
Seat belt reminder82
Generator not charging82
Fault in the brake system82
Warning symbol83
Indicator symbols in the instrument panel
SymbolDescriptionPg. no.
Fault in the Active Bend- ing Light (ABL)*system80
Malfunction indicator light80
Anti-lock brake system (ABS)81
Rear fog lights on81
Stability system (DSTC), Hill Descent Control,Trailer Stability Assist*81
Tire pressure monitoring sensor (TPMS)81
Low fuel level81
Information symbol, see text in information dis-play81
High beam indicator78

10 Specifications
Overview of information and warning symbols
10
}}
* Option/accessory, for more information, see Introduction.379
SymbolDescriptionPg. no.
Left turn signal indicator78
Right turn signal indica- tor78
Stability system , Sport mode142
Information symbols in the instrument panel
SymbolDescriptionPg. no.
Adaptive Cruise Control *148
Adaptive Cruise Control *148
Adaptive Cruise Control *148
Adaptive Cruise Control * (Distancealert)148
Radar sensor*155
SymbolDescriptionPg. no.
Camera sensor, laser sensor172165
Collision Warning with Full Auto-brakeand PedestrianDetection*174
Active Bending Lights (ABL)*100
Driver Alert System*176
Driver Alert System*176
Parking brake134
Rain sensor*105
Active High Beams (AHB)*98
Windshield sensor*98
SymbolDescriptionPg. no.
Driver Alert System* (Lane DepartureWarning)179
Driver Alert System* (Lane DepartureWarning)179
Driver Alert System* (Lane DepartureWarning)179
Fuel tank on pas- senger's side of thevehicle280
Information symbols in the center console display
SymbolDescriptionPg. no.
Audio files250
CD folder250
Video files250
Bluetooth-connected cell phone260

10 Specifications
Overview of information and warning symbols
10
380* Option/accessory, for more information, see Introduction.
SymbolDescriptionPg. no.
Bluetooth TM
hands-free260
HD radio242
Park Assist*182
Information symbols in the ceiling console
SymbolDescriptionPg. no.
Seat belt reminder19
Occupant Weight Sensor26

10 Specifications
Volvo programs
10
381
Volvo On Call Roadside Assistance
Your new Volvo comes with a four year ON CALL roadside assistance. Additional infor-mation, features, and benefits are describedin a separate information package in yourglove compartment. If you require assistance, dial:In the U.S. 1-800-638-6586 (1-800-63-
VOLVO)In Canada 1-800-263-0475
Technician certification
In addition to Volvo factory training, Volvo supports certification by the National Institutefor Automotive Service Excellence (A.S.E.).Certified technicians have demonstrated ahigh degree of competence in specific areas.Besides passing exams, each technicianmust also have worked in the field for two ormore years before a certificate is issued.These professional technicians are best ableto analyze vehicle problems and perform thenecessary maintenance procedures to keepyour Volvo at peak operating condition.
