2014 VOLVO XC70 Owner´s Manual

09 Maintenance and specifications
Vehicle care09
367
Minor stone chips and scratchesMaterial:
• Primer – can
• Paint – touch-up pen
• Brush
• Masking tape
If the stone chip has not gone down to the bare metal and an undamaged color coatremains, you can add paint immediately afterremoving dirt.
NOTE
When touching up the vehicle, it should be clean and dry. The surface temperatureshould be above 60 °F (15 °C).
Repairing stone chips
G021832
1. Place a strip of masking tape over the damaged surface. Pull the tape off so that any loose flakes of paint adhere to it.
2. Thoroughly mix the primer and apply it with a small brush.
3. When the primer surface is dry, the paint can be applied using a brush. Mix thepaint thoroughly; apply several thin paintcoats and let dry after each application.
4. If there is a longer scratch, you may want to protect surrounding paint by masking itoff
5. After a few days, polish the touched-up areas. Use a soft rag and a small amountof polish.

368
Label information.................................................................................. 370 Specifications........................................................................................ 372
Overview of information and warning symbols..................................... 378
Volvo programs..................................................................................... 381

S P E C I F I C A T I O N S

10 Specifications
Label information
10
370
Location of labels

10 Specifications
Label information
10
371

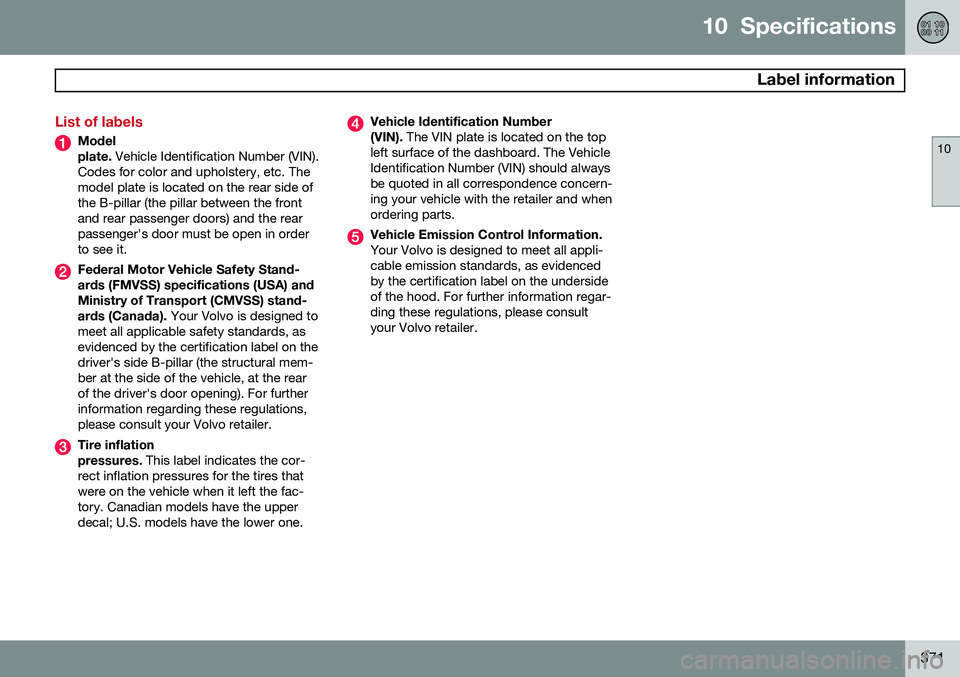

List of labels
Model plate. Vehicle Identification Number (VIN).
Codes for color and upholstery, etc. The model plate is located on the rear side ofthe B-pillar (the pillar between the frontand rear passenger doors) and the rearpassenger's door must be open in orderto see it.
Federal Motor Vehicle Safety Stand- ards (FMVSS) specifications (USA) andMinistry of Transport (CMVSS) stand- ards (Canada). Your Volvo is designed to
meet all applicable safety standards, as evidenced by the certification label on thedriver's side B-pillar (the structural mem-ber at the side of the vehicle, at the rearof the driver's door opening). For furtherinformation regarding these regulations,please consult your Volvo retailer.
Tire inflation pressures. This label indicates the cor-
rect inflation pressures for the tires that were on the vehicle when it left the fac-tory. Canadian models have the upperdecal; U.S. models have the lower one.
Vehicle Identification Number (VIN). The VIN plate is located on the top
left surface of the dashboard. The Vehicle Identification Number (VIN) should alwaysbe quoted in all correspondence concern-ing your vehicle with the retailer and whenordering parts.
Vehicle Emission Control Information. Your Volvo is designed to meet all appli- cable emission standards, as evidencedby the certification label on the undersideof the hood. For further information regar-ding these regulations, please consultyour Volvo retailer.

10 Specifications
Specifications
10
372
Dimensions
PositionDimensionin (mm)
AWheelbase110.8 (2815)
BLength190.5 (4838)
CLoad length, floor, seatback down73.9 (1878)
DLoad length, floor42.9 (1089)
EHeight63.1 (1604)
FLoad height28.5 (724)

10 Specifications
Specifications
10
}}
373
PositionDimensionin (mm)
GTrack, front63.5 (1614)A
63.1 (1604) B
HTrack, rear62.2 (1580)A
61.8 (1570) B
ILoad width, floor45.4 (1153)
JWidth73.6 (1870) 73.9 (1876)C
KWidth incl. door mirrors (folded out)83.4 (2119)
LWidth incl. door mirrors (folded in)75.8 (1925)
A
16" 50 wheels
B 17/18" 55 wheels
C Models with the optional keyless drive
Weights
CategoryUSACanada
Gross vehicle weightXC70 FWD A
non-turbo: 5130 lbs
XC70 non-turbo AWD B
: 5270 lbs
XC70 turbo AWD: 5310 lbsXC70 FWD A
non-turbo: 2330 kg
XC70 non-turbo AWD B
: 2390 kg
XC70 turbo AWD: 2410 kg
Capacity weightAll models: 900 lbsAll models: 410 kg

10 Specifications
Specifications
10
374
CategoryUSACanada
Permissible axle weights, frontXC70 non-turbo FWD: 2750 lbs XC70 non-turbo AWD: 2800 lbsXC70 turbo AWD: 2820 lbsXC70 non-turbo FWD: 1250 kg XC70 non-turbo AWD: 1270 kgXC70 turbo AWD: 1280 kg
Permissible axle weights, rearXC70 non-turbo FWD: 2530 lbs XC70 non-turbo AWD: 2640 lbsXC70 turbo AWD: 2640 lbsXC70 non-turbo FWD: 1150 kg XC70 non-turbo AWD: 1200 kgXC70 turbo AWD: 1200 kg
Curb weight3870 - 4180 lbs1820 - 1900 kg
Max. roof load220 lbs100 kg
Max. trailer weightsWithout brakes: 1650 lbs With brakes, 1 7/8” ball: 2,000 lbsWith brakes, 2” ball: 3,300 lbsWithout brakes: 750 kg With brakes, 1 7/8” ball: 900 kgWith brakes, 2” ball: 1500 kg
Max. tongue weight165 lbs75 kg
AFront Wheel Drive
B All Wheel Drive
Engine specifications
Specification/Model3.2 6-cyl.3.2 6-cyl.3.0T A
Engine designationB6324S5B6324S4B6304T4
Output (kW/rps)179/107171/108224/93
Output (hp/rpm)240/6400230/6500300/5600
