Page 31 of 442
02 Safety
02
* Option/accessory, for more information, see Introduction.29
Passenger airbag
To supplement the protection afforded by the seatbelt (p. 23) on the passenger side, the caris equipped with an airbag (p. 28). The airbag is folded up into a compartment above the glovebox. Its cover panel ismarked AIRBAG .
Location of the front passenger airbag in a left- hand drive car.
Location of the front passenger airbag in a right- hand drive car.
WARNING
The seatbelts and airbags interact. If the belt is not used or is used incorrectly, thismay diminish the protection provided bythe airbag in the event of a collision. To minimise the risk of injury if the airbag deploys, passengers must sit as upright aspossible with their feet on the floor andbacks against the backrest. Seatbeltsmust be secured.
WARNING
Do not put objects in front of or above the dashboard where the passenger airbag islocated.
WARNING
Never place a child in a child seat or on a booster cushion in the front seat if the air-bag is activated. Never allow anybody to stand or sit in front of the front passenger seat. No one shorter than 140 cm should ever sit in the front passenger seat if the airbagis activated. Failure to follow the advice given above can endanger life.
Switch - PACOS*The front passenger airbag can be deacti- vated (p. 30) if the car is equipped with aswitch, PACOS (Passenger Airbag Cut OffSwitch).
WARNING
If the car is equipped with a front passen- ger airbag, but does not have a PACOSswitch (Passenger Airbag Cut Off Switch),then the airbag will always be activated.
Related information
•Driver airbag (p. 28)
• Child seats (p. 40)
ProCarManuals.co’
Page 118 of 442
04 Climate control
04
116* Option/accessory, for more information, see Introduction.
Actual temperature
The temperature you select in the passenger compartment corresponds to the physicalexperience with reference to factors such asair speed, humidity and solar radiation etc. inand around the car. The system includes a sun sensor (p. 116) which detects on which side the sun is shin-ing into the passenger compartment. Thismeans that the temperature can differbetween the right and left-hand air ventsdespite the controls being set for the sametemperature on both sides.
Related information
• General information on climate control (p. 115)
• Temperature control in the passengercompartment (p. 124)
Sensors - climate control
The climate control system has a number of sensors to help control the temperature (p.116) in the car.
• The sun sensor is located on the top side of the dashboard.
• The temperature sensor for the passen-ger compartment is located below the cli-mate control panel.
• The outside temperature sensor islocated in the door mirror.
• The humidity sensor* is located by theinterior rearview mirror.
NOTE
Do not cover or block the sensors with clothing or other objects.
Related information
•General information on climate control (p. 115)
Air cleaning
The interior in a passenger compartment is designed to be pleasant and comfortable,even for people with contact allergies and forasthma sufferers.
• Passenger compartment filter (p. 117)
• Material in the passenger compart- ment (p. 118)
• Clean Zone Interior Package (CZIP) (p.117)*
• Interior Air Quality System (IAQS) (p.118)*
Related information
• General information on climate control (p.115)
ProCarManuals.co’
Page 121 of 442
04 Climate control
04
}}
119
Air distribution in the passenger compartment
The incoming air is divided between a number of different vents in the passenger compart-ment.
Air distribution is fully automatic in AUTO
mode. If necessary it can be controlled manually; see the air distribution table (p. 127).
Air vents in the dashboard
Open
Closed
Lateral airflow
Vertical airflow
Aim the outer vents at the side windows to remove misting.
Air vents in the door pillars
Closed
Open
Lateral airflow
Vertical airflow
Aim the vents at the windows to remove mist- ing in cold weather. Aim the vents into the passenger compart- ment to maintain a comfortable climate in therear seat in hot weather.
NOTE
Remember that small children may be sen- sitive to air flows and draughts.
ProCarManuals.co’
Page 129 of 442
04 Climate control
04
}}
127

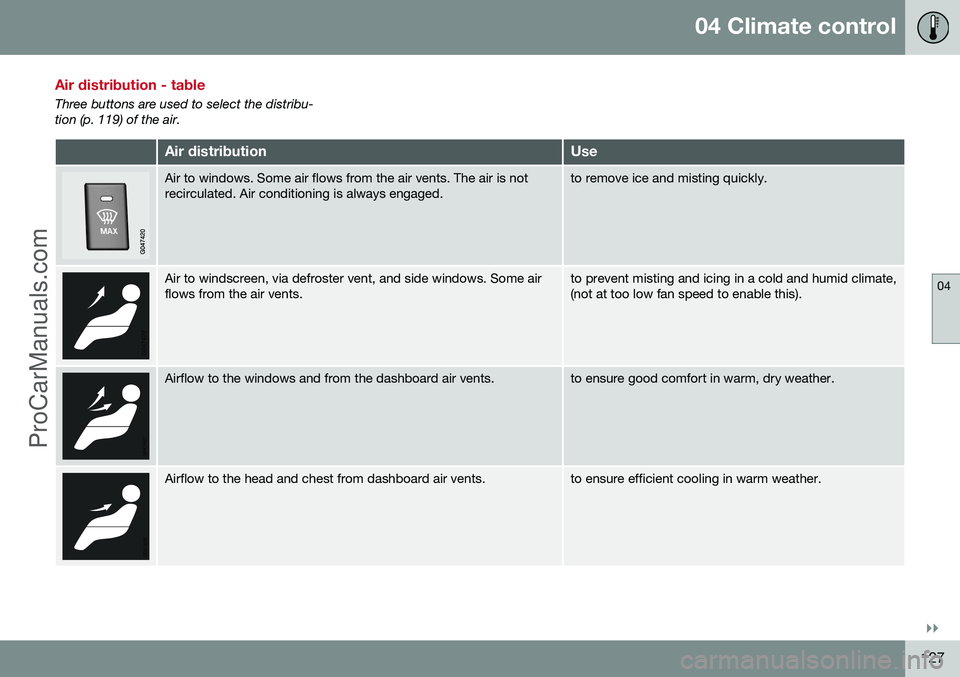

Air distribution - table
Three buttons are used to select the distribu- tion (p. 119) of the air.
Air distributionUse
Air to windows. Some air flows from the air vents. The air is not recirculated. Air conditioning is always engaged.to remove ice and misting quickly.
Air to windscreen, via defroster vent, and side windows. Some air flows from the air vents.to prevent misting and icing in a cold and humid climate, (not at too low fan speed to enable this).
Airflow to the windows and from the dashboard air vents.to ensure good comfort in warm, dry weather.
Airflow to the head and chest from dashboard air vents.to ensure efficient cooling in warm weather.
ProCarManuals.co’
Page 130 of 442
||
04 Climate control
04
128
Air distributionUse
Air to the floor and windows. Some air flows from the dashboard air vents.to ensure comfortable conditions and good demisting in cold or humid weather.
Air to floor and from dashboard air vents.in sunny weather with cool outside temperatures.
Air to floor. Some air flows to the dashboard air vents and win- dows.to direct heat or cold to the floor.
Airflow to windows, from dashboard air vents and to the floor.to provide cooler air along the floor or warmer air higher up in cold weather or hot, dry weather.
Related information
•General information on climate control (p. 115)
• Air distribution - recirculation (p. 126)
