2014 VOLVO S80 Owner´s Manual

09 Maintenance and specifications
Vehicle care09
351
If there are stains on the steering wheel: Type 1
(ink, wine, coffee, milk, sweat or
blood)
–Use a soft cloth or sponge. Wipe the wheel with a solution with 5% ammonia.For blood stains, mix approx. 1 cup (2 dl)of water and one ounce (25g) of salt andwipe the stain.
Type 2 (fat, oil, sauces, or chocolate)
1. Same procedure as for type I stains.
2. Finish by rubbing the wheel with absorb- ent paper or a towel.
Type 3 (dry soil or dust)
1. Remove the soil/dust with a soft brush.
2. Same procedure as for type I stains.
CAUTION
Sharp objects, such as rings, could dam- age the leather on the steering wheel.
Cleaning the seat beltsClean only with lukewarm water and a mild soap solution.
Cleaning floor matsThe floor mats should be vacuumed orbrushed clean regularly, especially duringwinter when they should be taken out for dry-ing. Spots on textile mats can be removedwith a mild detergent. For best protection inwinter, Volvo recommends the use of Volvorubber floor mats. Consult your Volvo retailer.
Spots on interior plastic, metal, or wood surfaces
Cleaning interior plastic components should be done with a cleaning agent speciallydesigned for this purpose. Consult your Volvoretailer.
Touching up paintwork
Paint code on the model plate 1
Paint damage requires immediate attention to avoid rusting. Make it a habit to check the fin-ish regularly, for instance washing the vehicle.Touch-up if necessary. Paint repairs require special equipment and skill. Contact your Volvo retailer for anyextensive damage. Minor scratches can be repaired by using Volvo touch-up paint.
Color codeMake sure you have the right color. The colorcode number is stated on the model plate.
1 see page 356 for the location of the model plate.

09 Maintenance and specifications
Vehicle care 09
352

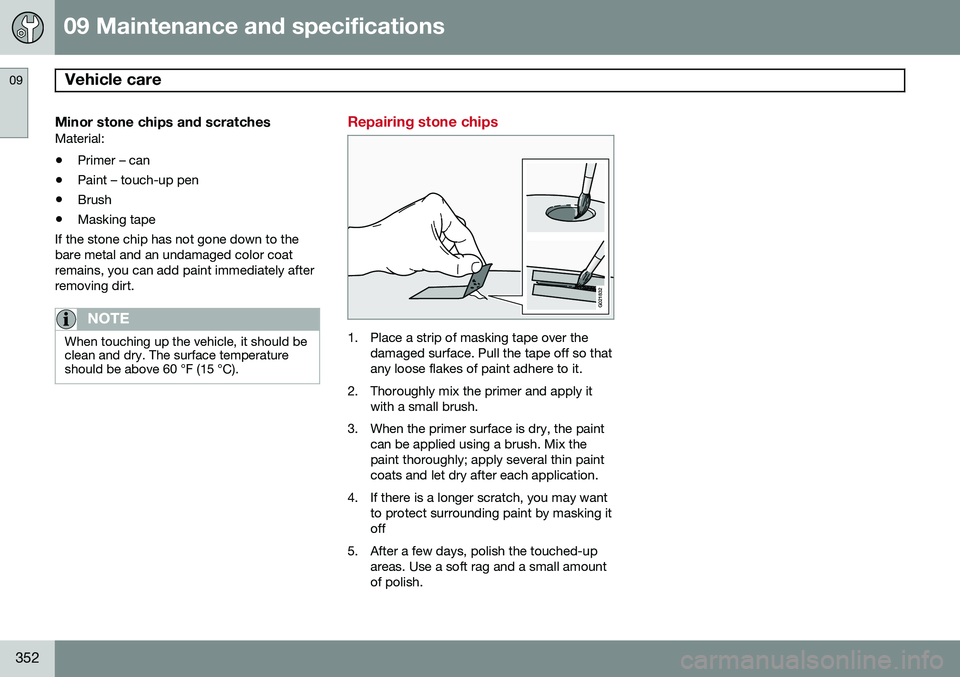

Minor stone chips and scratchesMaterial:
• Primer – can
• Paint – touch-up pen
• Brush
• Masking tape
If the stone chip has not gone down to the bare metal and an undamaged color coatremains, you can add paint immediately afterremoving dirt.
NOTE
When touching up the vehicle, it should be clean and dry. The surface temperatureshould be above 60 °F (15 °C).
Repairing stone chips
G021832
1. Place a strip of masking tape over the damaged surface. Pull the tape off so that any loose flakes of paint adhere to it.
2. Thoroughly mix the primer and apply it with a small brush.
3. When the primer surface is dry, the paint can be applied using a brush. Mix thepaint thoroughly; apply several thin paintcoats and let dry after each application.
4. If there is a longer scratch, you may want to protect surrounding paint by masking itoff
5. After a few days, polish the touched-up areas. Use a soft rag and a small amountof polish.

09 Maintenance and specifications
09
353

354

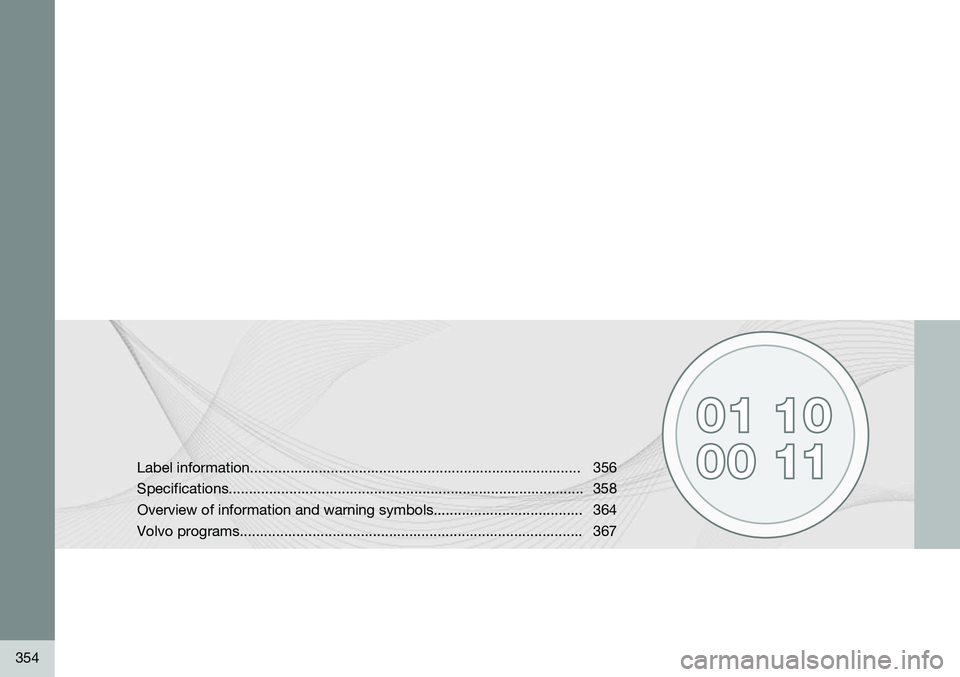

Label information.................................................................................. 356 Specifications........................................................................................ 358
Overview of information and warning symbols..................................... 364
Volvo programs..................................................................................... 367

S P E C I F I C A T I O N S

10 Specifications
Label information
10
356

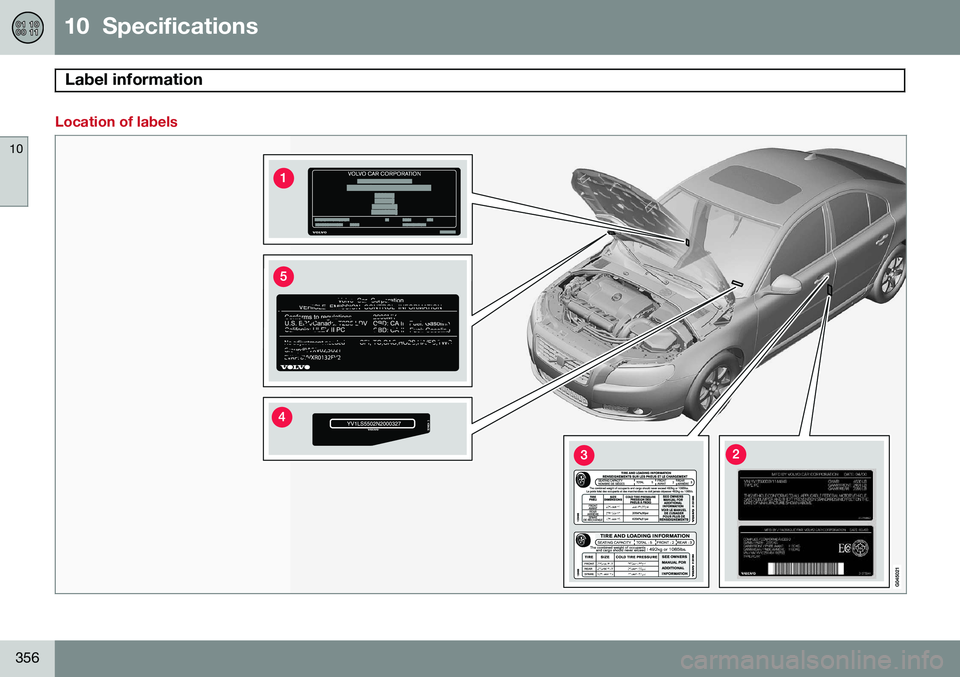

Location of labels

10 Specifications
Label information
10
357
List of labels
Model plate. Vehicle Identification Number (VIN).
Codes for color and upholstery, etc. The model plate is located on the rear side ofthe B-pillar (the pillar between the frontand rear passenger doors) and the rearpassenger's door must be open in orderto see it.
Federal Motor Vehicle Safety Stand- ards (FMVSS) specifications (USA) andMinistry of Transport (CMVSS) stand- ards (Canada). Your Volvo is designed to
meet all applicable safety standards, as evidenced by the certification label on thedriver's side B-pillar (the structural mem-ber at the side of the vehicle, at the rearof the driver's door opening). For furtherinformation regarding these regulations,please consult your Volvo retailer.
Tire inflation pressures. This label indicates the cor-
rect inflation pressures for the tires that were on the vehicle when it left the fac-tory. Canadian models have the upperdecal; U.S. models have the lower one.
Vehicle Identification Number (VIN). The VIN plate is located on the top
left surface of the dashboard. The Vehicle Identification Number (VIN) should alwaysbe quoted in all correspondence concern-ing your vehicle with the retailer and whenordering parts.
Vehicle Emission Control Information. Your Volvo is designed to meet all appli- cable emission standards, as evidencedby the certification label on the undersideof the hood. For further information regar-ding these regulations, please consultyour Volvo retailer.

10 Specifications
Specifications
10
358
Dimensions–S80
PositionDimensionin (mm)
AWheelbase111.6 (2835)
BLength191.1 (4854)
CLoad length, floor, seatback down75.9 (1927)
DLoad length, floor43.1 (1094)
EHeight58.8 (1493)
FLoad height14.5 (368)
