Replacing light bulbs in the front bumper

Fig. 219 In left front bumper: Removing light assembly.

Fig. 220 Replacing light bulb in headlight.

Please carry out each step only in the order specified:
10. Attach connector plug (1) to the bulb socket assembly. The connector plug must latch with an audible “click.”
11. Slip the headlight into the mounts (small arrows) and fold rearward.
12. Screw fastening screws ⇒ fig. 219 (3) and (4) tight with the screwdriver.
13. Install cover (2) in the bumper.
14. Install cover (1) in the bumper.
Replacing taillight bulbs in the luggage compartment lid

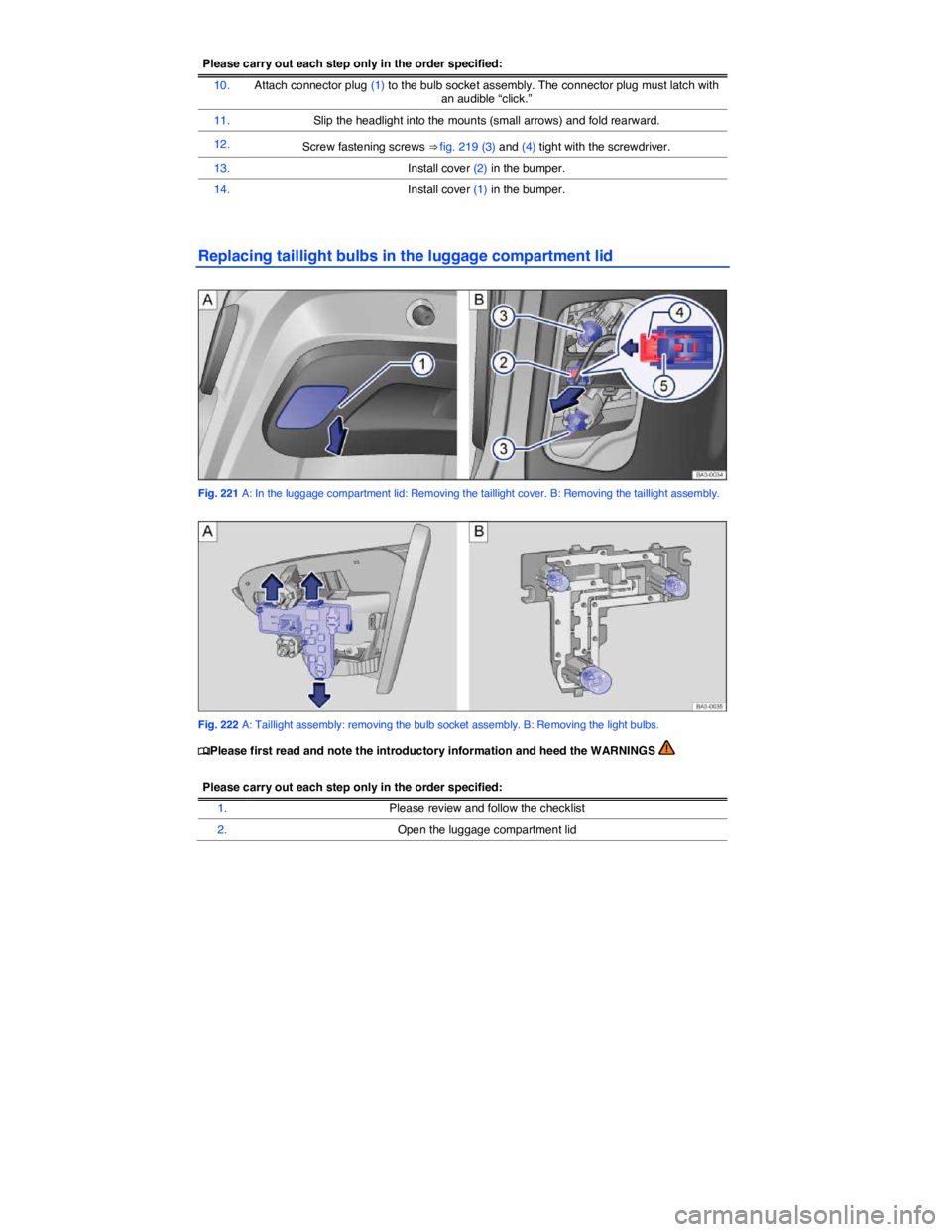

Fig. 221 A: In the luggage compartment lid: Removing the taillight cover. B: Removing the taillight assembly.

Fig. 222 A: Taillight assembly: removing the bulb socket assembly. B: Removing the light bulbs.

381
Please carry out each step only in the order specified:
3. Using the flat blade of the screwdriver in the vehicle tool kit carefully pry the cover out of
the slot ⇒ fig. 221 A (1) (arrow).
4. Pull the red locking tab B (4) in the direction of the arrow to unlock connector plug B (2).
5. Push catch B (5) to release connector plug. Then pull out connector plug B (2).
6. Remove the cover from the side of the taillight, sliding it in the direction of the arrow B. Check the original mounting position of the taillight before removing it.
7. Unscrew the fastening screws B (3) with screwdriver and carefully remove the taillight assembly from the luggage compartment lid. Pull it to the side and away from the vehicle body and place it on a clean, smooth surface.
8. Unlock the bulb socket assembly by pressing the locking tabs in direction of the arrow
⇒ fig. 222 A and remove the bulb socket assembly from the taillight assembly.
9. Replace the burned out light bulb with a new bulb of the same type B.
10. Reinsert the bulb socket assembly in the taillight assembly. The locking tabs must latch with an audible “click.”
11.
Carefully reinsert the taillight assembly into the opening in the luggage compartment lid. Hold the rear light assembly with one hand in the installation position, and with the other
hand tighten the fastening screws ⇒ fig. 221 B (3).
12. Plug connector plug B (2) into the bulb socket and push red locking tab B (4) in the direction opposite to the arrow.
13. Check the taillight assembly for proper installation and secure fit.
14. Attach the cover. The cover must latch tightly and securely into place.
15. Close the luggage compartment lid ⇒ page 57.
Different models may have different taillights, and the light bulb may be in a different location than shown in the illustrations.

Replacing taillight bulbs in the vehicle body

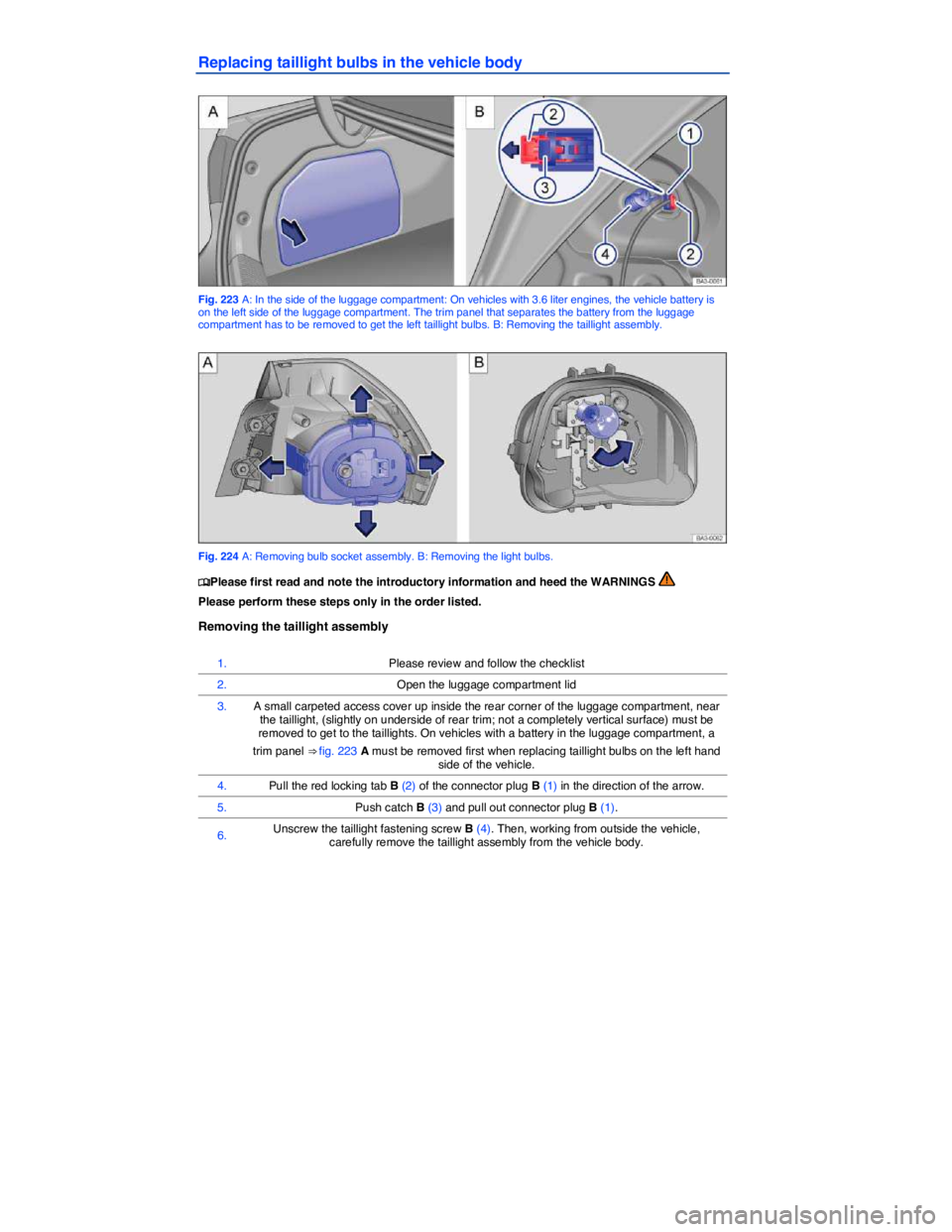

Fig. 223 A: In the side of the luggage compartment: On vehicles with 3.6 liter engines, the vehicle battery is on the left side of the luggage compartment. The trim panel that separates the battery from the luggage compartment has to be removed to get the left taillight bulbs. B: Removing the taillight assembly.

Fig. 224 A: Removing bulb socket assembly. B: Removing the light bulbs.

383
Changing light bulbs

7. Release the bulb socket assembly from the locking tabs ⇒ fig. 224 A (arrows) and remove the bulb socket assembly from the taillight assembly.
8. Replace the burned out light bulb with a new bulb of the same type B.
9. Put the bulb socket assembly in the taillight assembly. The locking tabs A must latch with an audible “click.”
Installing the taillight assembly

10. Carefully put the taillight assembly in the opening in the vehicle body.
11.
Carefully reinsert the taillight assembly into the opening in the luggage compartment lid. Hold the rear light assembly with one hand in the installation position, and with the other
hand tighten fastening screw ⇒ fig. 223 B (4).
12. Plug connector plug B (1) into the bulb socket assembly and push latch B (2) in the direction opposite to the arrow.
13. Check the taillight assembly for proper installation and secure fit.
14. Replace the small carpeted taillight access cover; and the battery trim panel, if any (see step 3 above).
15. Close the luggage compartment lid
Different models may have different taillights, and the light bulb may be in a different location than shown in the illustrations.
Replacing license plate lights

Jump-starting

385
WARNING
Improper use of jumper cables when jump-starting a vehicle with a dead battery can cause the battery to explode, leading to serious personal injury. To help reduce the risk of battery explosion:
x All work on the batteries or the electrical system in your vehicle can cause serious acid burns, fires, or electrical shocks. Always read and heed the following WARNINGS and safety
precautions before working on the batteries or the electrical system ⇒ page 299, Vehicle battery.
x Always make sure that the battery providing starting assistance (the booster battery) has the same voltage as the dead battery (12 V) and about the same amperage capacity (see battery label).
x Never jump-start a vehicle with a thawed or frozen vehicle battery. The battery can explode. A dead battery can freeze at temperatures around +32 °F (0 °C).
x A battery that is frozen or was frozen, but has since thawed, must be replaced.
x When the vehicle battery is jump-started, it gives off hydrogen gas, which is highly explosive! Always keep fire, sparks, open flame, and smoking materials far away from vehicle batteries. Never use a cellular telephone while connecting or disconnecting jumper cables.
x Jump-start batteries only in well-ventilated areas. Batteries give off highly explosive hydrogen gas during jump-starting.
x Always route the jumper cables so that they cannot get caught in any moving parts in the engine compartment.
x Never short out the battery terminals by connecting the positive (+) and negative (-) terminals with each other.
x Never connect the negative cable from the other vehicle directly to the negative terminal of the dead battery, as this may cause the hydrogen gas given off by the dead battery to explode.
x Never attach the negative cable from the vehicle providing starting assistance to any part of the fuel system or to the brake hoses or brake lines.
x Never allow the non-insulated parts of the battery clamps to touch.
x Never allow the jumper cable attached to the positive battery terminal to contact metal parts of the vehicle.
x Always follow the instructions of the jumper cable manufacturer.
NOTICE
To help prevent extensive damage to the vehicle electrical system, read and heed the following:
x Connecting jumper cables improperly can cause a short circuit and do expensive damage to the vehicle's electrical system.
x Do not let the vehicles touch each other while the jumper cables are connected. If they do, electrical current may flow between the vehicles when the positive (+) terminals are connected, causing electrical system damage.

Jump-start terminals, 1.8 liter engine

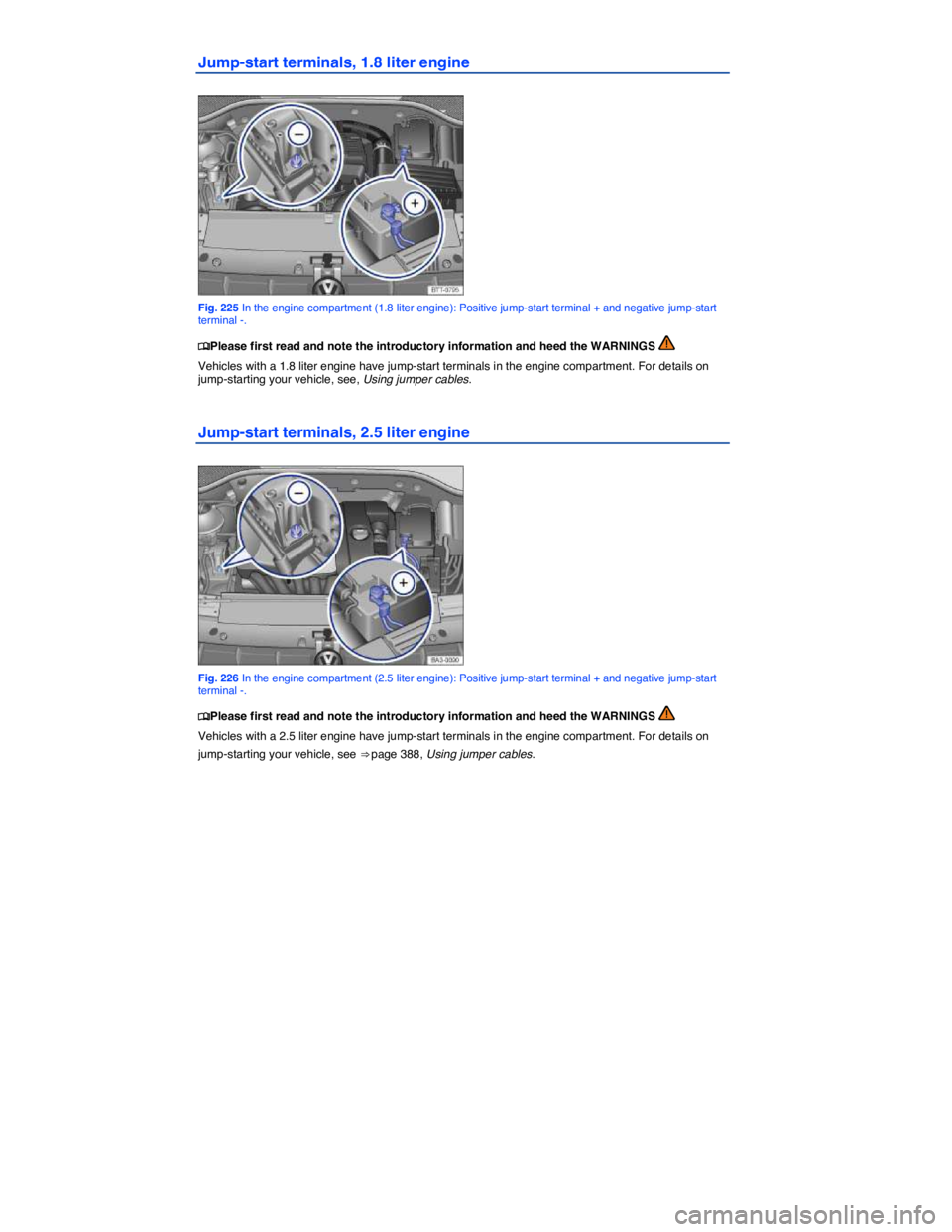

Fig. 225 In the engine compartment (1.8 liter engine): Positive jump-start terminal + and negative jump-start terminal -.
