2014 VAUXHALL MOVANO_B Owner's Manual

Keys, doors and windows31Heated mirrors
Operated by pressing the Ü button
on either system.
Heating works with the engine
running and is switched off
automatically after a short time.
Climate control system 3 94.
Electronic climate control system 3 96.Interior mirrors
Manual anti-dazzle
To reduce dazzle, adjust the lever on the underside of the mirror housing.

32Keys, doors and windowsWindows
Manual windows
The door windows can be opened or
closed with the window winders.
Power windows9 Warning
Take care when operating the
power windows. Risk of injury,
particularly to children.
Keep a close watch on the
windows when closing them.
Ensure that nothing becomes
trapped in them as they move.
Switch on ignition to operate power
windows.
Operate the switch for the respective
window by pushing to open or pulling to close.
For vehicles with automatic feature
for the driver's door window; when
opening pull or press the switch again
to stop window movement.
In the event of closing difficulties due
to frost or the like, operate the switch
several times to close the window in
stages.
Overload
If the windows are repeatedly
operated within short intervals, the
window operation is disabled for
some time.
Rear windows
Sliding side windows
Press catch and slide window to
open. Ensure catch engages when
closing.

Keys, doors and windows33
Press catch and slide window to
open. Ensure catch engages when
closing.
Opening side windows
Pull handle to open window.
Emergency exit
To provide an emergency exit from
the vehicle, use hammer 1 to strike
glass 2.
Heated rear window
Operated by pressing the Ü button
on either system.

34Keys, doors and windows
Heating works with the engine
running and is switched off
automatically after a short time.
Climate control system 3 94.
Electronic climate control system 3 96.
Sun visors The sun visors can be folded down orswivelled to the side to prevent
dazzling.
If the sun visors have integral mirrors, the mirror covers should be closed
when driving.
Sun visors also feature a holder for
parking tickets etc.Roof
Glass panel
Emergency exit
In an emergency, the glass can be
broken. Use the hammer to break the
glass panel 3 32.

Seats, restraints35Seats, restraintsHead restraints............................ 35
Front seats ................................... 36
Rear seats ................................... 41
Seat belts ..................................... 43
Airbag system .............................. 45
Child restraints ............................. 51Head restraints
Position9 Warning
Only drive with the head restraint
set to the proper position.
The upper edge of the head restraint
should be at upper head level.If this is not possible for extremely tall people,
set to highest position, and set to
lowest position for small people.
Height adjustment
Pull up to raise or press the catch and
lower head restraint.Ensure the head
restraint engages.
Notice
Approved accessories may only be
attached to the front passenger seat head restraint if the seat is not in use.

36Seats, restraints
Removal
Press both catches, pull the head
restraint upwards and remove.
Stow head restraints securely in load
compartment.Do not drive with head
restraints removed if the seat is
occupied.
Front seats
Seat position9 Warning
Only drive with the seat correctly
adjusted.
■ Sit with buttocks as far back against
the backrest as possible. Adjust the distance between the seat and the
pedals so that legs are slightly
angled when pressing the pedals.
Slide the front passenger seat as
far back as possible.
■ Sit with shoulders as far back against the backrest as possible.
Set the backrest rake so that it is possible to reach the steering
wheel with arms slightly bent.
Maintain contact between
shoulders and the backrest when
turning the steering wheel. Do not
angle the backrest too far back. We recommend a maximum rake of
approx. 25°.
■ Adjust the steering wheel 3 68.
■ Set seat height high enough to have a clear field of vision on allsides and of all display instruments.
There should be at least one hand
of clearance between head and the
roof frame. Thighs should rest
lightly on the seat without pressing
into it.
■ Adjust the head restraint 3 35.
■ Adjust the height of the seat belt 3 44.
■ Adjust the lumbar support so that it
supports the natural shape of the
spine 3 37.

Seats, restraints37Seat adjustment9Danger
Do not sit nearer than 25 cm from
the steering wheel, to permit safe
airbag deployment.
9 Warning
Never adjust seats while driving as
they could move uncontrollably.

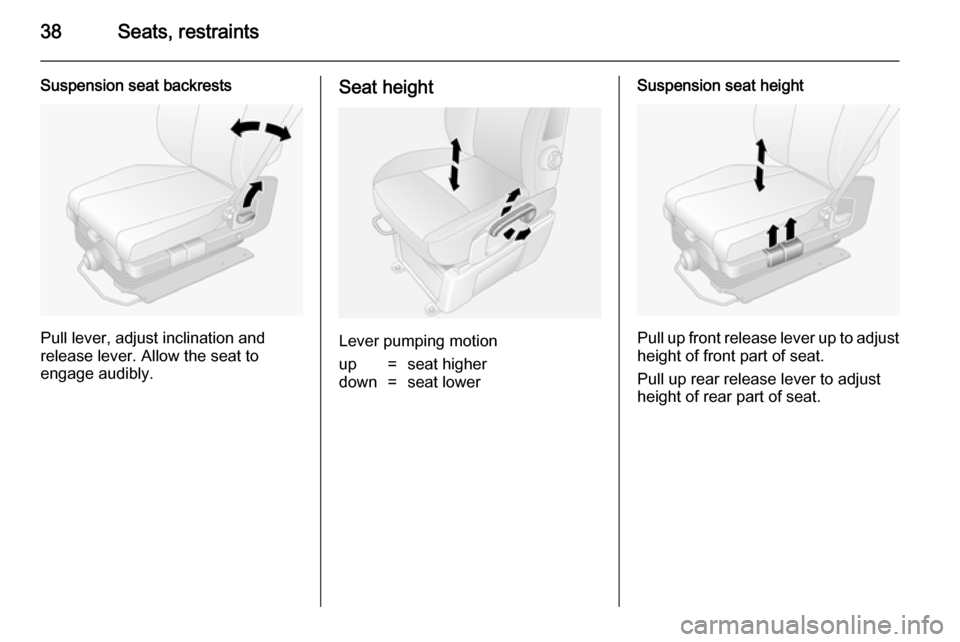

Seat positioning
Pull handle, slide seat, release
handle.
Suspension seat positioning
Pull handle, slide seat, release
handle.
Seat backrests
Pull lever, adjust inclination and
release lever. Allow the seat to
engage audibly.

38Seats, restraints
Suspension seat backrests
Pull lever, adjust inclination and
release lever. Allow the seat to
engage audibly.
Seat height
Lever pumping motion
up=seat higherdown=seat lowerSuspension seat height
Pull up front release lever up to adjust height of front part of seat.
Pull up rear release lever to adjust height of rear part of seat.
