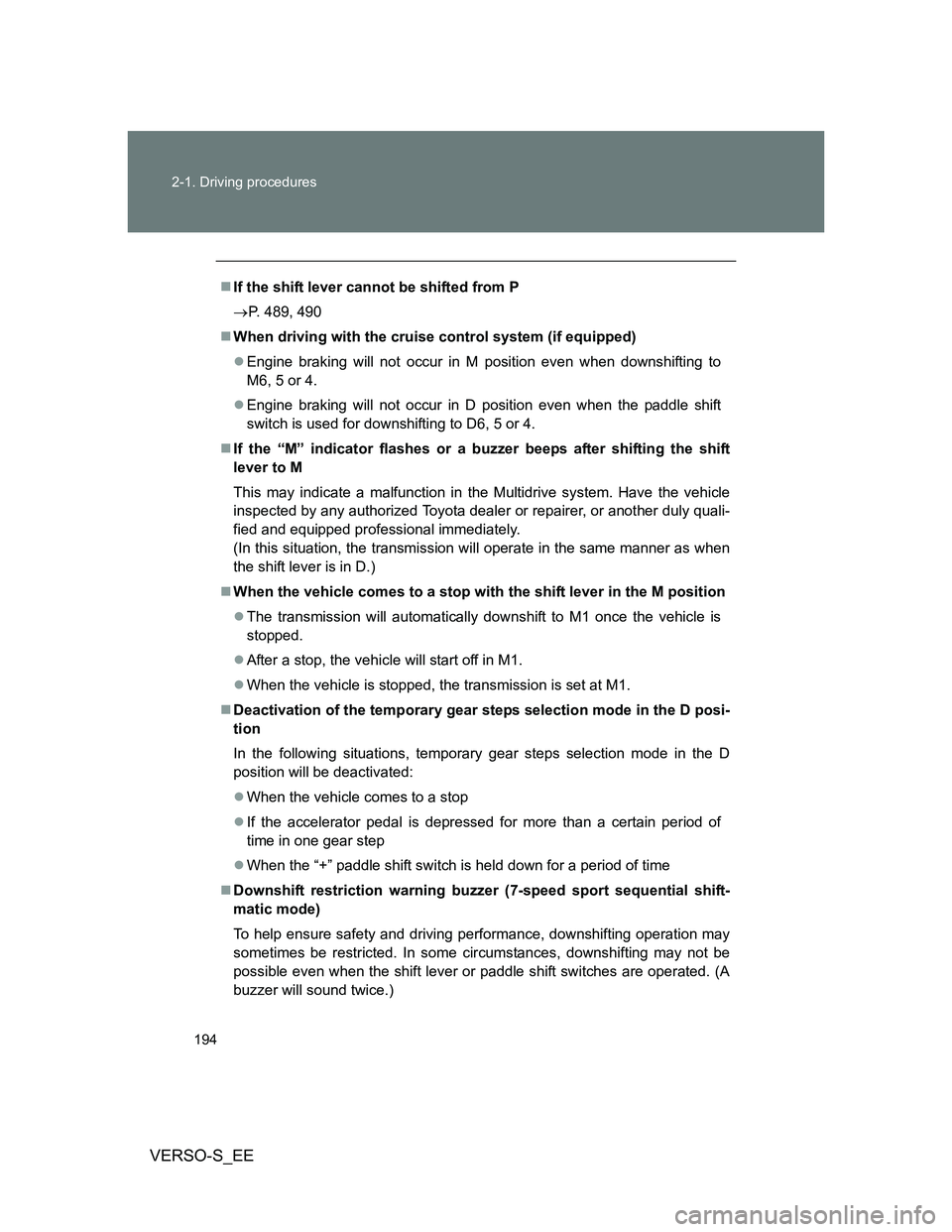

194 2-1. Driving procedures
VERSO-S_EE
If the shift lever cannot be shifted from P
P. 489, 490
When driving with the cruise control system (if equipped)
Engine braking will not occur in M position even when downshifting to
M6, 5 or 4.
Engine braking will not occur in D position even when the paddle shift
switch is used for downshifting to D6, 5 or 4.
If the “M” indicator flashes or a buzzer beeps after shifting the shift
lever to M
This may indicate a malfunction in the Multidrive system. Have the vehicle
inspected by any authorized Toyota dealer or repairer, or another duly quali-
fied and equipped professional immediately.
(In this situation, the transmission will operate in the same manner as when
the shift lever is in D.)
When the vehicle comes to a stop with the shift lever in the M position
The transmission will automatically downshift to M1 once the vehicle is
stopped.
After a stop, the vehicle will start off in M1.
When the vehicle is stopped, the transmission is set at M1.
Deactivation of the temporary gear steps selection mode in the D posi-
tion
In the following situations, temporary gear steps selection mode in the D
position will be deactivated:
When the vehicle comes to a stop
If the accelerator pedal is depressed for more than a certain period of
time in one gear step
When the “+” paddle shift switch is held down for a period of time
Downshift restriction warning buzzer (7-speed sport sequential shift-
matic mode)
To help ensure safety and driving performance, downshifting operation may
sometimes be restricted. In some circumstances, downshifting may not be
possible even when the shift lever or paddle shift switches are operated. (A
buzzer will sound twice.)

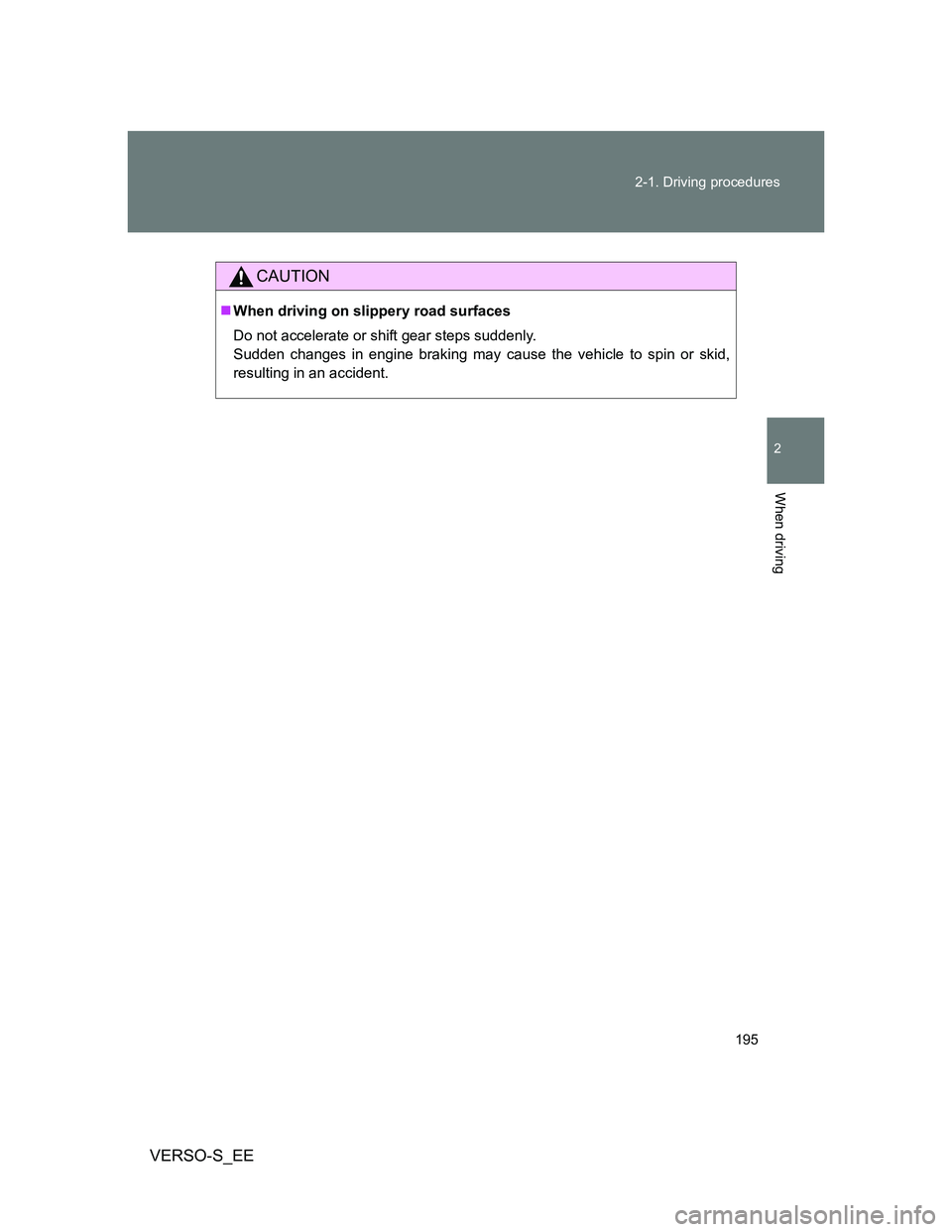

195 2-1. Driving procedures
2
When driving
VERSO-S_EE
CAUTION
When driving on slippery road surfaces
Do not accelerate or shift gear steps suddenly.
Sudden changes in engine braking may cause the vehicle to spin or skid,
resulting in an accident.

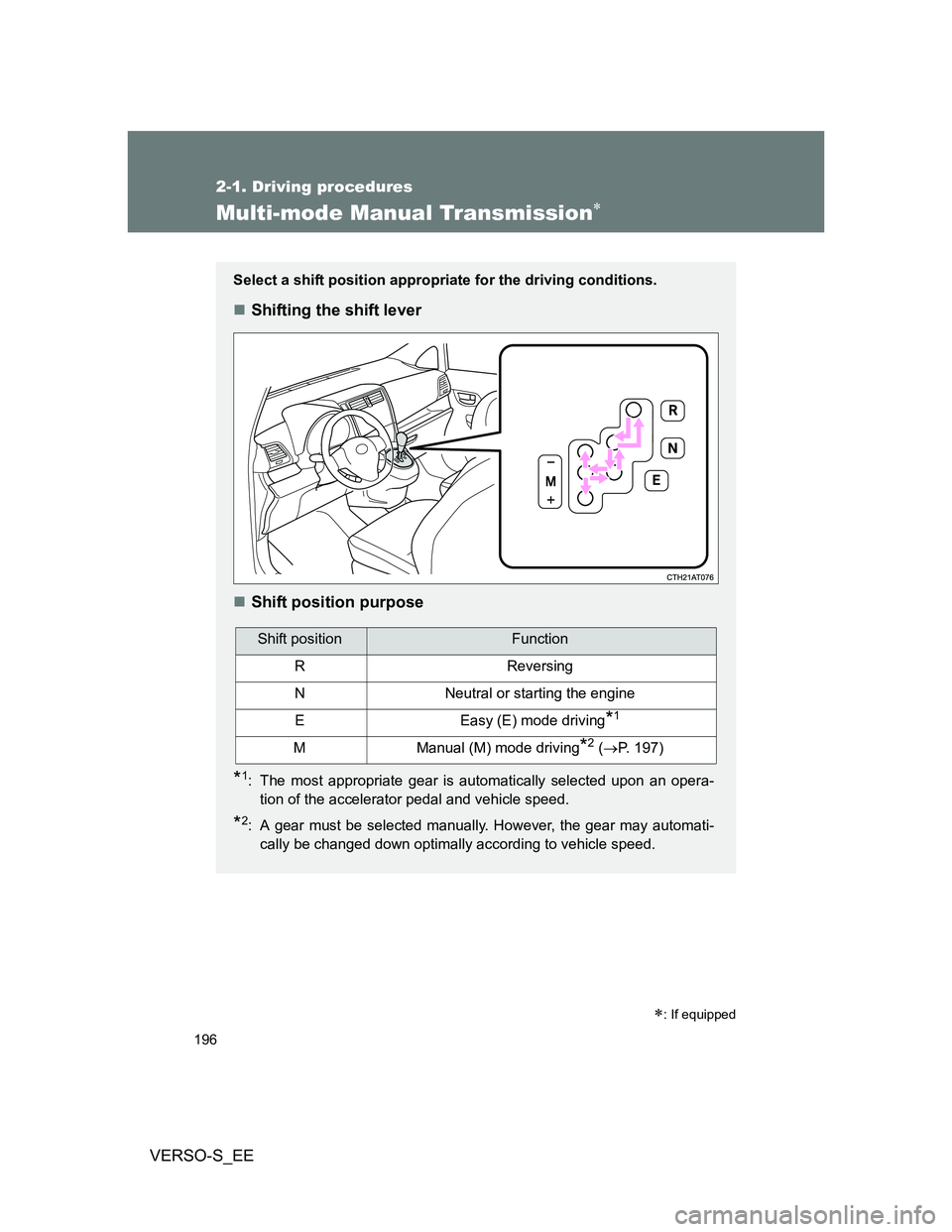

196
2-1. Driving procedures
VERSO-S_EE
Multi-mode Manual Transmission
: If equipped
Select a shift position appropriate for the driving conditions.
Shifting the shift lever
Shift position purpose
*1: The most appropriate gear is automatically selected upon an opera-
tion of the accelerator pedal and vehicle speed.
*2: A gear must be selected manually. However, the gear may automati-
cally be changed down optimally according to vehicle speed.
Shift positionFunction
RReversing
NNeutral or starting the engine
EEasy (E) mode driving*1
MManual (M) mode driving*2 (P. 197)

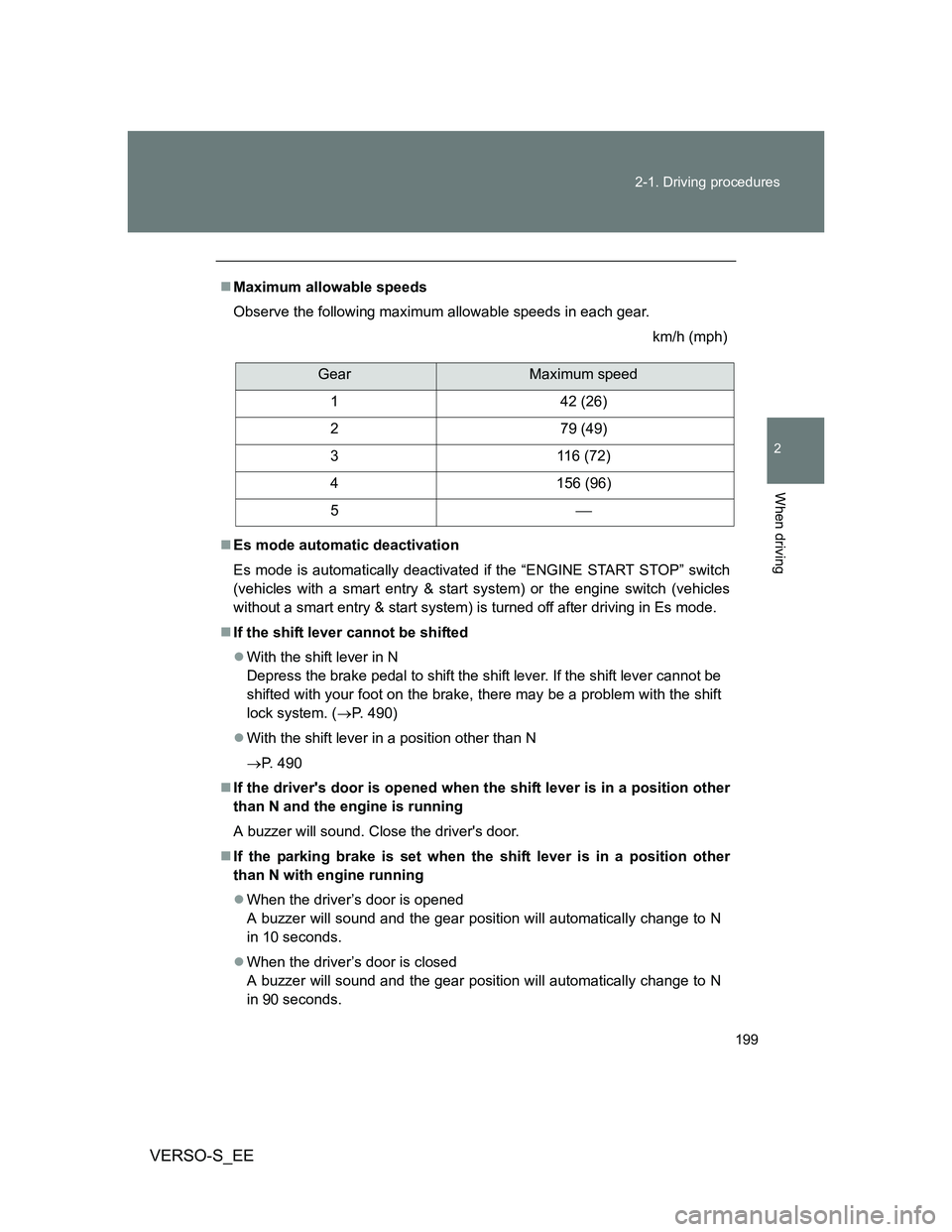

199 2-1. Driving procedures
2
When driving
VERSO-S_EE
Maximum allowable speeds
Observe the following maximum allowable speeds in each gear.
km/h (mph)
Es mode automatic deactivation
Es mode is automatically deactivated if the “ENGINE START STOP” switch
(vehicles with a smart entry & start system) or the engine switch (vehicles
without a smart entry & start system) is turned off after driving in Es mode.
If the shift lever cannot be shifted
With the shift lever in N
Depress the brake pedal to shift the shift lever. If the shift lever cannot be
shifted with your foot on the brake, there may be a problem with the shift
lock system. (P. 490)
With the shift lever in a position other than N
P. 490
If the driver's door is opened when the shift lever is in a position other
than N and the engine is running
A buzzer will sound. Close the driver's door.
If the parking brake is set when the shift lever is in a position other
than N with engine running
When the driver’s door is opened
A buzzer will sound and the gear position will automatically change to N
in 10 seconds.
When the driver’s door is closed
A buzzer will sound and the gear position will automatically change to N
in 90 seconds.
GearMaximum speed
1 42 (26)
2 79 (49)
3 116 (72)
4 156 (96)
5

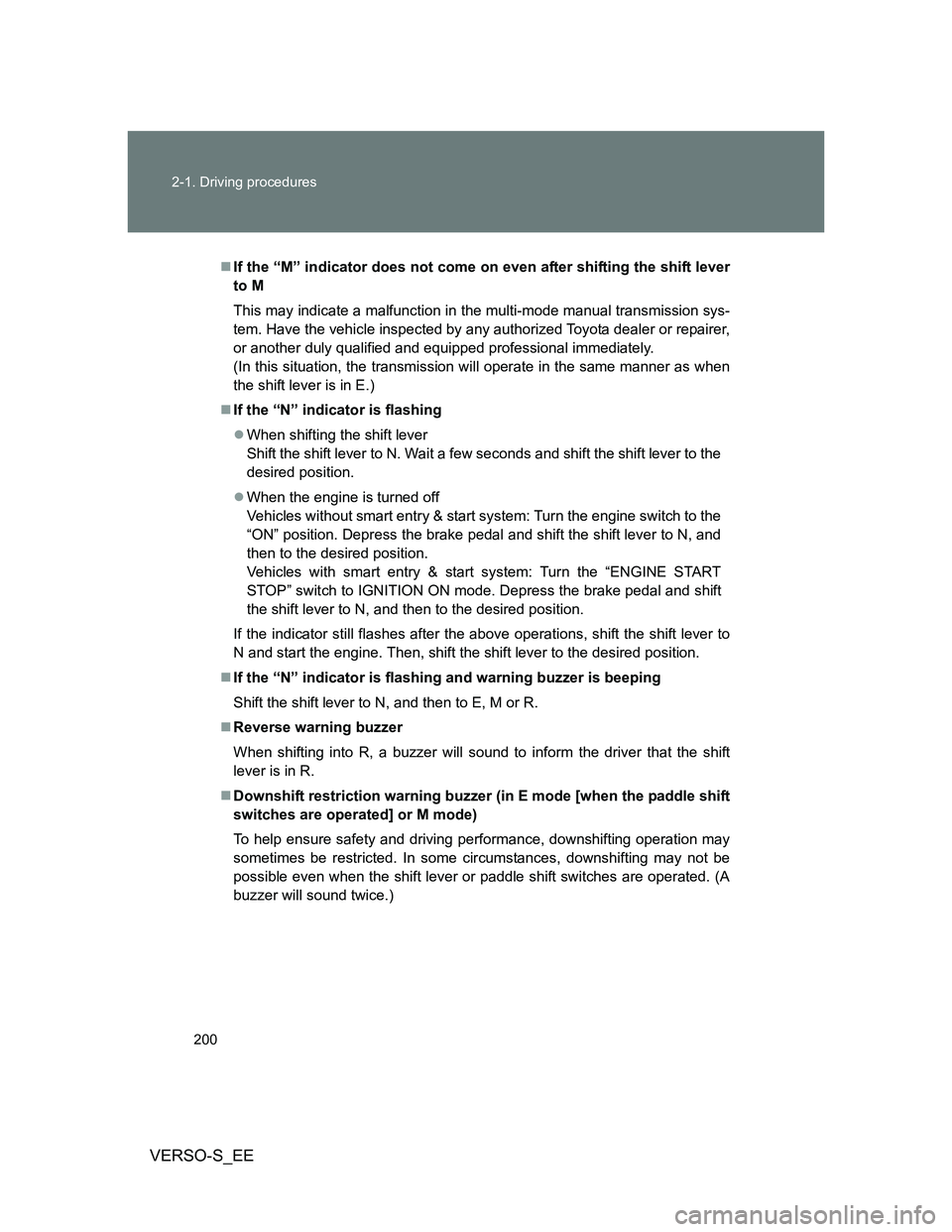

200 2-1. Driving procedures
VERSO-S_EE
If the “M” indicator does not come on even after shifting the shift lever
to M
This may indicate a malfunction in the multi-mode manual transmission sys-
tem. Have the vehicle inspected by any authorized Toyota dealer or repairer,
or another duly qualified and equipped professional immediately.
(In this situation, the transmission will operate in the same manner as when
the shift lever is in E.)
If the “N” indicator is flashing
When shifting the shift lever
Shift the shift lever to N. Wait a few seconds and shift the shift lever to the
desired position.
When the engine is turned off
Vehicles without smart entry & start system: Turn the engine switch to the
“ON” position. Depress the brake pedal and shift the shift lever to N, and
then to the desired position.
Vehicles with smart entry & start system: Turn the “ENGINE START
STOP” switch to IGNITION ON mode. Depress the brake pedal and shift
the shift lever to N, and then to the desired position.
If the indicator still flashes after the above operations, shift the shift lever to
N and start the engine. Then, shift the shift lever to the desired position.
If the “N” indicator is flashing and warning buzzer is beeping
Shift the shift lever to N, and then to E, M or R.
Reverse warning buzzer
When shifting into R, a buzzer will sound to inform the driver that the shift
lever is in R.
Downshift restriction warning buzzer (in E mode [when the paddle shift
switches are operated] or M mode)
To help ensure safety and driving performance, downshifting operation may
sometimes be restricted. In some circumstances, downshifting may not be
possible even when the shift lever or paddle shift switches are operated. (A
buzzer will sound twice.)

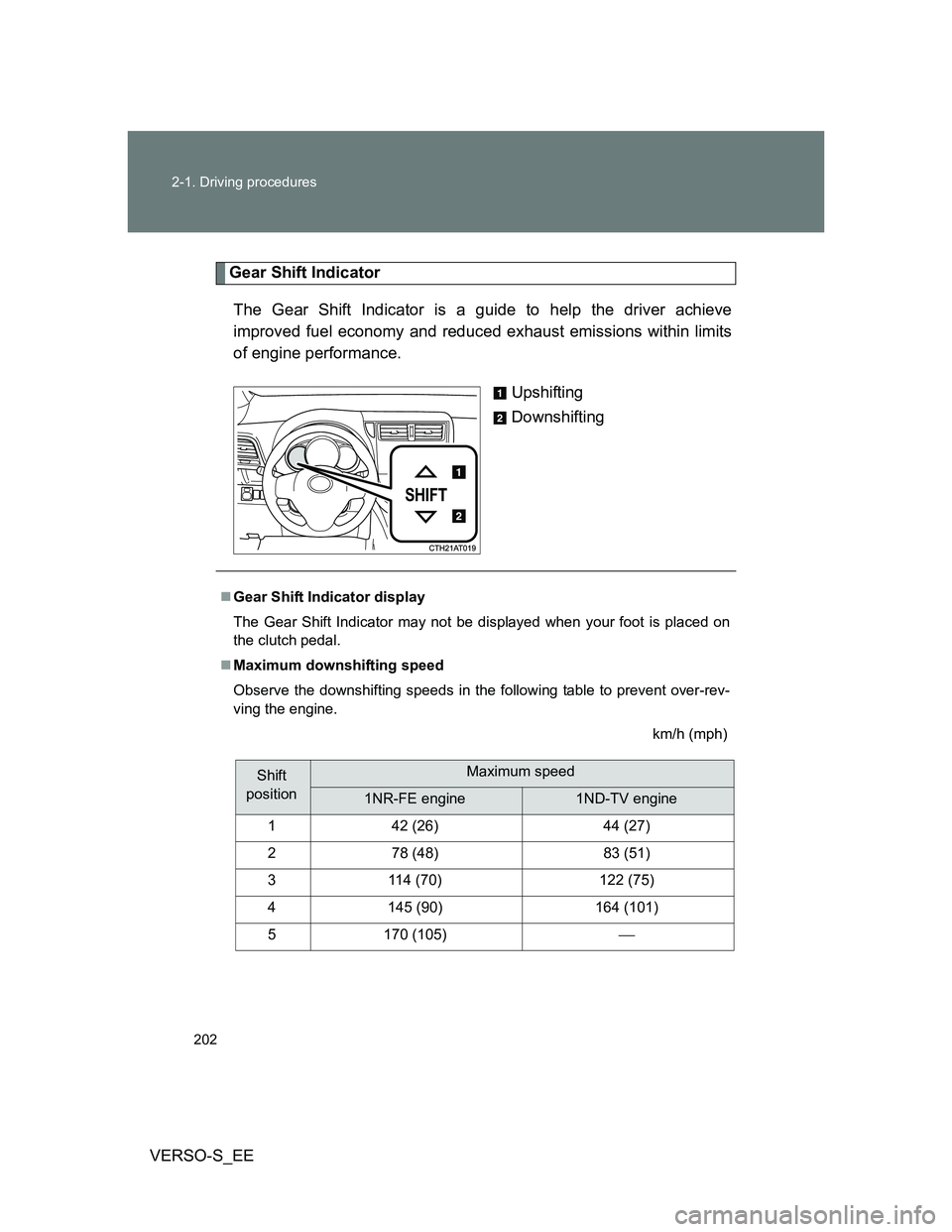

202 2-1. Driving procedures
VERSO-S_EE
Gear Shift Indicator
The Gear Shift Indicator is a guide to help the driver achieve
improved fuel economy and reduced exhaust emissions within limits
of engine performance.
Upshifting
Downshifting
Gear Shift Indicator display
The Gear Shift Indicator may not be displayed when your foot is placed on
the clutch pedal.
Maximum downshifting speed
Observe the downshifting speeds in the following table to prevent over-rev-
ving the engine.
km/h (mph)
Shift
positionMaximum speed
1NR-FE engine1ND-TV engine
1 42 (26) 44 (27)
2 78 (48) 83 (51)
3 114 (70) 122 (75)
4 145 (90) 164 (101)
5 170 (105)

204
2-1. Driving procedures
VERSO-S_EE
Turn signal lever
Turn signals can be operated when
Vehicles without a smart entry & start system: The engine switch is in the
“ON” position.
Vehicles with a smart entry & start system: The “ENGINE START STOP”
switch is in IGNITION ON mode.
If the indicator flashes faster than usual
Check that a light bulb in the front or rear turn signal lights has not burned
out.
The turn signal lever can be used to show the following intentions
of the driver:
Right turn
Left turn
Lane change to the right
(push and hold the lever
partway)
The right hand signals will
flash until you release the
lever.
Lane change to the left
(push and hold the lever
partway)
The left hand signals will flash
until you release the lever.

207
2
When driving
VERSO-S_EE
2-2. Instrument cluster
Gauges and meters
Tachometer
Displays the engine speed in revolutions per minute.
Speedometer
Displays the vehicle speed.
Outside temperature display
P. 342
Fuel gauge
Displays the quantity of fuel remaining in the tank.
Display change button
P. 208
Odometer, trip meter, Stop & Start system operation time, Stop &
Start system total operation time, meter light control and multi-
information display
P. 208, 219
Clock
P. 341
Clock adjusting buttons
P. 341
