208 2-2. Instrument cluster
VERSO-S_EE
Changing the display
Items displayed can be switched
by pressing the display change
button.
Odometer
Tr ip m eter
Stop & Start system operation time (if equipped)
Displays the total distance the vehicle has been
driven.
Displays the distance the vehicle has been driven
since the meter was last reset. Trip meters A and
B can be used to record and display different dis-
tances independently.
Pressing and holding the display change button will
reset the trip meter that is currently displayed.
Displays the total amount of time the Stop & Start
system has operated (total engine stop time due to
the Stop & Start system) from the engine switch
being turned to “ON” until it is turned to “LOCK”
(vehicles without smart entry & start system) or from
the “ENGINE START STOP” switch being changed
to IGNITION ON mode until it is changed to off (vehi-
cles with a smart entry & start system).

209 2-2. Instrument cluster
2
When driving
VERSO-S_EEStop & Start system total operation time (if equipped)
Instantaneous fuel consumption
P. 220
Average fuel consumption
P. 221
Driving range
P. 221
Meter light controlDisplays the total amount of time that the engine
has been stopped due to operation of the Stop &
Start system since the system was last reset.
Press and hold the button to reset.
Displays the brightness of the meter light when
the headlight switch is on.
Pressing and holding the button will adjust bright-
ness of the meter light.

211 2-2. Instrument cluster
2
When driving
VERSO-S_EEChanging mandatory displaying or hiding of the Stop & Start
system operation time (vehicles with a Stop & Start system)
The Stop & Start system opera-
tion time display can be dis-
played mandatorily or hid by
pressing the display change but-
ton while displaying the Stop &
Start system operation time cus-
tomizing display.
To display the Stop & Start sys-
tem operation time customization
display, display the Stop & Start
system operation time and press
and hold the display change but-
ton for 5 seconds or more. How-
ever, while the Stop & Start
system operation time is being
displayed mandatorily, the display
will not change to the Stop & Start
system operation time customiza-
tion display.
When customization is complete,
press and hold the button for 2
seconds or more to return to the
Stop & Start system operation
time display.
The meters and display operate when
Vehicles without a smart entry & start system:
The engine switch is in the “ON” position.
Vehicles with a smart entry & start system:
The “ENGINE START STOP” switch is in IGNITION ON mode.

212 2-2. Instrument cluster
VERSO-S_EE
NOTICE
To prevent damage to the engine and its components
Do not let the indicator needle of the tachometer enter the red zone, which
indicates the maximum engine speed.
The engine may be overheating if the high engine coolant temperature
warning light flashes or turns on. In this case, immediately stop the vehicle
in a safe place, and check the engine after it has cooled completely.
(
P. 505)

215 2-2. Instrument cluster
2
When driving
VERSO-S_EE
Indicators
The indicators inform the driver of the operating state of the
vehicle’s various systems.
Turn signal indicator
(P. 204)
(Vehicles with
a manual
transmission)
Gear Shift Indicator
(P. 202)
Headlight high beam
indicator (P. 223)
(Diesel engine)
Engine preheating
indicator (P. 176, 186)
(If equipped)
Tail light indicator
(P. 222)
(If equipped)
Cruise control indicator
(P. 245)
(If equipped)
Front fog light indicator
(P. 228)
(If equipped)
Cruise control set indi-
cator (P. 245)
Rear fog light indicator
(P. 228)VSC OFF indicator
(P. 250)
(If equipped)
Smart entry & start sys-
tem indicator (P. 176)“TRC OFF” indicator
(P. 250)
(If equipped)
Stop & Start indicator
(P. 238)
(Vehicles with
a Multidrive)
“SPORT” indicator
(P. 191)
Engine immobilizer/
alarm system indicator
(P. 107)Slip indicator
(P. 250)
Low engine coolant
temperature indicator
*1
*1
*1
*1
*1, 2
*3

216 2-2. Instrument cluster
VERSO-S_EE
*1: These lights turn on when the “ENGINE START STOP” switch is
turned to IGNITION ON mode (vehicles with a smart entry & start
system) or the engine switch is turned to the “ON” position (vehicles
without a smart entry & start system) to indicate that a system check
is being performed. They will turn off after the engine is started, or
after a few seconds. There may be a malfunction in a system if a
light does not come on, or if the lights do not turn off. Have the vehi-
cle inspected by any authorized Toyota dealer or repairer, or
another duly qualified and equipped professional.
*2: The light flashes to indicate that the system is operating.
*3: This indicator turns on when the engine coolant temperature is low.
(Vehicles with
a Multidrive)
Eco Driving Indicator
Light (P. 166)
(If equipped)
Stop & Start cancel indi-
cator (P. 238)
(Vehicles with a multi-mode manual transmis-
sion)
Shift position and gear position indi-
cators (P. 196)
(Vehicles with a Multidrive)Shift position and gear step position
indicators (P. 190)
Airbag manual on-off indicator
(P. 135)
*1*1

217 2-2. Instrument cluster
2
When driving
VERSO-S_EE
Warning lights
Warning lights inform the driver of malfunctions in any of the
vehicle’s systems. (P. 443)
*1: These lights turn on when the “ENGINE START STOP” switch is
turned to IGNITION ON mode (vehicles with a smart entry & start
system) or the engine switch is turned to the “ON” position (vehicles
without a smart entry & start system) to indicate that a system check
is being performed. They will turn off after the engine is started, or
after a few seconds. There may be a malfunction in a system if a
light does not come on, or if the lights do not turn off. Have the vehi-
cle inspected by any authorized Toyota dealer or repairer, or
another duly qualified and equipped professional.
*2: The light flashes in yellow to indicate a malfunction. The light
flashes quickly in green to indicate that the steering lock has not
been released.
*3: The light flashes to indicate a malfunction.
(If equipped)
(If equipped)(If equipped)(Diesel
engine)(Diesel
engine)(If equipped)
(For driver
and front
passenger)
(For rear passenger)
(Diesel
engine)(Diesel
engine)(If equipped)
*1*1*1*1*1*1*1*1
*1*1, 3*1*1*1*3
*1*1*2

218 2-2. Instrument cluster
VERSO-S_EE

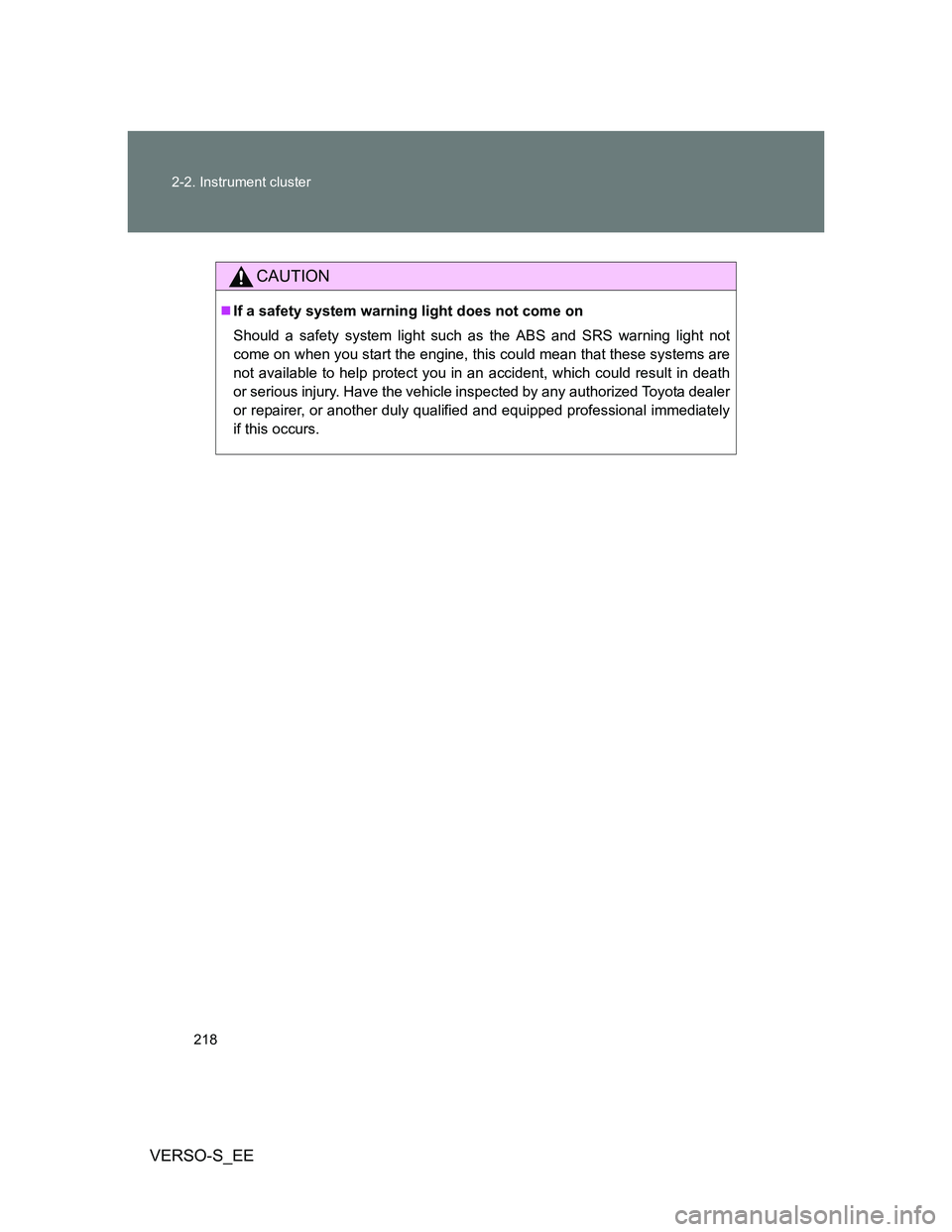

CAUTION
If a safety system warning light does not come on
Should a safety system light such as the ABS and SRS warning light not
come on when you start the engine, this could mean that these systems are
not available to help protect you in an accident, which could result in death
or serious injury. Have the vehicle inspected by any authorized Toyota dealer
or repairer, or another duly qualified and equipped professional immediately
if this occurs.
